Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
CH235

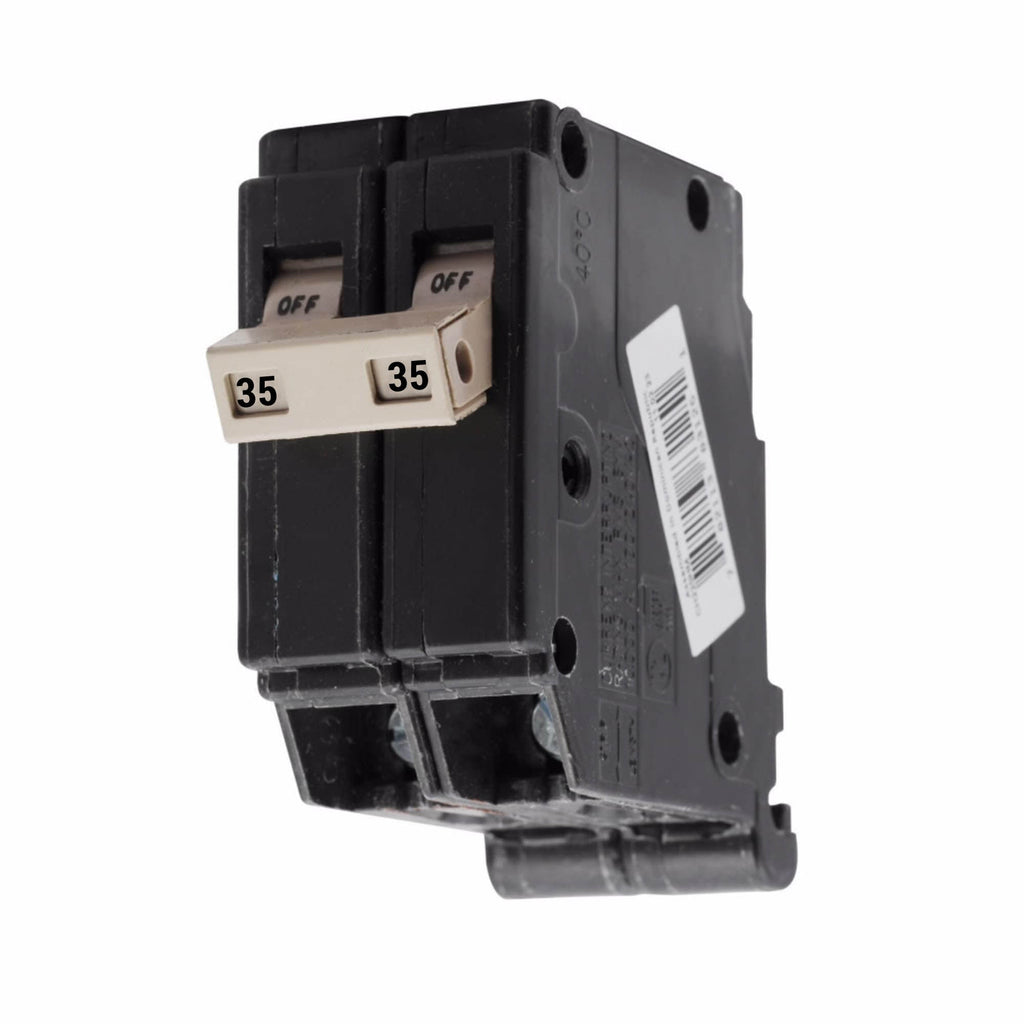

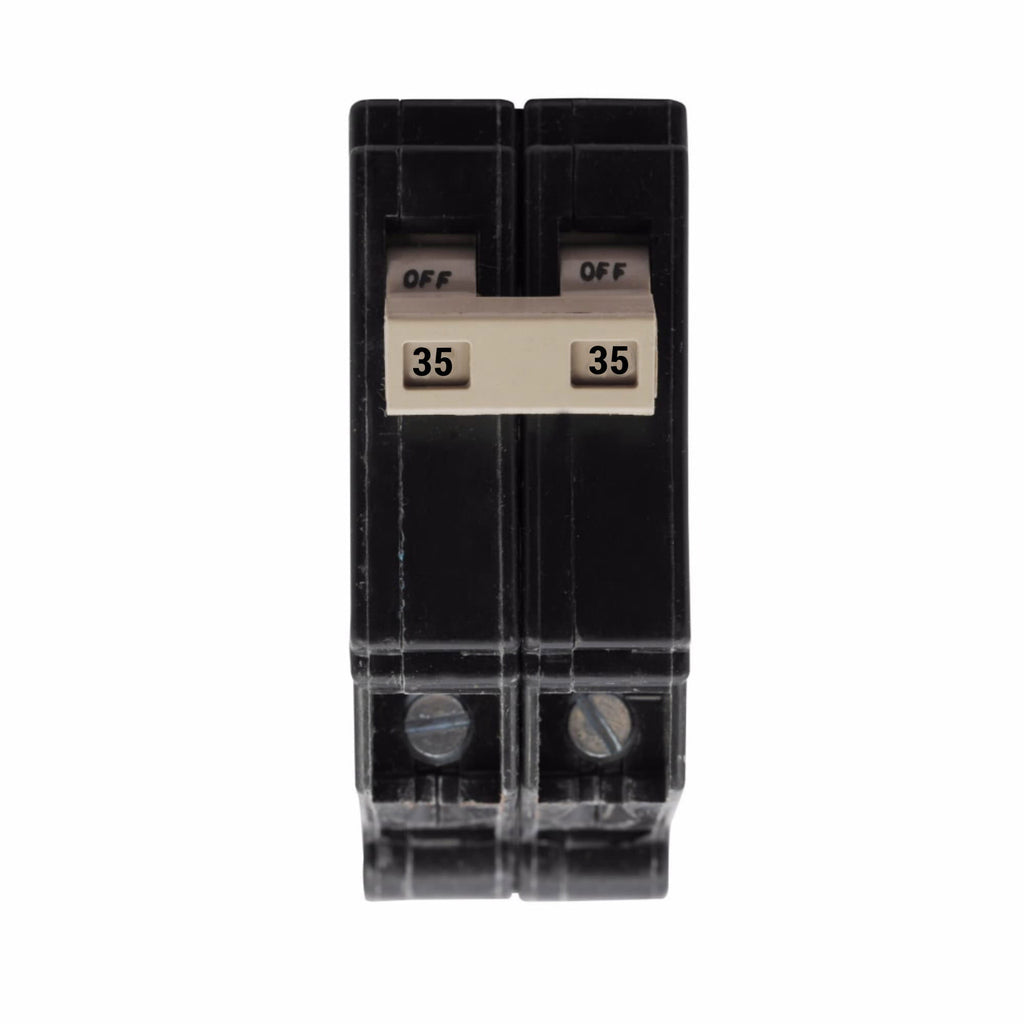

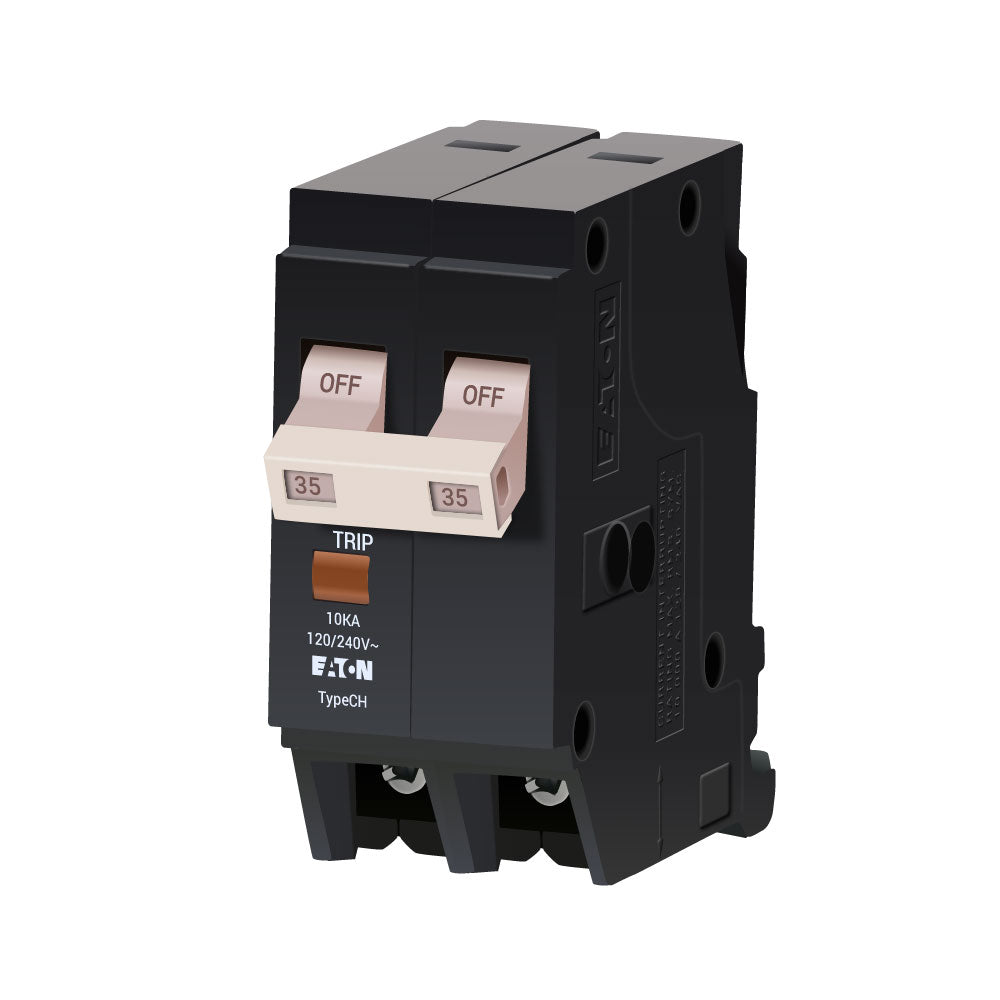

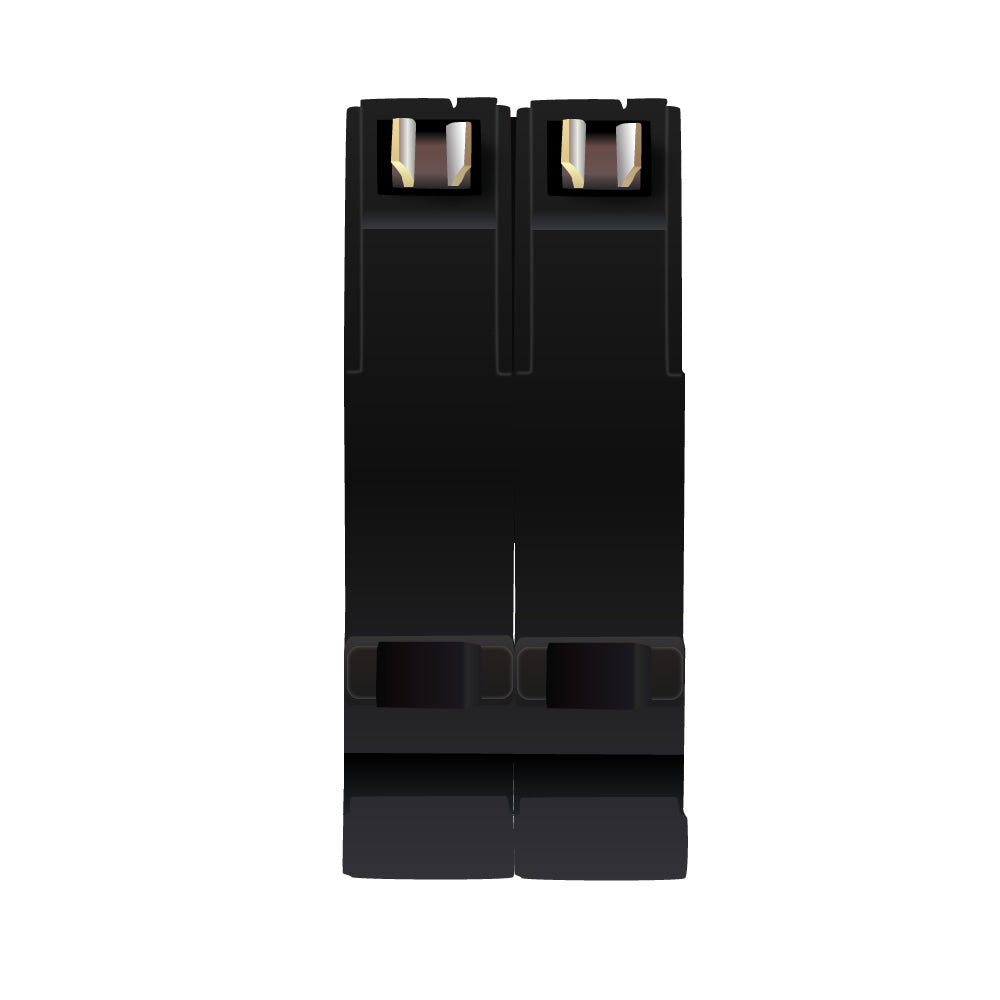

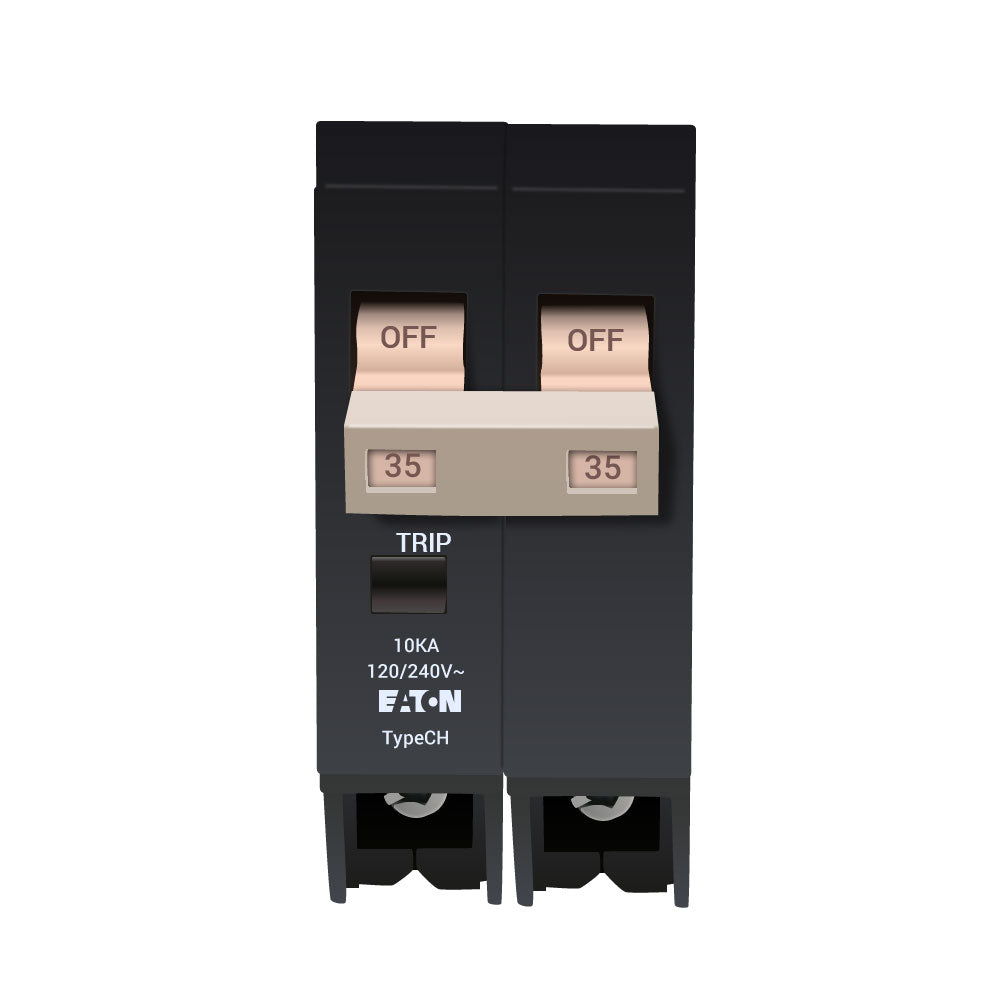

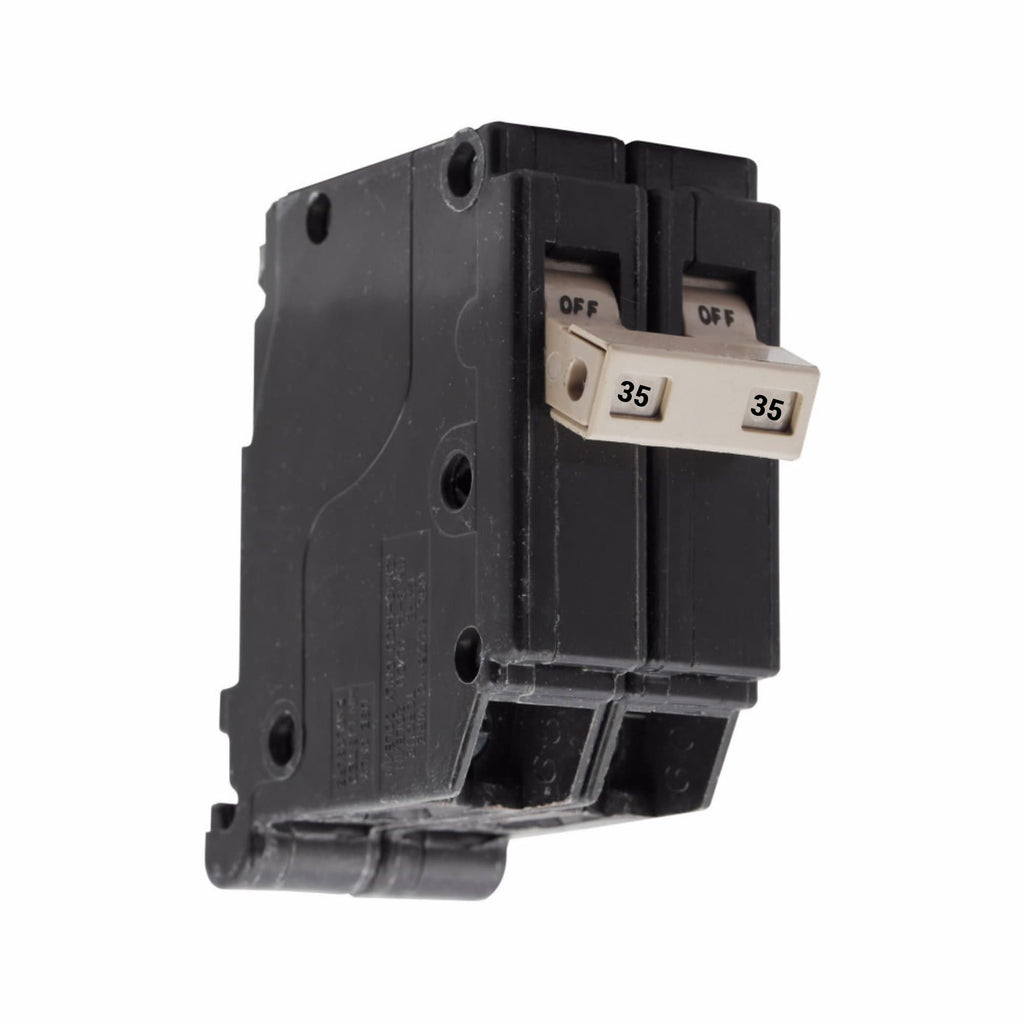

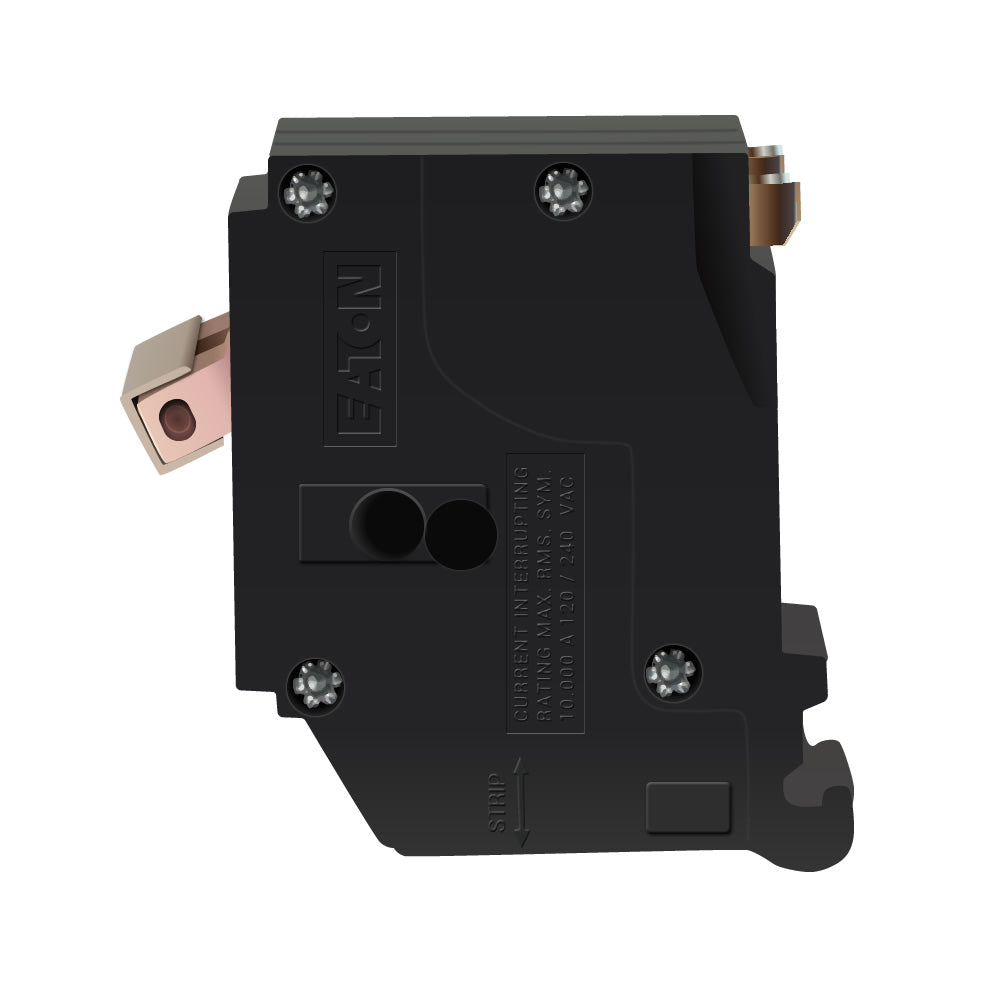

CH235 is a Cutler Hammer molded case circuit breaker designed for 35 ampere, 2-pole, 120/240 volt applications.This circuit breaker features a thermal magnetic trip unit with a common trip mechanism, providing reliable protection for electrical circuits. It has a plug-on mounting type and an interrupting rating of 10,000 amperes at 120/240 volts. The breaker is compatible with wire sizes from 14 to 2 AWG and meets industry certification standards for safety and performance.
- Key Specifications
- Amperage: 35A
- Voltage: 120/240 VAC
- Poles: 2
- Mounting Type: Plug-On
- Interrupting Rating: 10,000 AIC @ 120/240V
- Trip Unit: Thermal Magnetic, Common Trip
- Wire Size Range: 14 to 2 AWG
- Series/Frame: CH Type
- Certifications: Industry Standard Safety Certifications
- Part Number: CH235
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : CH Series
- Type : CH
- Voltage : 240
- Amperage : 35
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
- UPC : 784891779251
- GTIN : 00782113312248
- Weight : 5.7
- Wire Size : 14 To 2 AWG (Aluminum/Copper)
