Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description

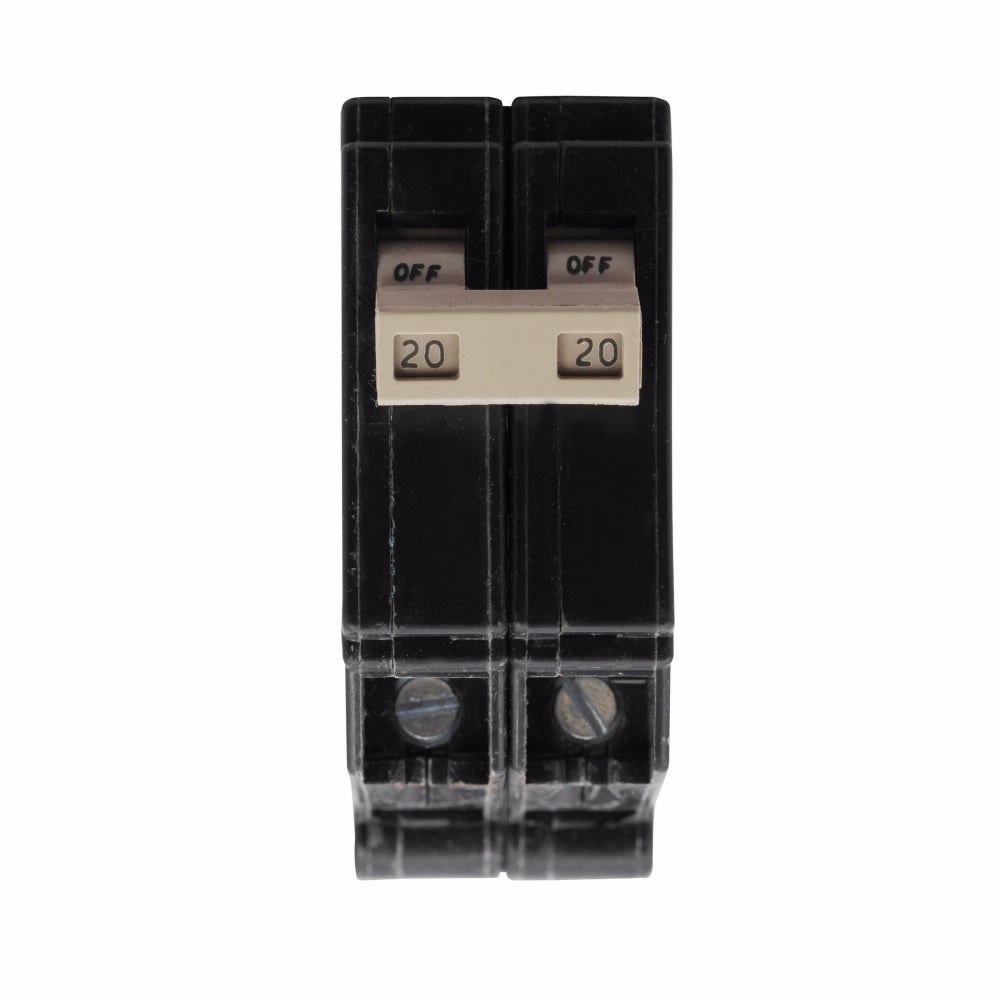

CH220HM
CH220HM is a Type CH thermal-magnetic circuit breaker manufactured by Eaton for residential loadcenters. This two-pole breaker provides reliable overload and short-circuit protection with a thermal-magnetic trip curve that minimizes nuisance tripping while responding instantaneously to severe faults. Key Specifications
- Amperage Rating: 20 Amp
- Voltage Rating: 120/240 VAC
- Number of Poles: Two-pole
- Interrupt Rating: 10 kAIC
- Circuit Breaker Type: CH
- Mounting Type: Plug-on
- Wire Size: (2) #14-10 AWG Cu/Al
- UL Certification: UL 489
- Dimensions: 3.5 in L x 1.5 in W x 3.5 in H
- Trip Type: Thermal-magnetic
- Common Trip: Two 3/4-inch spaces required
Specifications
- Part Number: CH220HM
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Voltage : 240
- Amperage : 20
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Protection : Thermal Magnetic
Product Data
- UPC : 782113831251
- GTIN : 00782113831251
- Country of Origin : Dominican Republic
- Dimensions : 3.5 in x 3.5 in x 1.5 in (Length/Depth x Height x Width)
- Weight : 0.5
- Certification : UL 489
