Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description

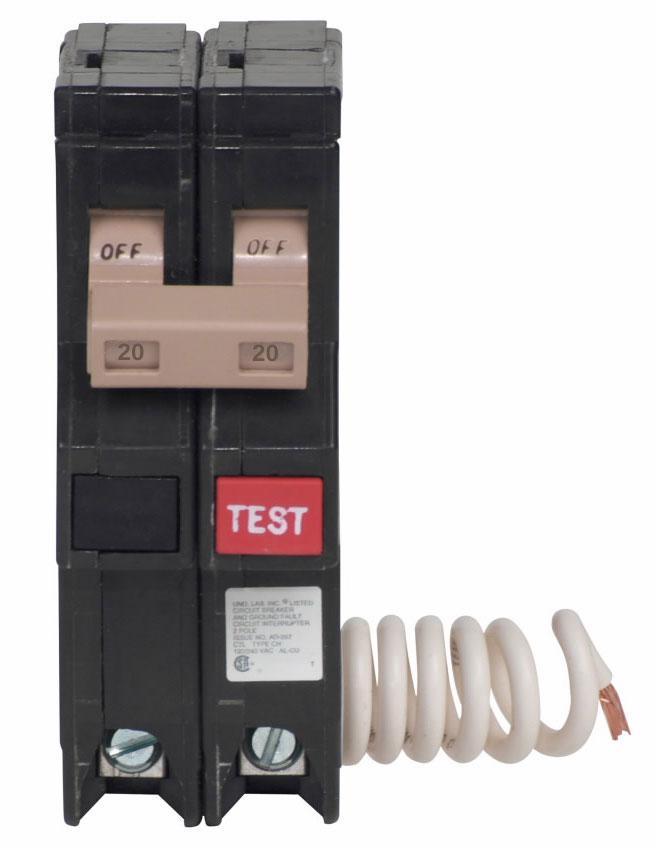

CH220GF
CH220GF is a 2 pole, 20A, 120/240V ground fault circuit breaker designed for use in Cutler Hammer load centers. This breaker features a plug-in mounting type and provides reliable protection for branch circuits. The CH220GF offers thermal magnetic protection with long time and instantaneous trip functions. It is suitable for both copper and aluminum conductors and is rated for 10kAIC at 240V. The breaker is UL listed and designed for use in residential and commercial applications.
- Part Number: CH220GF
- Manufacturer: Cutler Hammer
- Amperage: 20A
- Voltage: 120/240V
- Poles: 2
- Mounting Type: Plug-In
- Interrupt Rating: 10kAIC @ 240V
- Series/Frame: CH
- Trip Unit: Thermal Magnetic
- Certifications: UL Listed
- Wire Gauge: #14 to #6 AWG Cu/Al
- Temperature Rating: 60 to 75°C
Specifications
- Part Number: CH220GF
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : CH Series
- Type : CH
- Voltage : 240
- Amperage : 20
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 078211329615
- GTIN : 00782113296159
- Dimensions : 6 in x 2 in x 2 in (Length/Depth x Height x Width)
- Weight : 0.8
- Certification : UL
- Wire Size : #14 to 6 AWG CU/AL
