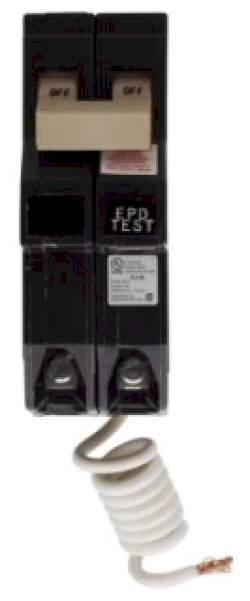

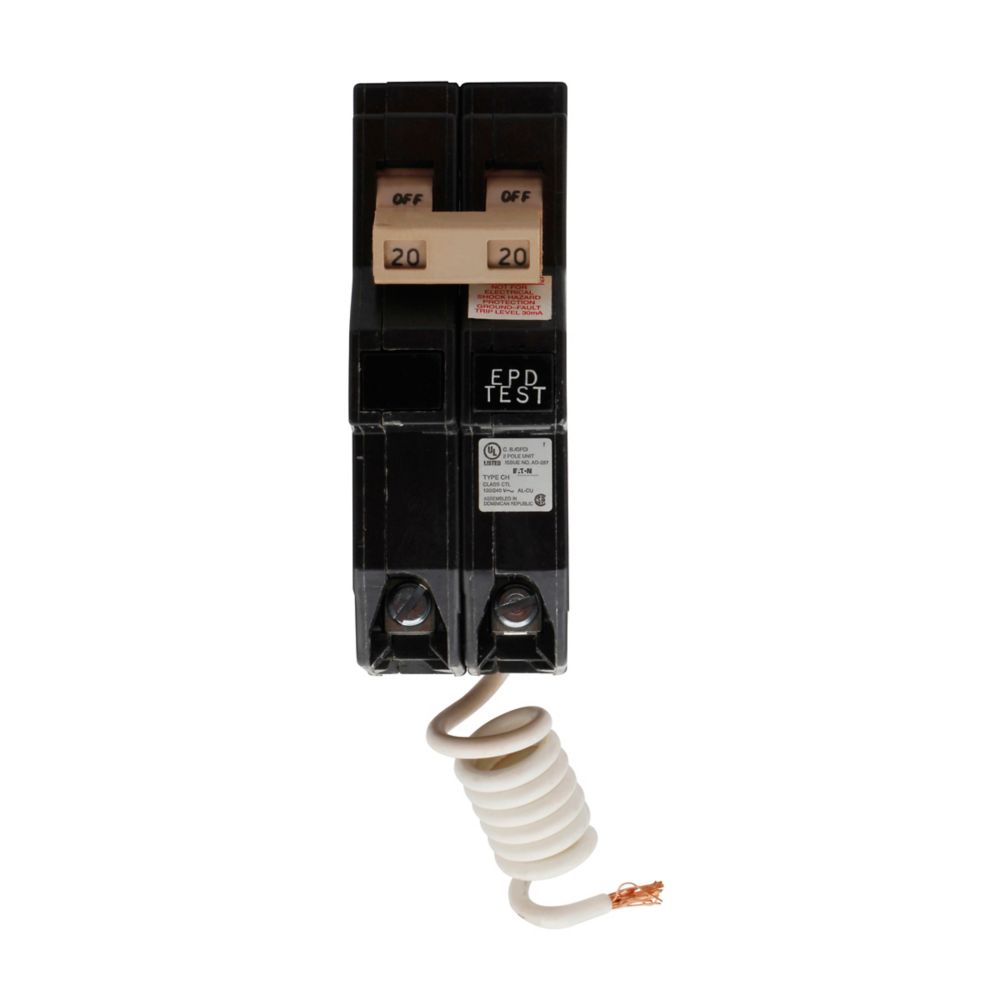

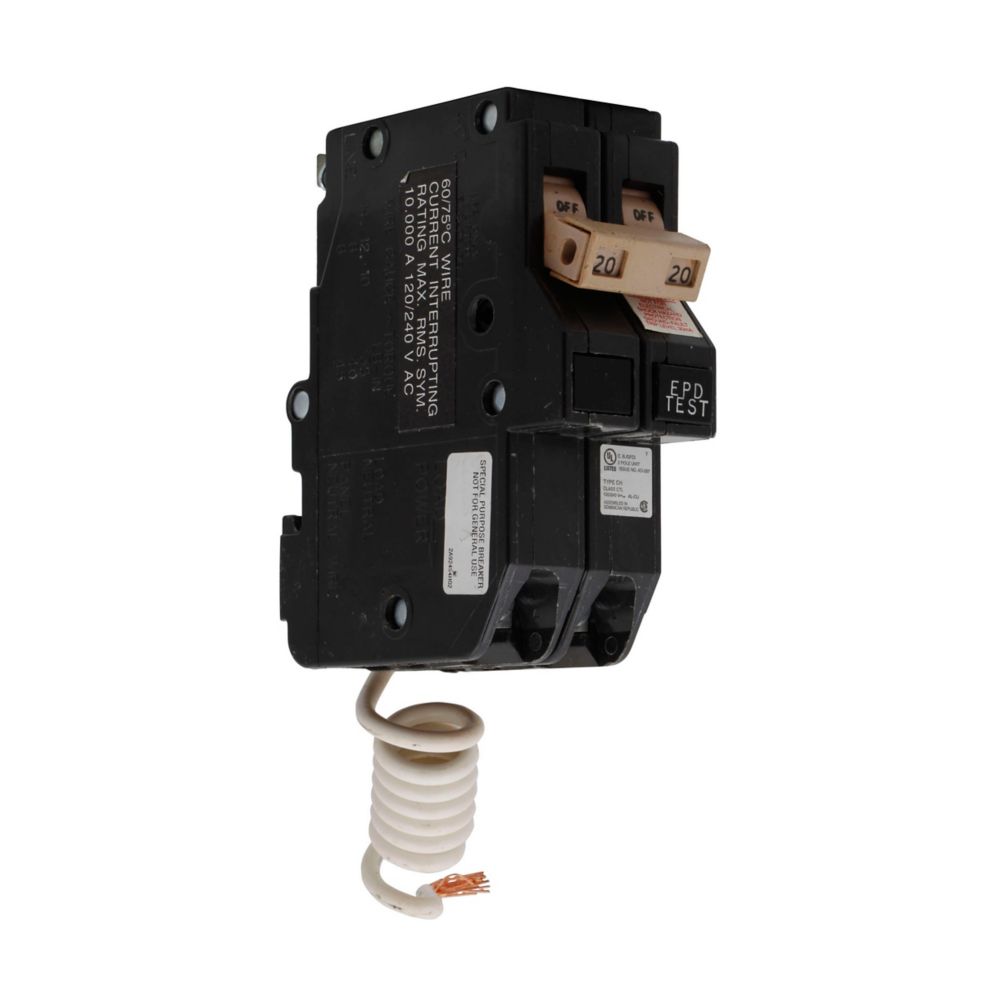

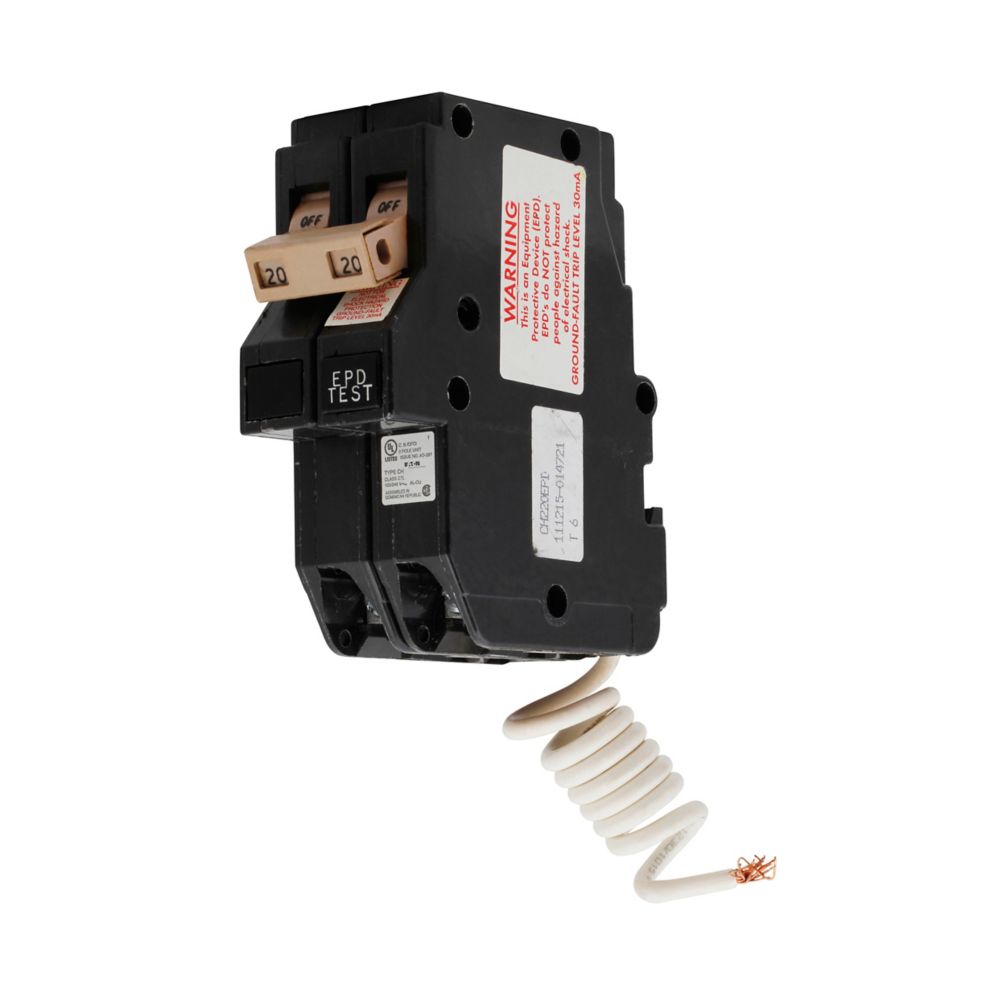

CH220EPD - Cutler Hammer 20A 240V 2 Pole GFCI Circuit Breaker 10kA CH Frame Plug-In

CH220EPD

CH220EPD is a 20 Amp, 240 Volt, 2 pole ground fault circuit breaker from Cutler Hammer designed for Type CH load centers.This molded case circuit breaker features a 10kA interrupting rating at 120V, thermal magnetic protection with long time and instantaneous trip functions, and a plug-in connection type. It supports wire sizes from #14 to 6 AWG copper or aluminum and is UL listed for safety.

Key Specifications
• Amperage: 20 Amps
• Voltage: 120/240 VAC
• Poles: 2
• Interrupt Rating: 10kA at 120V
• Frame Type: CH
• Connection Type: Plug-In
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Wire Gauge: #14 to 6 AWG Cu/Al
• Certifications: UL Listed
• Mounting: For Type CH Load Centers
• Phase: Single

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CH220EPD
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CH Series
• Type : CH
• Voltage : 240
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 078211391295
• GTIN : 00782113912950
• Country of Origin : Dominican Republic
• Dimensions : 3 in x 3 in x 2 in (Length/Depth x Height x Width)
• Weight : 1.8
• Certification : UL 489
• Wire Size : #14 to 6 AWG (Cu/Al)
