Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
CH220AF

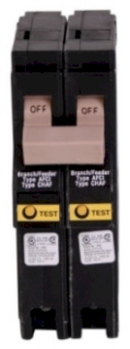

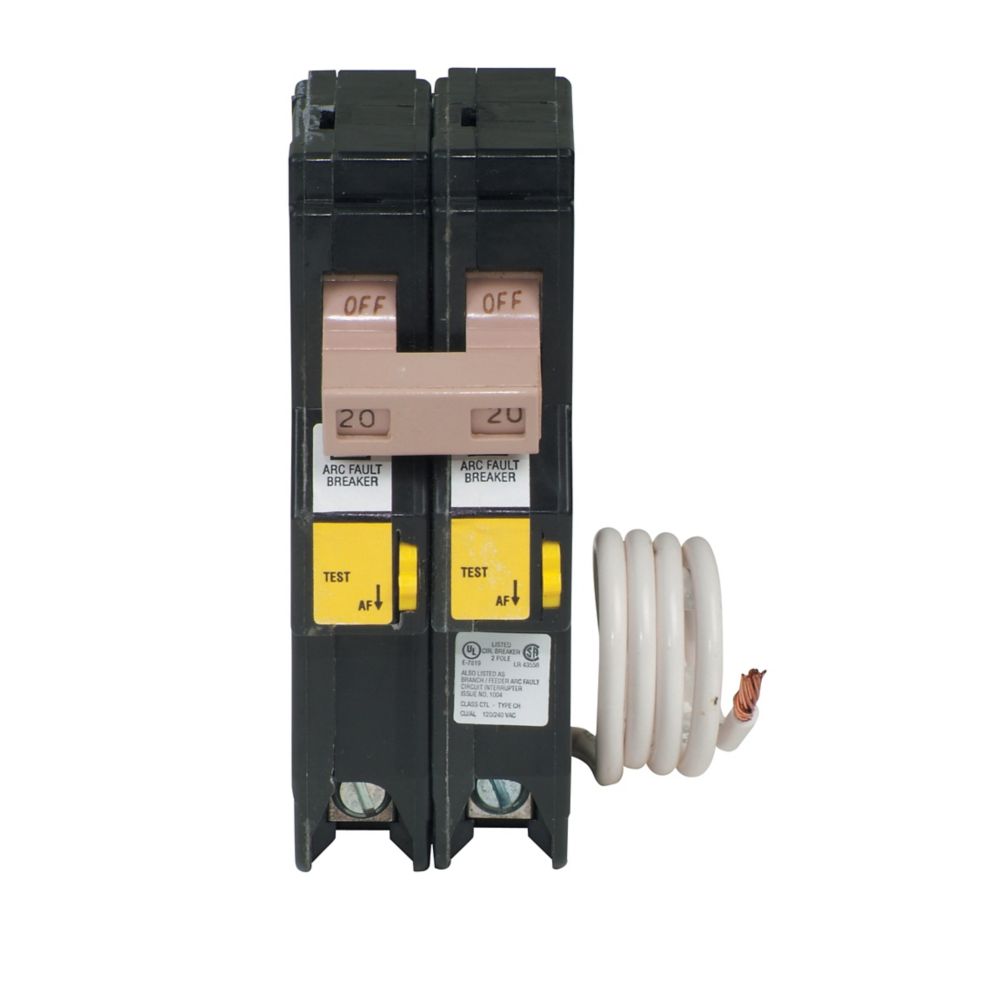

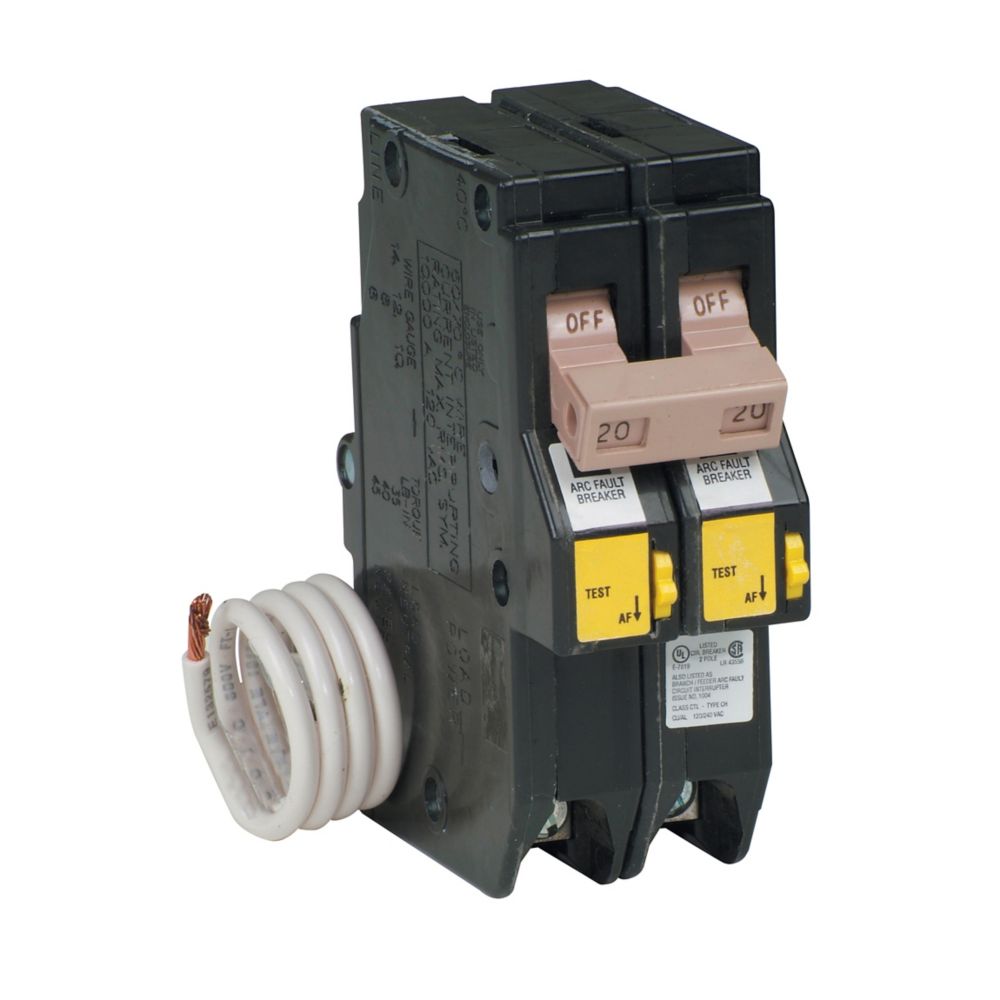

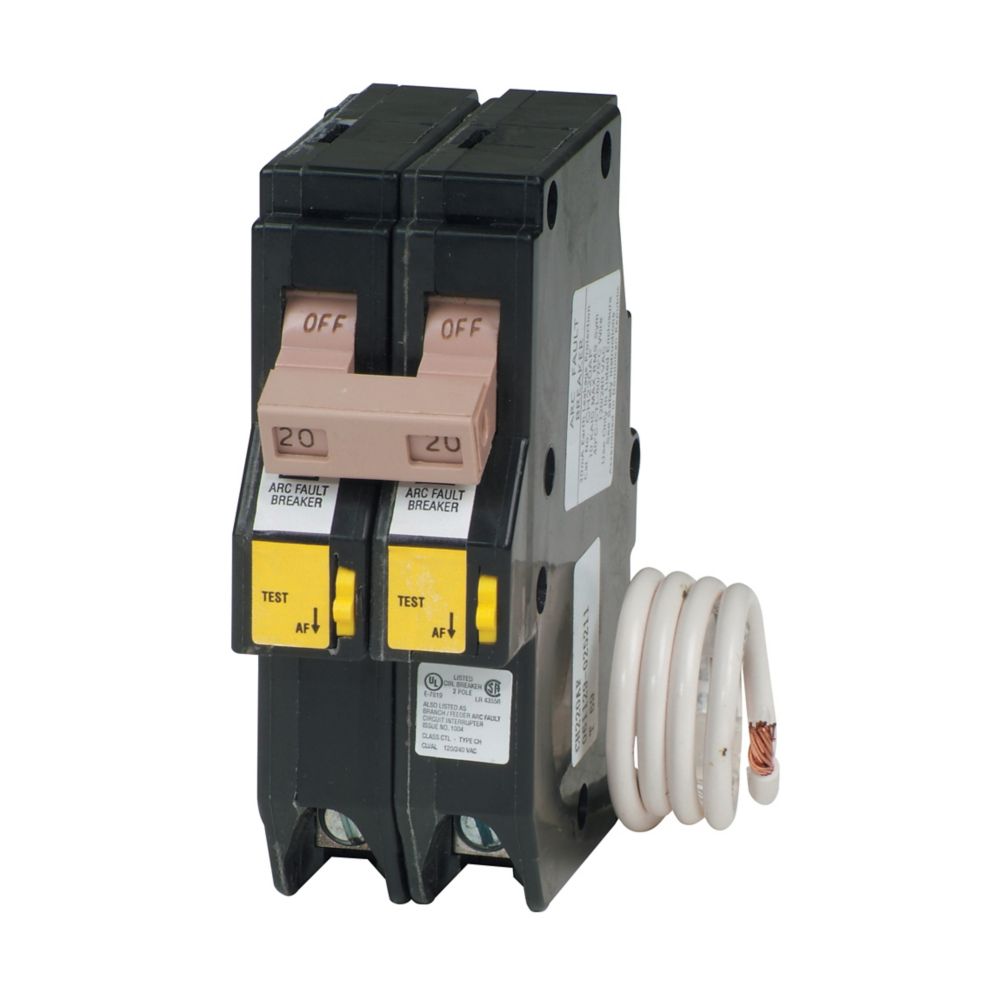

CH220AF is a 2-pole, 20-amp arc fault circuit interrupter (AFCI) breaker rated for 120/240V AC service with a 10 kAIC interrupt rating.
The CH220AF provides arc fault protection in residential and light commercial applications, detecting dangerous arcing faults behind walls and quickly de-energizing circuits before an arc can cause a fire. This plug-in breaker is designed for use in Eaton CH-series load centers and features thermal-magnetic trip technology that avoids nuisance tripping on mild overloads while responding instantaneously to severe short-circuit conditions.
- Amperage Rating: 20A
- Voltage: 120/240V AC
- Number of Poles: 2
- Mounting Type: Plug-In
- Interrupt Rating: 10 kAIC at 240V
- Frame Series: CH
- Trip Unit: Thermal-Magnetic with AFCI
- Width: 2 inches
- Compatible with CH-series load centers
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: CH220AF
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Voltage : 240
- Amperage : 20
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : Long Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 786685215532
- GTIN : 00786685215532
- Dimensions : 3 in x 3 in x 2 in (Length/Depth x Height x Width)
- Weight : 1.8
- Certification : UL
