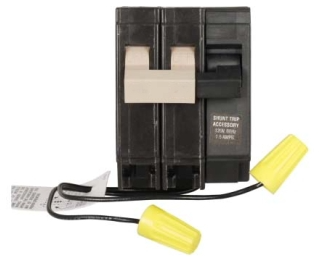

CH2125ST - Cutler Hammer CH Series 125A 2 Pole 120/240VAC Circuit Breaker 10kA Interrupt

CH2125ST

CH2125ST is a Cutler Hammer CH Series 2 Pole circuit breaker designed for reliable protection in commercial and residential applications. This breaker features a thermal magnetic trip unit and a common trip design for simultaneous operation of both poles. The CH2125ST is compatible with Type CH loadcenters and offers a plug-on mounting style for easy installation. It is rated for 125A continuous current and 120/240VAC voltage, with a 10kA interrupt rating for robust short circuit protection. The breaker is designed for wire sizes from 10 to 1/0 AWG and features a lug terminal for secure connections.

• Part Number: CH2125ST
• Manufacturer: Cutler Hammer
• Series/Frame: CH Series
• Amperage Rating: 125 A
• Voltage Rating: 120/240 VAC
• Number of Poles: 2
• Interrupt Rating: 10 kA
• Mounting Type: Plug-On
• Connection Type: Lug Terminal
• Wire Size: 10 - 1/0 AWG
• Temperature Rating: 60 - 75 deg C
• Trip Type: Common, Thermal Magnetic

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CH2125ST
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CH Series
• Type : CH
• Voltage : 240
• Amperage : 125
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous
• Frame Size : CH
• Protection : Thermal Magnetic

Product Data

• UPC : 782113364308
• GTIN : 00782113364308
• Country of Origin : Dominican Republic
• Dimensions : 3.5 in x 4.4 in x 3.5 in (Length/Depth x Height x Width)
• Weight : 0.9
• Certification : UL 489
• Wire Size : 10 - 1/0 AWG Cu/Al
