Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
CH2100X

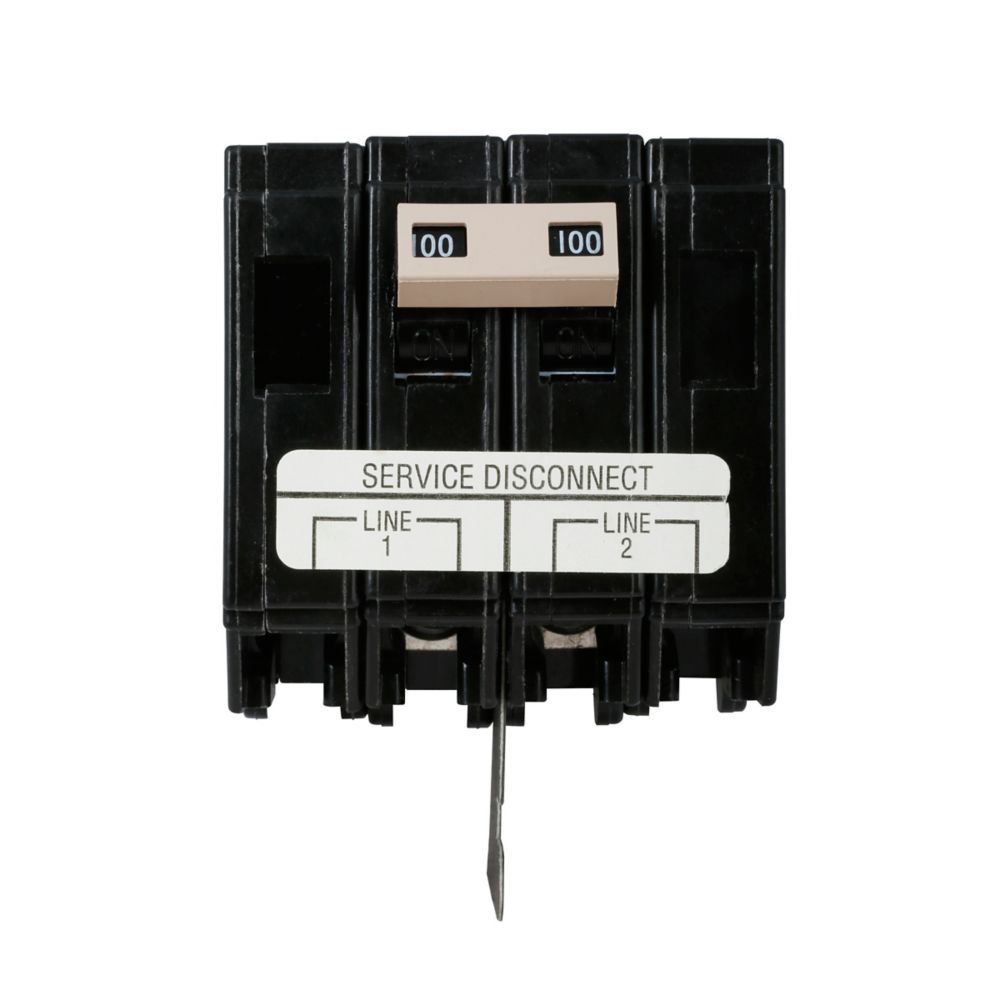

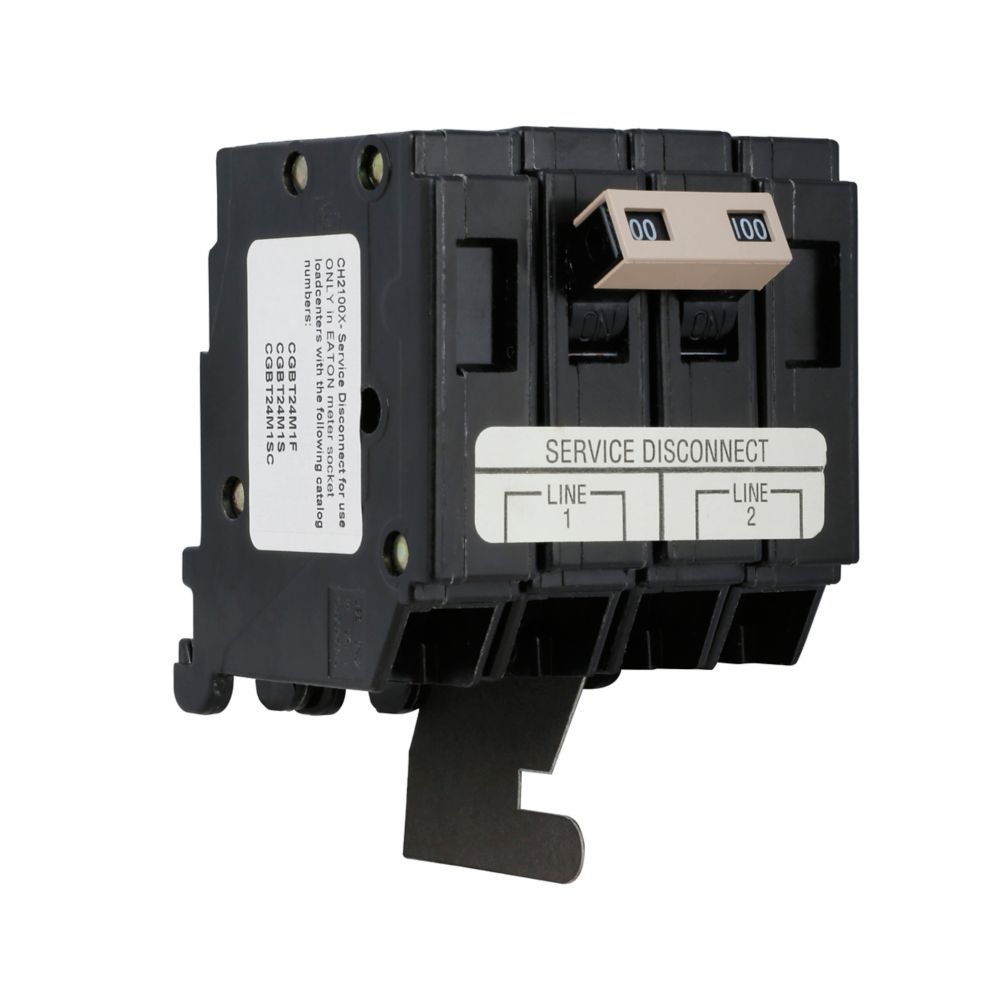

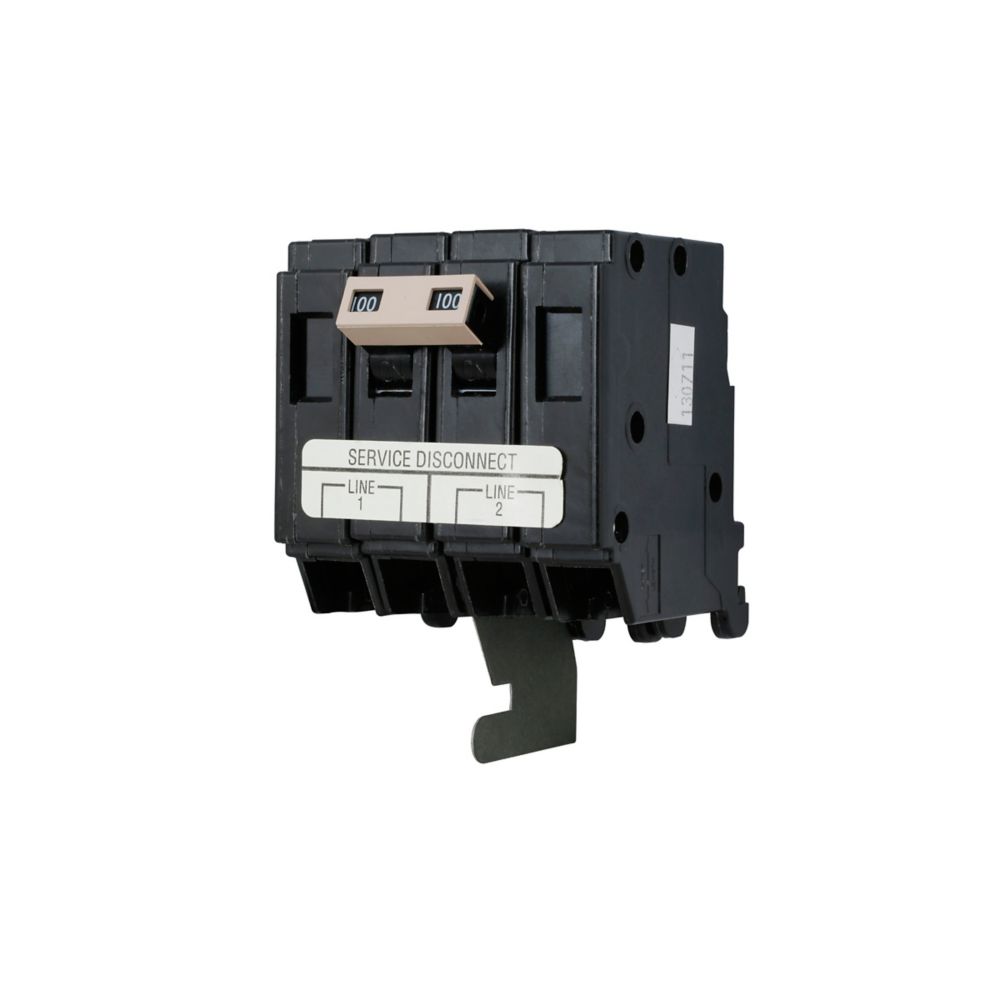

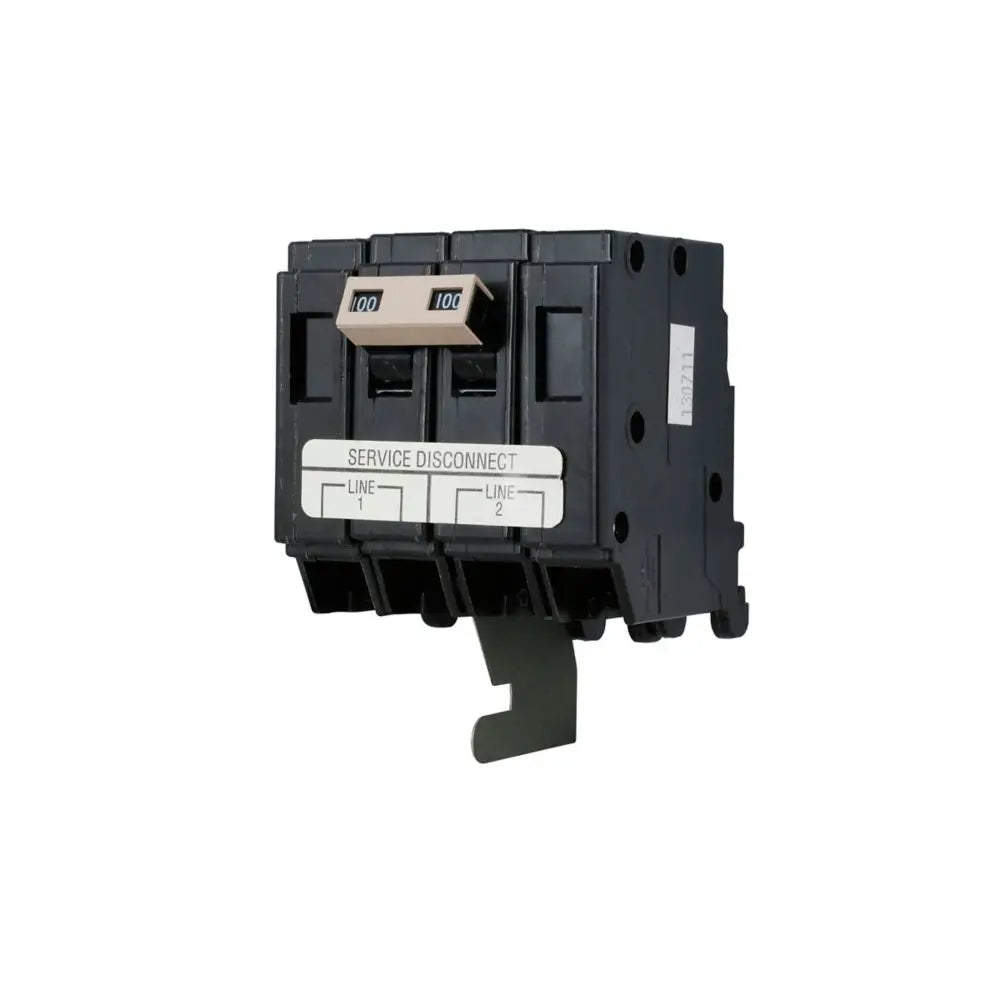

CH2100X is a 100 Amp, 2-Pole thermal magnetic circuit breaker from Eaton's Type CH series designed for 120/240V applications with a 10 kA interrupt rating.This Eaton CH2100X circuit breaker features a thermal magnetic trip unit providing reliable overload and short circuit protection. It is a 3/4-inch frame breaker commonly used in residential and light commercial load centers. The breaker has a common trip mechanism for simultaneous pole operation and meets industry safety certifications.
- Amperage: 100 Amps
- Voltage Rating: 120/240 Volts AC
- Number of Poles: 2
- Interrupt Rating: 10 kAIC
- Type: Thermal Magnetic
- Series/Frame: Type CH, 3/4-Inch
- Mounting: Plug-on Mount
- Common Trip: Yes
- Length: Approximately 9.5 inches
- Certifications: UL Listed
- Country of Origin: Dominican Republic
Specifications
- Part Number: CH2100X
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : CH Series
- Type : CH
- Voltage : 240
- Amperage : 100
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : Long Time and Instantaneous Trip
Product Data
- UPC : 78211394307
- GTIN : 00782113943077
- Country of Origin : Dominican Republic
- Dimensions : 9.5 in x 3.8 in x 4 in (Length/Depth x Height x Width)
- Weight : 1.4
- Certification : UL 489
- Wire Size : 10 AWG to 1/0 AWG, 14 AWG to 2 AWG, Cu/Al
