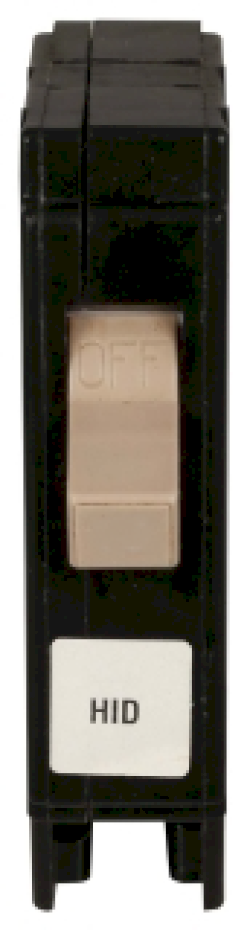

CH120HID - Cutler Hammer 20A 120/240V 1-Pole CH Frame High Intensity Discharge Circuit Breaker

CH120HID

CH120HID is a Cutler Hammer 20 Amp, 120/240 Volt, 1-pole thermal magnetic circuit breaker designed for high intensity discharge protection.CH120HID features a CH frame with plug-on mounting, a 10kA interrupting rating at 120V, and long-time and instantaneous trip functions. It is UL 489 certified and suitable for use in Type CH loadcenters. This breaker supports wire sizes (2) #14-10 AWG Cu/Al and (1) #14-8 AWG.

Key Specifications
• Amperage: 20 A
• Voltage: 120/240 VAC
• Poles: 1
• Mounting Type: Plug-On
• Interrupt Rating: 10 kAIC at 120 V
• Frame/Series: CH
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
• Certifications: UL 489
• Wire Gauge: (2) #14-10 AWG Cu/Al, (1) #14-8 AWG
• Application: High Intensity Discharge Protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CH120HID
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CH Series
• Type : CH
• Voltage : 120
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 782113859170
• GTIN : 00782113859170
• Country of Origin : Dominican Republic
• Weight : 0.28
• Certification : UL 489
