CFD63A250 - Siemens 250A 600V 3-Pole Molded Case Circuit Breaker CFD Frame Bolt-On

CFD63A250

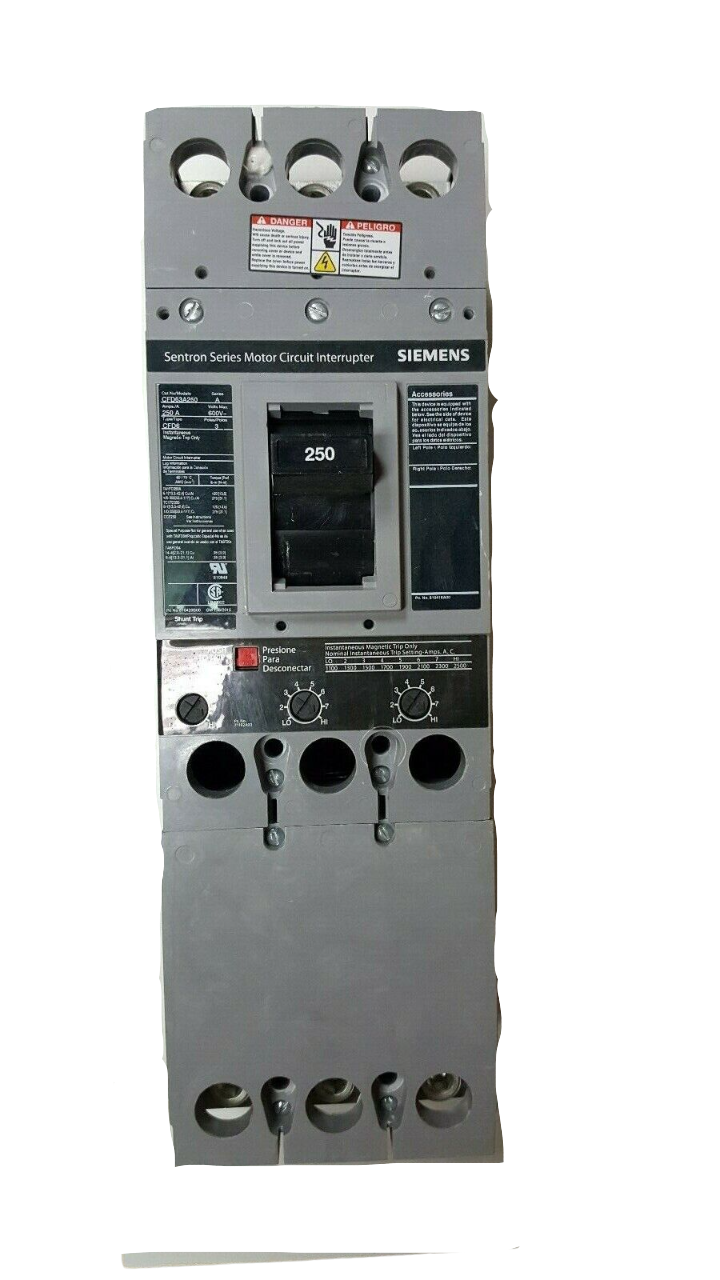

CFD63A250 is a Siemens 250 amp, 600 volt, 3-pole molded case circuit breaker designed for reliable circuit protection.This Siemens CFD63A250 breaker features a bolt-on mounting style and belongs to the CFD frame series. It supports 3-phase power systems with a high interrupt rating of up to 100kA at 600 VAC, ensuring robust protection for industrial and commercial applications. The breaker includes instantaneous magnetic trip functions and is suitable for motor circuit protection. It is UL listed and designed for use in panelboards, switchboards, and enclosures.

• Amperage: 250 A
• Voltage: 600 VAC / 250 VDC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: Up to 100 kAIC at 600 VAC
• Frame/Series: CFD (Sentron)
• Trip Unit: Instantaneous Magnetic
• Phase: 3
• Certifications: UL Listed
• Application: Motor Circuit Protection
• Connection: Bolt-On

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: CFD63A250
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : CFD
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 200kA@480V
• Connection : Bolt-On
• Functions : I - Instantaneous
• Frame Size : FD Frame
• Protection : Magnetic Only

Product Data

• UPC : 783643212343
• GTIN : 00783643212343
• Country of Origin : Mexico
• Weight : 13.6
• Certification : UL, IEC
• Wire Size : 6AWG - 350KCM (CU) / 4AWG - 350KCM (AL)
