CED63B125L - Siemens 125A 3-Pole 600V Molded Case Circuit Breaker

CED63B125L

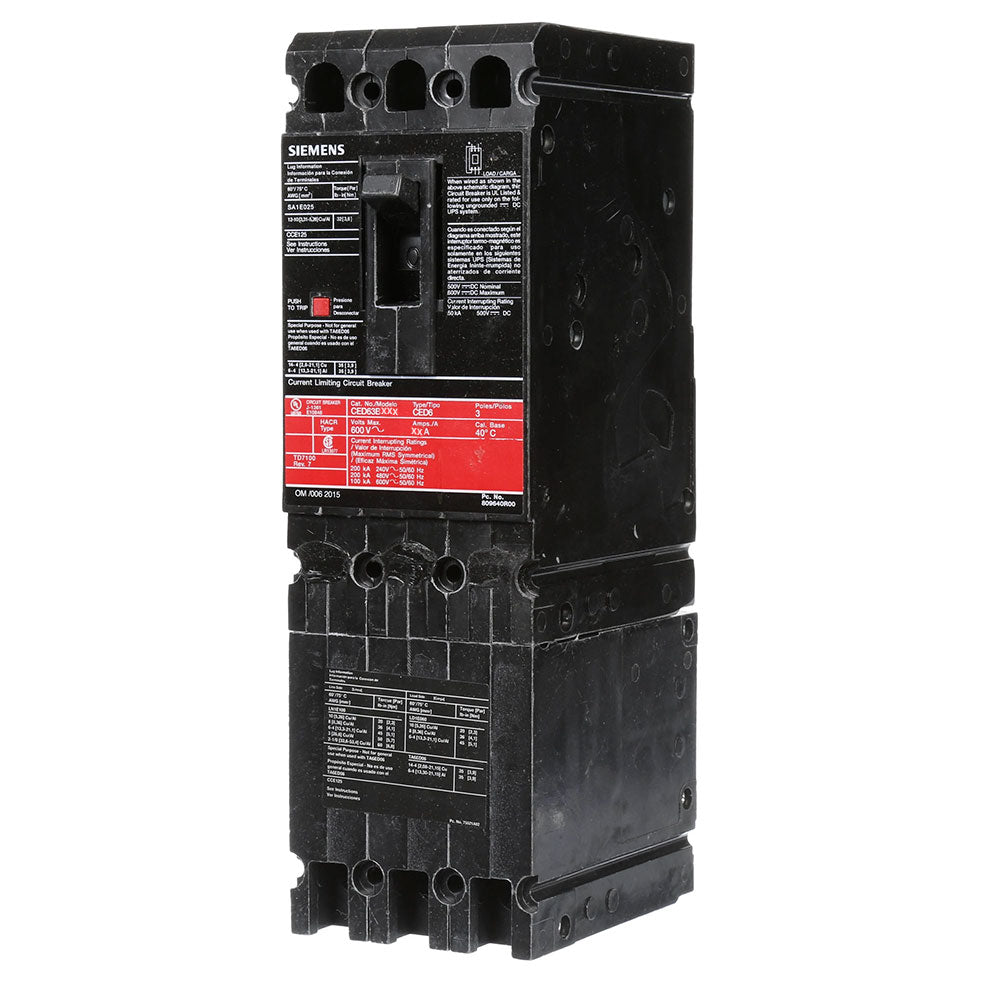

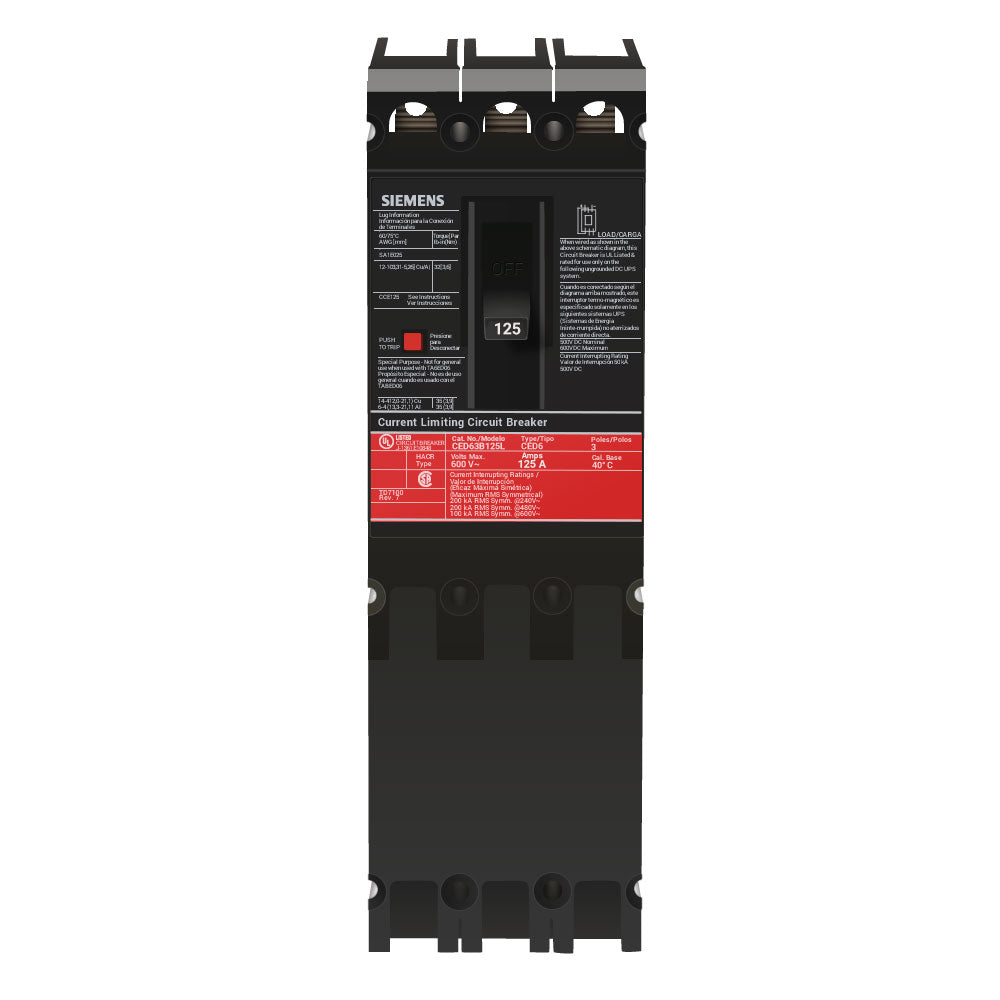

CED63B125L is a 3-pole molded case circuit breaker from Siemens designed for industrial power distribution applications. This thermal magnetic circuit breaker provides reliable overcurrent protection with a 125 amp frame and trip rating at 600 volts. The breaker features an ED frame design with fuseless current limiting technology and operates at a standard 40 degree C ambient temperature rating. Key Specifications

• Manufacturer: Siemens
• Part Number: CED63B125L
• Amperage: 125A
• Voltage Rating: 600V
• Poles: 3
• Interrupt Rating: 200kA at 480V, 100kA at 600V
• Frame Type: ED
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
• Series: Sentron
• Current Limiting: Fuseless
• Temperature Rating: 40 Degree C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CED63B125L
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : CED
• Voltage : 600
• Amperage : 125
• Phase : 3
• Poles : 3
• AIC rating : 200kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Frame Size : ED Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643246768
• GTIN : 00783643246768
• Country of Origin : Mexico
• Weight : 5.512
• Certification : Ul Listed Csa Certified
• Wire Size : AWG 3 to AWG 3/0, Cu, AWG 1 to AWG 2/0, Al
