Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
CED63B110L

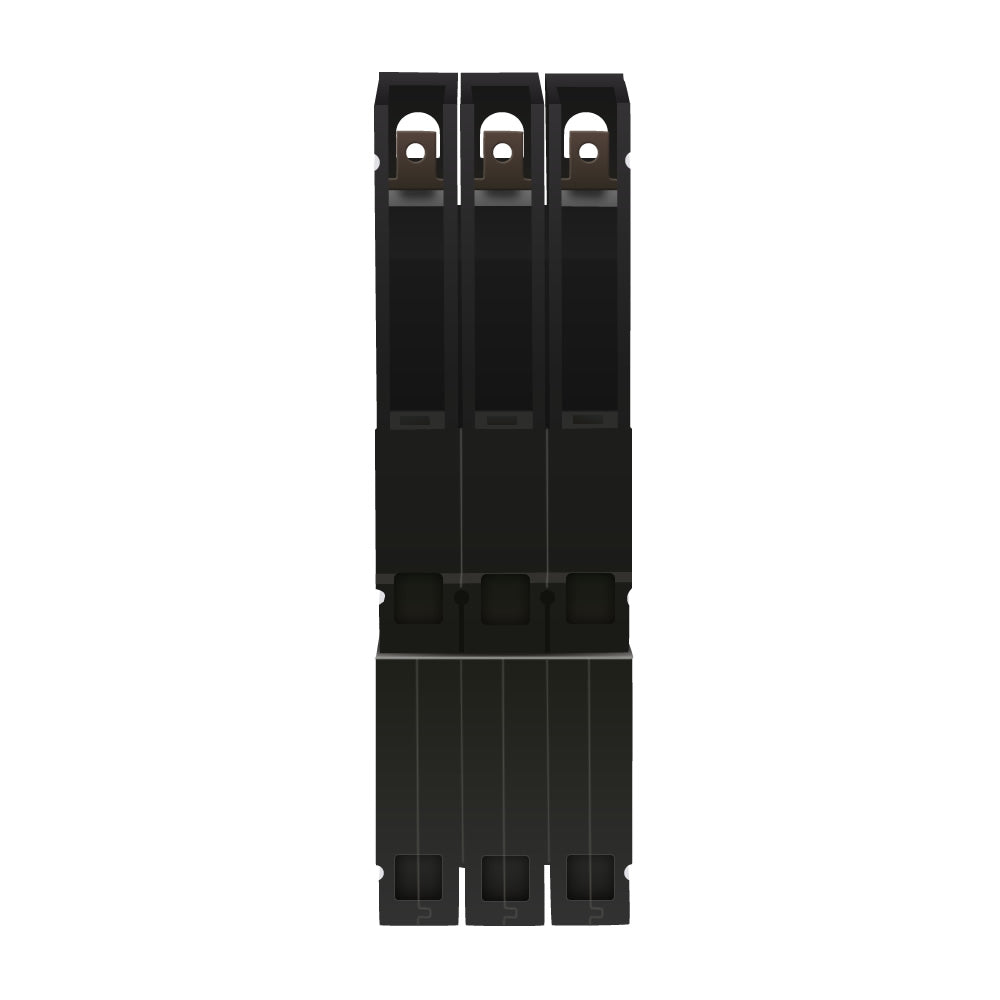

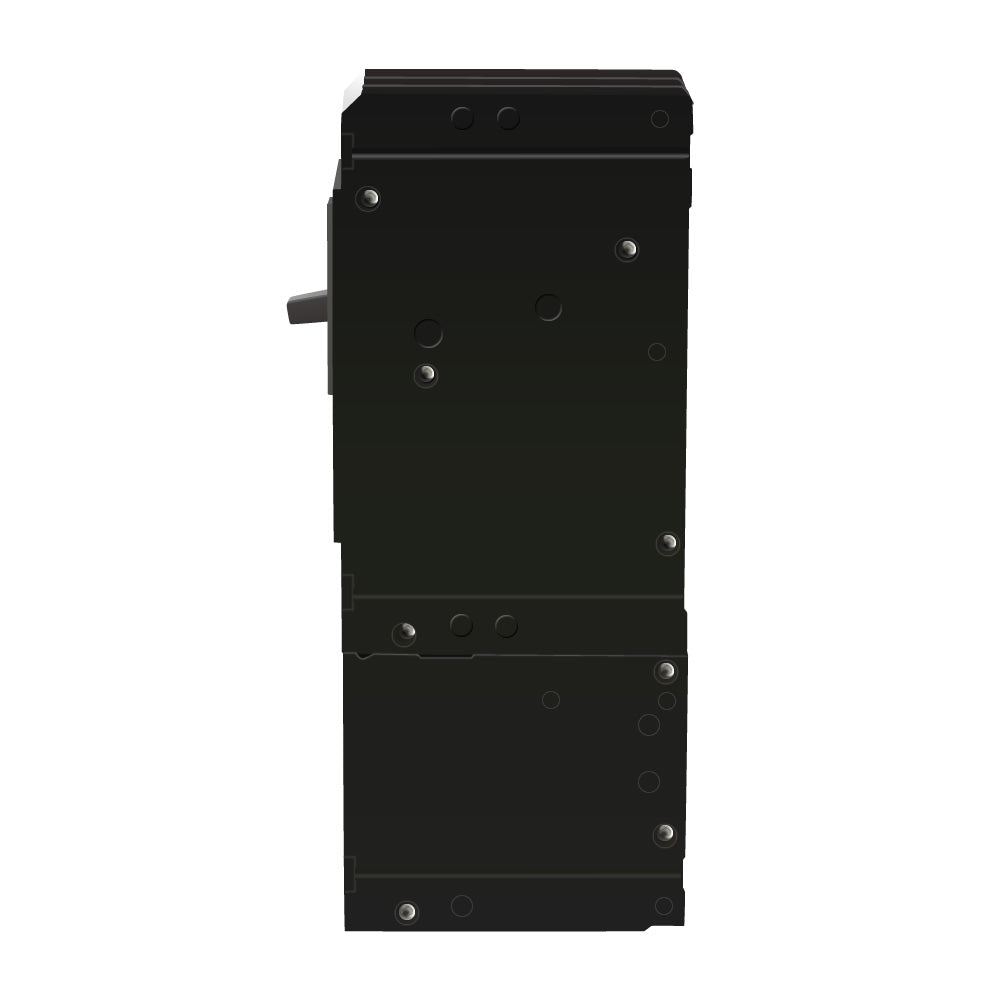

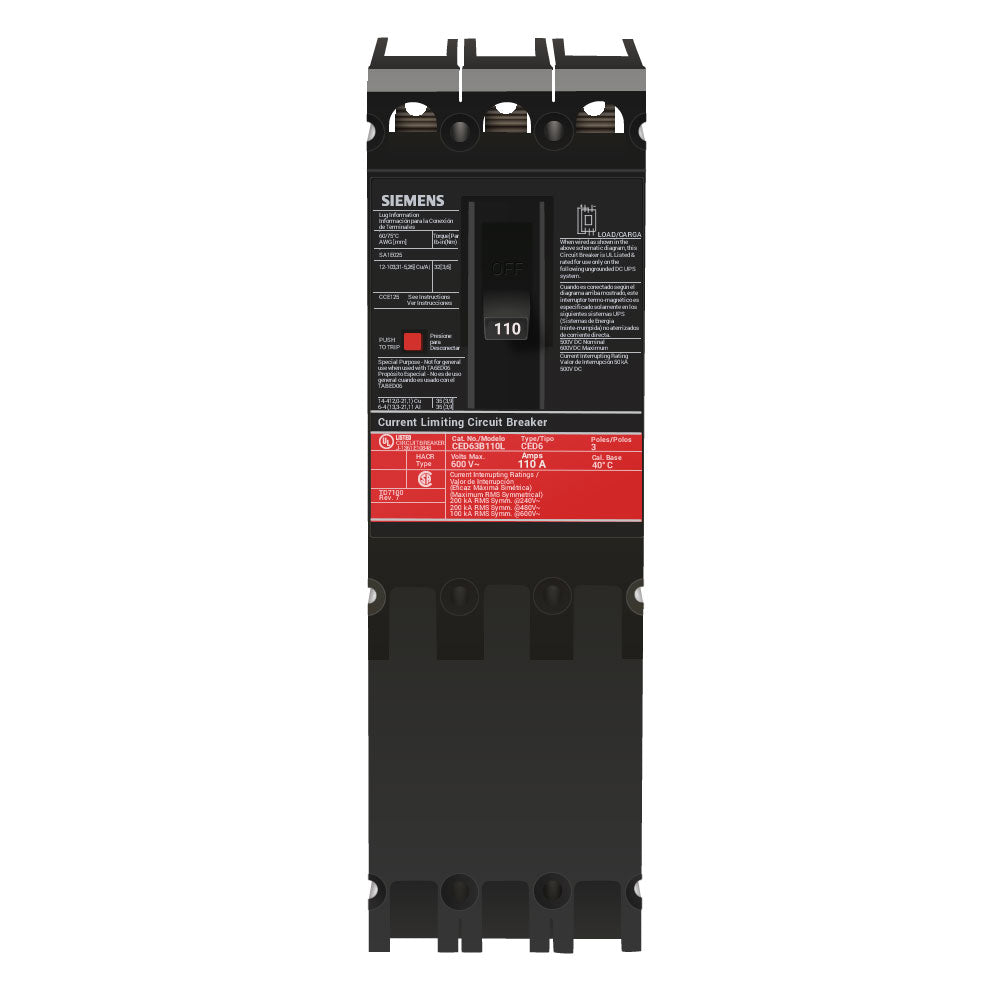

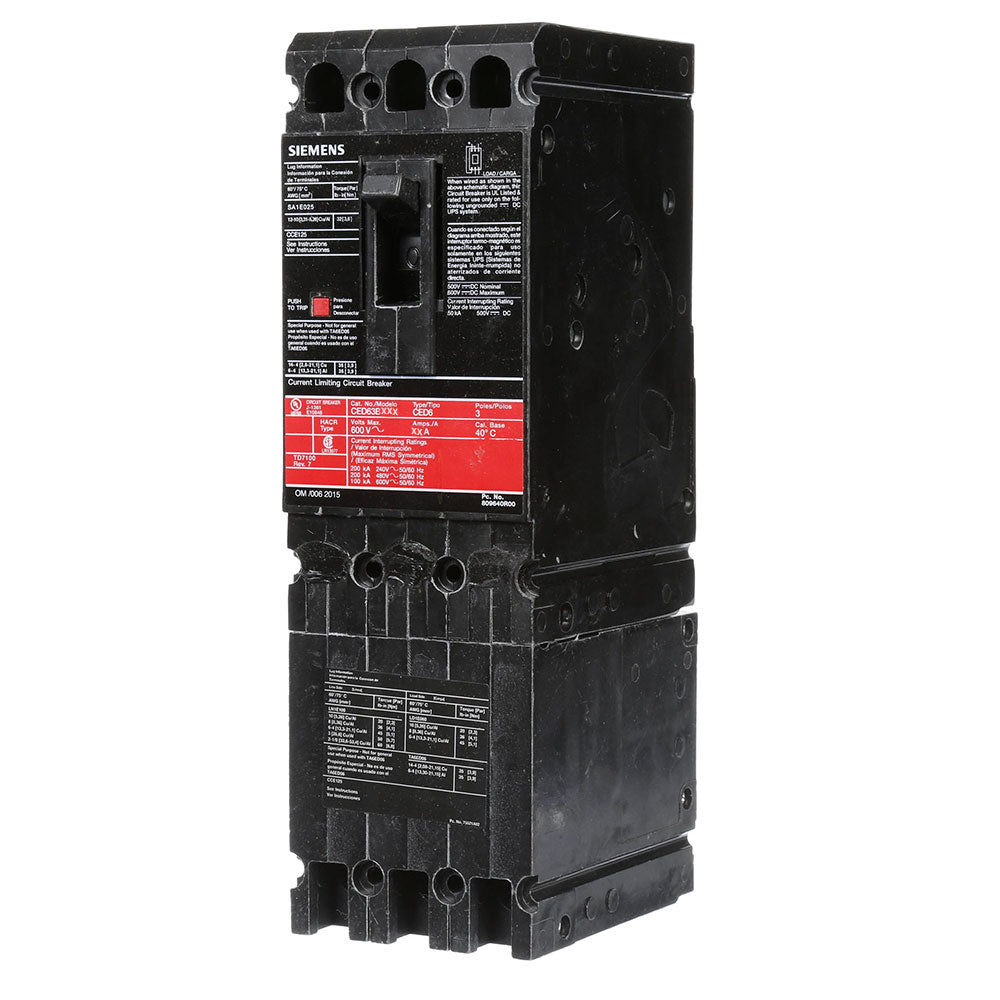

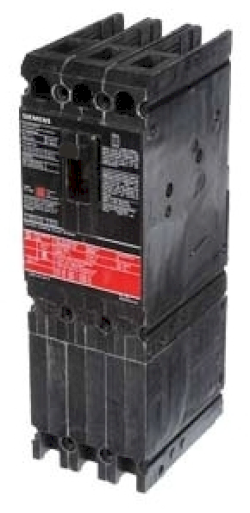

CED63B110L is a Siemens 3 pole molded case circuit breaker rated for 110 amps and 600 volts with a 200kA interrupt rating at 480V, designed for feed-thru applications.
This Siemens CED63B110L circuit breaker features a thermal magnetic trip unit providing reliable protection for low voltage electrical systems. It supports a maximum voltage of 600 VAC and is rated for 110 amperes continuous current at 40°C ambient temperature. The breaker offers an interrupting capacity of 200,000 amperes at 480 volts, ensuring high fault current protection. It is part of the Siemens Sentron series, suitable for industrial and commercial power distribution systems.
- Amperage: 110 A
- Voltage Rating: 600 VAC / 500 VDC
- Number of Poles: 3
- Interrupt Rating: 200 kA at 480 VAC
- Trip Unit: Thermal Magnetic
- Mounting Type: Feed-Thru
- Series/Frame: CED (Sentron Series)
- Ambient Temperature Rating: 40°C
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: CED63B110L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : CED
- Voltage : 600
- Amperage : 110
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : ED Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 783643319257
- GTIN : 00783643319257
- Country of Origin : Mexico
- Dimensions : 5.906 x 1.969 x 3.937 inch
- Weight : 5.71
Accesories
