Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
CED63B110

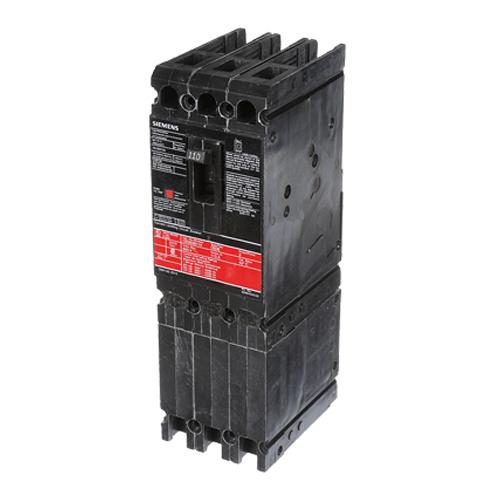

CED63B110 is a Siemens 3 pole, 110 amp, 600 volt thermal magnetic molded case circuit breaker with a 200kA interrupt rating at 480V and bolt-on mounting.This Siemens CED63B110 circuit breaker features a high interrupting capacity of 200kA at 480 volts, thermal magnetic trip unit with long-time and instantaneous trip functions, and line and load side lug terminals. It is designed for low voltage power distribution with a bolt-on frame type for easy installation.
- Amperage: 110A
- Voltage: 600 VAC / 500 VDC
- Poles: 3
- Interrupt Rating: 200kA at 480V
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
- Mounting Type: Bolt-On
- Frame/Series: CED
- Terminal Type: Line and Load Side Lugs
- Phase: 3 Phase
- Certifications: UL Listed
Specifications
- Part Number: CED63B110
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : CED
- Voltage : 600
- Amperage : 110
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : ED Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 783643210769
- GTIN : 00783643210769
- Country of Origin : Mexico
- Weight : 1.069
- Certification : UL, SWD
