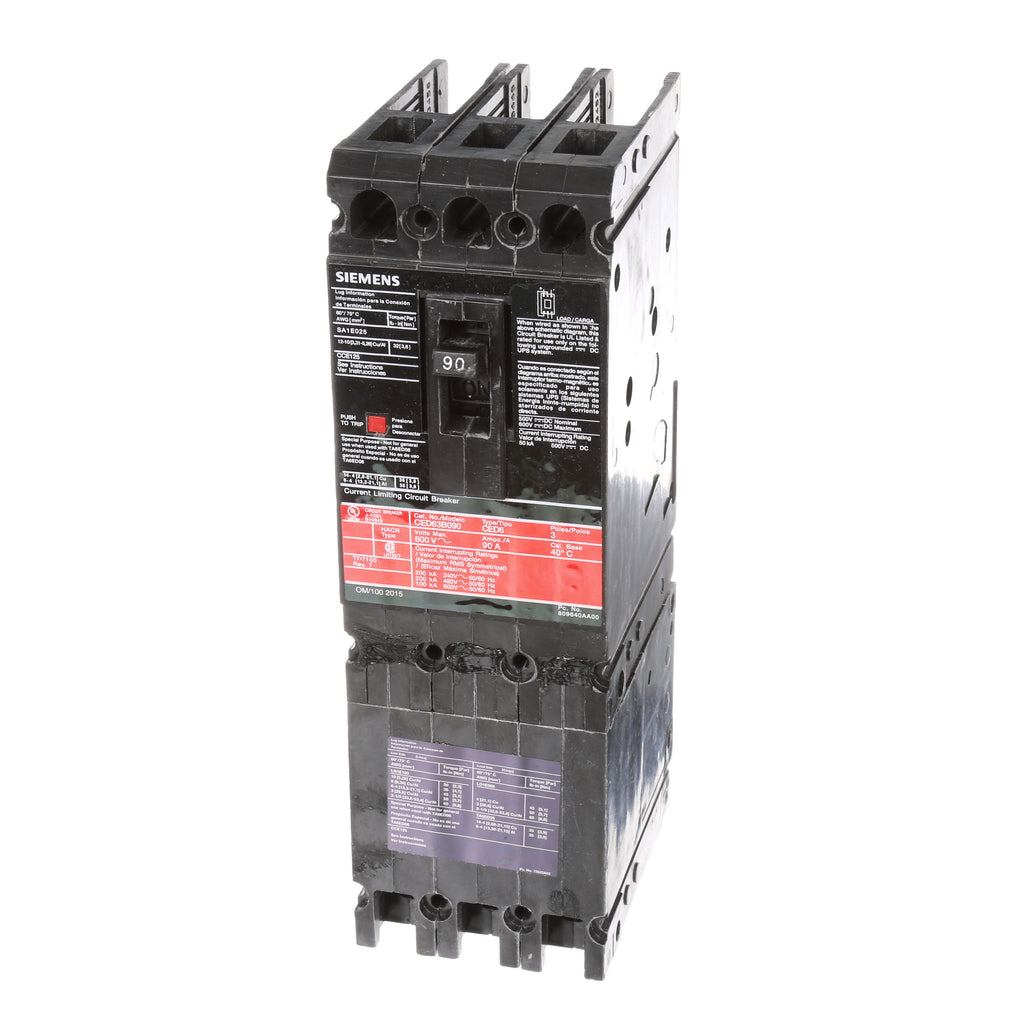

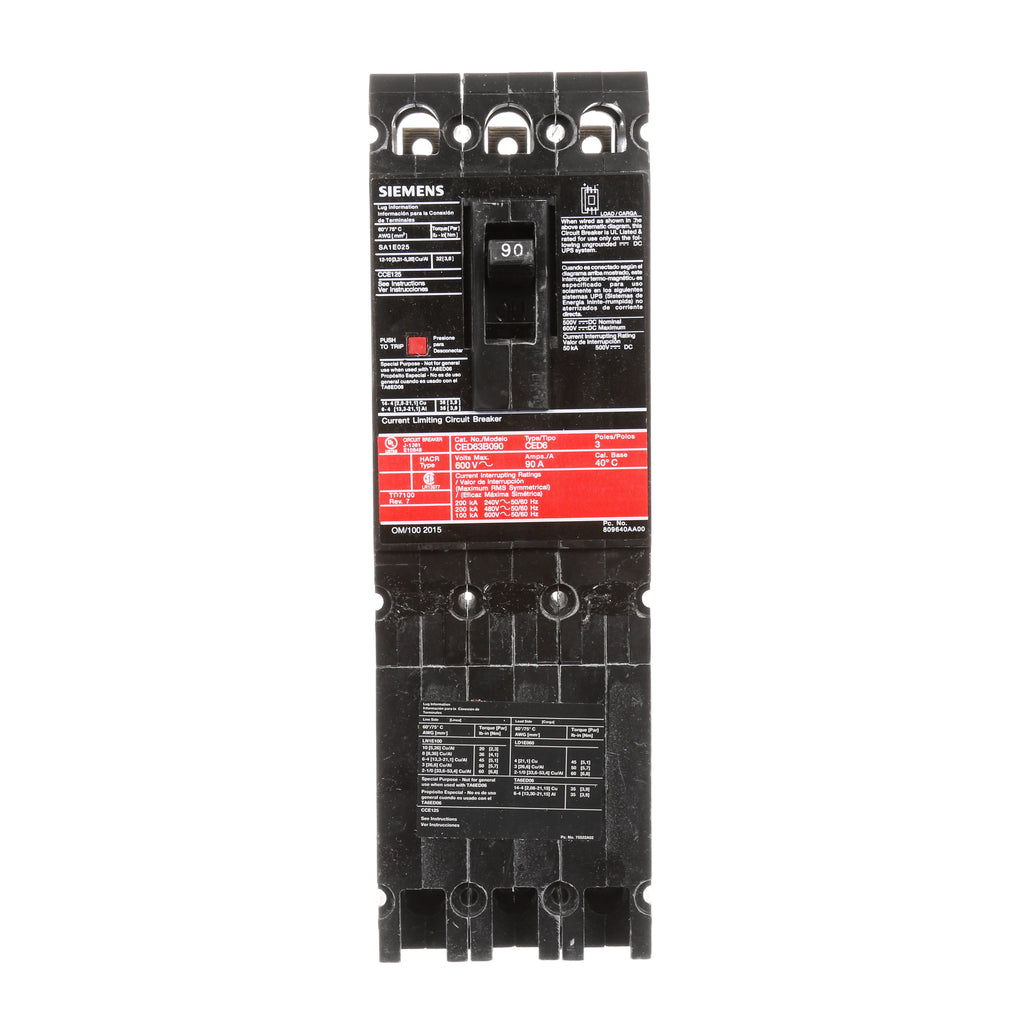

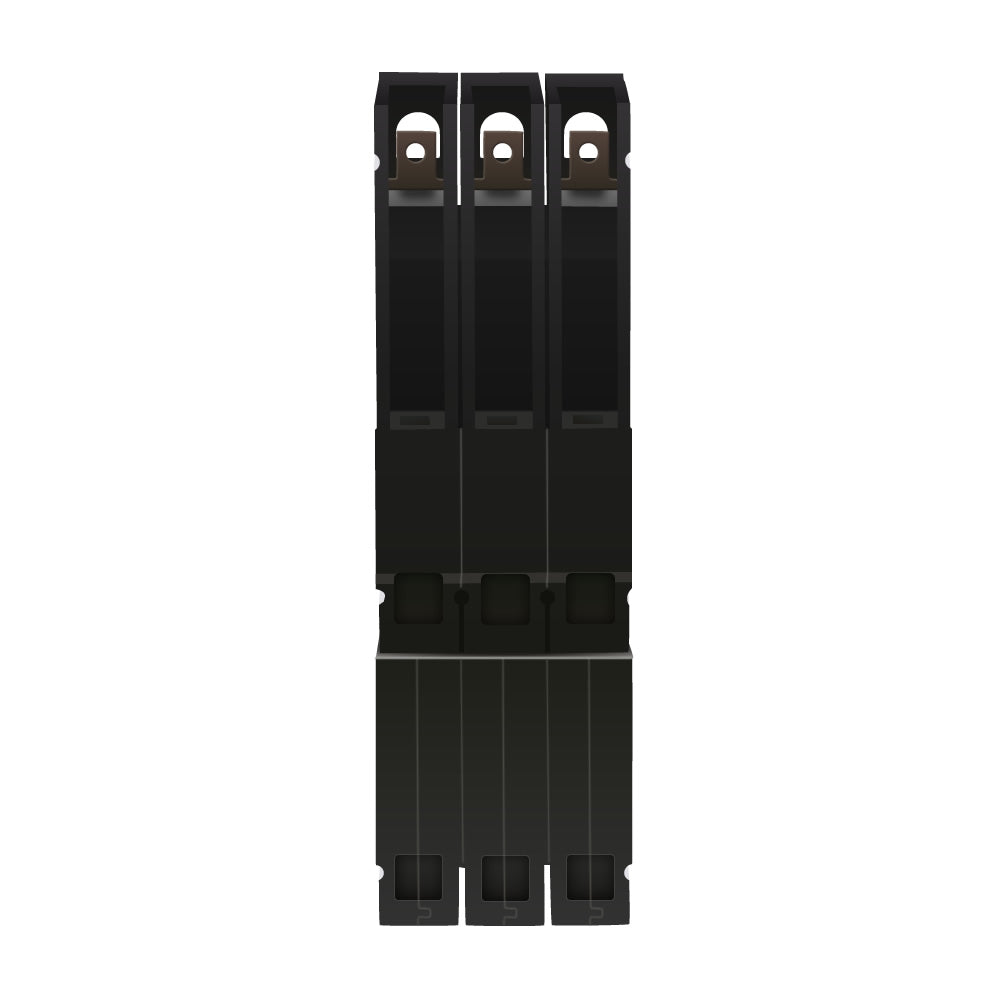

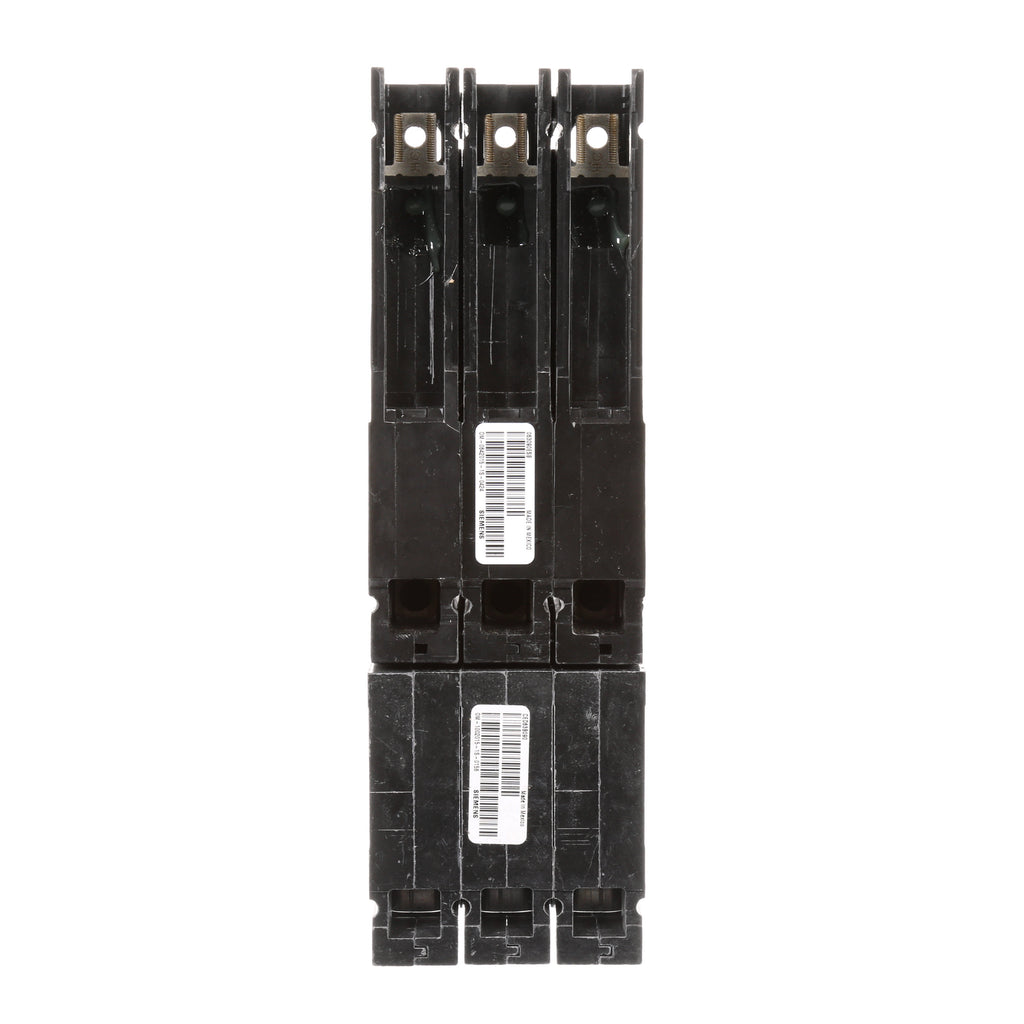

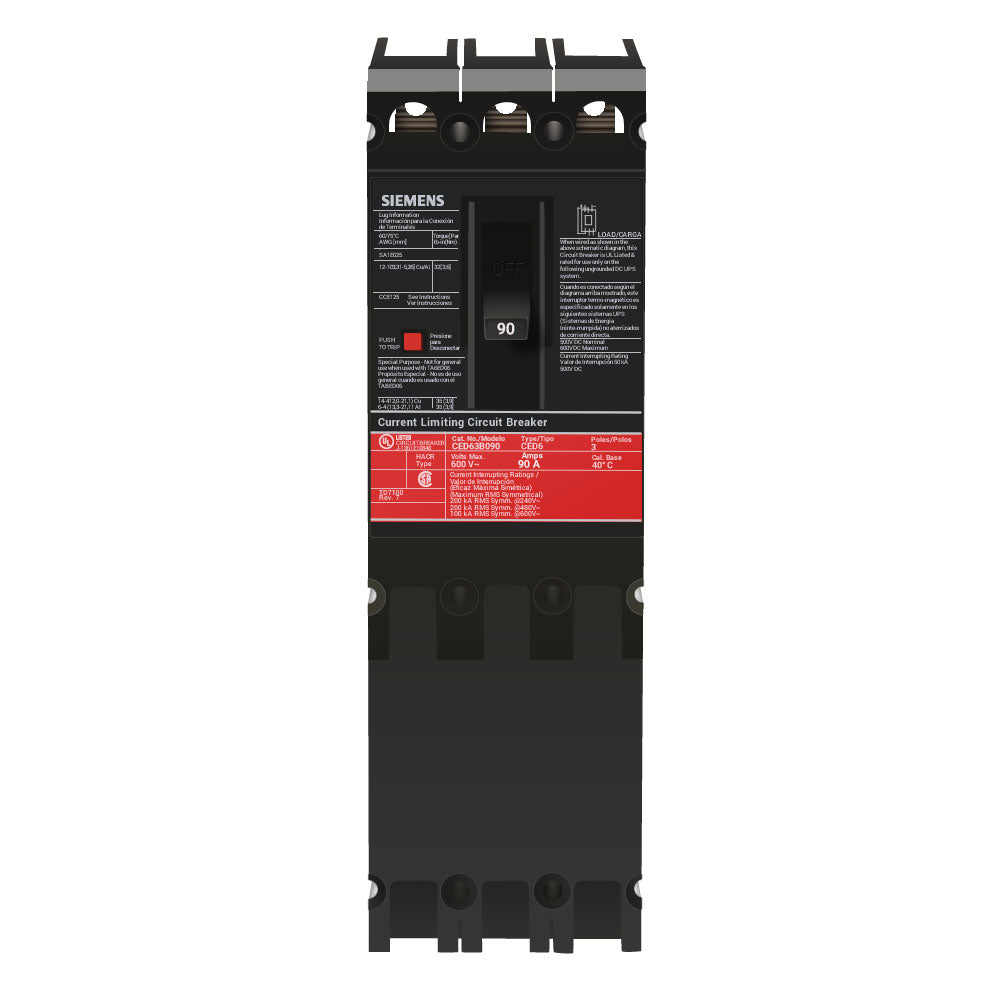

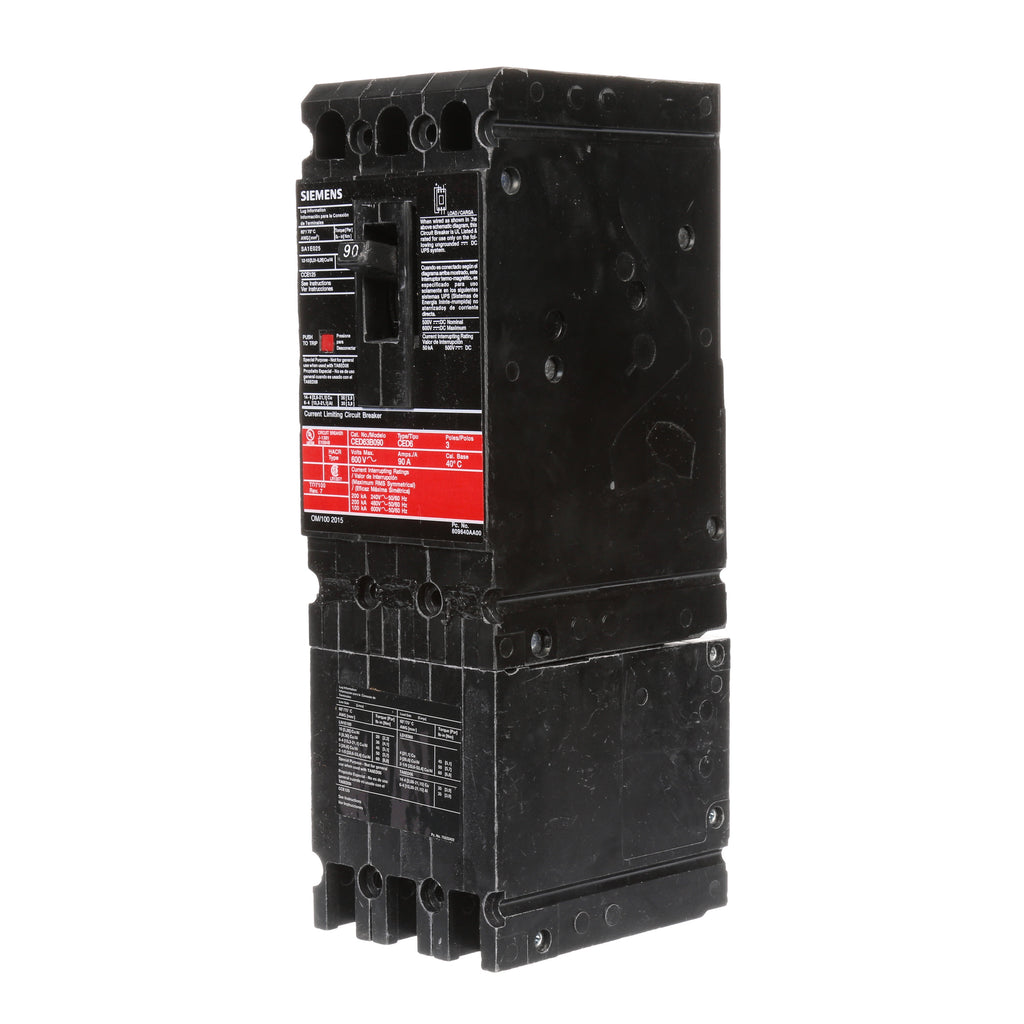

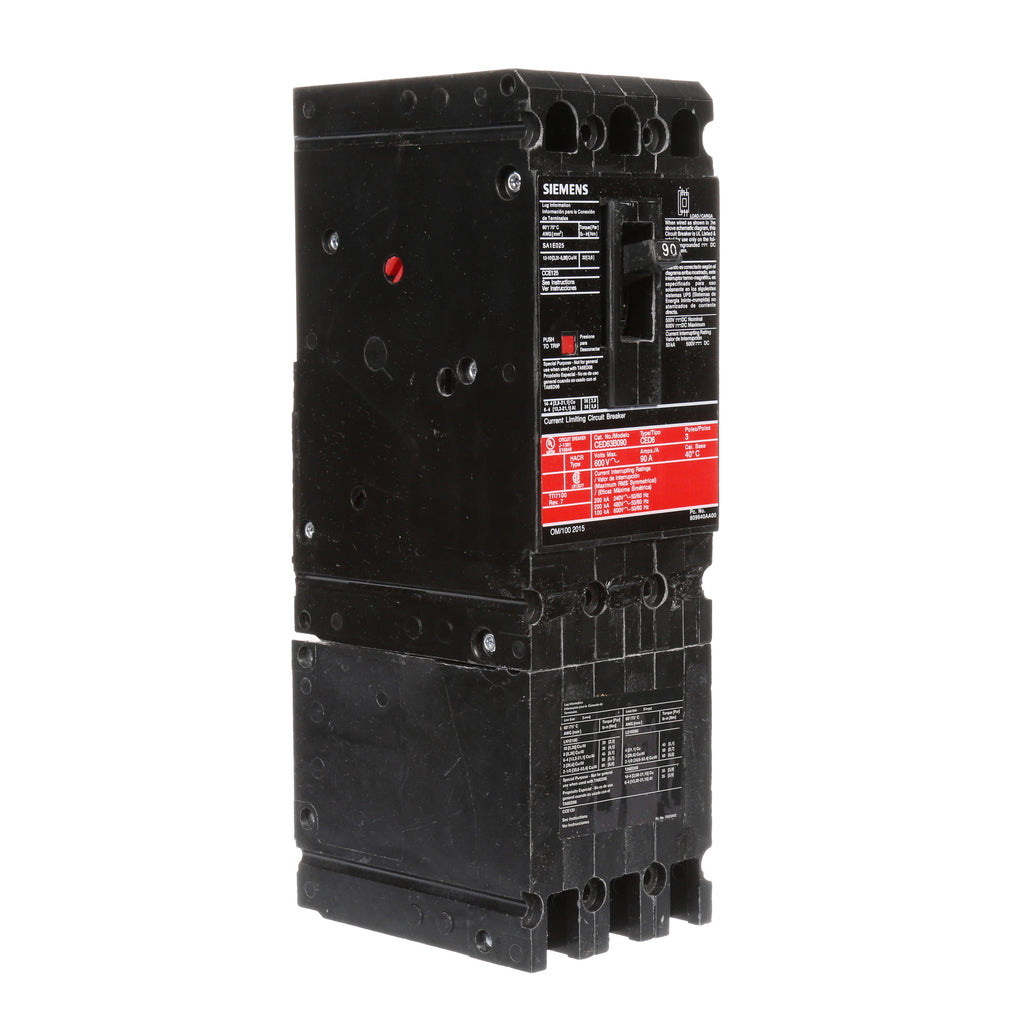

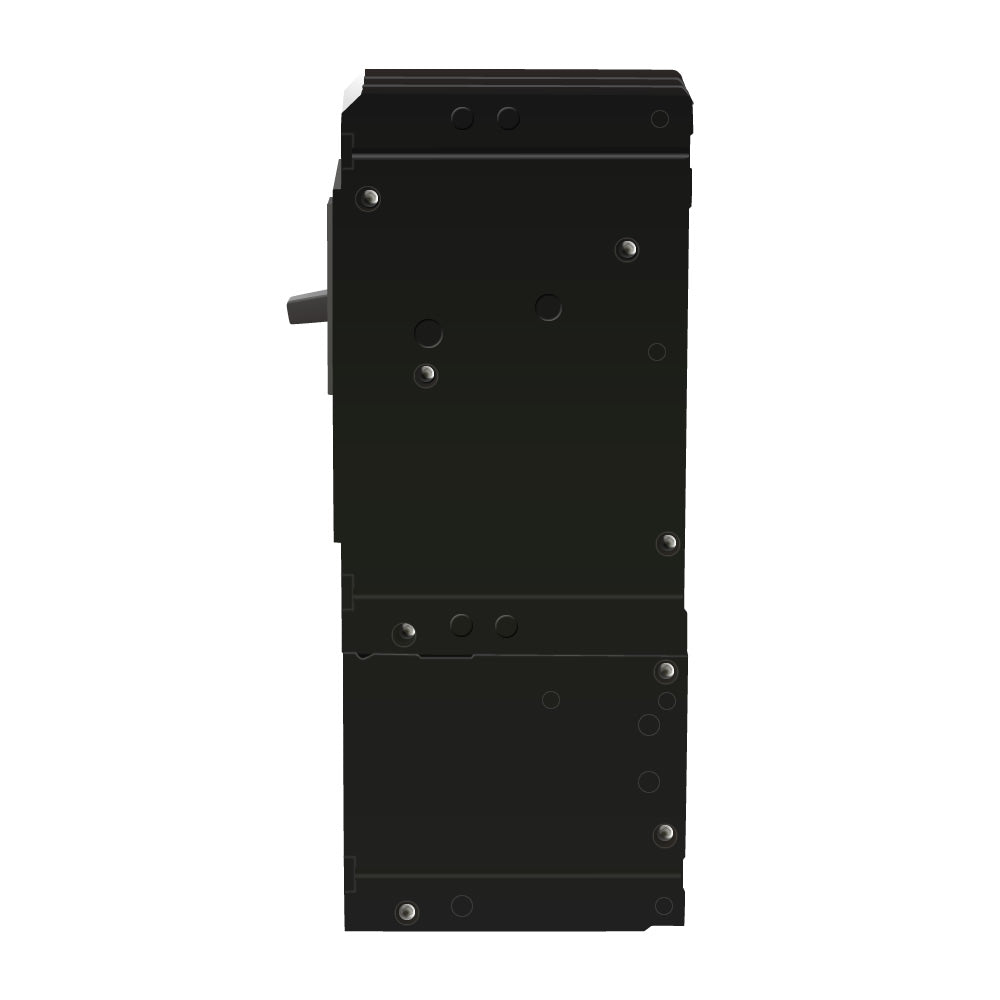

CED63B090 - Siemens 90A 600V 3-Pole CED6 Frame Molded Case Circuit Breaker Thermal Magnetic Trip

CED63B090

CED63B090 is a Siemens 90 amp, 600 volt, 3-pole molded case circuit breaker designed for low voltage power distribution applications.This Siemens Sentron CED6 series breaker features a thermal magnetic trip unit, current limiting fuseless design, and a robust 100 kA interrupt rating at 600 VAC. It has a bolt-on mounting type with line and load side lug connections, suitable for 3-phase systems operating at 50/60 Hz frequency. The breaker frame is EDF with dimensions of 3.4 in L x 5.6 in W x 10.2 in H and a temperature rating of 40°C.

Key Specifications
• Amperage: 90 A
• Voltage Rating: 600 VAC / 500 VDC
• Poles: 3
• Frame Type: CED6 (EDF Frame)
• Interrupt Rating: 100 kA at 600 VAC
• Trip Unit: Thermal Magnetic
• Mounting Type: Bolt-On
• Connection Type: Line and Load Lug
• Frequency: 50/60 Hz
• Phase: 3
• Temperature Rating: 40°C
• Country of Origin: Mexico
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: CED63B090
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : CED
• Voltage : 600
• Amperage : 90
• Phase : 3
• Poles : 3
• AIC rating : 200kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Frame Size : ED Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 783643210745
• GTIN : 00783643210745
• Country of Origin : Mexico
• Weight : 1.049
