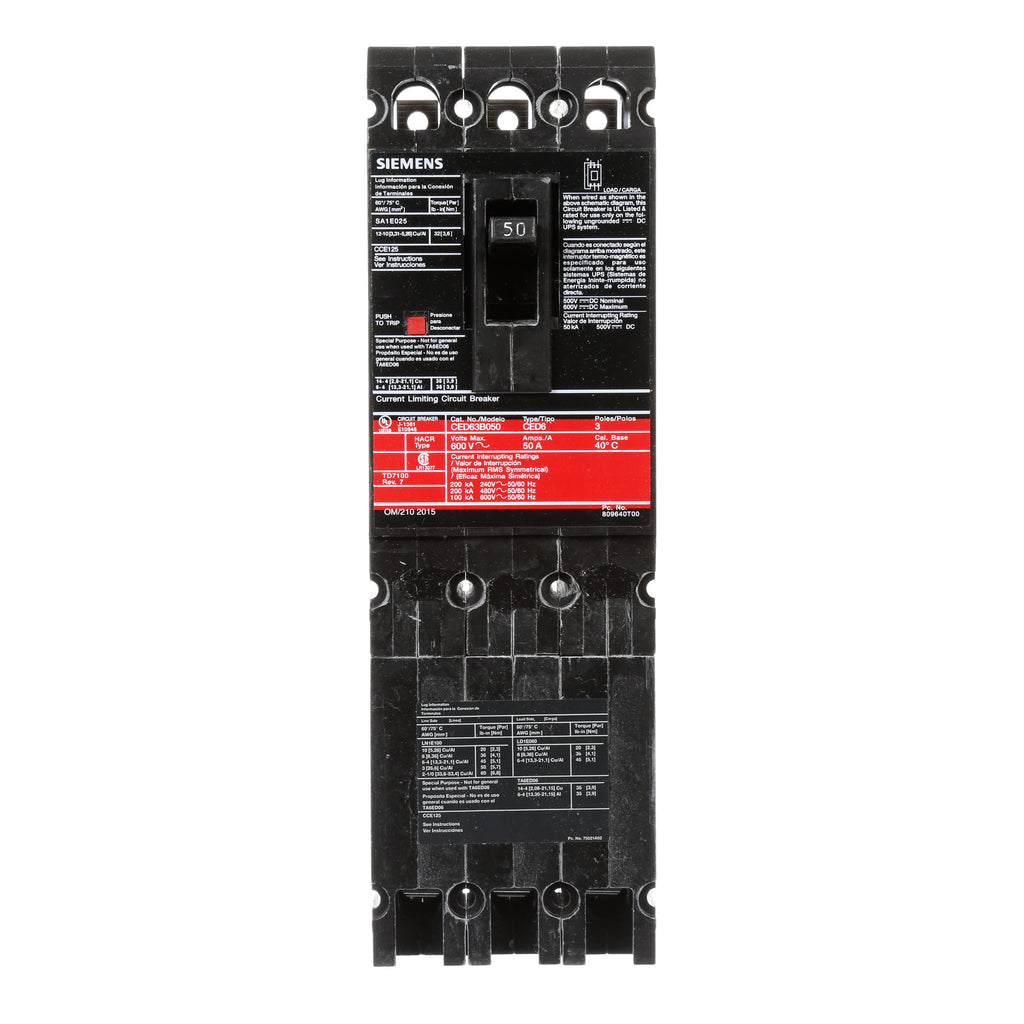

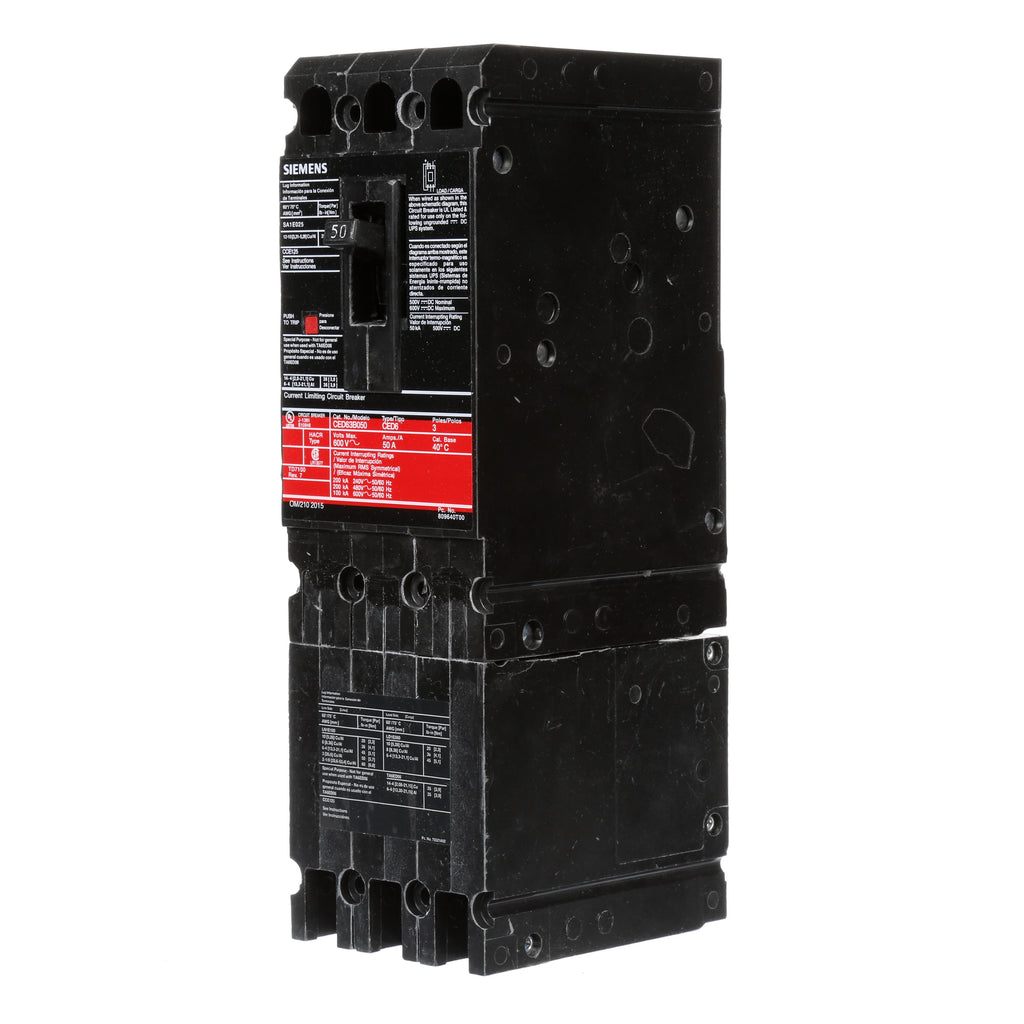

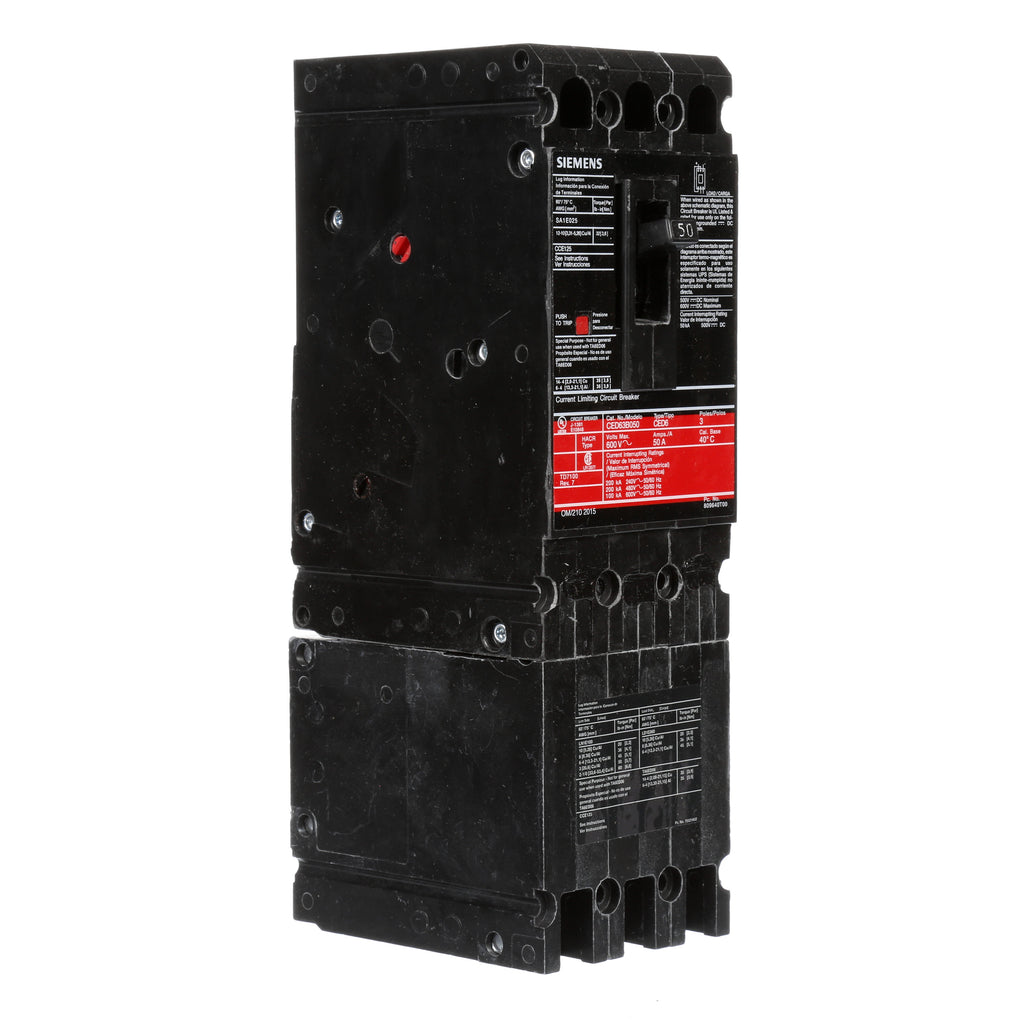

CED63B050 - Siemens 50A 600V 3-Pole Molded Case Circuit Breaker Bolt-On

CED63B050

CED63B050 is a Siemens 3-pole molded case circuit breaker rated for 50 amps and 600 volts with bolt-on mounting.This thermal magnetic circuit breaker provides reliable overcurrent protection for three-phase electrical systems. It features a 50 amp continuous current rating, 600 volt AC voltage rating, and bolt-on connection type. The breaker is designed for industrial and commercial applications requiring robust circuit protection with a high interrupting rating. It is part of Siemens' CED series and includes standard trip units with thermal magnetic protection.

• Amperage: 50 Amps
• Voltage: 600 Volts AC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupting Rating: 200,000 A at 240V, 480V, and 600V AC
• Series/Frame: CED
• Trip Unit: Thermal Magnetic
• Phase: 3
• Connection: Bolt-On

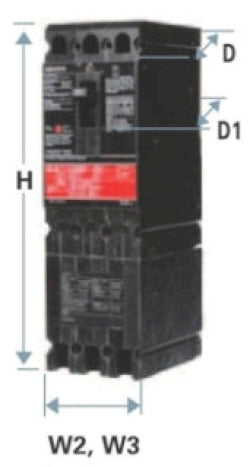

• Dimensions: Approx. 4 in L x 6 in W x 10 in H
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CED63B050
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : CED
• Voltage : 600
• Amperage : 50
• Phase : 3
• Poles : 3
• AIC rating : 200kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : ED Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643210707
• GTIN : 00783643210707
• Country of Origin : Mexico
• Weight : 1.058
• Certification : UL, IEC
• Wire Size : AWG 10 to AWG 1/0, CU/AL
