Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
CED63A125

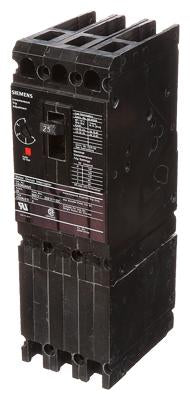

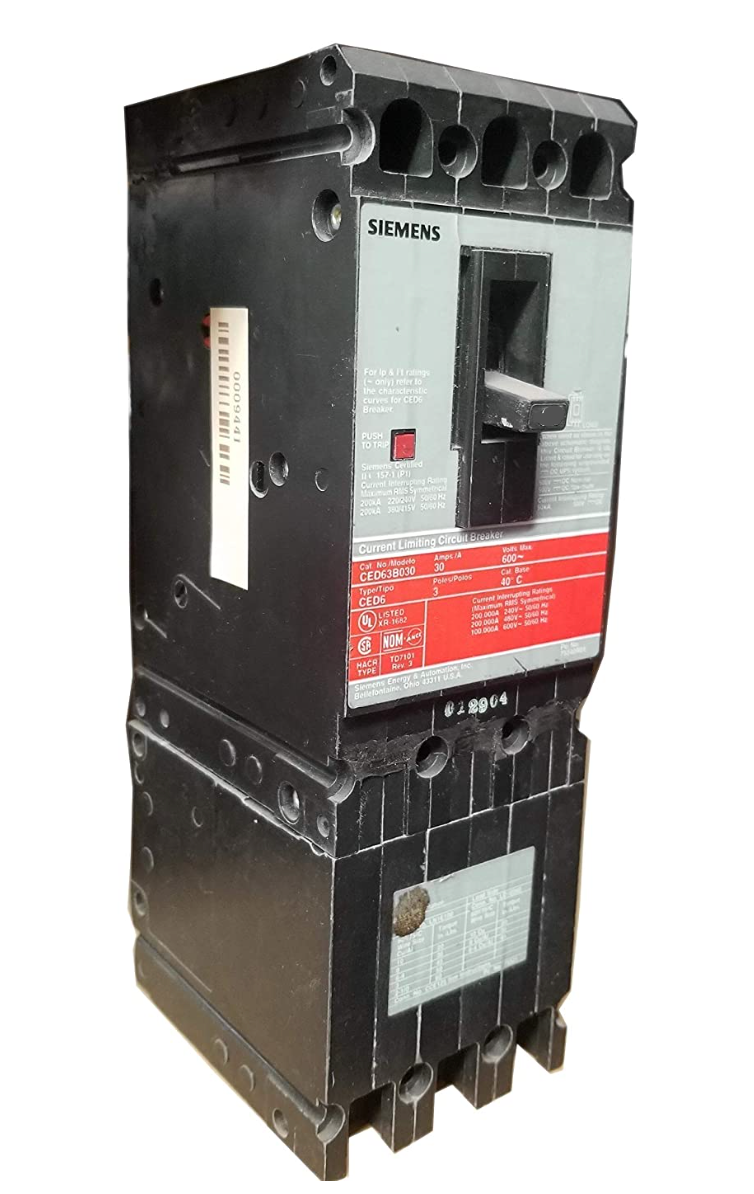

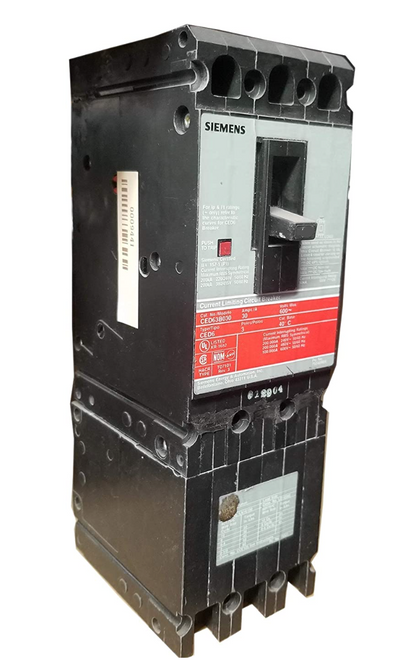

CED63A125 is a Siemens 125A, 600V, 3 pole molded case circuit breaker with bolt-on mounting, designed for high interrupting capacity applications. This Siemens Sentron Series CED frame breaker features instantaneous magnetic trip protection, extra high interrupting capacity, and is suitable for motor circuit protection and industrial power distribution systems. The breaker is equipped with load lugs only and offers reliable performance in demanding environments.
- Part Number: CED63A125
- Manufacturer: Siemens
- Series/Frame: Sentron CED
- Amperage: 125A
- Voltage: 600V AC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupting Rating: 100kAIC at 600V, 200kAIC at 480V
- Trip Unit: Instantaneous Magnetic Only
- Wire Range: 3-3/0 AWG CU / 1-2/0 AWG AL
- Dimensions: 3" W x 9.58" H x 4.56" D
- Weight: 6 lbs
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: CED63A125
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : CED
- Voltage : 600
- Amperage : 125
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Connection : Bolt-On
- Functions : Instantaneous Trip
- Frame Size : ED Frame
- Protection : Magnetic Only
Product Data
- UPC : 783643210998
- GTIN : 00783643210998
- Country of Origin : Mexico
- Weight : 5.679
- Wire Size : 3 - 3/0AWG (CU) / 1 - 2/0AWG (AL)
