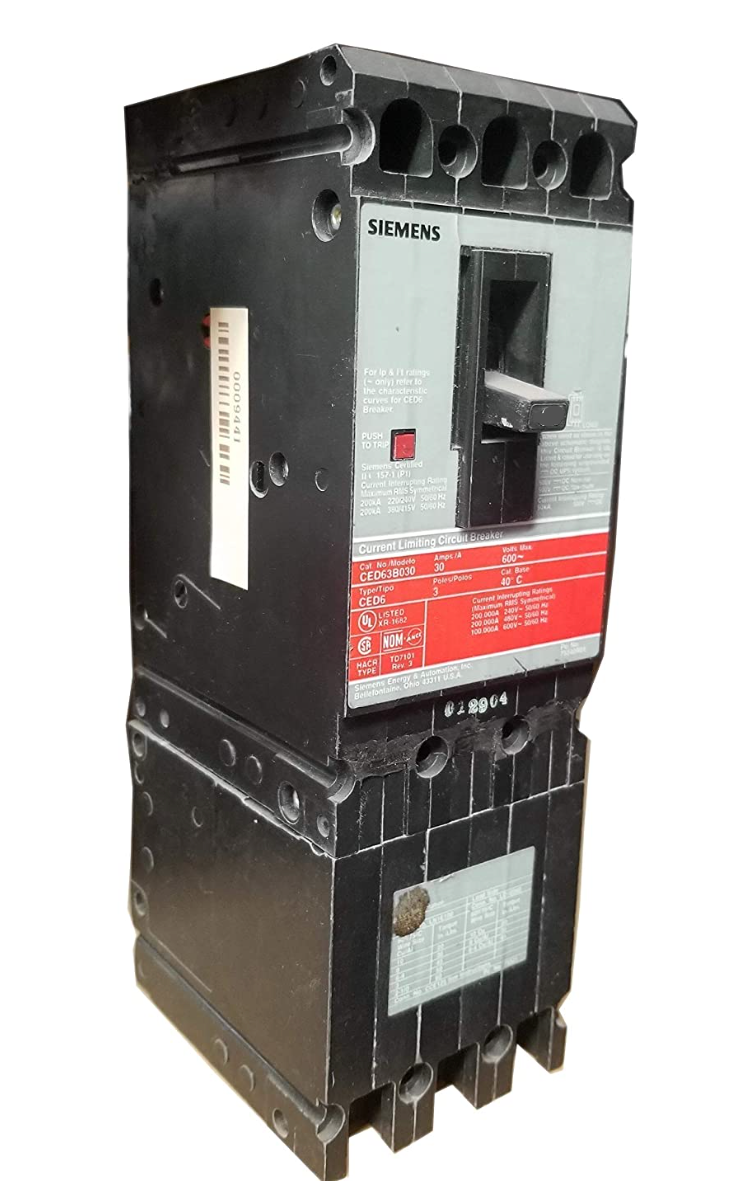

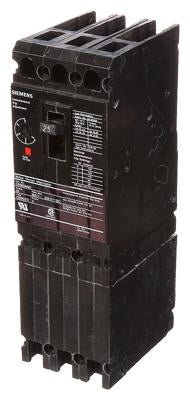

CED63A040 - Siemens 40 Amp 600V 3 Pole Circuit Breaker Bolt-On Mount CED Frame

CED63A040

CED63A040 is a Siemens 40 Amp, 600 Volt, 3 Pole circuit breaker with bolt-on mounting and CED frame type.This Siemens molded case circuit breaker features a magnetic trip unit and is designed for industrial applications requiring high interrupting capacity. It supports a maximum interrupt rating of 200,000 A at 240V and 480V AC, and 100,000 A at 600V AC. The breaker measures 3 inches wide, 9.58 inches high, and 4.56 inches deep, weighing approximately 6 lbs. It accepts wire sizes from #10 AWG to 1/0 AWG using a lug kit.

Key Specifications
• Amperage: 40 Amps
• Voltage Rating: 600 Volts AC
• Poles: 3 Pole
• Mounting Type: Bolt-On
• Frame Type: CED
• Interrupting Rating: 200,000 A @ 240V and 480V AC, 100,000 A @ 600V AC
• Trip Unit: Magnetic Trip
• Wire Size Compatibility: #10 AWG to 1/0 AWG with lug kit
• Dimensions: 3" W x 9.58" H x 4.56" D
• Weight: 6 lbs
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.




Specifications

• Part Number: CED63A040
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : CED
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 200kA@480V
• Connection : Bolt-On
• Functions : I - Instantaneous
• Frame Size : ED Frame
• Protection : Magnetic Only



Product Data

• UPC : 783643214965
• GTIN : 00783643214965
• Country of Origin : Mexico
• Weight : 5.679
• Certification : UL, IEC
• Wire Size : 10 - 1/0AWG (CU/AL)
