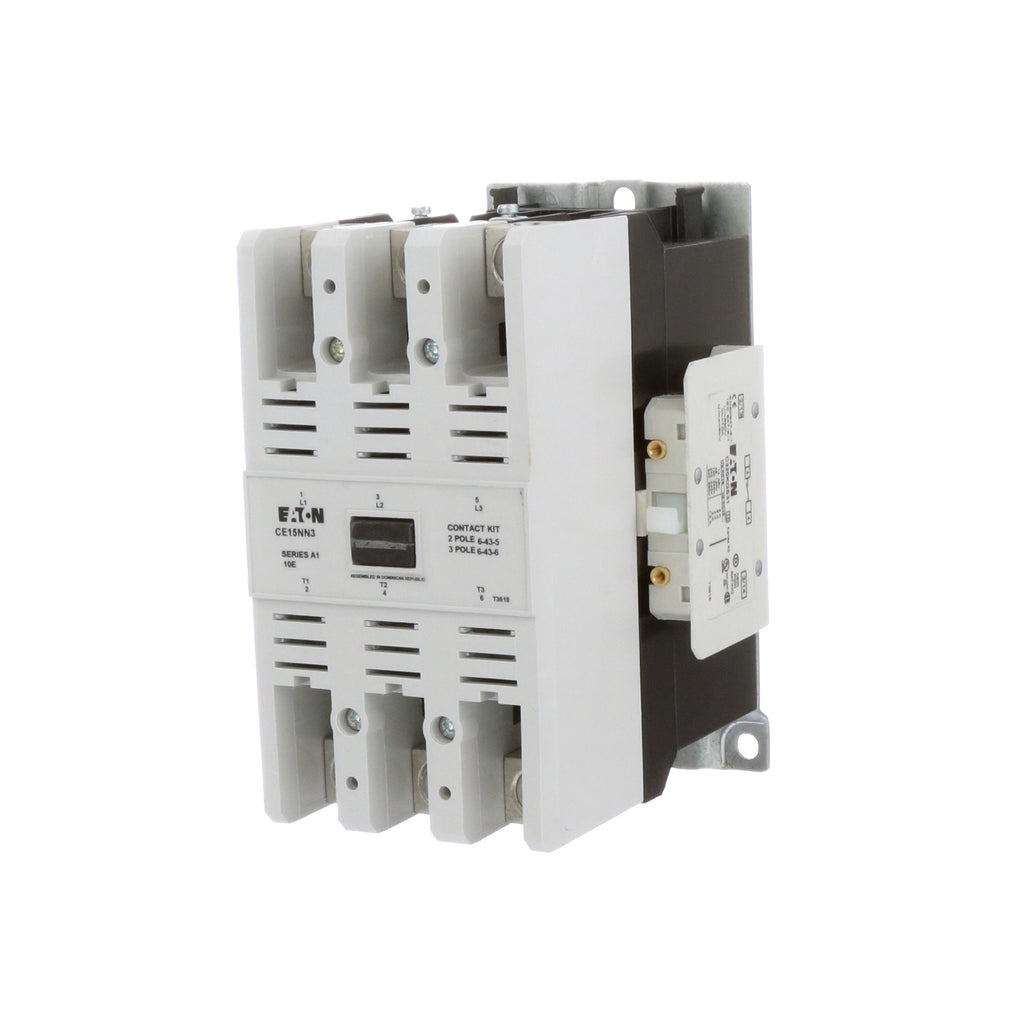

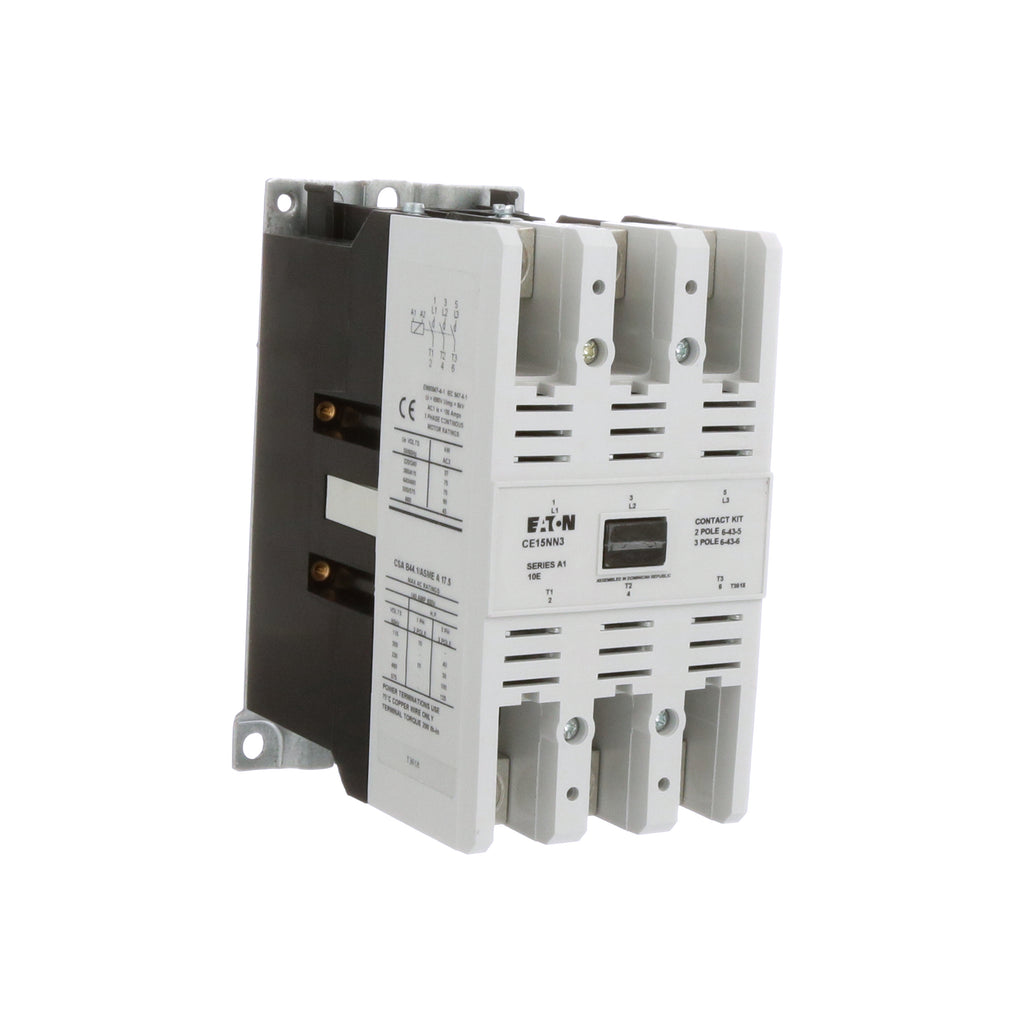

CE15NN3A - Cutler Hammer 140A 600VAC 3 Pole Freedom Series Motor Control Contactor Surface Mount

CE15NN3A

CE15NN3A is a Cutler Hammer Freedom Series motor control contactor rated for 140 amps and 600 volts AC with 3 poles and surface mounting.This Eaton Cutler Hammer CE15NN3A contactor features a 140 amp current rating, 600VAC voltage rating, and 3 poles designed for Freedom Series motor control systems. It operates with a coil voltage of 110VAC at 50Hz and 120VAC at 60Hz. The contactor has a surface mounting type and includes screw terminal connections with box lug terminals. It is UL, CSA, IEC, ISO, and DIN VDE certified, suitable for industrial motor control applications with a temperature rating from -5 to 65°C and NEMA size 4 frame.

Key Specifications
• Amperage: 140A
• Voltage: 600VAC
• Poles: 3
• Coil Voltage: 110-120VAC, 50-60Hz
• Mounting Type: Surface
• Series/Frame: Freedom Series, Frame C15NN
• Connection Type: Screw with Box Lug
• Approvals: UL, CSA, IEC, ISO, DIN VDE
• Protection: Magnetic
• Temperature Rating: -5 to 65°C
• NEMA Size: 4

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This IEC Non-Reversing Contactor includes a 110 VAC coil.

Specifications

• Part Number: CE15NN3A
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Freedom Series
• Type : CE15NN
• Voltage : 600
• Amperage : 140
• Phase : 3
• Poles : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• Configuration : Non-Reversing
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 110
• Frequency : 50 Hz

Product Data

• UPC : 782113604039
• GTIN : 00782113604039
• Country of Origin : Dominican Republic
• Dimensions : 5.94 in x 7.17 in x 4.08 in (Length/Depth x Height x Width)
• Weight : 8.05 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : UL Listed,IEC Rated,CSA Certified,DIN VDE 0600,ISO 9000
