CE15FNS3AB - Cutler Hammer 32A 3-Pole IEC Contactor F-Frame 110/120VAC Coil Non-Reversing Freedom Series

CE15FNS3AB

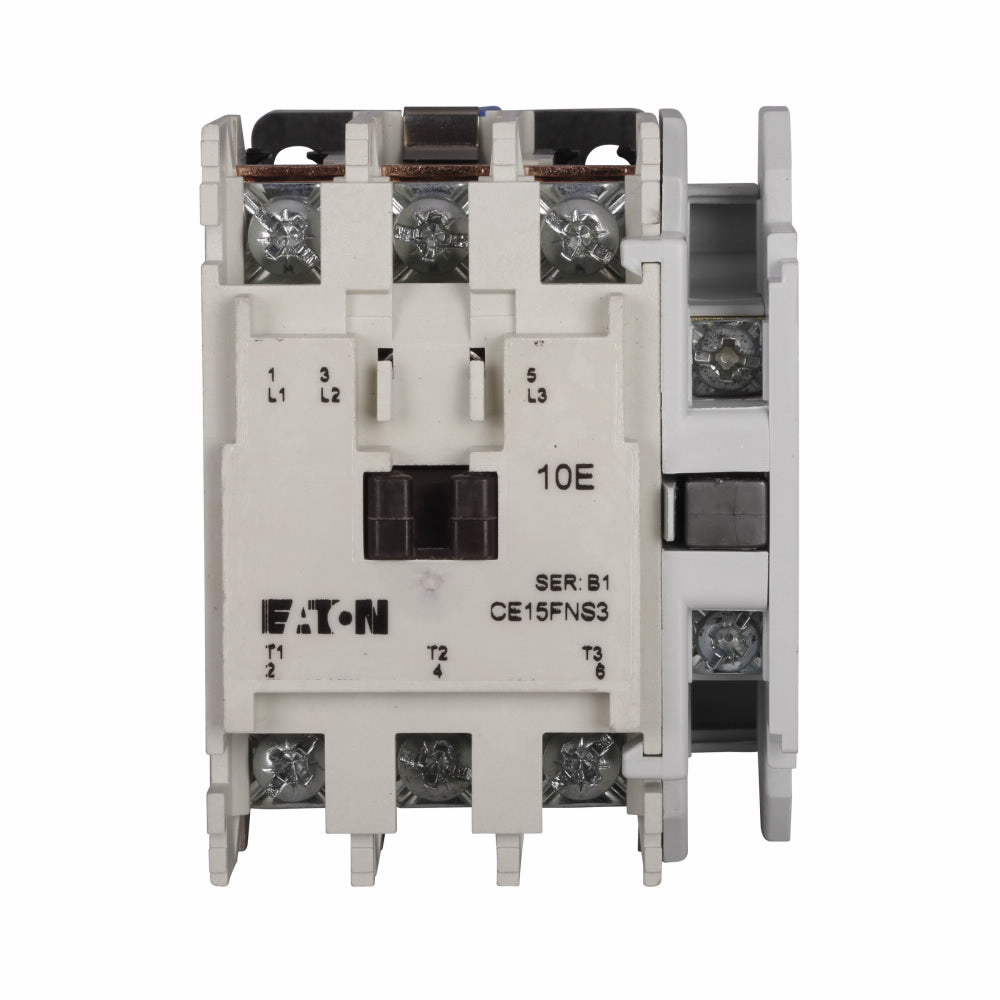

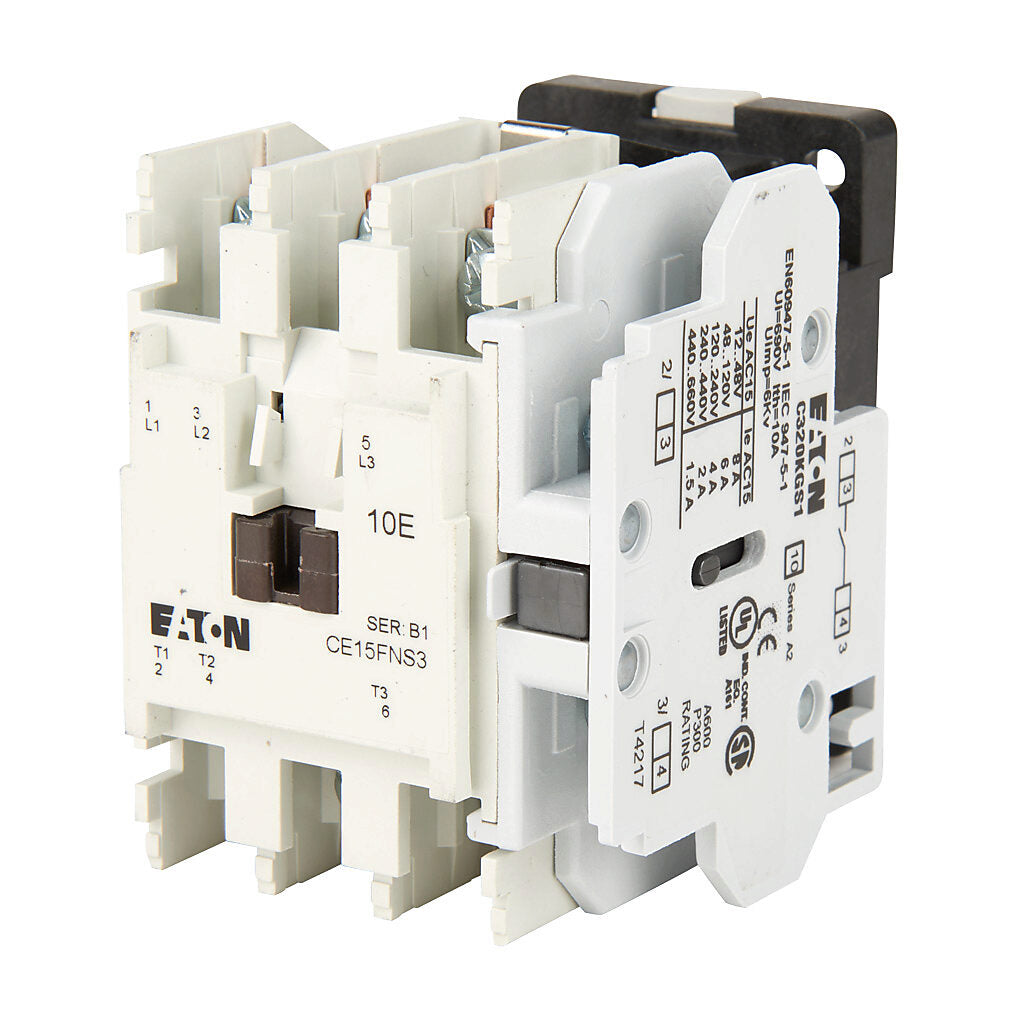

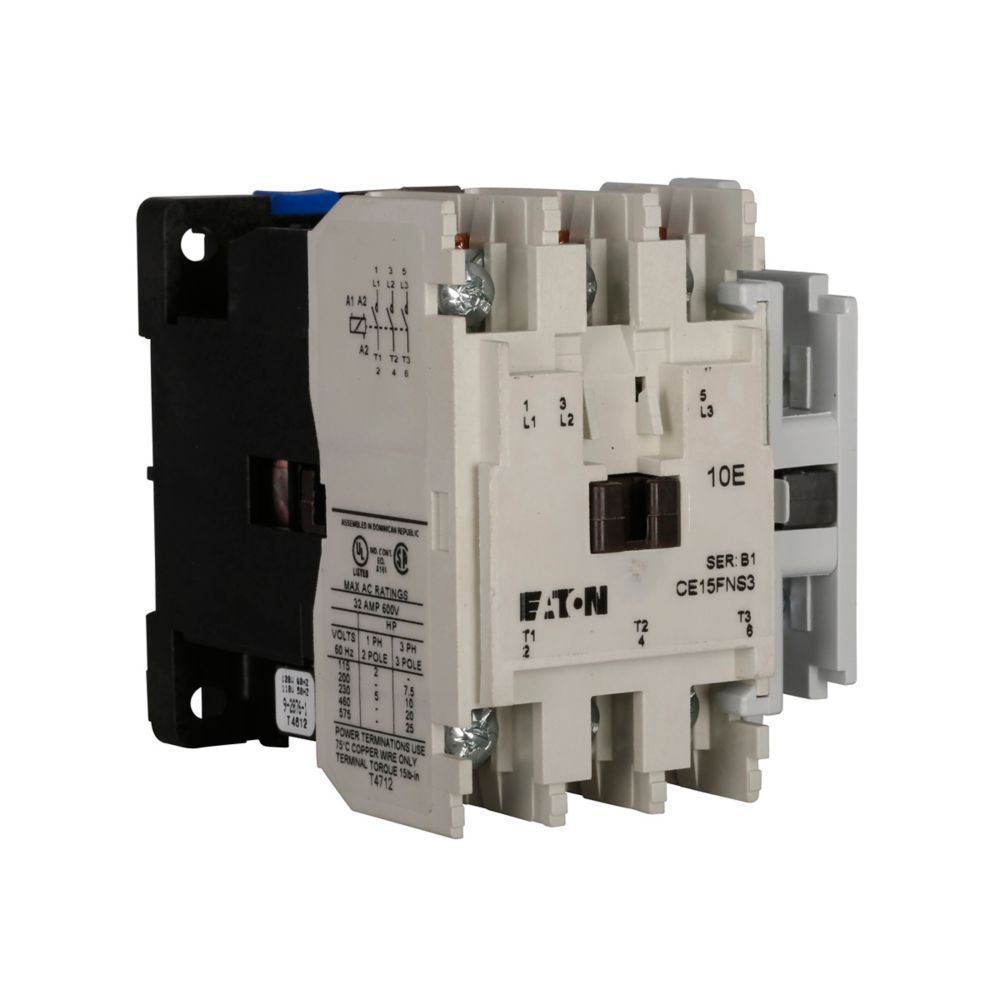

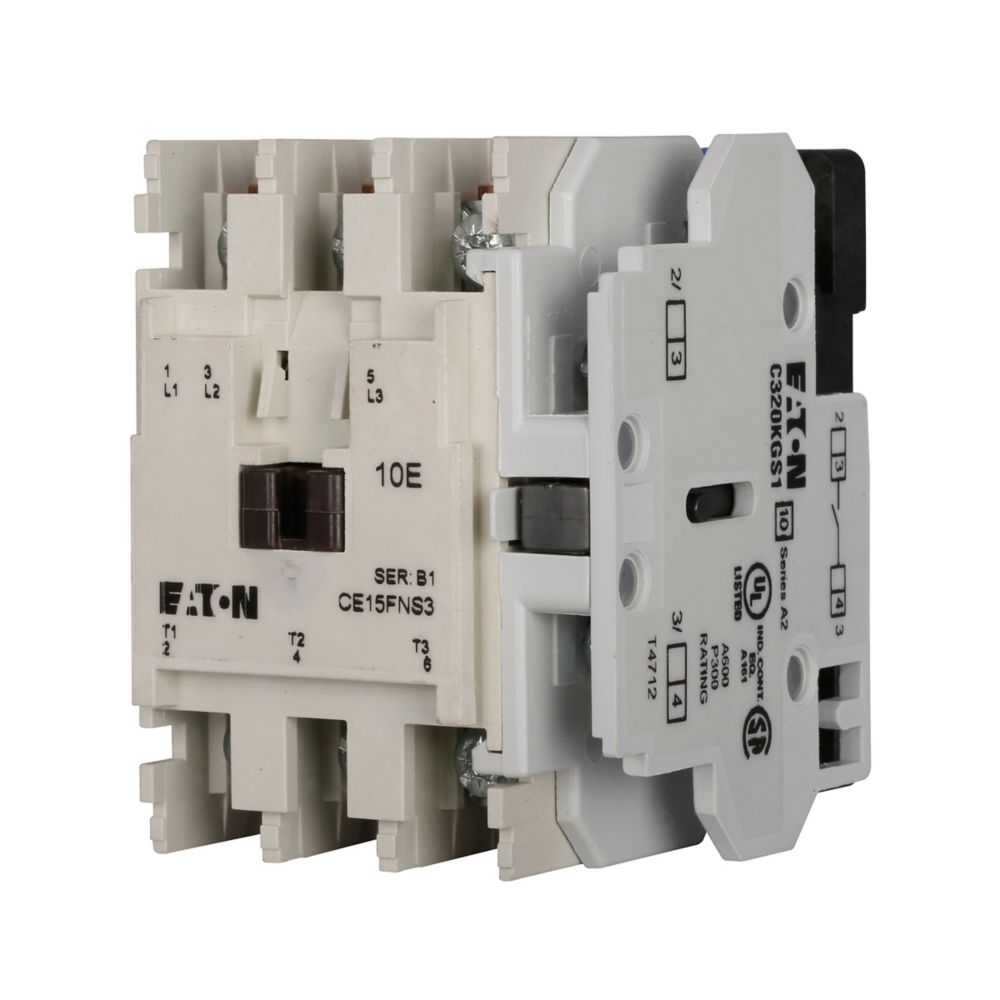

CE15FNS3AB is a Cutler Hammer Freedom series IEC contactor designed for motor control applications with a 32 amp rating and three poles.This Eaton F-frame contactor features a 110/120 VAC coil voltage at 50/60 Hz, non-reversing operation, and a steel mounting plate. It includes one normally open (1NO) side-mounted auxiliary contact and is rated for up to 2 horsepower. The contactor is IEC rated, CSA certified, and UL listed, suitable for general duty control with a compact design.

• Amperage Rating: 32A
• Voltage Rating: 600 VAC max
• Coil Voltage: 110-120 VAC, 50/60 Hz
• Number of Poles: 3 (three-pole)
• Frame Size: F

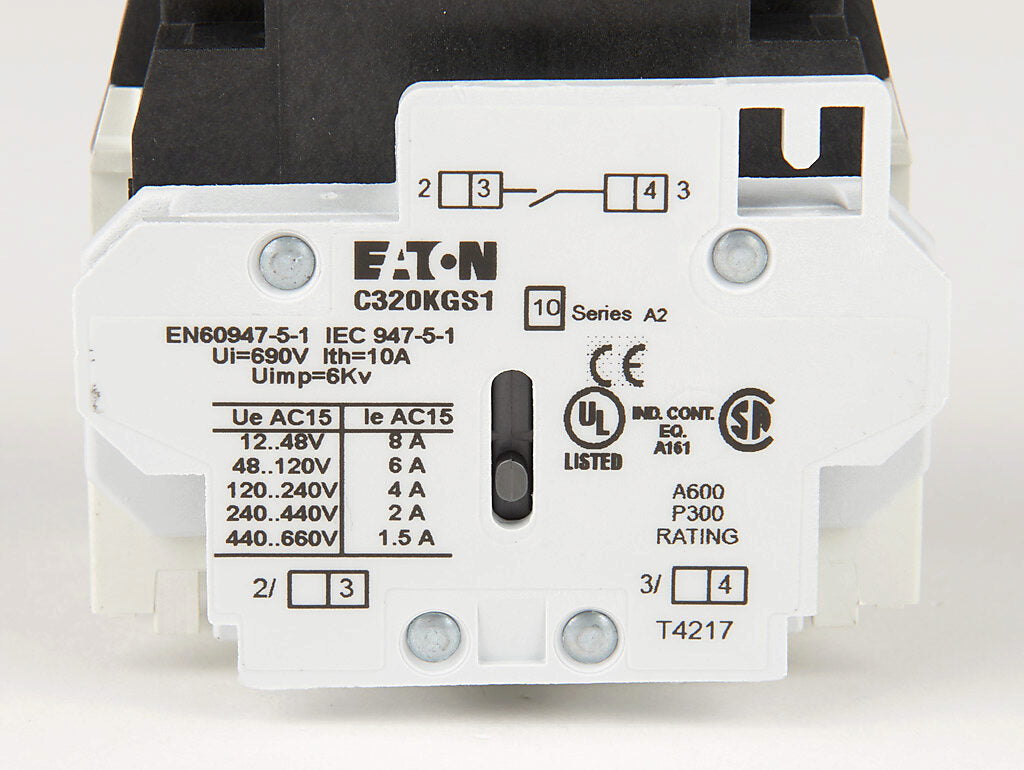

• Contact Configuration: 1 NO auxiliary contact
• Operation: Non-reversing
• Mounting Type: Steel mounting plate, side mount
• Horsepower Rating: 2 HP max
• Series: Freedom
• Certifications: IEC rated, CSA certified, UL listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This IEC Non-Reversing Contactor includes a 110 VAC coil.

Specifications

• Part Number: CE15FNS3AB
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Freedom Series
• Type : CE15FN
• Voltage : 600
• Amperage : 32
• Phase : 3
• Poles : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• Configuration : Non-Reversing
• Aux Contacts : 1 NO
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 110
• Frequency : 50 Hz

Product Data

• UPC : 782113779263
• GTIN : 00782113779263
• Country of Origin : Dominican Republic
• Dimensions : 3.25 in x 2.96 in x 1.8 in (Length/Depth x Height x Width)
• Weight : 1.01 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : UL Listed,CSA Certified,IEC Rated,DIN VDE 0600,ISO 9000
