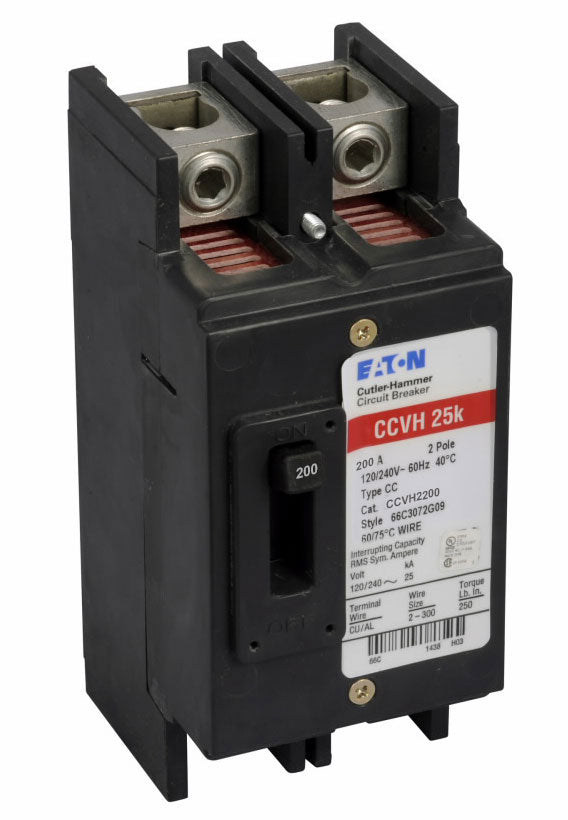

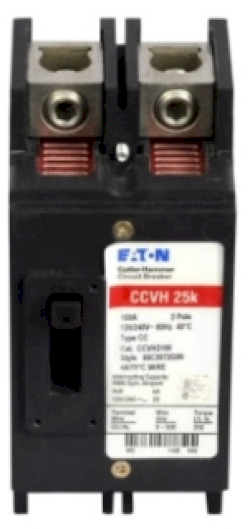

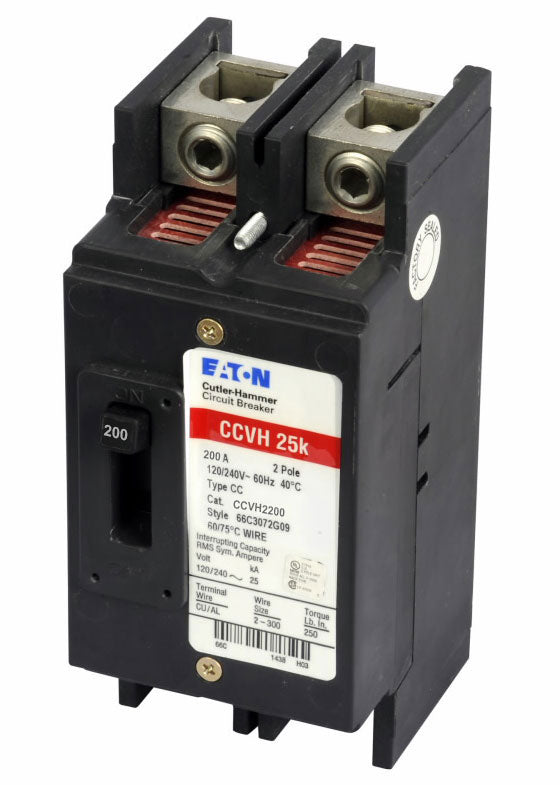

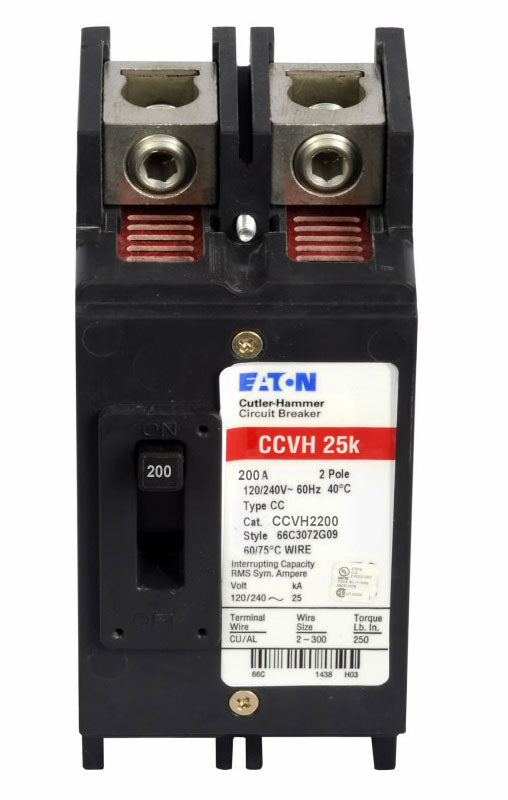

CCVH2200 - Cutler Hammer 200A 2-Pole 240V Circuit Breaker Type CCV 25kAIC Bolt-On

CCVH2200

CCVH2200 is a 200 Amp, 2-Pole, 240 Volt Type CCV circuit breaker by Cutler Hammer designed for panel mounting with a 25 kA interrupt rating.This Eaton Cutler Hammer tenant main circuit breaker features a bolt-on mounting type and is compatible with Type ECC unit enclosures. It provides thermal magnetic protection with long-time and instantaneous trip functions. The breaker supports #2/0 AWG to 300 kcmil copper/aluminum conductors and is rated for 120/240 VAC operation with a 25 kAIC interrupt rating, ensuring reliable overload and short circuit protection.

Key Specifications
• Amperage: 200 A
• Poles: 2
• Voltage: 120/240 V AC
• Interrupt Rating: 25 kAIC at 240 V
• Mounting Type: Bolt-On Panel Mount
• Frame/Series: CCV
• Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
• Compatible Enclosures: Type ECC Unit Enclosures
• Conductor Range: #2/0 AWG to 300 kcmil Cu/Al
• Phase: Single
• Dimensions: 5.5" H x 4.5" W x 8" D
• Weight: Approximately 2.7 lbs
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: CCVH2200
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Tenant Main
• Type : CCVH
• Voltage : 240
• Amperage : 200
• Phase : 1
• Poles : 2
• AIC rating : 25kA@240V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous
• Protection : Thermal Magnetic



Product Data

• UPC : 786685368603
• GTIN : 00786685368603
• Country of Origin : Dominican Republic
• Dimensions : 8 in x 5.5 in x 4.5 in (Length/Depth x Height x Width)
• Weight : 2.7
• Certification : UL 489
