CCVH2100 - Cutler Hammer 100 Amp 2 Pole 120/240V Thermal Magnetic Circuit Breaker

CCVH2100

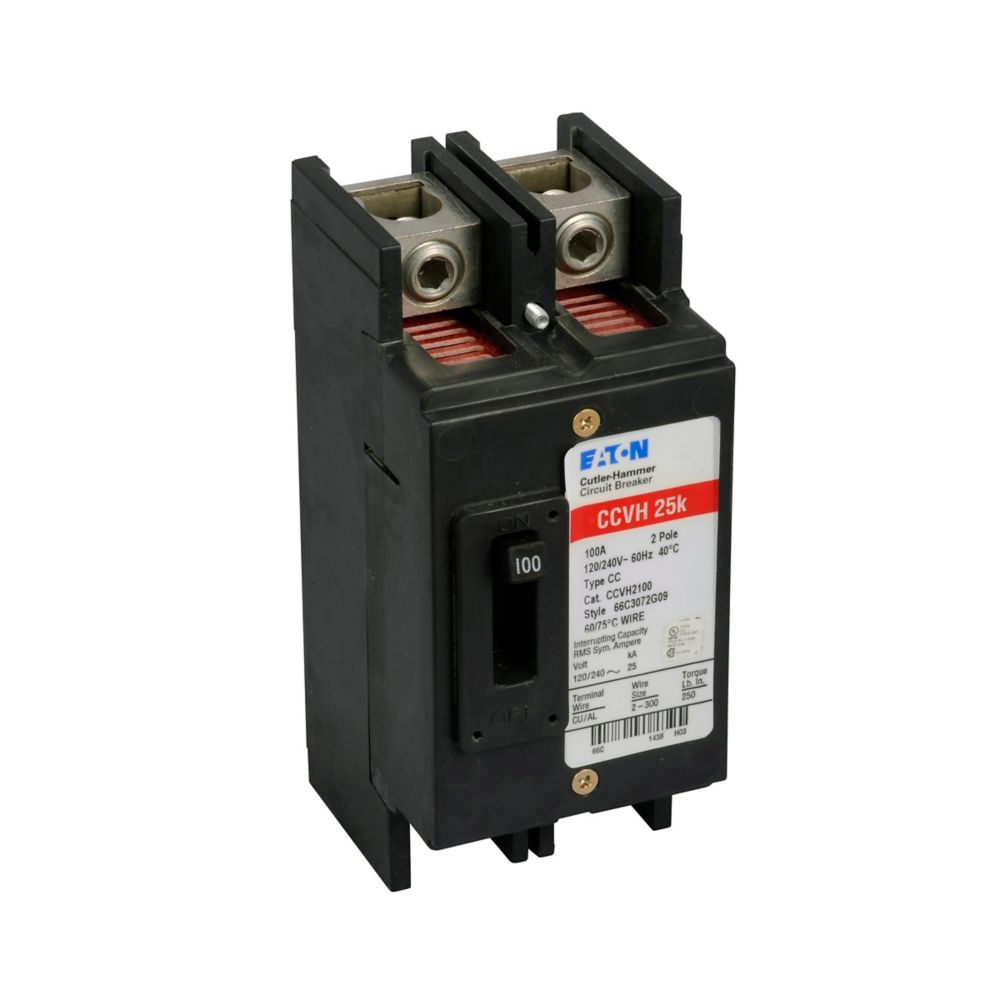

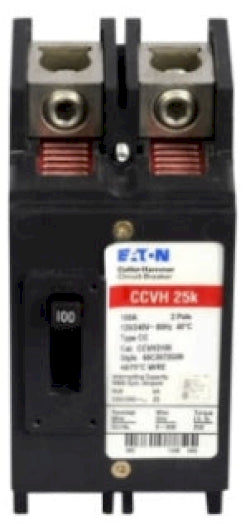

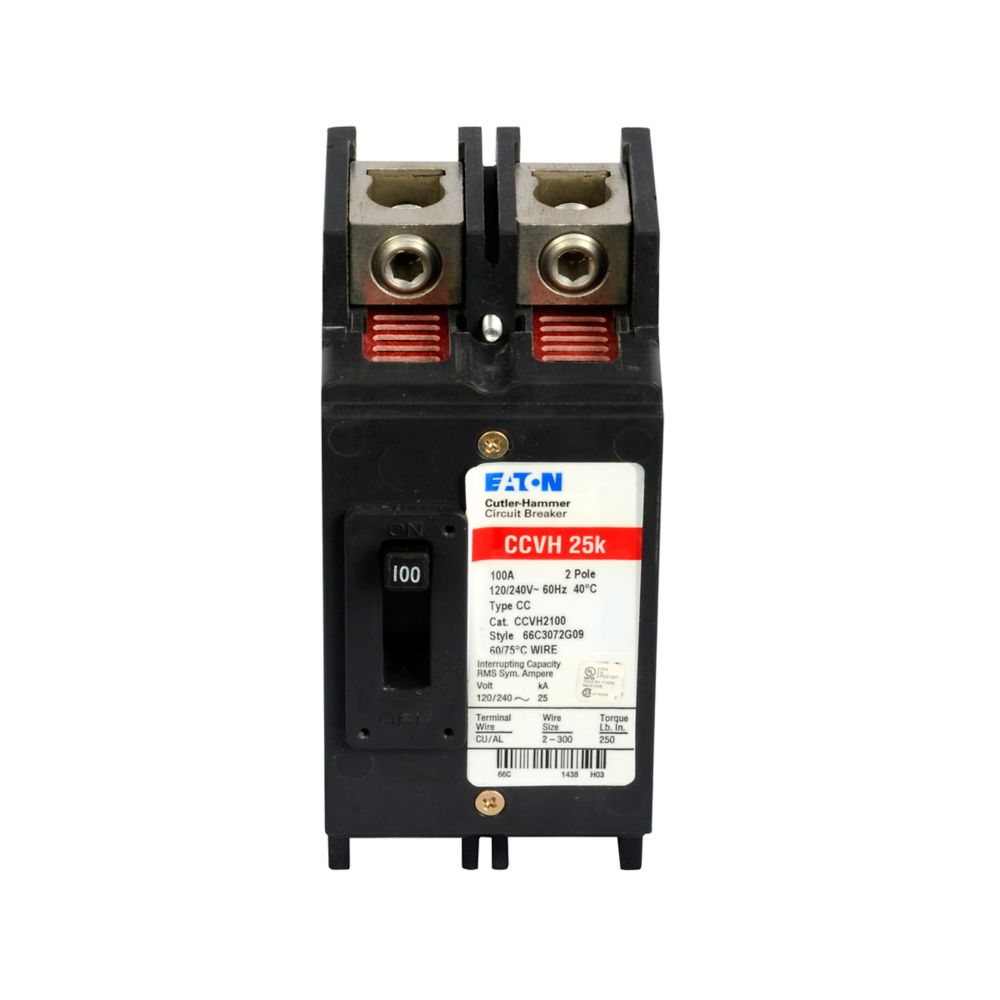

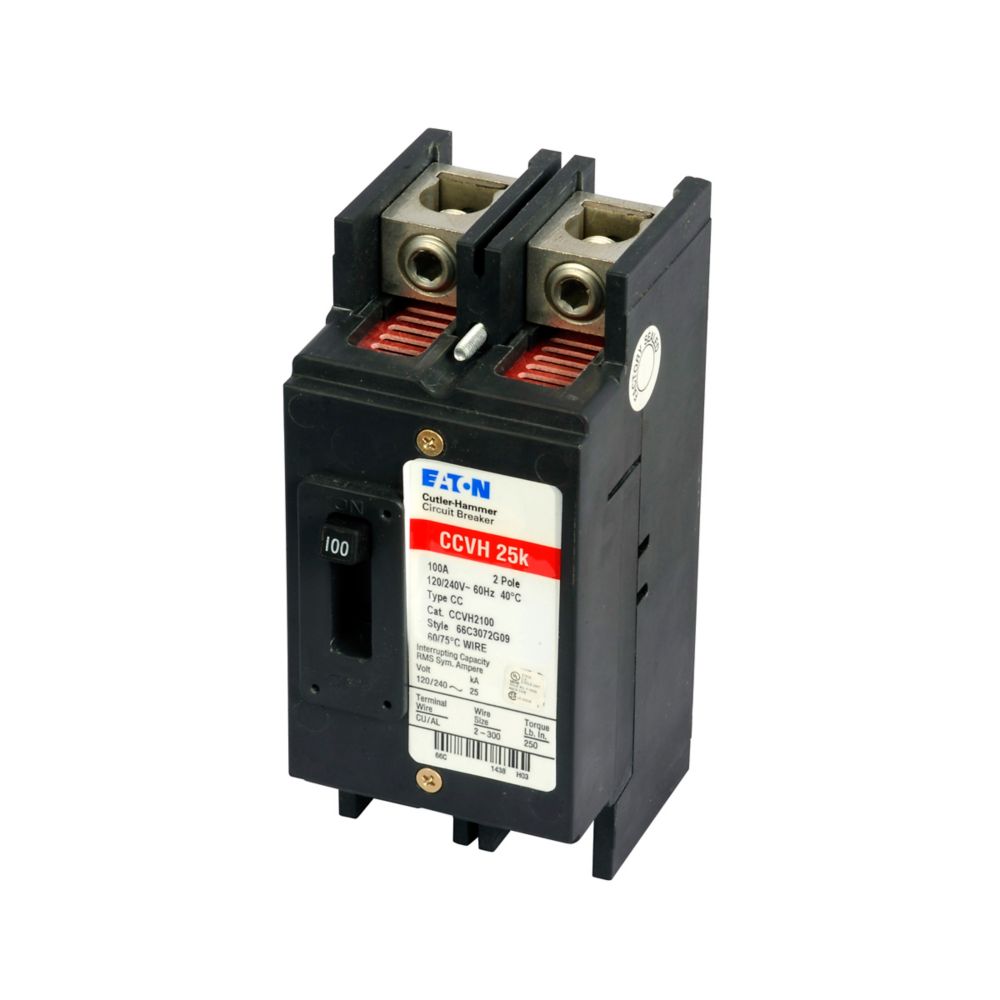

CCVH2100 is a Cutler Hammer 2-pole thermal magnetic molded case circuit breaker rated for 100 amps and 120/240 volts.This Eaton CCVH2100 tenant main breaker features a 25 kA interrupt rating, thermal magnetic trip unit, and is designed for use in Type ECC unit enclosures with a CCV frame.

Key Specifications
• Amperage: 100 Amp
• Voltage: 120/240 V AC
• Poles: 2
• Interrupt Rating: 25 kA at 240 VAC
• Trip Type: Thermal Magnetic
• Frame/Series: CCV
• Mounting Type: Molded Case
• Connection Type: Feed-Thru Lugs (Line/Load)
• Compatible with Type ECC Unit Enclosures
• Wire Size Range: #2/0 AWG to 300 kcmil Cu/Al
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CCVH2100
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Tenant Main
• Type : CCVH
• Voltage : 240
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 25kA@240V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 786685368368
• GTIN : 00786685368368
• Country of Origin : Dominican Republic
• Dimensions : 8 in x 5.5 in x 4.5 in (Length/Depth x Height x Width)
• Weight : 2.83
• Certification : UL 489
• Wire Size : #2/0 AWG to 300KCmil CU/AL
