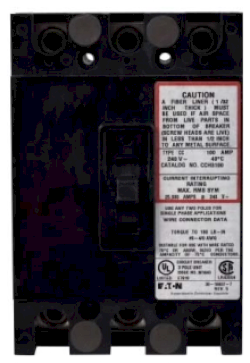

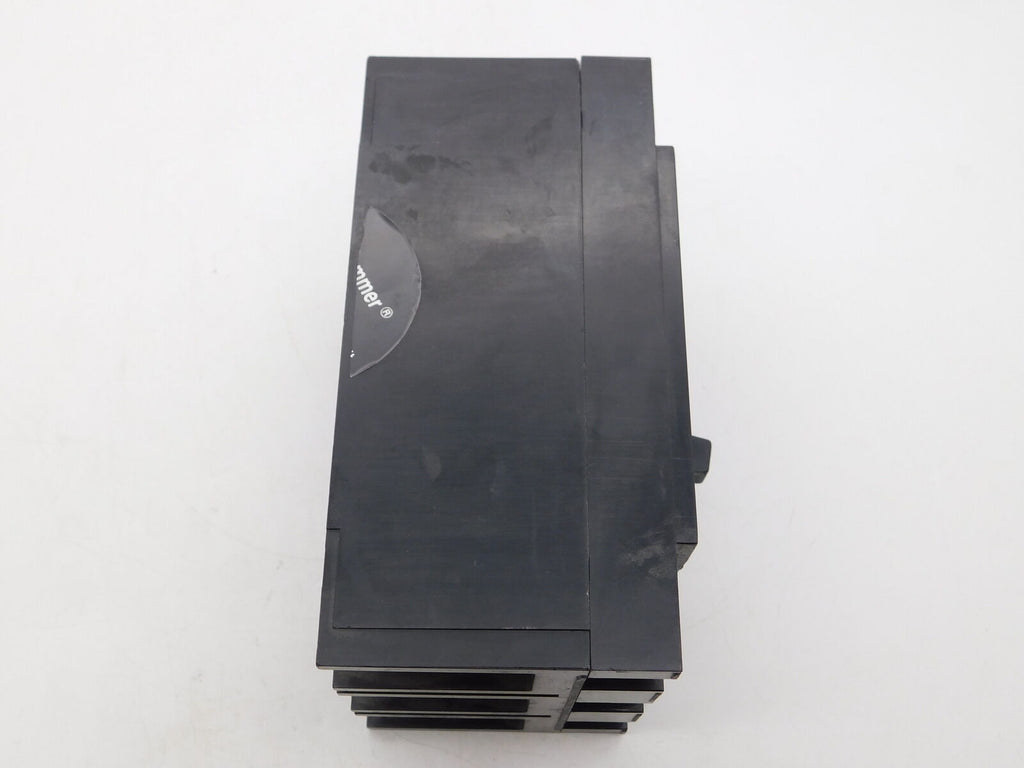

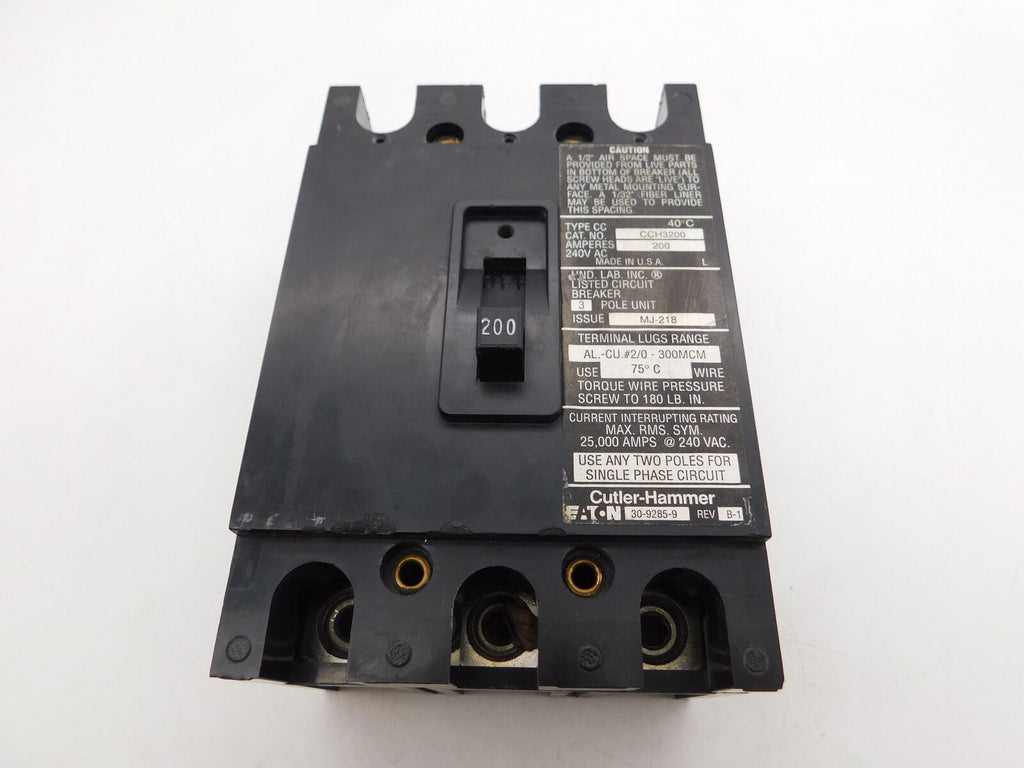

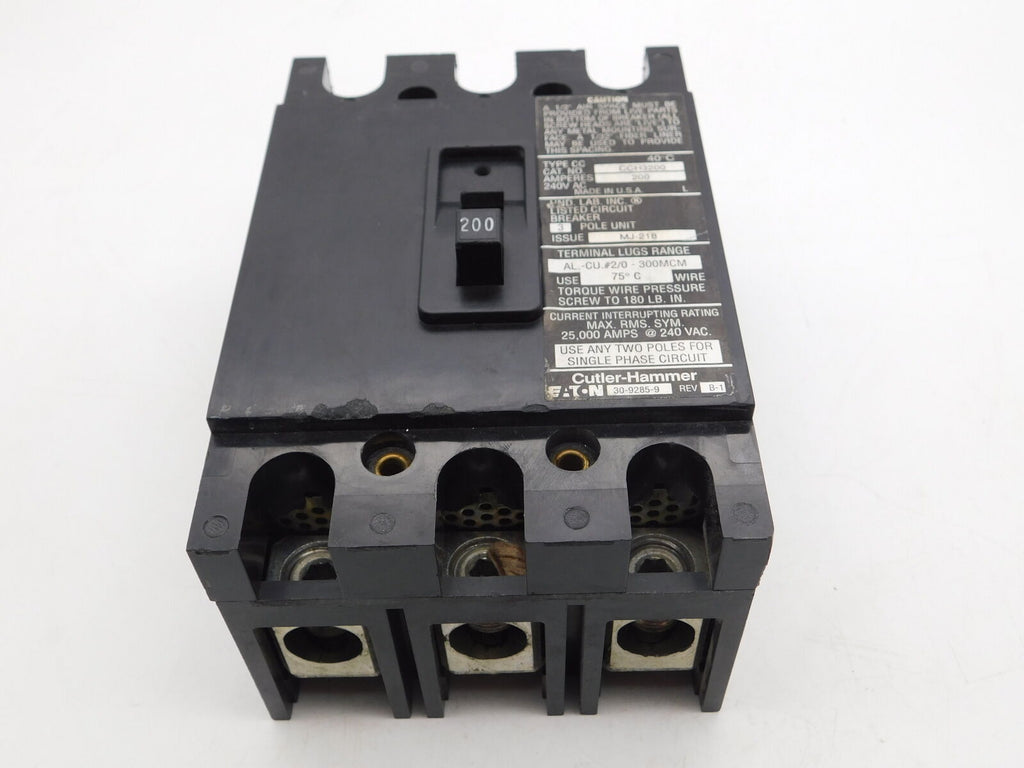

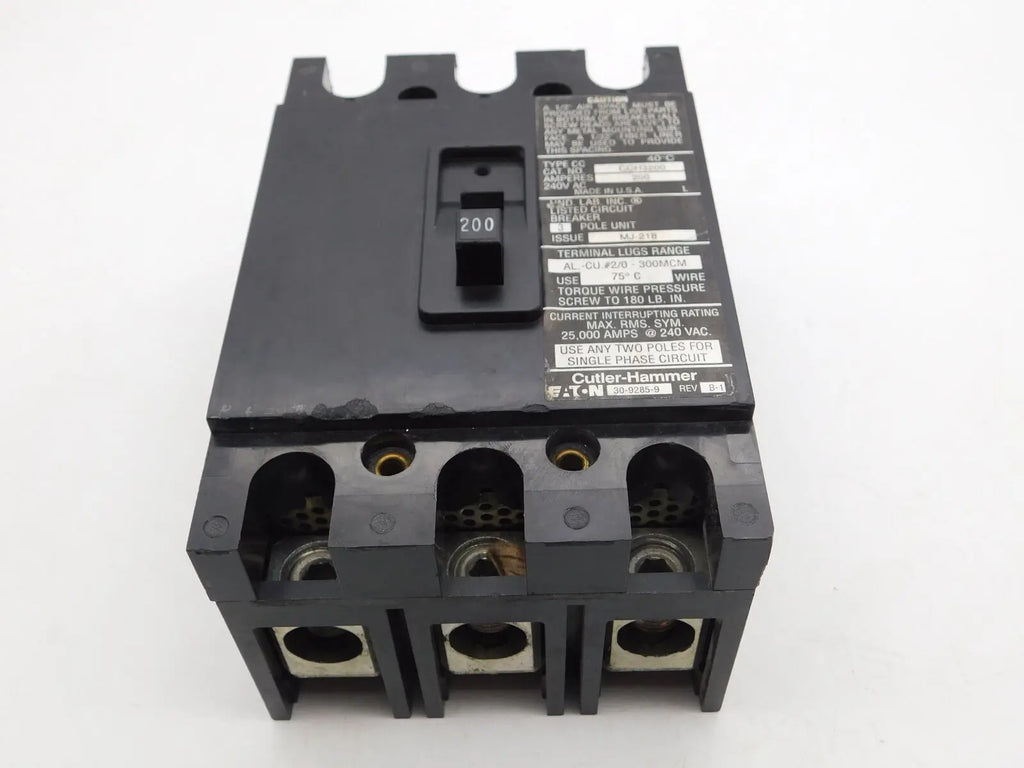

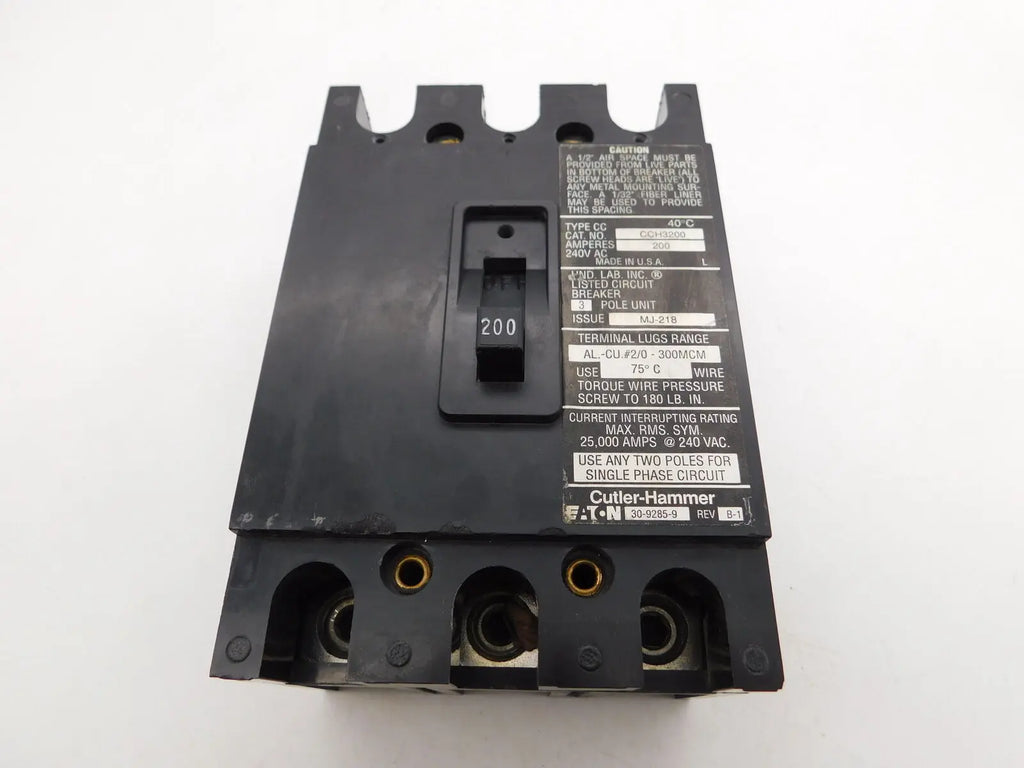

CCH3200 - Cutler Hammer 200A 240V 3-Pole Molded Case Circuit Breaker Type CC 100kAIC Interrupt Rating

CCH3200

CCH3200 is a Cutler Hammer Type CC molded case circuit breaker designed for 200 amp, 240 volt applications with three poles.This circuit breaker features a high interrupting capacity of 100 kAIC, suitable for use as a main breaker in electrical panels. It supports wire sizes from #2/0 AWG to 300 kcmil copper or aluminum and includes a thermal magnetic trip unit for reliable protection. The breaker is UL 489 certified and designed for panel mounting.

• Amperage Rating: 200 A
• Voltage Rating: 240 V
• Number of Poles: 3
• Interrupt Rating: 100 kAIC
• Type: Molded Case Circuit Breaker
• Series/Frame: Type CC
• Trip Unit: Thermal Magnetic
• Wire Size Range: #2/0 AWG to 300 kcmil Cu/Al
• Mounting Type: Panel Mount
• Certifications: UL 489
• Suitable for Use as Main Breaker

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CCH3200
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CCH Series
• Type : CCH
• Voltage : 240
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 25kA@240V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 782113338606
• GTIN : 00782113338606
• Country of Origin : Dominican Republic
• Dimensions : 7.7 in x 5.2 in x 5.7 in (Length/Depth x Height x Width)
• Weight : 4.2
• Certification : UL 489
• Wire Size : 2/0 AWG to 300 kcmil
