Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
CCH3125SR01

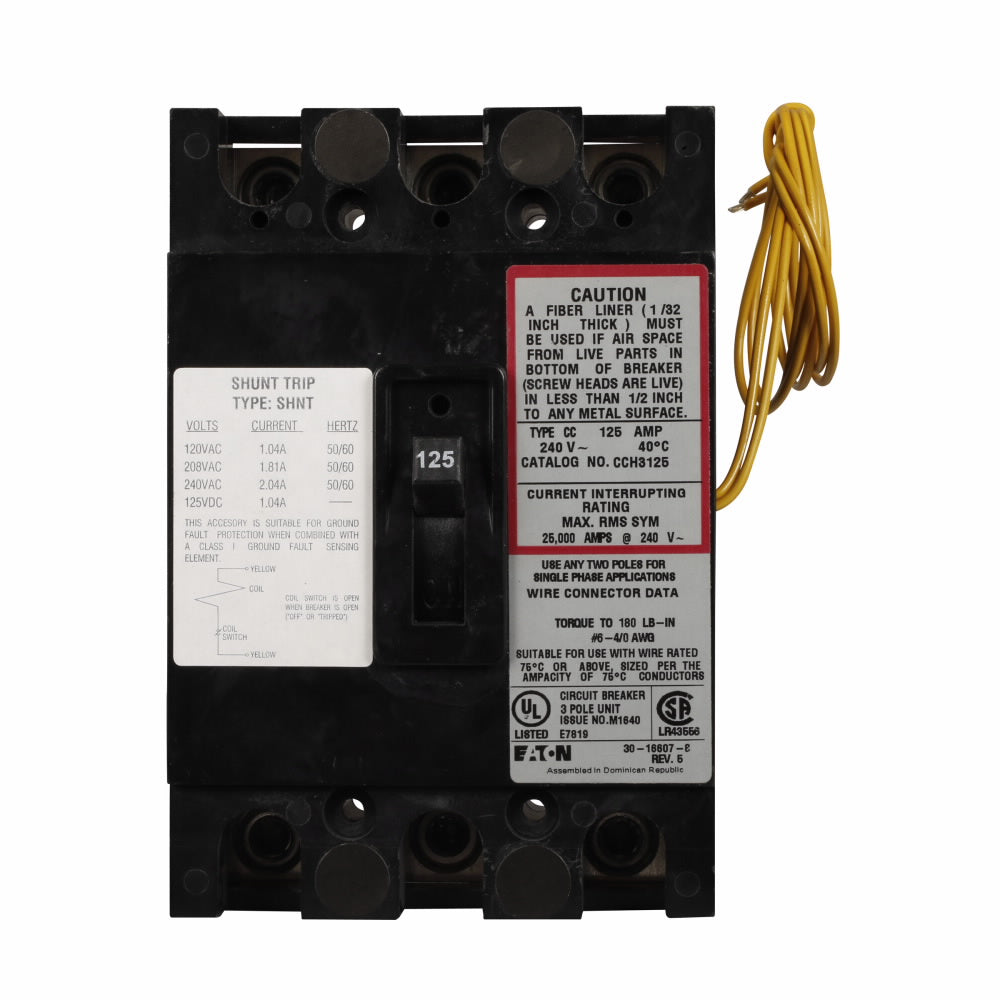

CCH3125SR01 is a Type CC molded case circuit breaker from Cutler Hammer designed for reliable protection in electrical distribution systems.
This 3-pole breaker is rated for 125 amps and 240 volts AC, featuring a high interrupting capacity of 100 kAIC. It includes a thermal magnetic trip unit and a 120V shunt trip for remote tripping capability. The breaker supports #2/0-300 kcmil copper or aluminum conductors at 60°C or 75°C insulation ratings and is suitable for enclosed mounting applications.
- Key Specifications
- Amperage: 125A
- Voltage: 240V AC
- Poles: 3
- Interrupt Rating: 100 kAIC
- Trip Unit: Thermal Magnetic with 120V Shunt Trip
- Series/Frame: Type CC
- Mounting Type: Enclosed
- Conductor Range: #2/0-300 kcmil Cu/Al 60°C or 75°C
- Certifications: UL 489 Listed
- Part Number: CCH3125SR01
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : CCH Series
- Type : CCH
- Voltage : 240
- Amperage : 125
- Phase : 3
- Poles : 3
- AIC rating : 25kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
- UPC : 782113420653
- GTIN : 00782113420653
- Country of Origin : Dominican Republic
- Dimensions : 5 in x 1 in x 3 in (Length/Depth x Height x Width)
- Weight : 0.5
- Certification : UL 489
