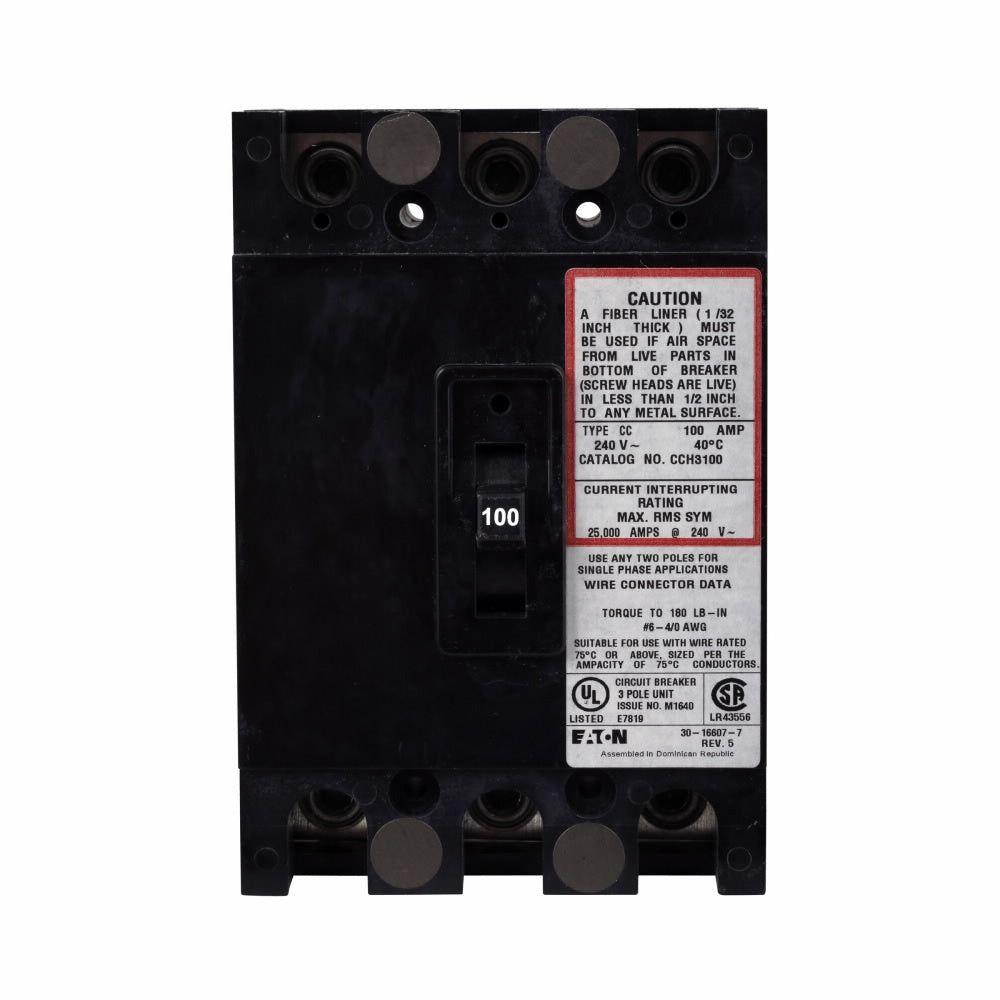

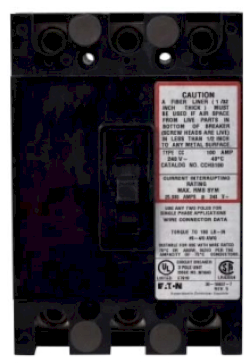

CCH3100 - Cutler Hammer 100A 240V 3 Pole Molded Case Circuit Breaker, 25kAIC, CC Frame, Feed-Thru

CCH3100

CCH3100 is a 3 pole, 100 amp, 240V molded case circuit breaker designed for reliable protection in commercial and industrial applications. This Cutler Hammer breaker features a CC frame, feed-thru design, and a high interrupting capacity of 25kAIC at 240V. It is equipped with thermal magnetic trip unit for long time and instantaneous protection, and includes both line and load side lug terminals for easy installation. This molded case circuit breaker is UL 489 listed and suitable for use in 3-phase systems. The CCH3100 is built for durability and safety, making it ideal for demanding electrical environments.

• Part Number: CCH3100
• Manufacturer: Cutler Hammer
• Amperage: 100A
• Voltage: 240V AC
• Poles: 3
• Interrupt Rating: 25kAIC @ 240V
• Frame Type: CC
• Mounting Type: Feed-Thru
• Terminal Type: Lug (Line & Load)
• Trip Unit: Thermal Magnetic
• Series: CCH
• Certification: UL 489

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CCH3100
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CCH Series
• Type : CCH
• Voltage : 240
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 25kA@240V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 782113338569
• GTIN : 00782113338569
• Country of Origin : Dominican Republic
• Dimensions : 5.7 in x 7.7 in x 5.5 in (Length/Depth x Height x Width)
• Weight : 3
• Certification : UL 489
• Wire Size : AWG 2/0 to 300KCmil, Cu/Al
