Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
CC3225N

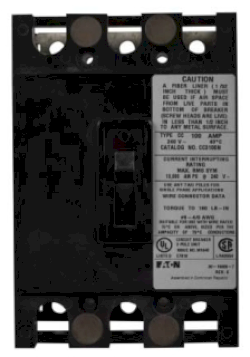

CC3225N is a Cutler Hammer CC Series 3 pole main circuit breaker designed for reliable protection in commercial and industrial applications. This molded case circuit breaker features a 225A amperage rating and is suitable for use with Type ECC unit enclosures and convertible load centers. The CC3225N offers a voltage rating of 120/240V and is equipped with a feed-through connection type for easy installation. It is designed for plug-in mounting and provides a robust solution for main service applications. The breaker is rated for an interrupt capacity of 10kAIC, ensuring dependable performance under fault conditions.
- Part Number: CC3225N
- Manufacturer: Cutler Hammer
- Series/Frame: CC
- Amperage: 225A
- Voltage Rating: 120/240V
- Poles: 3
- Interrupt Rating: 10kAIC
- Mounting Type: Plug-in
- Connection Type: Feed-Through
- Application: Type ECC Unit Enclosures, Convertible Load Centers
- Temperature Rating: 60 to 75°C
- Wire Size: #2/0 AWG to 300 kcmil Cu/Al
Specifications
- Part Number: CC3225N
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : CC Series
- Type : CC
- Voltage : 240
- Amperage : 225
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 782114652091
- GTIN : 00782114652091
- Country of Origin : Dominican Republic
- Dimensions : 7.7 in x 5.4 in x 4.5 in (Length/Depth x Height x Width)
- Weight : 3
- Certification : UL 489
