Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
CC3200X

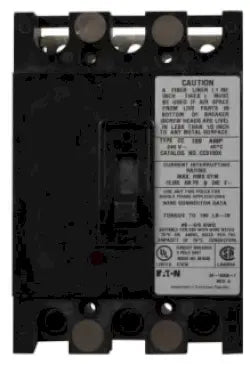

CC3200X is a 200 Amp, 3-Pole molded case circuit breaker from Cutler Hammer designed for bolt-on mounting and rated for 120/208Y and 240 VAC applications. This breaker provides reliable thermal magnetic trip protection for electrical circuits.
The CC3200X features a 10 kiloampere interrupting rating and is part of the Type CC series. It supports line side lug connections ranging from 2/0 to 300 kcmil wire sizes and is suitable for use with 37MM and 37SS frames. Its bolt-on mounting design ensures secure installation in compatible panels.
- Key Specifications
- Amperage: 200 Amp
- Poles: 3
- Voltage Rating: 120/208Y and 240 VAC
- Interrupt Rating: 10 kAIC
- Mounting Type: Bolt-On
- Trip Unit: Thermal Magnetic
- Series/Frame: Type CC
- Line Side Lug Wire Size: 2/0 to 300 kcmil
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: CC3200X
- Manufacturer : Cutler Hammer
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : CC Series
- Type : CC
- Voltage : 240
- Amperage : 200
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 782114314999
- GTIN : 00782114314999
- Country of Origin : Dominican Republic
- Dimensions : 7.7 in x 5.4 in x 4.5 in (Length/Depth x Height x Width)
- Weight : 2.9
- Certification : UL 489
