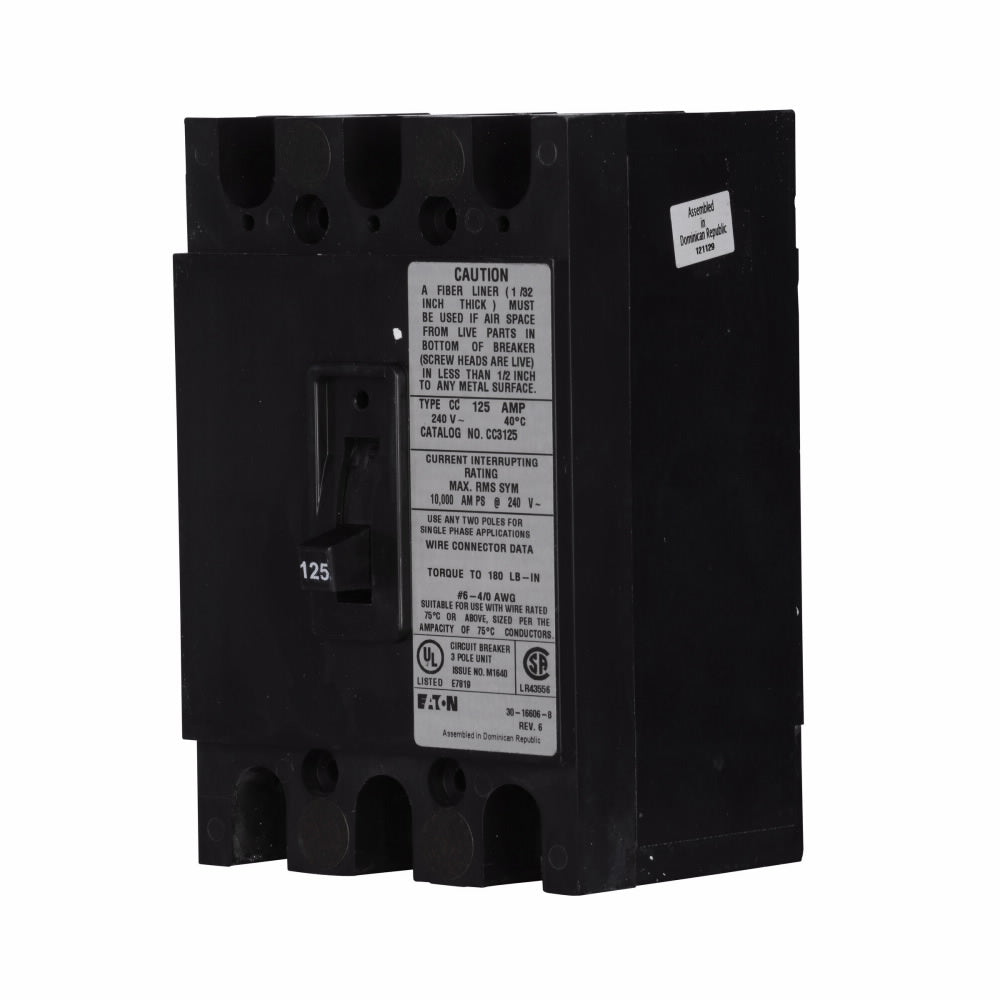

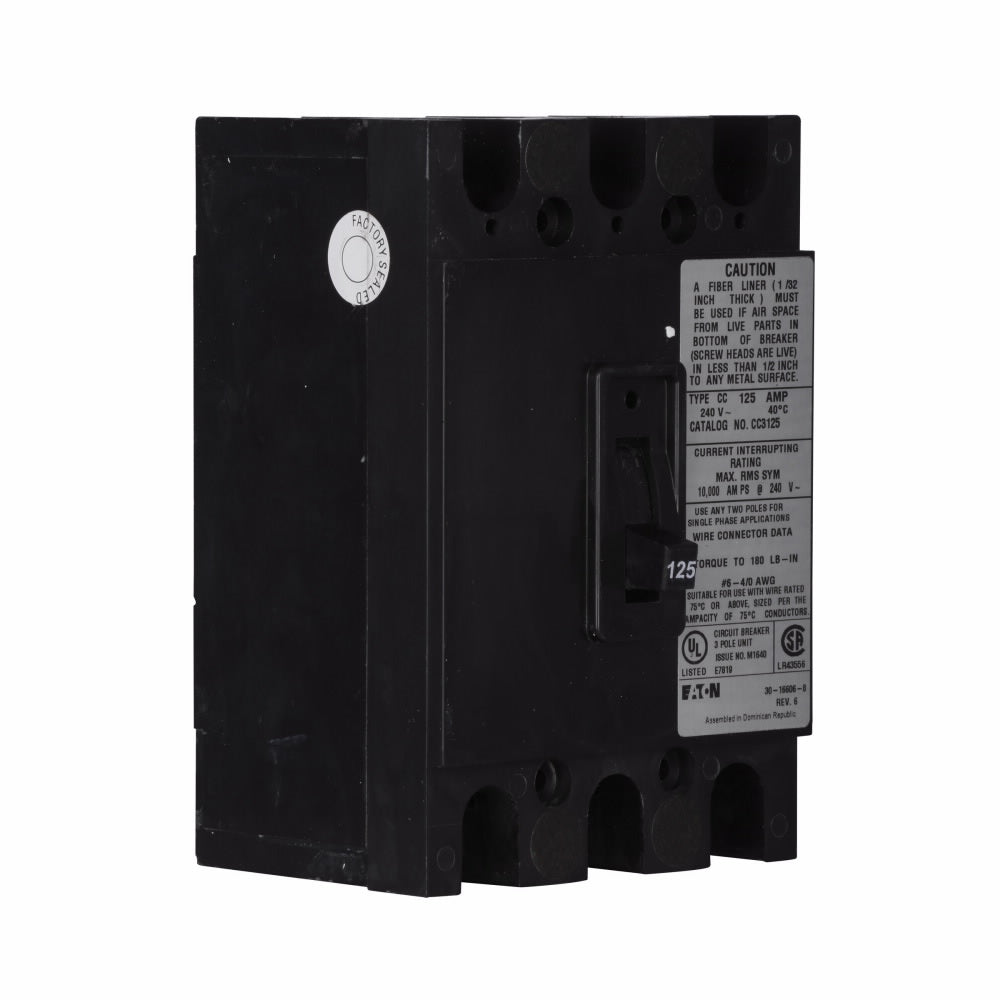

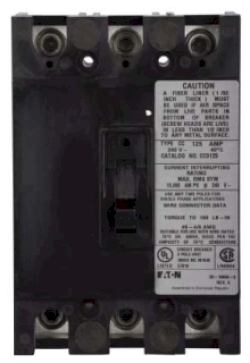

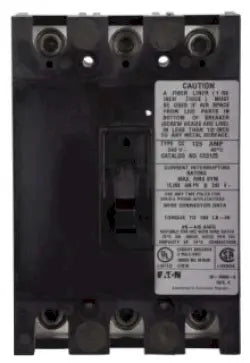

CC3150 - Cutler Hammer 150A 240V 3-Pole Molded Case Circuit Breaker, 10 kAIC Interrupt Rating

CC3150

CC3150 is a Cutler Hammer Type CC molded case circuit breaker designed for 150 ampere, 240 volt applications with three poles.This circuit breaker features a 10 kA interrupt rating and is suitable for use in Type ECC unit enclosures. It supports wire sizes from #4 to 4/0 AWG copper or aluminum at 60°C or 75°C. The breaker is UL 489 certified and mounts with a bolt-on base.

• Amperage Rating: 150 A
• Voltage Rating: 240 V
• Number of Poles: Three-pole
• Interrupt Rating: 10 kAIC
• Type: Molded Case Circuit Breaker
• Frame/Series: Type CC
• Mounting Type: Bolt-On
• Wire Size: #4-4/0 AWG Cu/Al
• Certifications: UL 489
• Used With: Type ECC Unit Enclosures

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CC3150
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CC Series
• Type : CC
• Voltage : 240
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 782113266626
• GTIN : 00782113266626
• Country of Origin : Dominican Republic
• Dimensions : 8 in x 5.25 in x 7 in (Length/Depth x Height x Width)
• Weight : 3
• Certification : UL 489
• Wire Size : 4-4/0 AWG (Aluminum/Copper)
