C440A2A1P6SF0 - Eaton C440 Electronic Overload Relay 0.33-1.65A NEMA Size 0 Frame Selectable Trip Class 10A 20 30

C440A2A1P6SF0

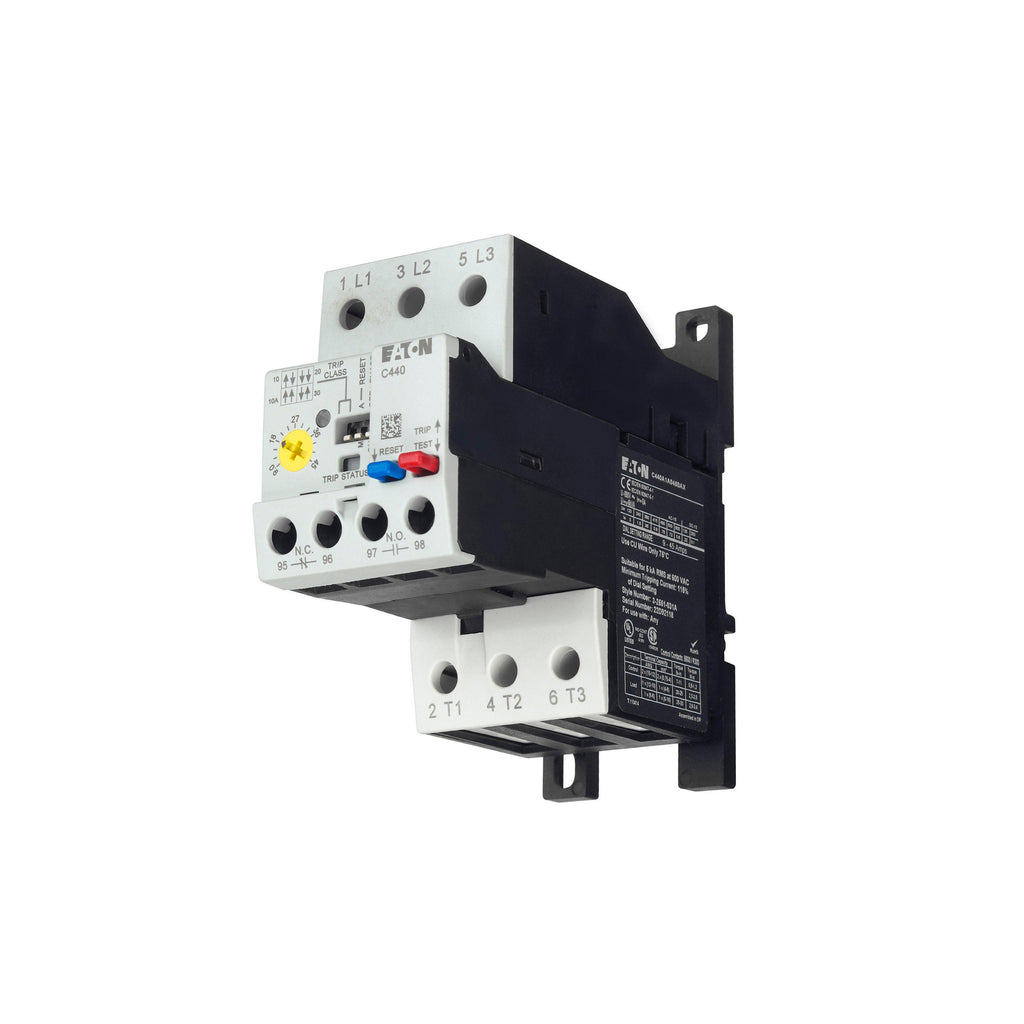

C440A2A1P6SF0 is an Eaton C440 electronic overload relay designed for reliable motor protection in industrial applications. This solid-state relay offers precise overload protection with a wide adjustable amperage range and selectable trip class for flexible configuration. The C440A2A1P6SF0 features a NEMA Size 0, 45mm frame and supports both manual and automatic reset modes. It provides overload protection for motors with a full load amperage (FLA) range of 0.33A to 1.65A. The relay includes ground fault protection and offers selectable trip classes (10A, 20, 30) for optimal motor protection. Its compact design and advanced monitoring features make it suitable for a variety of motor control applications.

• Adjustable amperage range: 0.33A - 1.65A
• NEMA Size 0, 45mm frame
• Selectable manual or automatic reset
• Selectable trip class: 10A, 20, 30
• Ground fault protection
• Electronic overload relay type
• Compact design for space-saving installation
• Advanced monitoring and protection features

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: C440A2A1P6SF0
• Manufacturer : Eaton
• Brand : Eaton
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : C440 Electronic
• Type : C440
• Relay Style : Solid State
• Amperage Maximum : 1.65
• Amperage Minimum : 0.33

Product Data

• UPC : 786685411774
• GTIN : 00786685411774
• Country of Origin : Dominican Republic
• Dimensions : 4.32 in x 3.8 in x 1.8 in (Length/Depth x Height x Width)
• Weight : 0.87 lb
• Certification : CSA Certified,UL Listed,CE Marked
