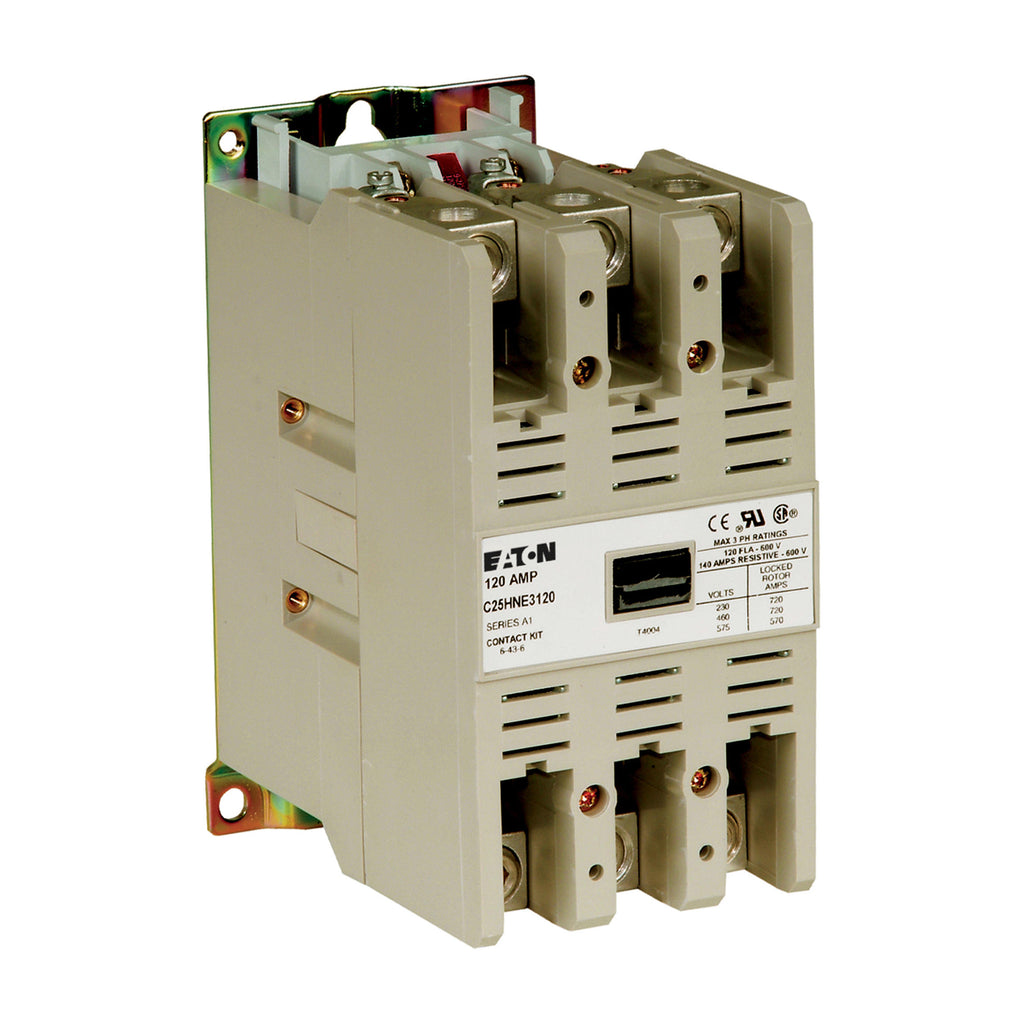

C25HNE3120B - Cutler Hammer C25 Series 3 Pole 120A 600VAC Definite Purpose Contactor, 208/240V Coil, Panel Mount, UL/CSA

C25HNE3120B

C25HNE3120B is a Cutler Hammer (Eaton) C25 Series definite purpose contactor designed for reliable motor control applications.

This 3 pole contactor features a 120A current rating, 600VAC voltage rating, and is equipped with a 208/240V AC coil. It is panel mounted, non-reversing, and includes 1 NO + 1 NC auxiliary contacts. The C25HNE3120B is UL and CSA certified, making it a robust choice for industrial and commercial installations.

Key Specifications

• Amperage: 120A FLA (140A resistive)
• Voltage: 600VAC
• Poles: 3
• Mounting Type: Panel
• Interrupt Rating: Not specified in available data
• Series/Frame: C25
• Trip Unit: Not applicable (contactor, not circuit breaker)
• Certifications: UL, CSA, RoHS
• Coil Voltage: 208VAC at 50Hz, 240VAC at 60Hz
• Contact Configuration: 1 NO, 1 NC
• Connection Type: Quick connect, box lug
• Temperature Rating: 150°F

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This Definite Purpose Contactor includes a 208 VAC coil.

Specifications

• Part Number: C25HNE3120B
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : C25 Series
• Type : C25
• Voltage : 600
• Amperage : 120
• Phase : 3
• Poles : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• Configuration : Non-Reversing
• Aux Contacts : 1 NO + 1 NC
• Coil Voltage Maximum : 240
• Coil Voltage Minimum : 240
• Frequency : 50 Hz

Product Data

• UPC : 782114182437
• GTIN : 00782114182437
• Country of Origin : Dominican Republic
• Dimensions : 5.94 in x 7.17 in x 3.54 in (Length/Depth x Height x Width)
• Weight : 8.5 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : UL Recognized,CSA Certified,RoHS Compliant
