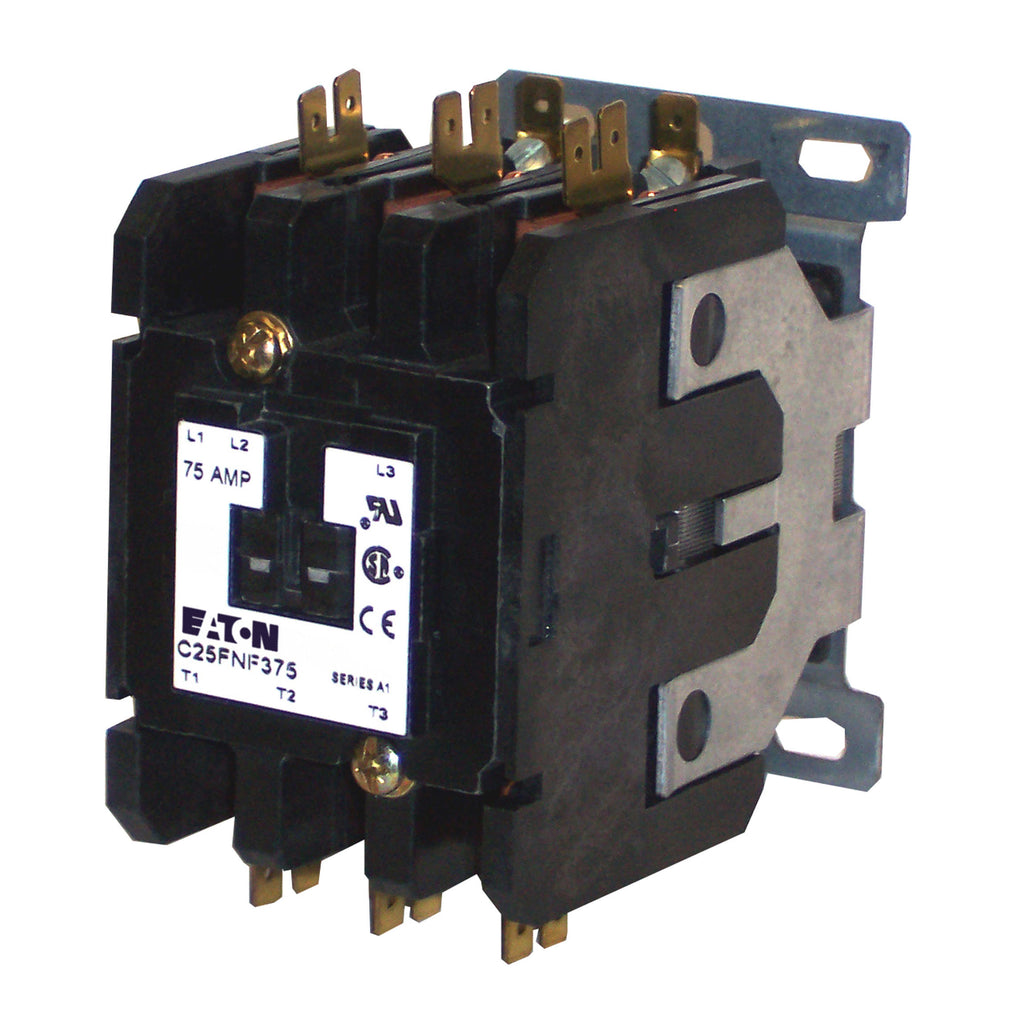

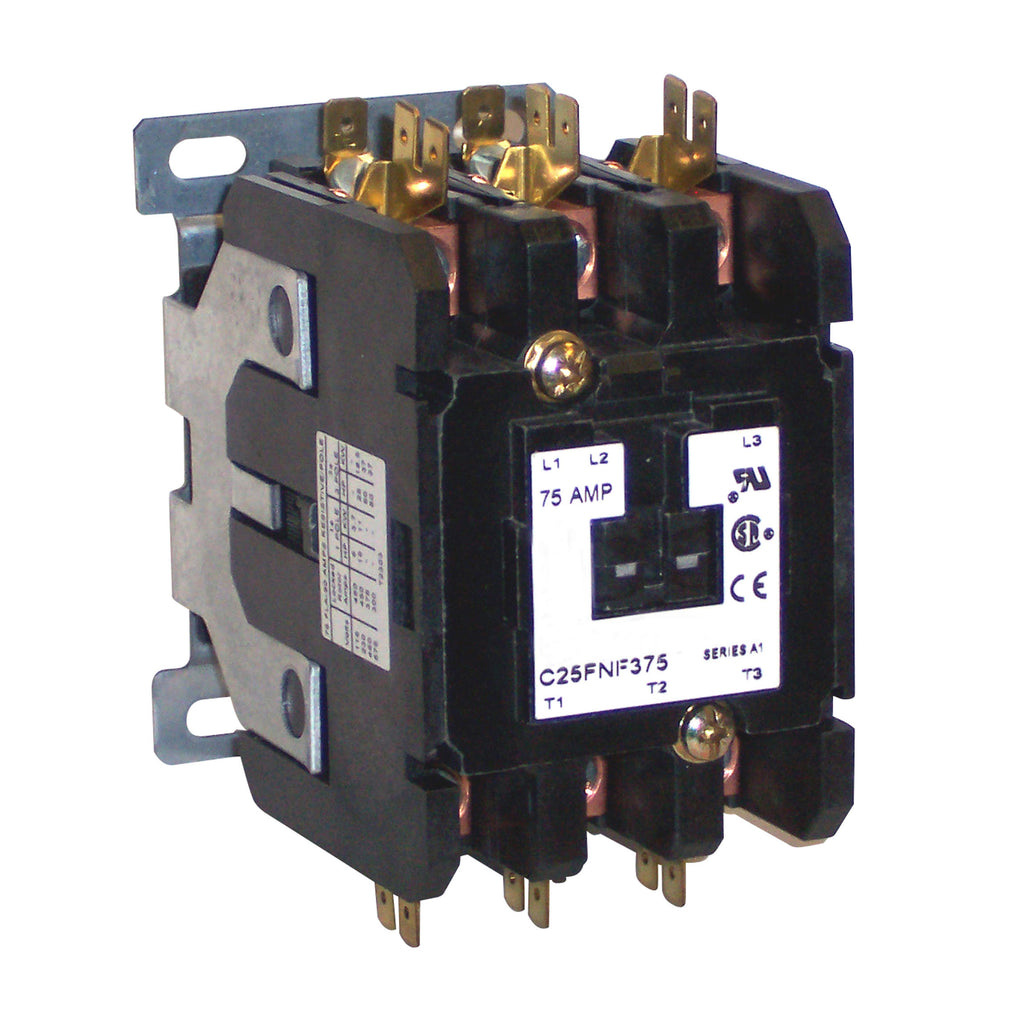

C25FNF375C - Cutler Hammer 75A 600V 3 Pole Definite Purpose Contactor with 440-480VAC Coil

C25FNF375C

C25FNF375C is a Cutler Hammer definite purpose contactor rated for 75 amps, 600 volts, and features a 3 pole configuration with a 440-480VAC coil.This contactor is designed for motor control applications and includes box lug and quick connect terminals. It has an open enclosure with a metal mounting plate and supports both resistive and inductive loads. The device is UL Recognized and CSA Certified, ensuring compliance with industry standards. It is suitable for 3 phase systems and offers reliable switching performance with a non-reversing type design.

• Amperage Rating: 75A
• Voltage Rating: 600V AC
• Number of Poles: 3
• Coil Voltage: 440-480VAC, 50/60 Hz
• Mounting Type: Open with metal mounting plate
• Terminals: Box lugs (posidrive setscrew) and quick connect
• Type: Definite Purpose Control Contactor
• Certifications: UL Recognized, CSA Certified
• Frame Size: 60-75A
• Resistive Load: 90A
• Auxiliary Contacts: 1 NO, 1 NC
• Weight: Approximately 2.8 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This Definite Purpose Contactor includes a 110 VAC coil.

Specifications

• Part Number: C25FNF375C
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : C25 Series
• Type : C25
• Voltage : 600
• Amperage : 75
• Phase : 3
• Poles : 3
• Configuration : Non-Reversing
• Aux Contacts : 1 NO + 1 NC
• Coil Voltage Maximum : 480
• Coil Voltage Minimum : 440
• Frequency : 50 Hz

Product Data

• UPC : 782114623640
• GTIN : 00782114623640
• Country of Origin : Dominican Republic
• Dimensions : 3.97 in x 3.75 in x 2.63 in (Length/Depth x Height x Width)
• Weight : 1 lb
• Certification : CSA Certified,UL Recognized,RoHS Compliant
