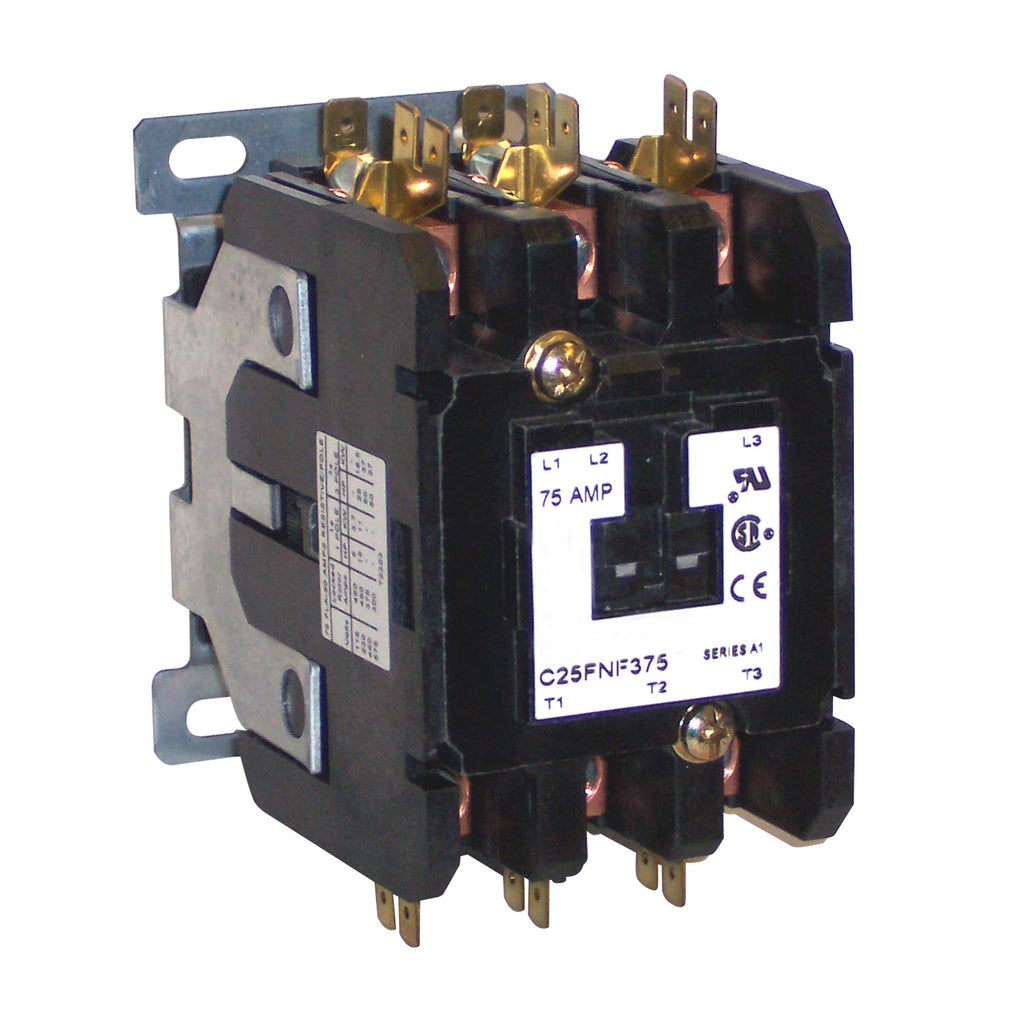

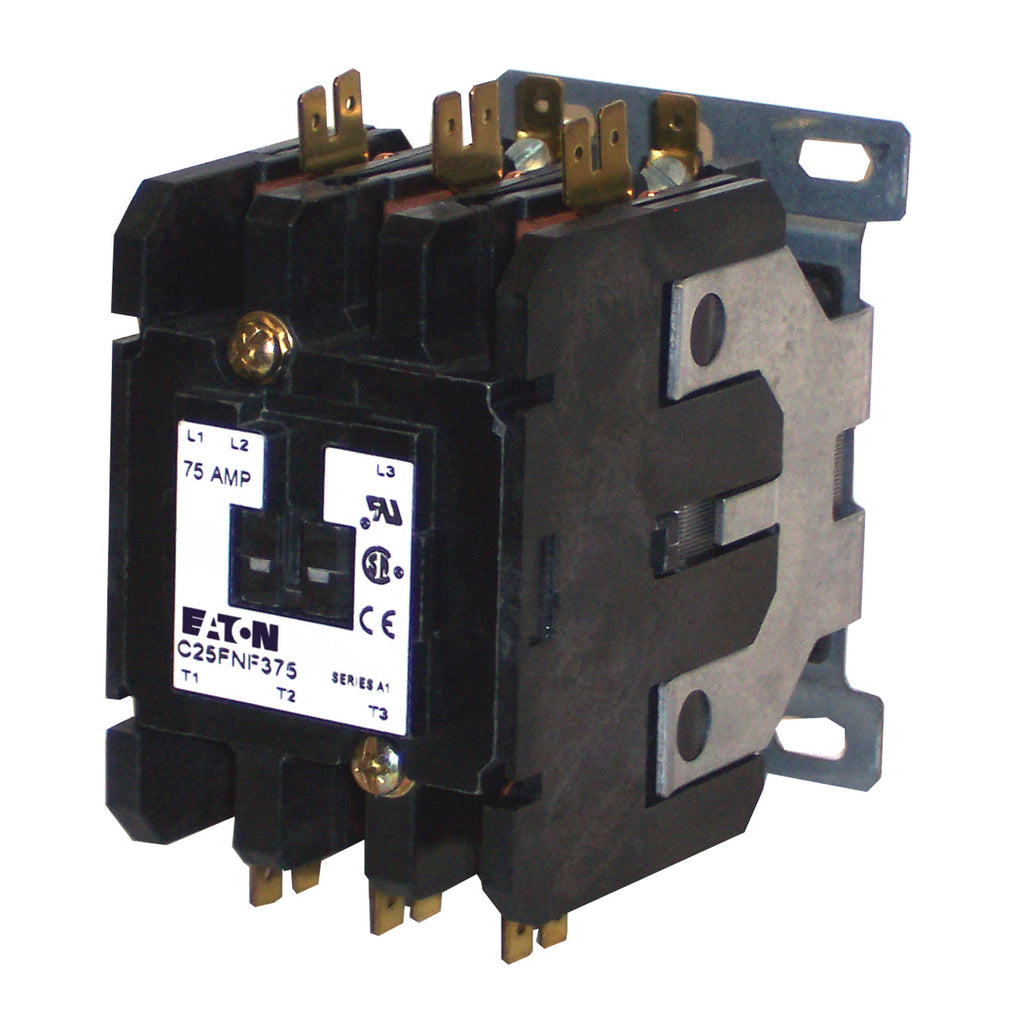

C25FNF375A - Cutler Hammer 75A 600V 3-Pole Definite Purpose Contactor with 110-120V Coil

C25FNF375A

C25FNF375A is a Cutler Hammer definite purpose contactor rated for 75 amps, 600 volts, and features a 3-pole configuration with a 110-120V AC coil.This contactor is designed for HVAC, lighting, and motor control applications. It includes box lug and quick connect terminals, an open enclosure with metal mounting plate, and supports both inductive and resistive loads. Certified by CSA and UL recognized, it offers reliable switching with 1 normally open and 1 normally closed contact configuration.

• Amperage: 75A
• Voltage Rating: 600VAC
• Number of Poles: 3
• Coil Voltage: 110-120VAC, 50/60Hz
• Mounting: Metal mounting plate, open enclosure
• Terminals: Box lugs and quick connect (side-by-side)
• Contact Configuration: 1 NO, 1 NC
• Load Ratings: 75A inductive, 90A resistive
• Certifications: CSA Certified, UL Recognized
• Series: C25 Series
• Non-reversing type

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This Definite Purpose Contactor includes a 110 VAC coil.

Specifications

• Part Number: C25FNF375A
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : C25 Series
• Type : C25
• Voltage : 600
• Amperage : 75
• Phase : 3
• Poles : 3
• Configuration : Non-Reversing
• Coil Voltage Maximum : 120
• Full Load Amps : Full Load Amps-Inductive 75A Full Load Amps-Resistive 90A
• Coil Voltage Minimum : 110
• Frequency : 50 Hz

Product Data

• UPC : 782114117453
• GTIN : 00782114117453
• Country of Origin : Dominican Republic
• Dimensions : 3.97 in x 3.75 in x 2.63 in (Length/Depth x Height x Width)
• Weight : 2.66 lb
• Certification : CSA, RoHS, UL Listed
