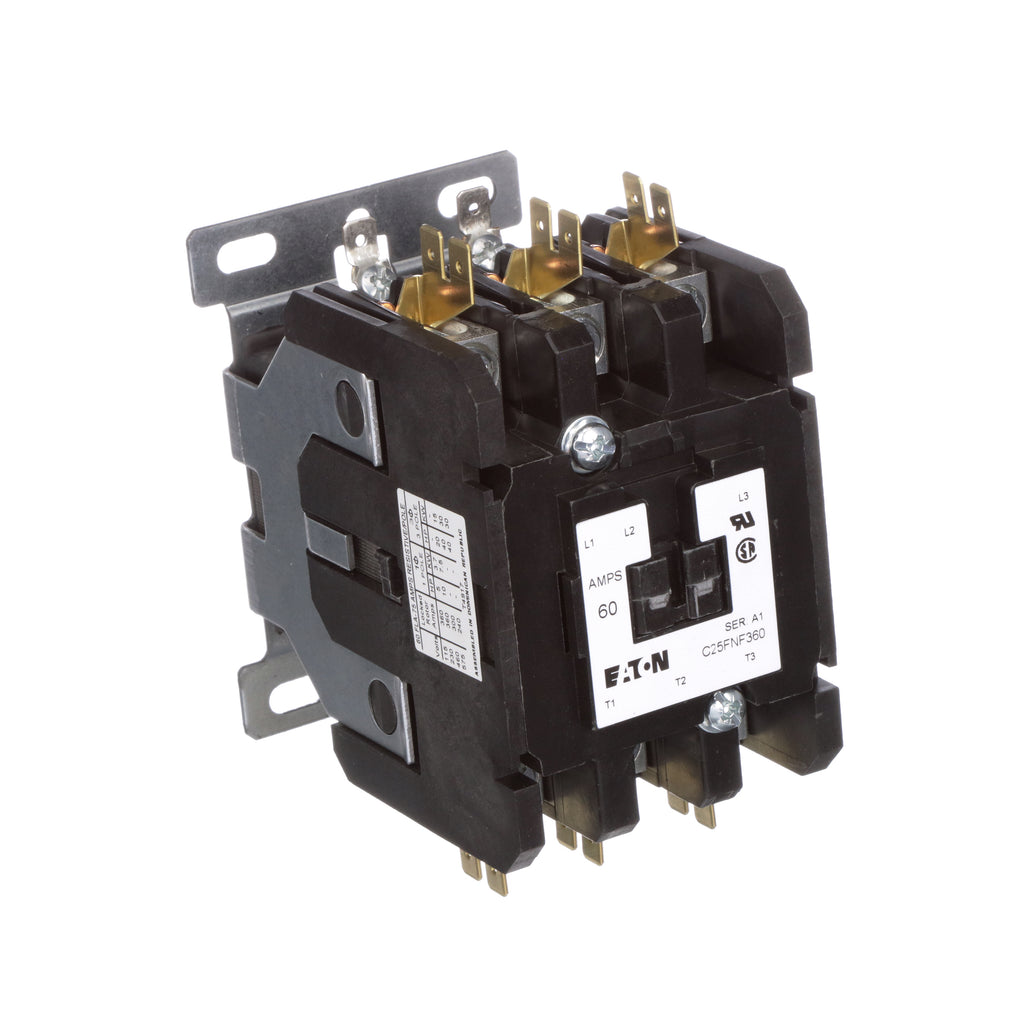

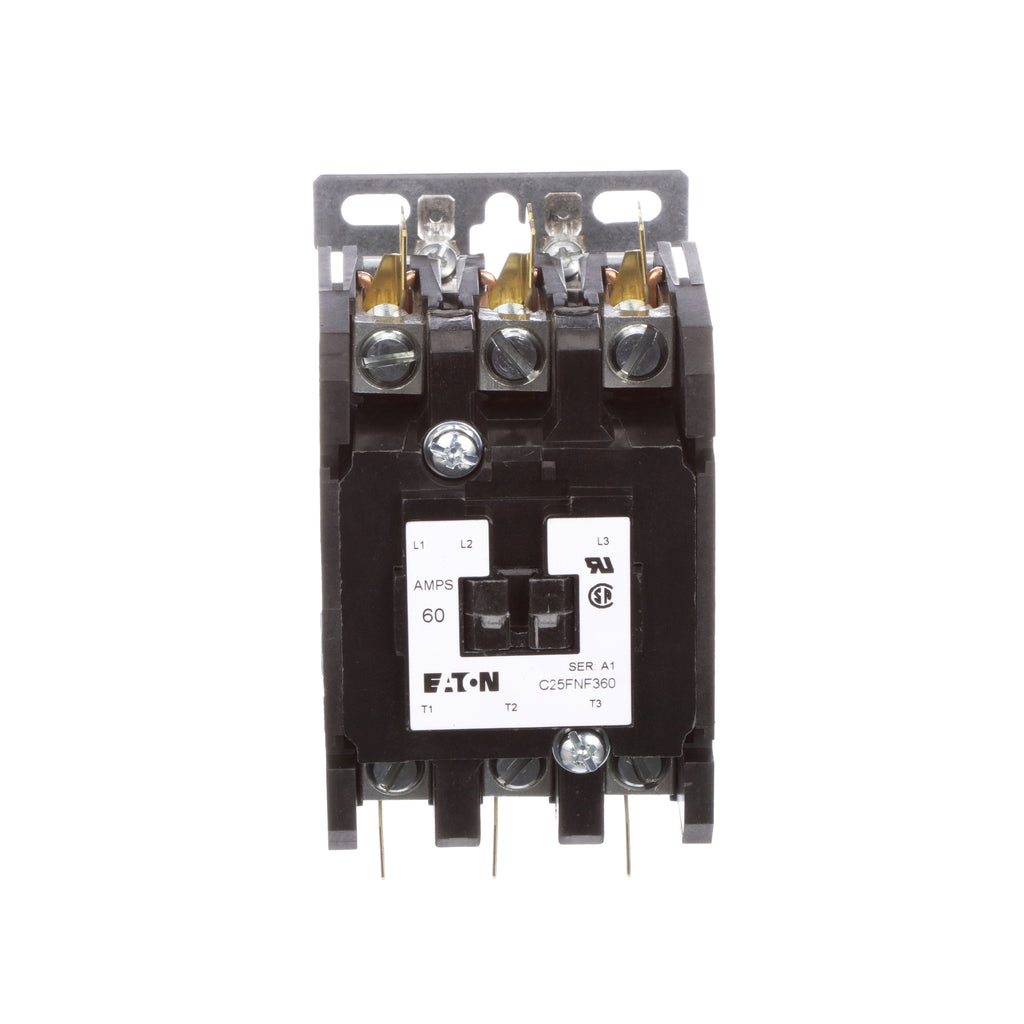

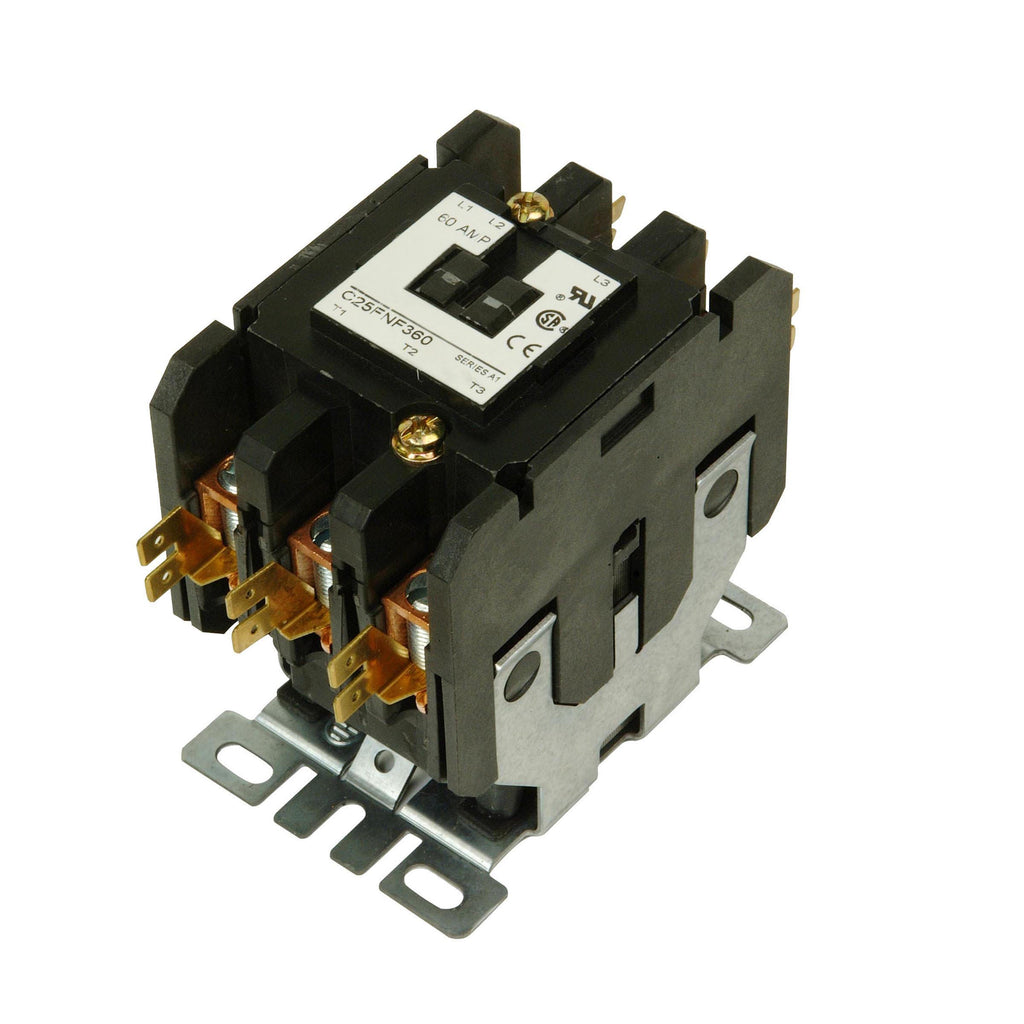

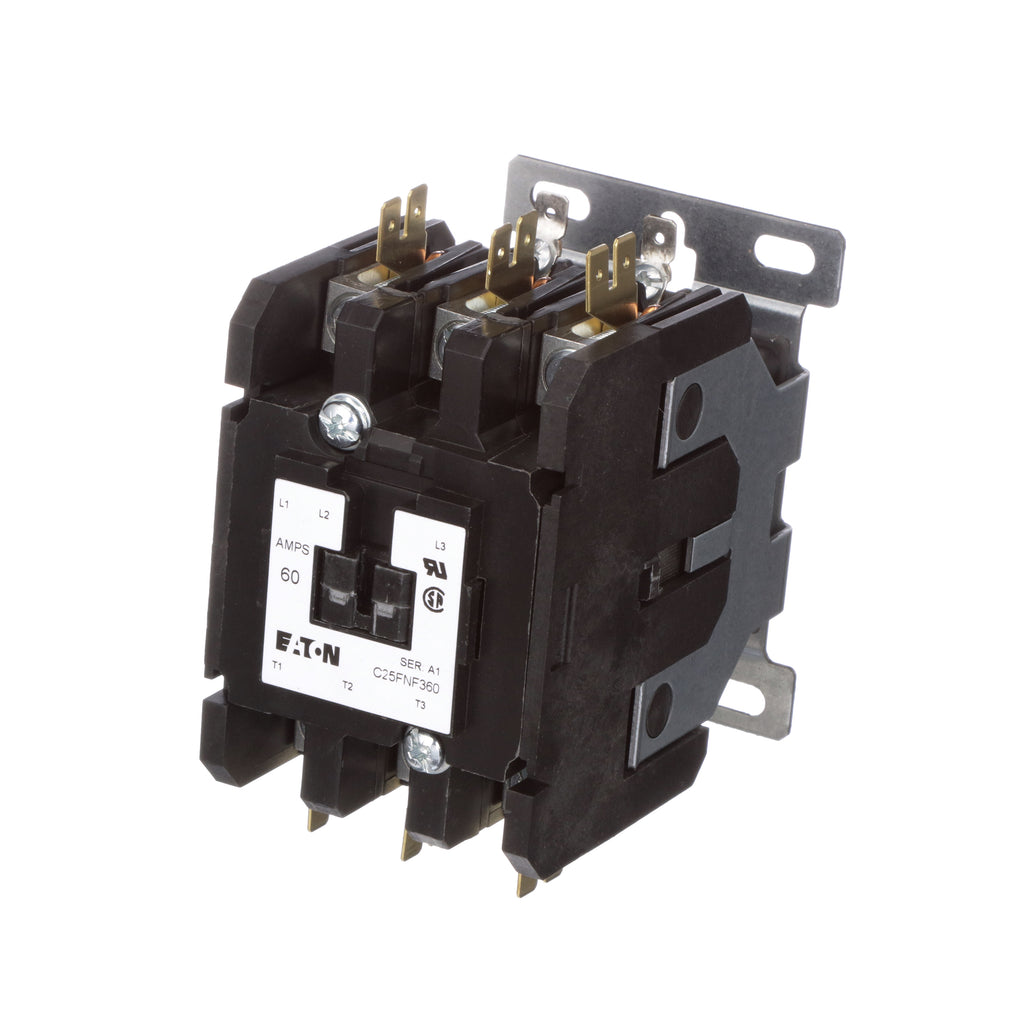

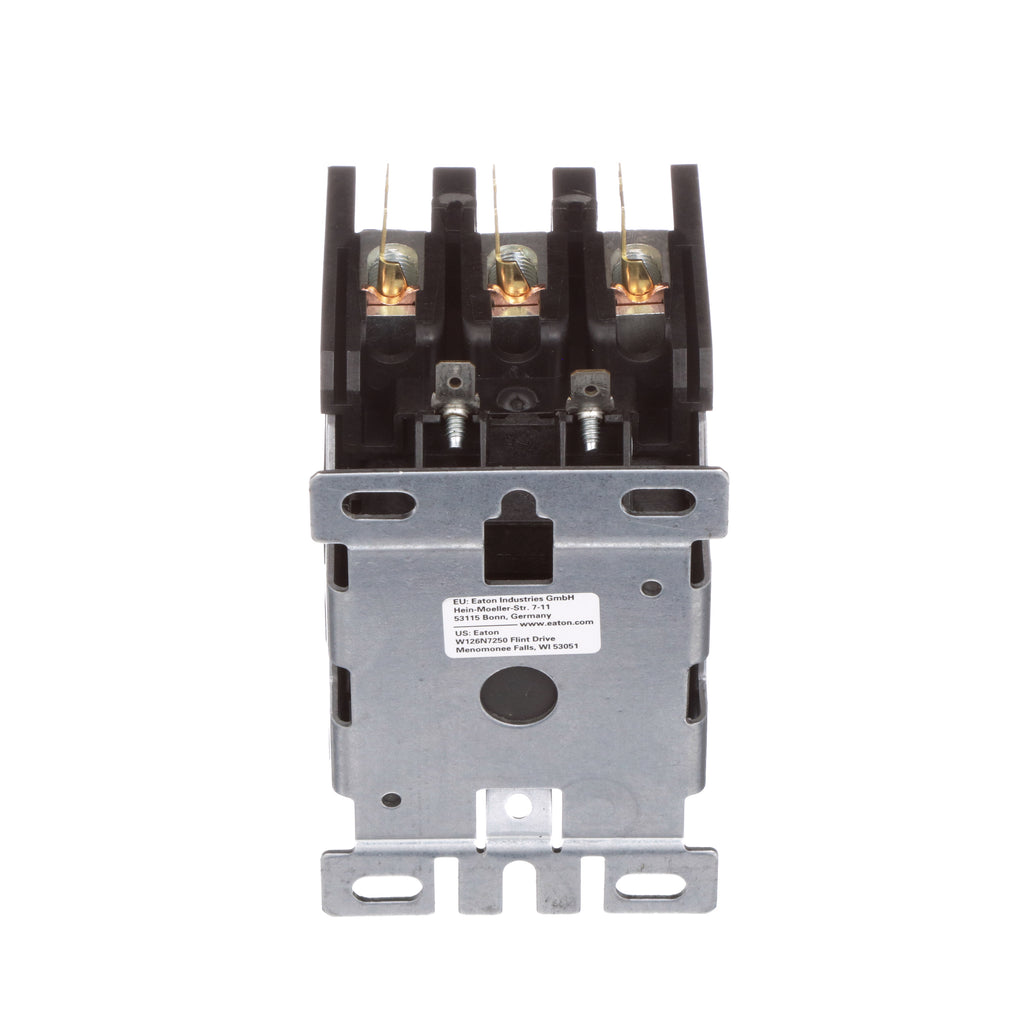

C25FNF360A - Cutler Hammer 60A 3-Pole Definite Purpose Control Contactor 110-120V Open Mount

C25FNF360A

C25FNF360A is a Cutler Hammer 3-pole definite purpose control contactor rated for 60A at 110-120V AC, designed for reliable motor control and automation applications. This open-type contactor features a metal mounting plate and is suitable for industrial and commercial environments requiring robust electrical switching. Engineered for durability and high performance, the C25FNF360A offers dual ratings for inductive and resistive loads, with box lugs and quick-connect terminals for secure connections. Its universal baseplate allows for easy retrofitting of competitive units, and it supports optional auxiliary contacts for expanded control capabilities.

• Amperage Rating: 60A
• Voltage Rating: 110-120V AC, 50/60 Hz
• Number of Poles: 3
• Mounting Type: Panel mount with metal mounting plate
• Interrupt Rating: 75A resistive, 60A inductive
• Series/Frame: C25 Series
• Enclosure: Open with metal mounting plate
• Terminals: Box lugs (posidrive setscrew) and quick connect terminals
• Coil Type: Non-reversing
• Applications: Motor control, automation, HVAC
• Certifications: CSA Certified, UL Recognized, RoHS Compliant
• Warranty: 1 year

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This Definite Purpose Contactor includes a 110 VAC coil.

Specifications

• Part Number: C25FNF360A
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Motor Control
• Item Subcategory : Contactor
• Family : C25 Series
• Type : C25
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• Configuration : Non-Reversing
• Coil Voltage Maximum : 120
• Full Load Amps : Full Load Amps-Inductive 60A Full Load Amps-Resistive 75A
• Coil Voltage Minimum : 110
• Frequency : 50 Hz

Product Data

• UPC : 782113476131
• GTIN : 00782113476131
• Country of Origin : Dominican Republic
• Dimensions : 3.97 in x 3.75 in x 2.63 in (Length/Depth x Height x Width)
• Weight : 2.7 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : CSA, RoHS, UL Listed
