C25BNB230T - Cutler Hammer 30A 277V 2-Pole Definite Purpose Contactor, 24VAC Coil, Open Frame

C25BNB230T

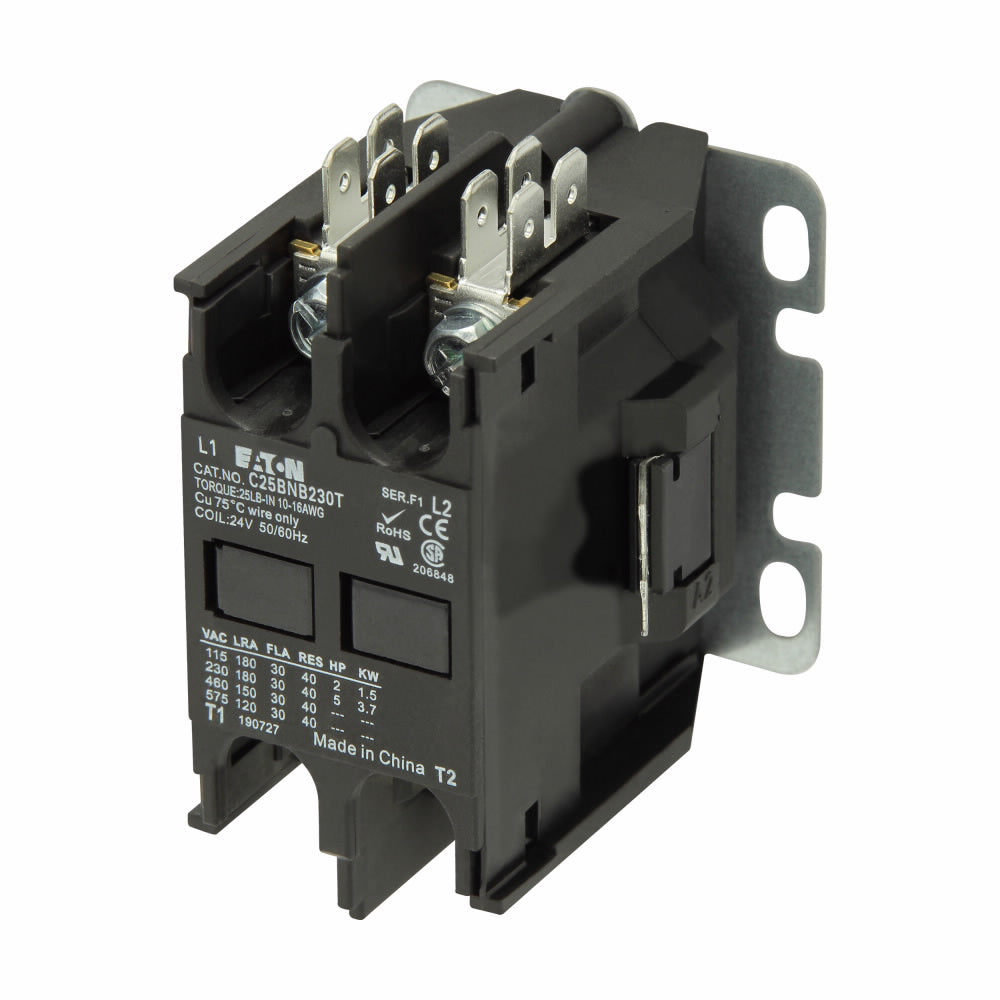

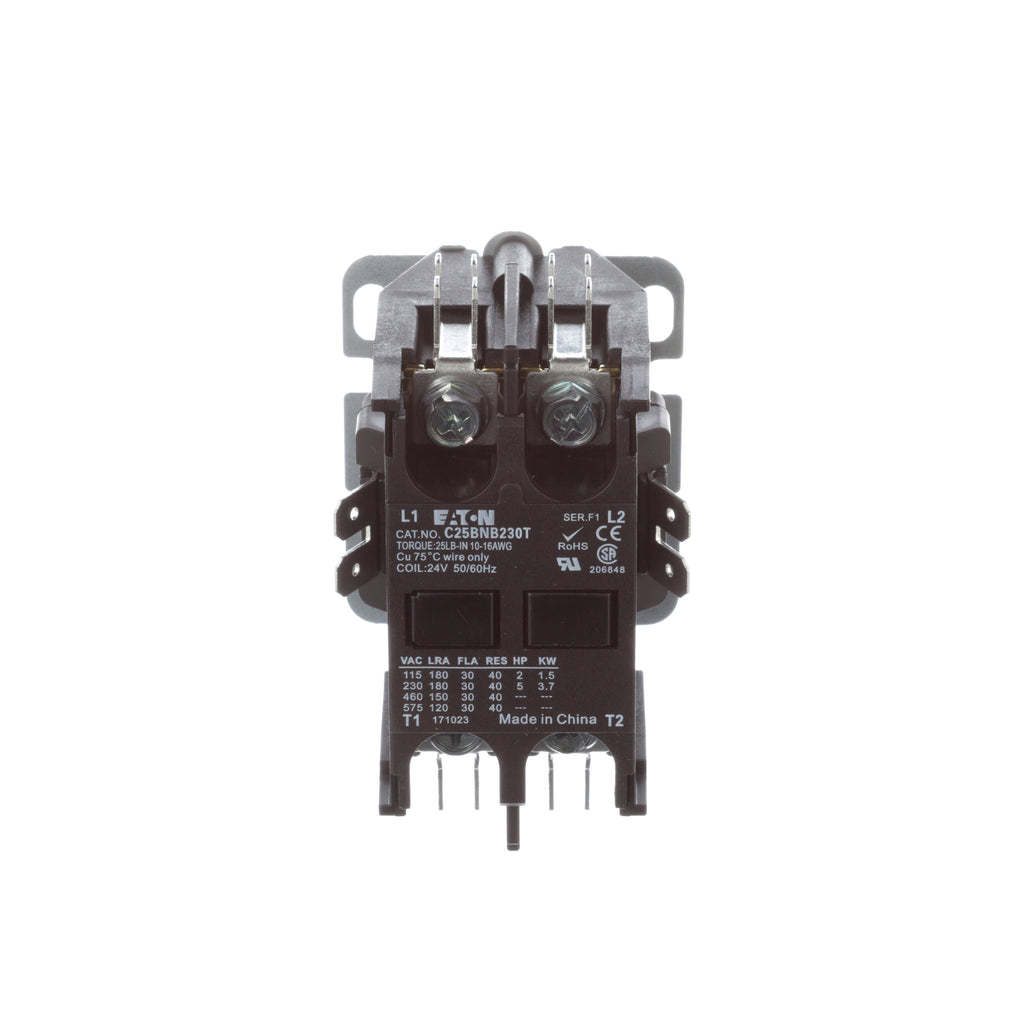

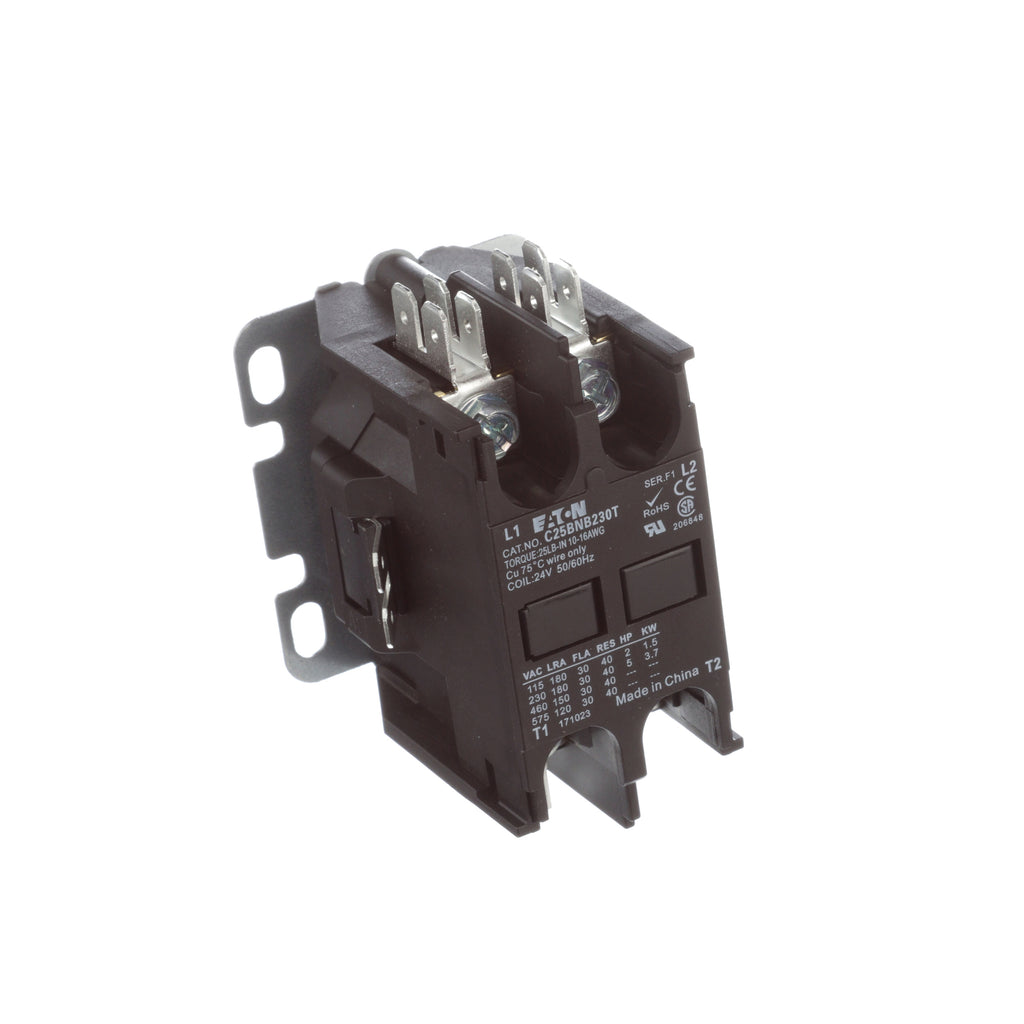

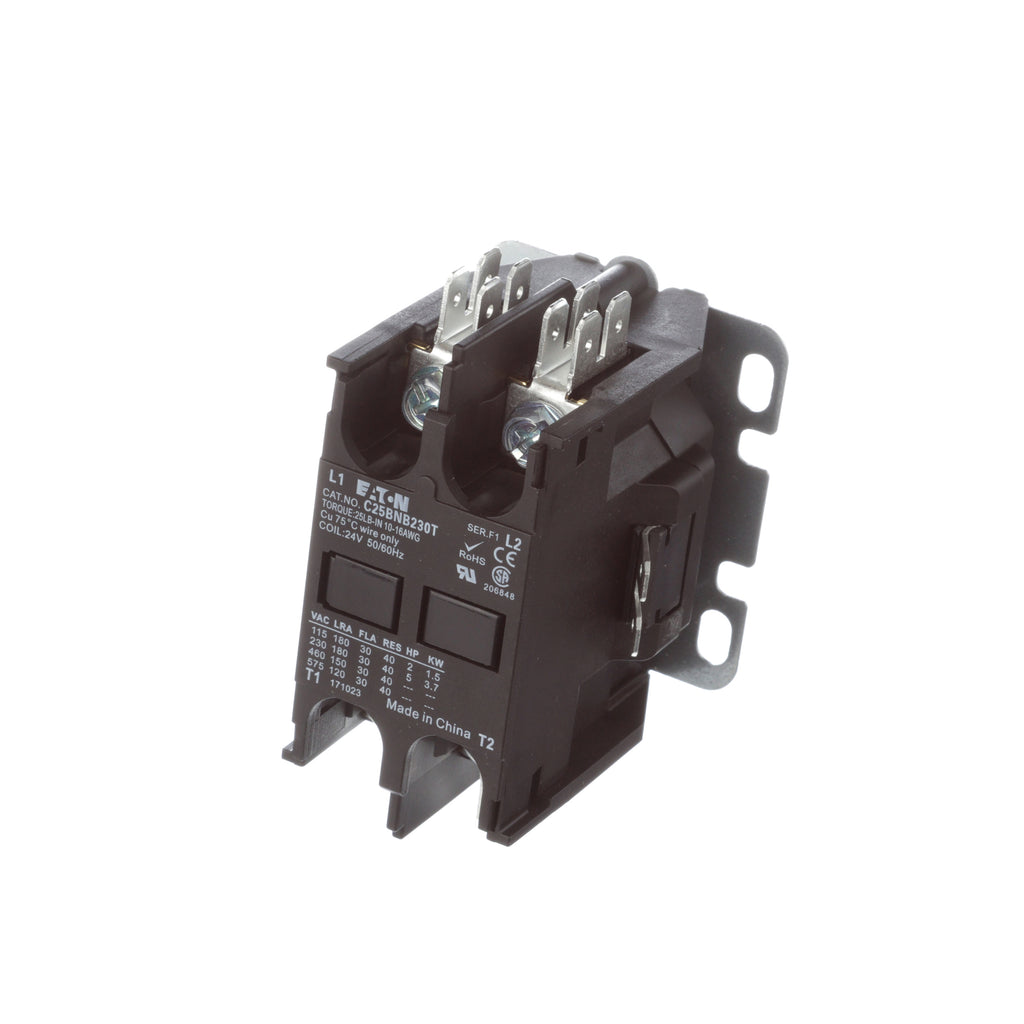

C25BNB230T is a Cutler Hammer definite purpose contactor designed for motor and power control applications with a 30 amp inductive rating. C25BNB230T features a compact two-pole design with a 24 VAC coil operating at 50/60 Hz and an open frame with metal mounting plate for easy installation. It supports 277 VAC operation at 60 Hz and includes binding head screw and quick-connect terminals for reliable wiring connections.

Key Specifications
• Amperage Rating: 30A inductive, 40A resistive
• Voltage Rating: 277 VAC, 60 Hz
• Number of Poles: Two-pole (DPST)
• Coil Voltage: 24 VAC, 50/60 Hz
• Type: Non-reversing definite purpose contactor

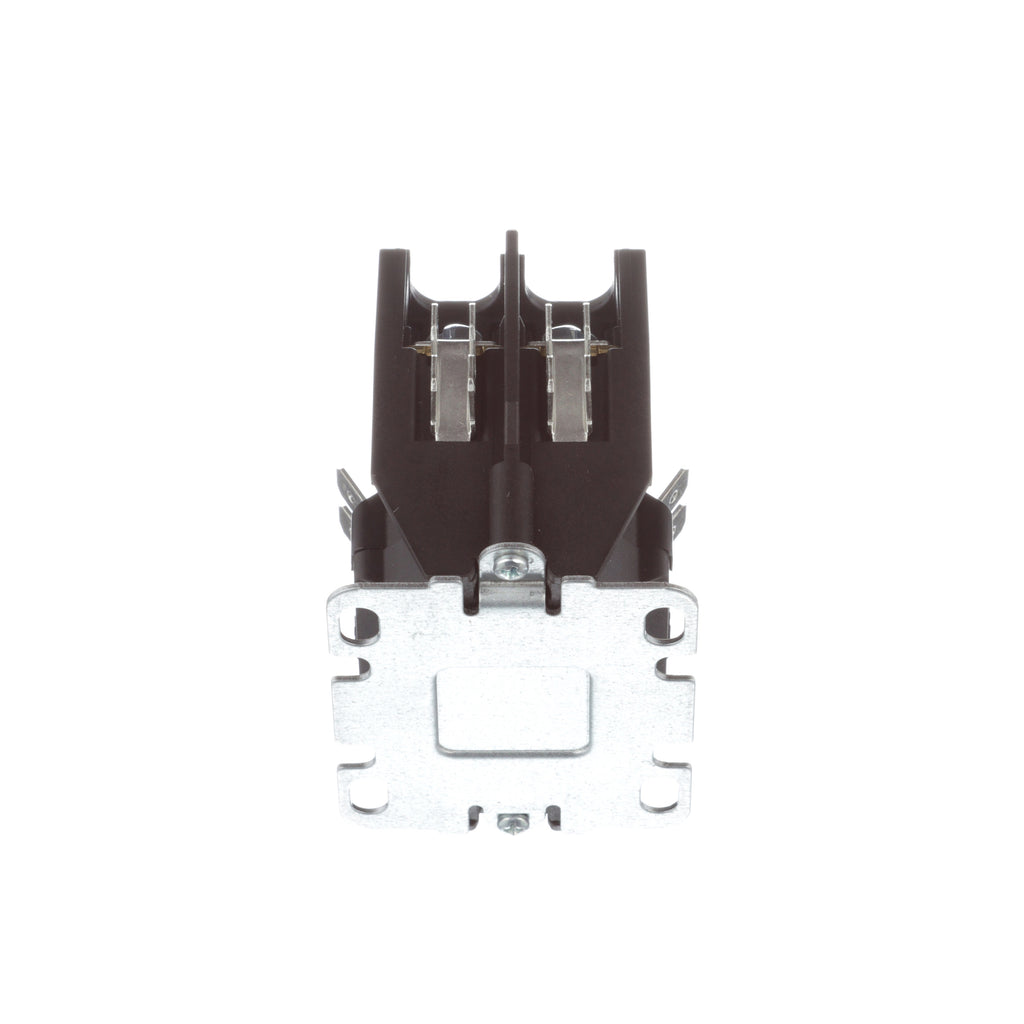

• Mounting: Open frame with metal mounting plate
• Terminals: Binding head screw and quick-connect
• Frame Size: Compact
• Certifications: CSA Certified, UL Recognized, RoHS Compliant
• Weight: 0.7 lb
• Warranty: 1 year

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This Definite Purpose Contactor includes a 277 VAC coil.

Specifications

• Part Number: C25BNB230T
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Motor Control
• Item Subcategory : Contactor
• Family : C25 Series
• Type : C25
• Voltage : 600
• Amperage : 30
• Phase : 1
• Poles : 2
• Temp Rating : -13–158 °F (-25–70 °C)
• Configuration : Non-Reversing
• Coil Voltage Maximum : 24
• Full Load Amps : Full Load Amps-Inductive 30A Full Load Amps-Resistive 40A
• Coil Voltage Minimum : 24
• Compatible Frames : DK,KDB,KD,HKD,KDC
• Frequency : 60 Hz

Product Data

• UPC : 786685116068
• GTIN : 00786685116068
• Country of Origin : China
• Dimensions : 2.32 in x 3.19 in x 1.97 in (Length/Depth x Height x Width)
• Weight : 0.7 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : CSA, RoHS, UL Listed
