Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Contactor
Description
C25BNB225T

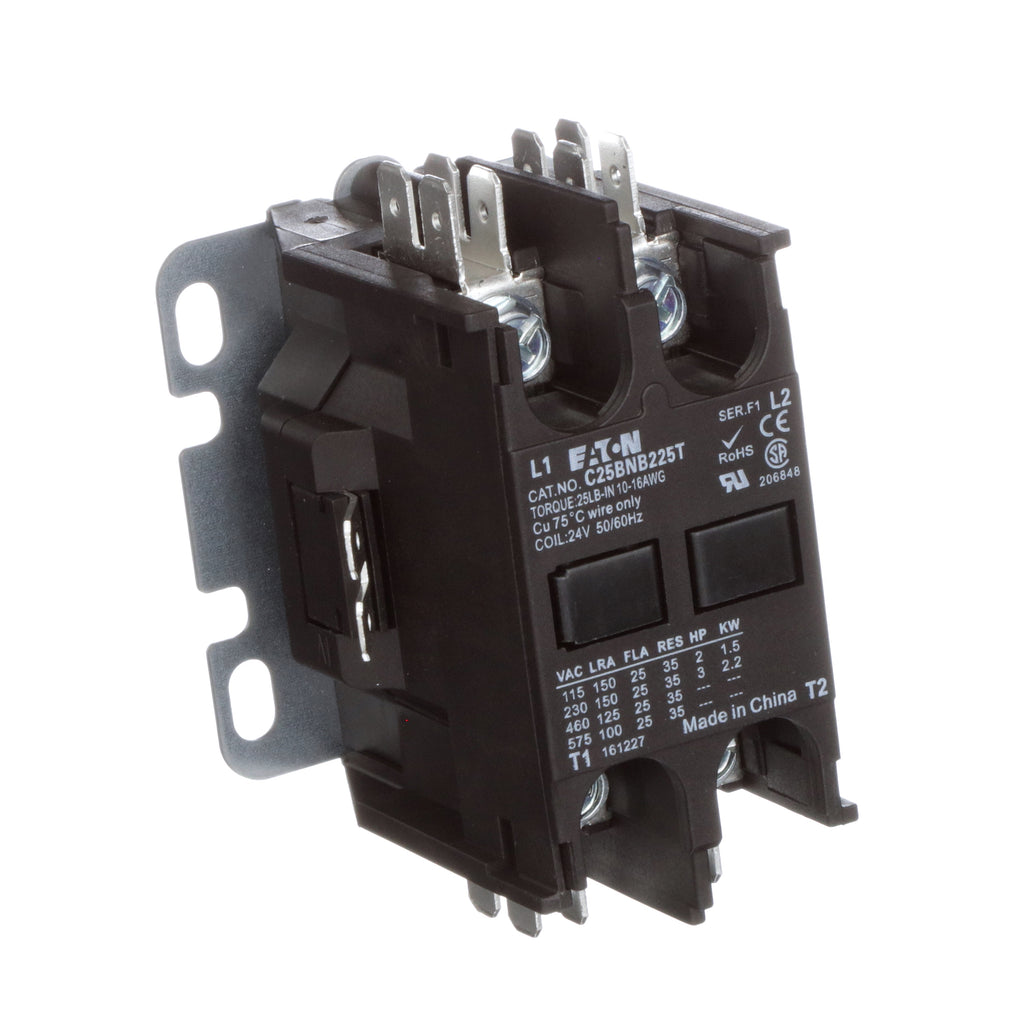

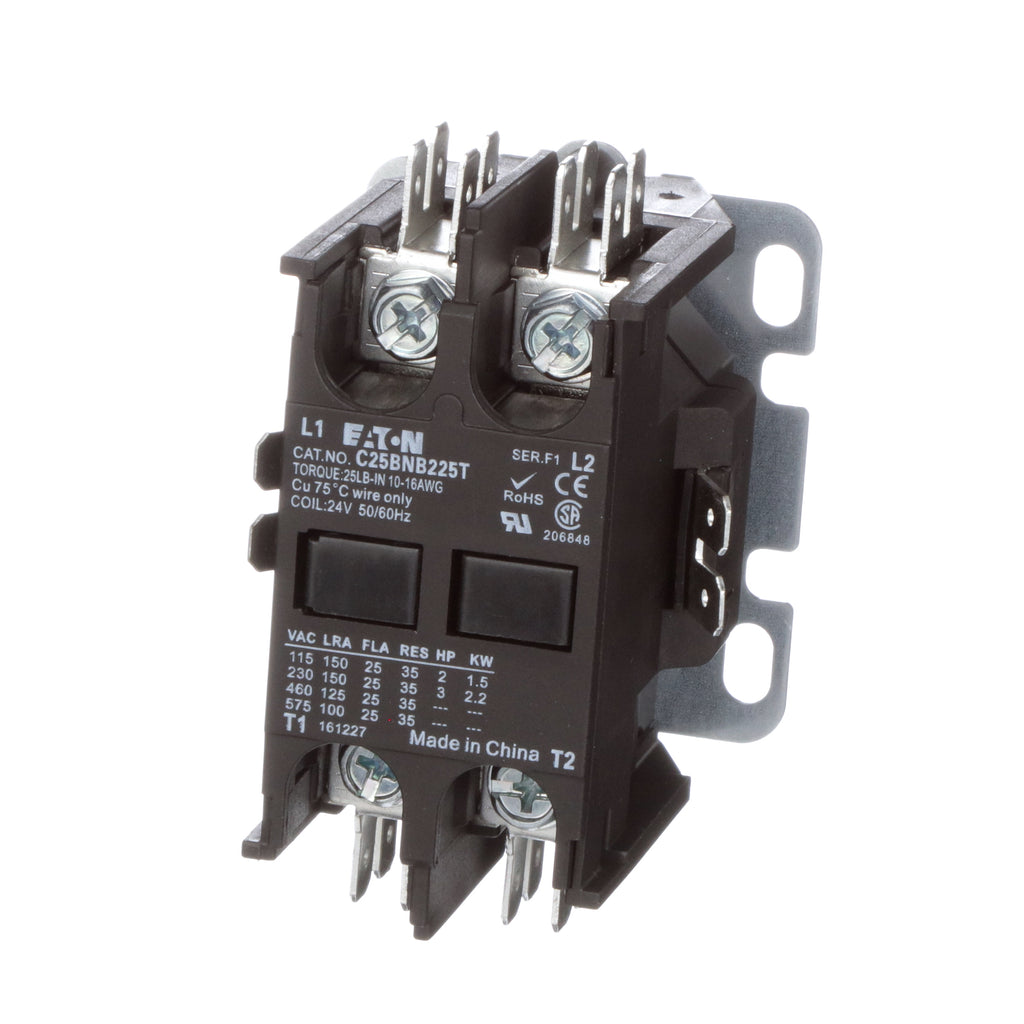

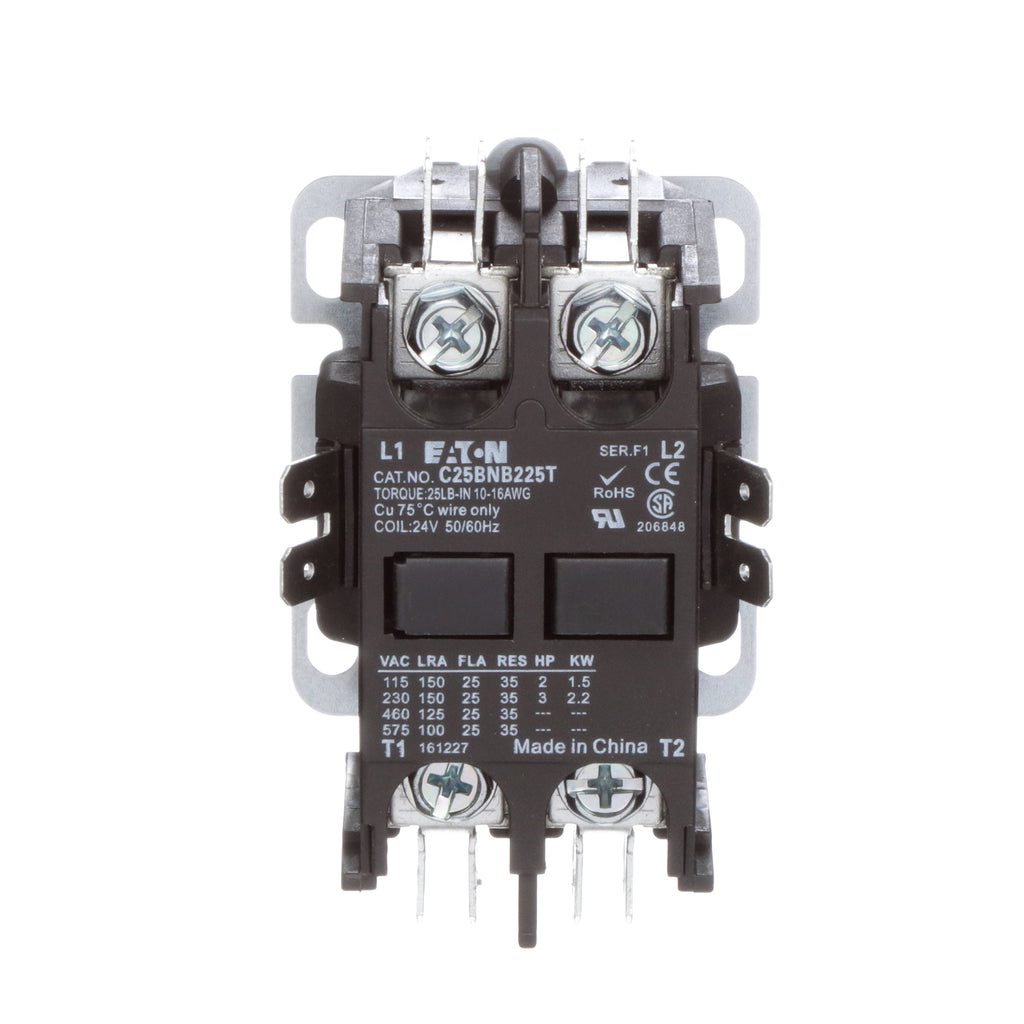

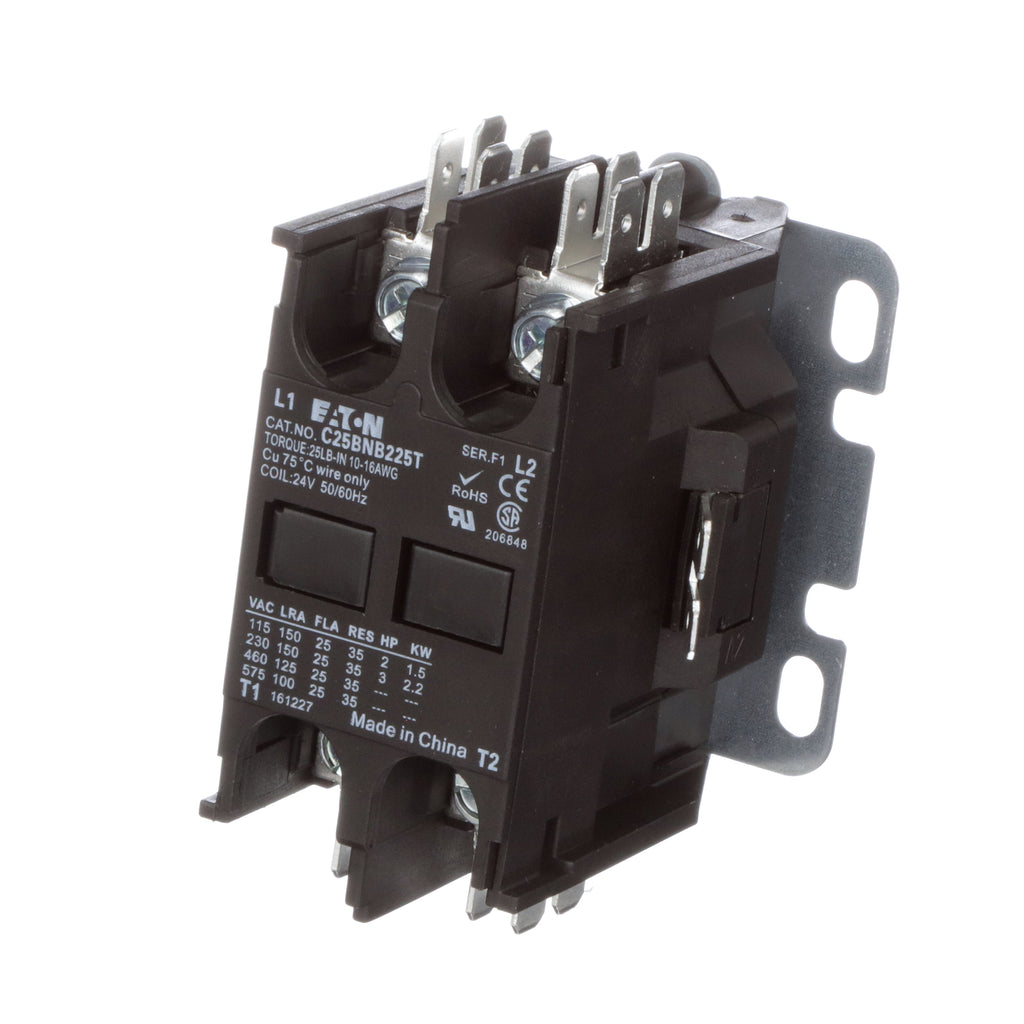

C25BNB225T is a two-pole, 25A definite purpose contactor designed for reliable motor control applications. This compact contactor features an open design with a metal mounting plate for easy installation and maintenance. The C25BNB225T is engineered for use with 24 Vac, 50/60 Hz coil voltage and is suitable for circuits up to 277 Vac. It offers a robust solution for industrial and commercial motor control needs, with side-by-side binding head screw and quick connect terminals for secure wiring.
- 25A amperage rating
- 277 Vac maximum voltage
- Two-pole configuration
- Non-reversing type

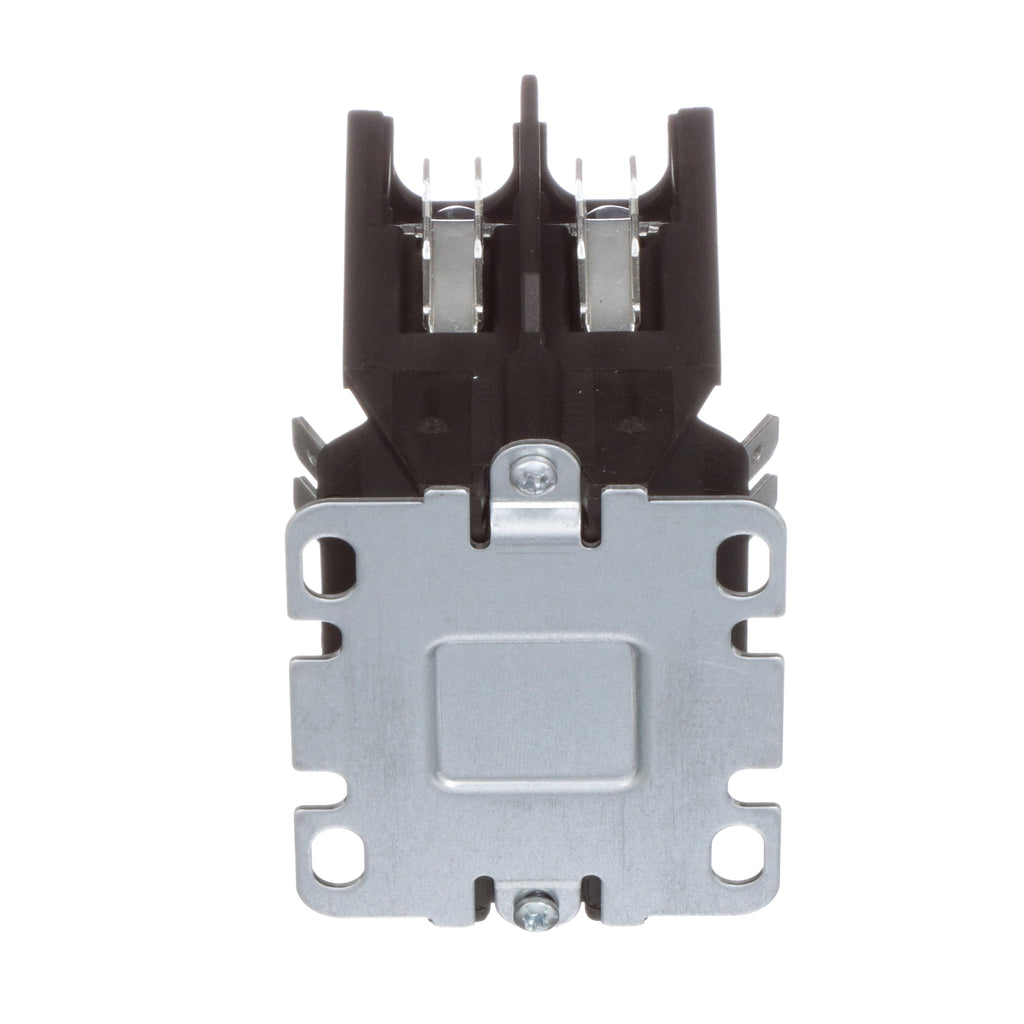

- Open enclosure with metal mounting plate
- Compact C25 series frame
- 24 Vac, 50/60 Hz coil
- Binding head screw and quick connect terminals
- UL Recognized
- CSA Certified
- RoHS Compliant
Additional Information
This Definite Purpose Contactor includes a 277 VAC coil.
Specifications
- Part Number: C25BNB225T
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Contactor
- Family : C25 Series
- Type : C25
- Voltage : 600
- Amperage : 25
- Phase : 1
- Poles : 2
- Configuration : Non-Reversing
- Coil Voltage Maximum : 24
- Full Load Amps : Full Load Amps-Inductive 25A Full Load Amps-Resistive 30A
- Coil Voltage Minimum : 24
- Frequency : 60 Hz
Product Data
- UPC : 78668511601
- GTIN : 00786685116013
- Country of Origin : China
- Dimensions : 2.32 in x 3.19 in x 1.97 in (Length/Depth x Height x Width)
- Weight : 0.6
- Certification : CSA, RoHS, UL Listed
