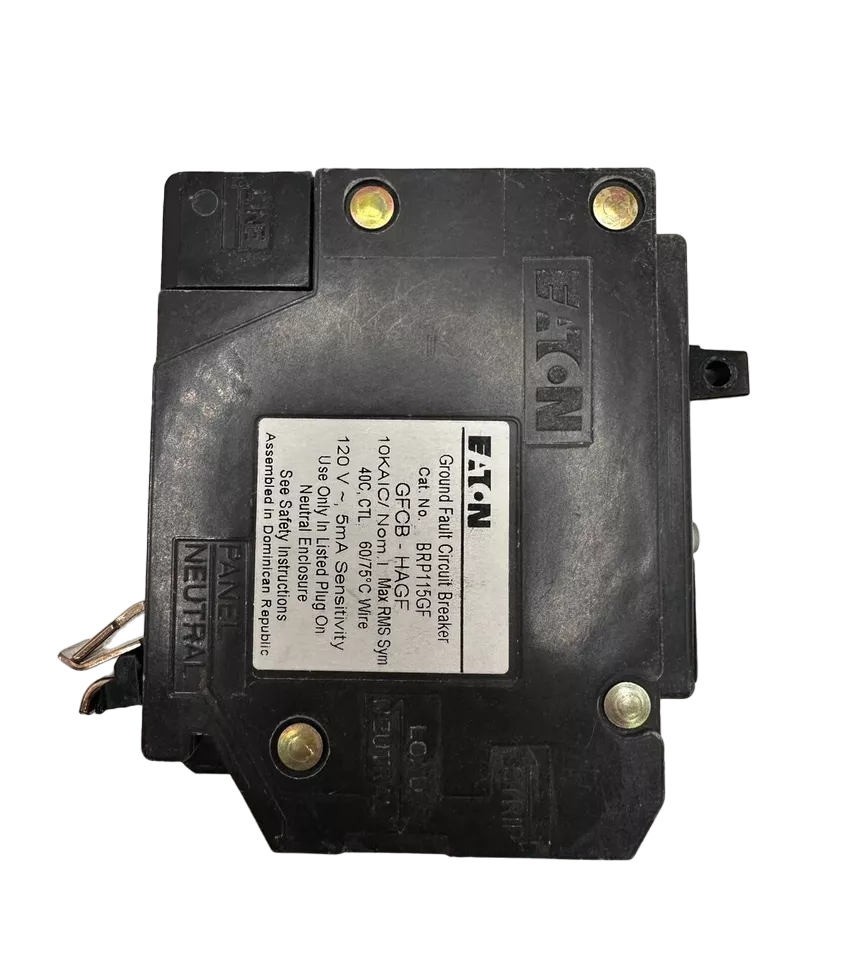

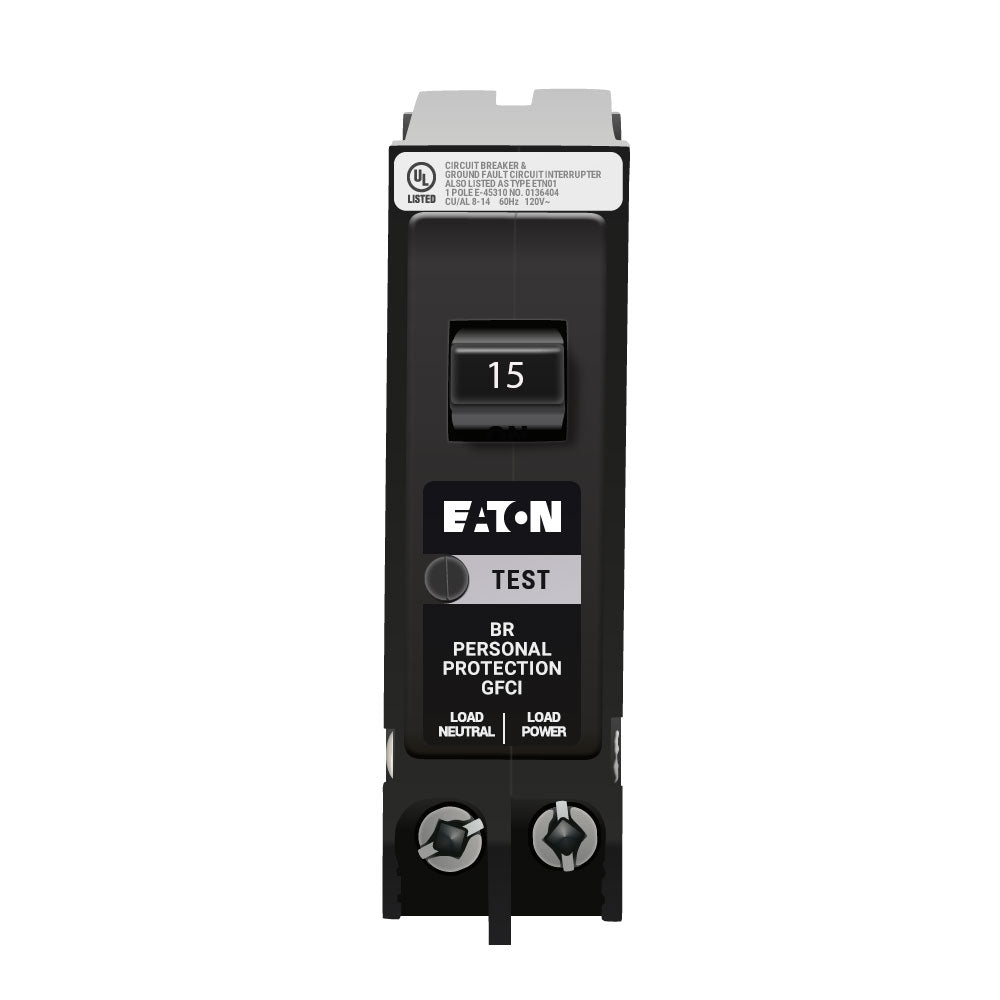

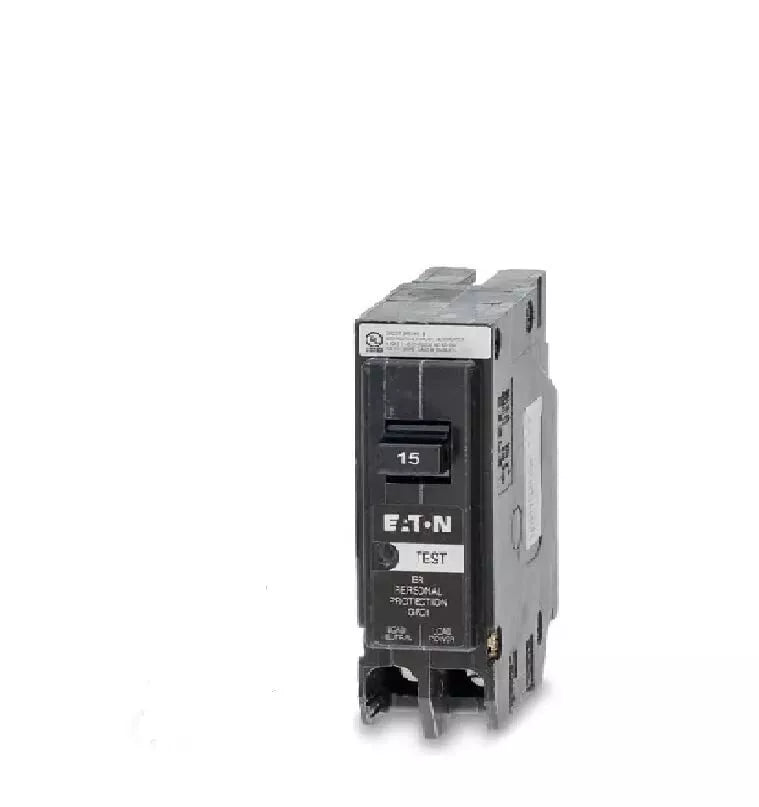

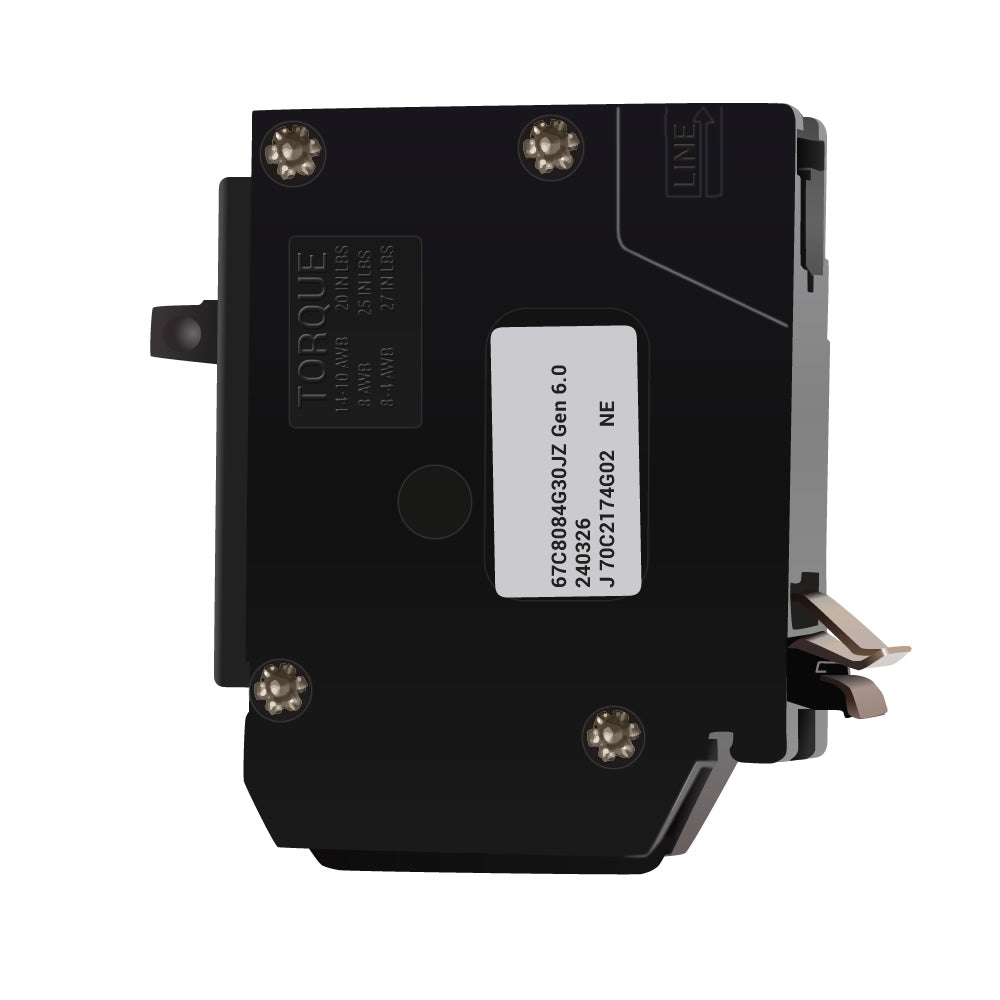

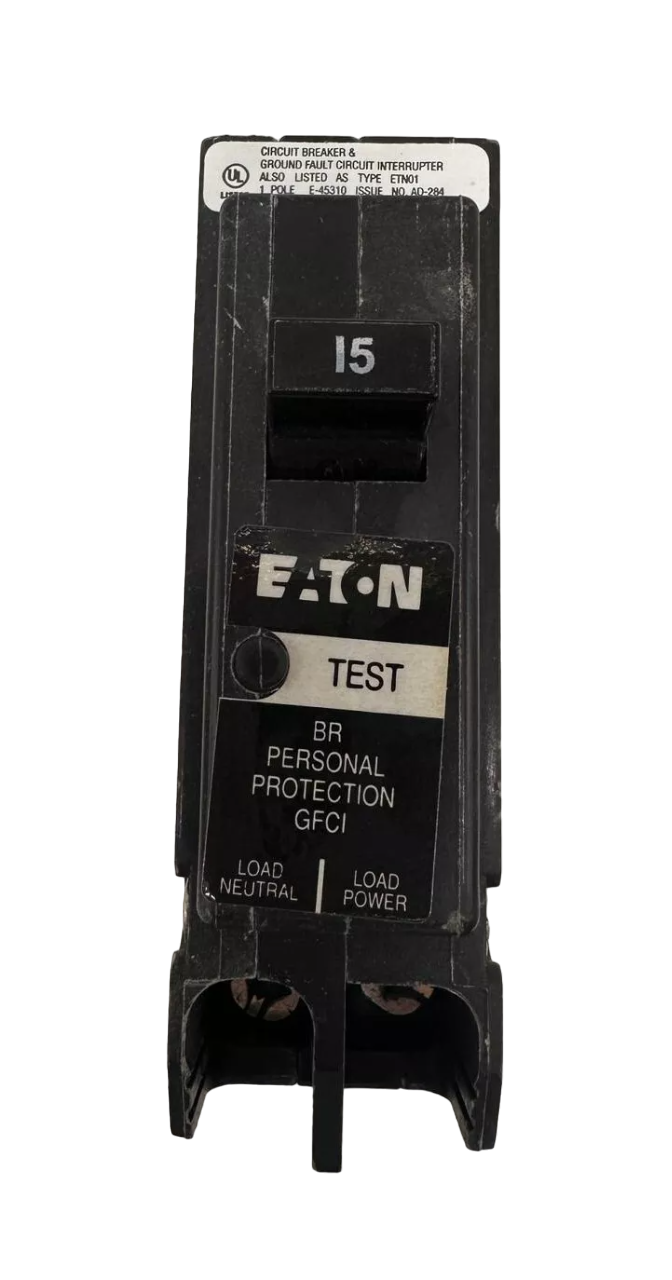

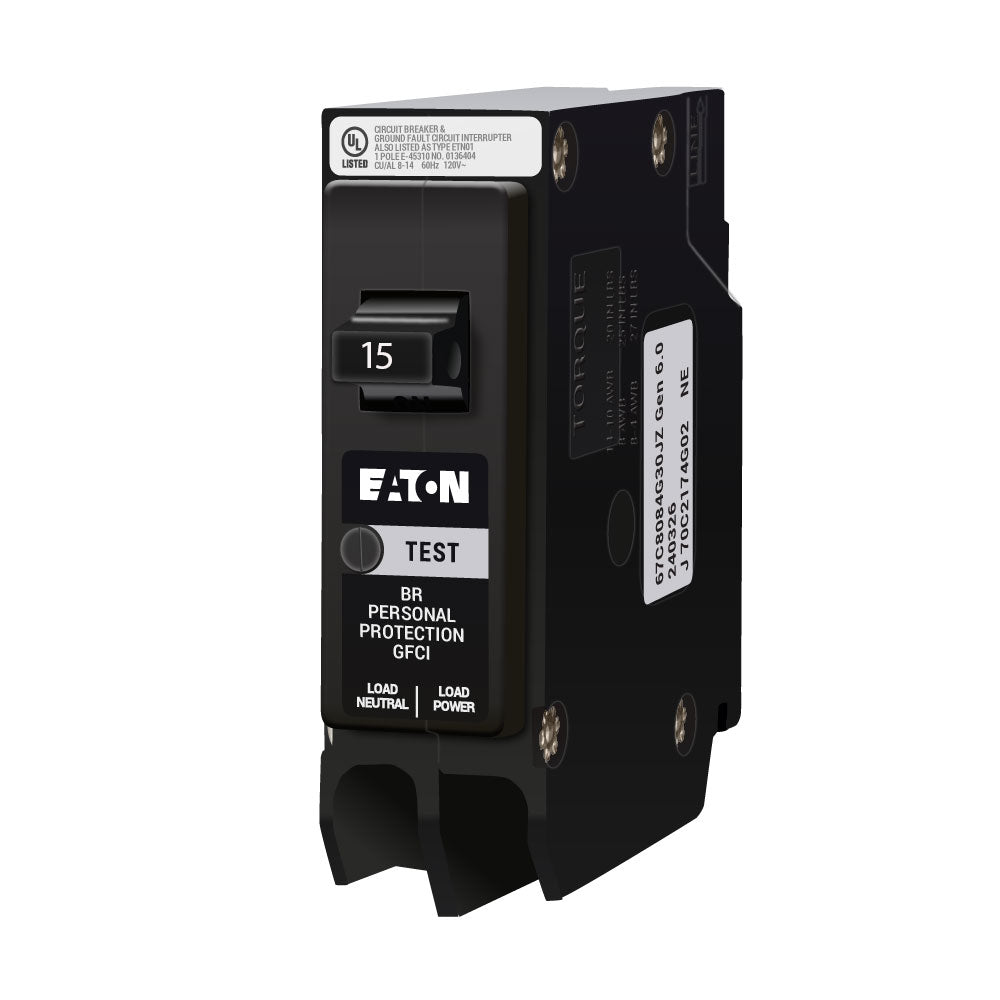

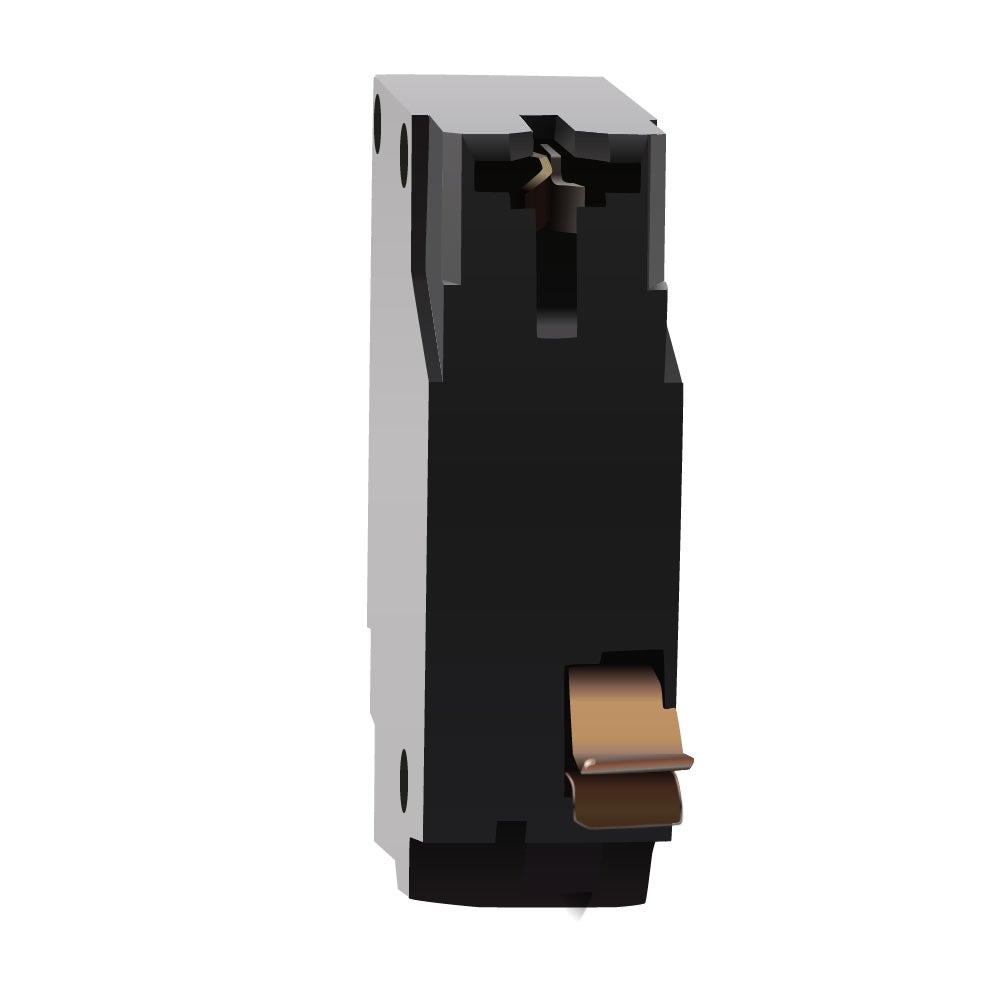

BRP115GF - Eaton Cutler Hammer 15 Amp 1 Pole 120/240VAC GFCI Plug-On Circuit Breaker, BR Series, 10kAIC, Thermal Magnetic Trip

BRP115GF

BRP115GF is a single-pole, 15 Amp, 120/240VAC ground fault circuit interrupter (GFCI) circuit breaker from Eaton Cutler Hammer, designed for reliable protection in residential, commercial, and industrial applications.

This plug-on circuit breaker features a 10kA interrupting rating, thermal magnetic trip unit for both long-time and instantaneous protection, and is compatible with BR Series load centers and panelboards. It is UL listed, supports wire sizes from #14 to 8 AWG, and operates at a temperature rating of 40°C. The trip-to-center design ensures easy identification of a tripped breaker.

Key Specifications
• Amperage: 15A
• Voltage: 120/240VAC
• Poles: 1
• Mounting Type: Plug-on
• Interrupt Rating: 10kAIC
• Series/Frame: BR
• Trip Unit: Thermal Magnetic (Long Time and Instantaneous)
• Certifications: UL Listed
• Wire Size: #14 to 8 AWG
• Trip Type: Trip-to-center
• Connection: Plug-in
• Temperature Rating: 40°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BRP115GF
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BR Series
• Type : BRP
• Voltage : 120
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Plug-On
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
• Breaker Type : BRP
• Protection : Thermal Magnetic

Product Data

• UPC : 78668903115
• GTIN : 00786689031152
• Country of Origin : Dominican Republic
• Dimensions : 4 in x 1 in x 3.5 in (Length/Depth x Height x Width)
• Weight : 0.45
• Wire Size : #14 to 8 AWG
