BRN120AF - Eaton 20 Amp 120V 1-Pole Type BR AFCI Circuit Breaker, Plug-On Mount, 10kAIC, Thermal Magnetic Trip, UL Listed

BRN120AF

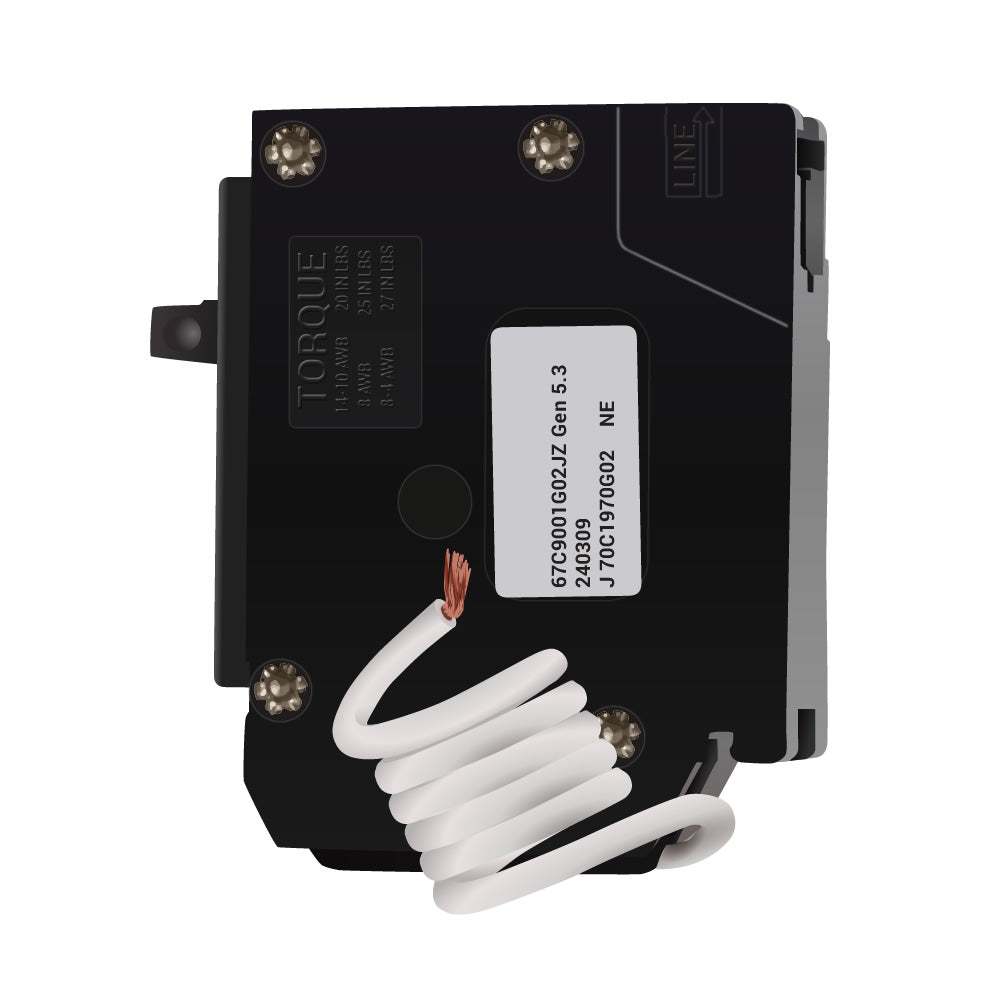

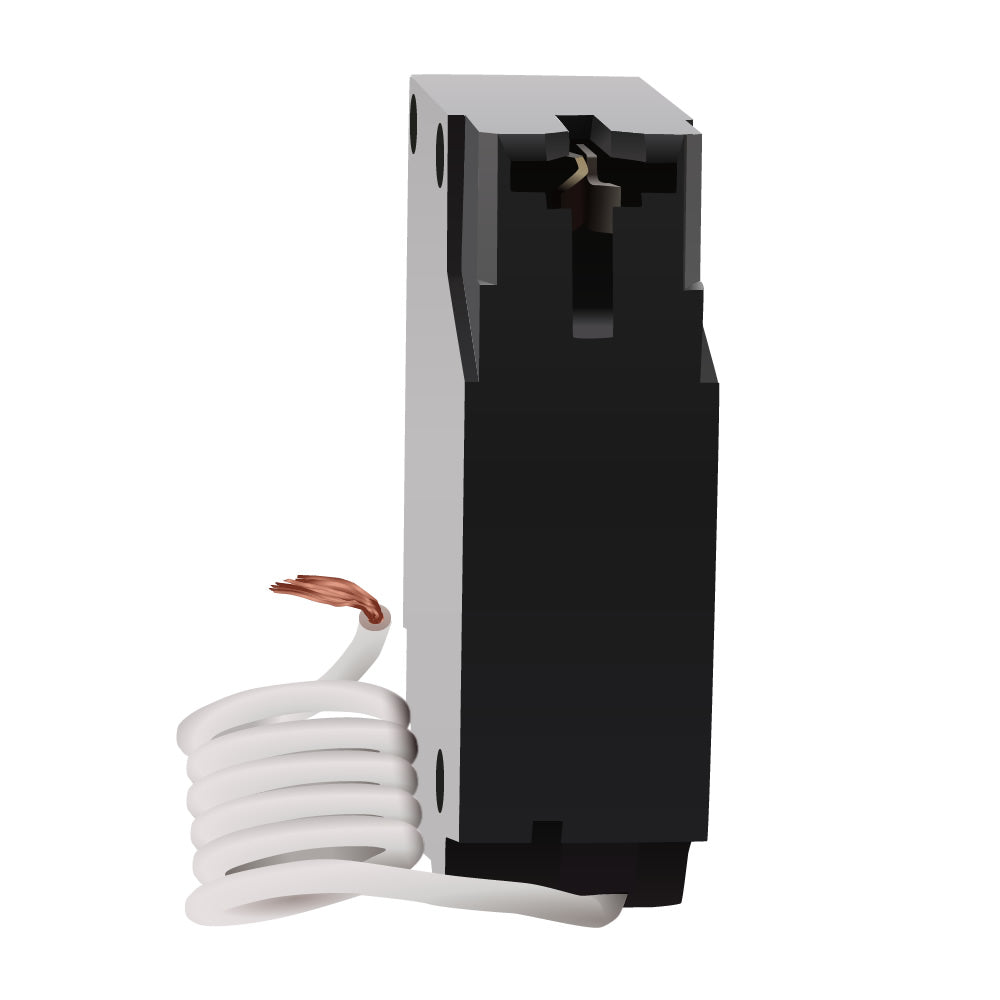

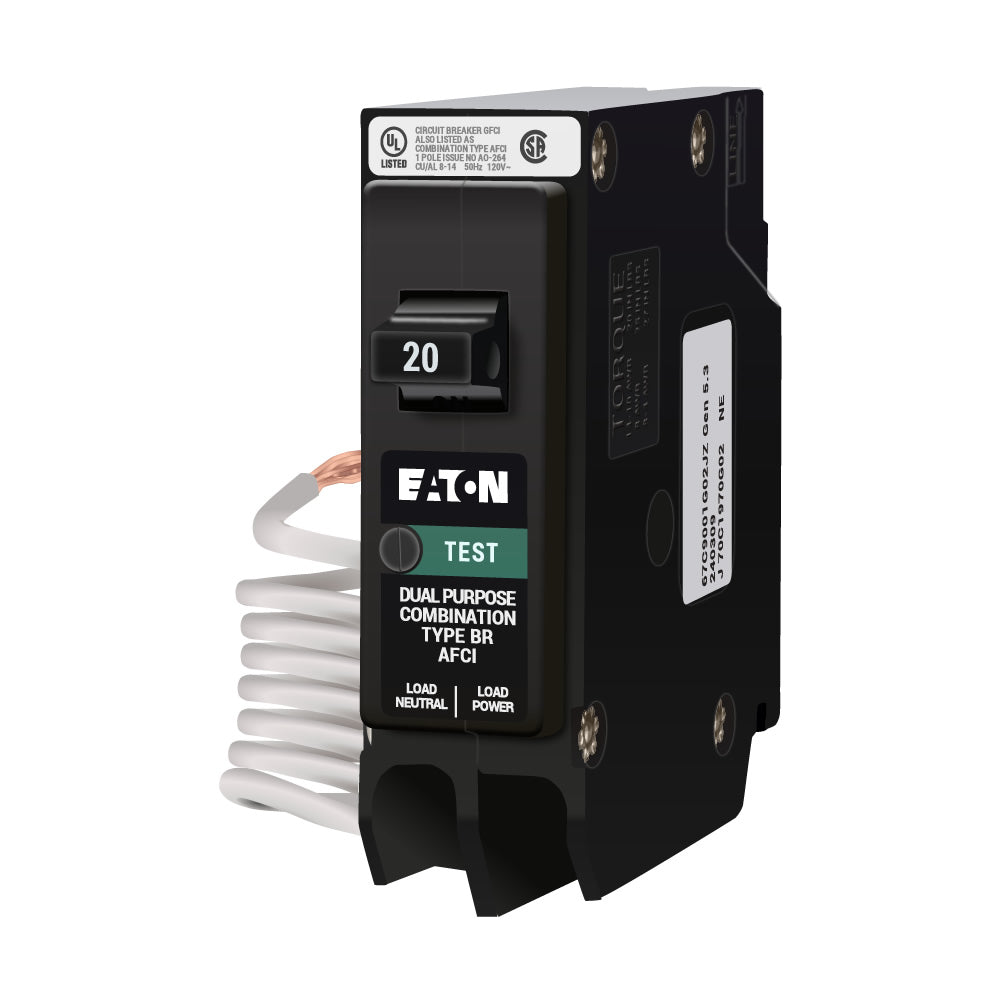

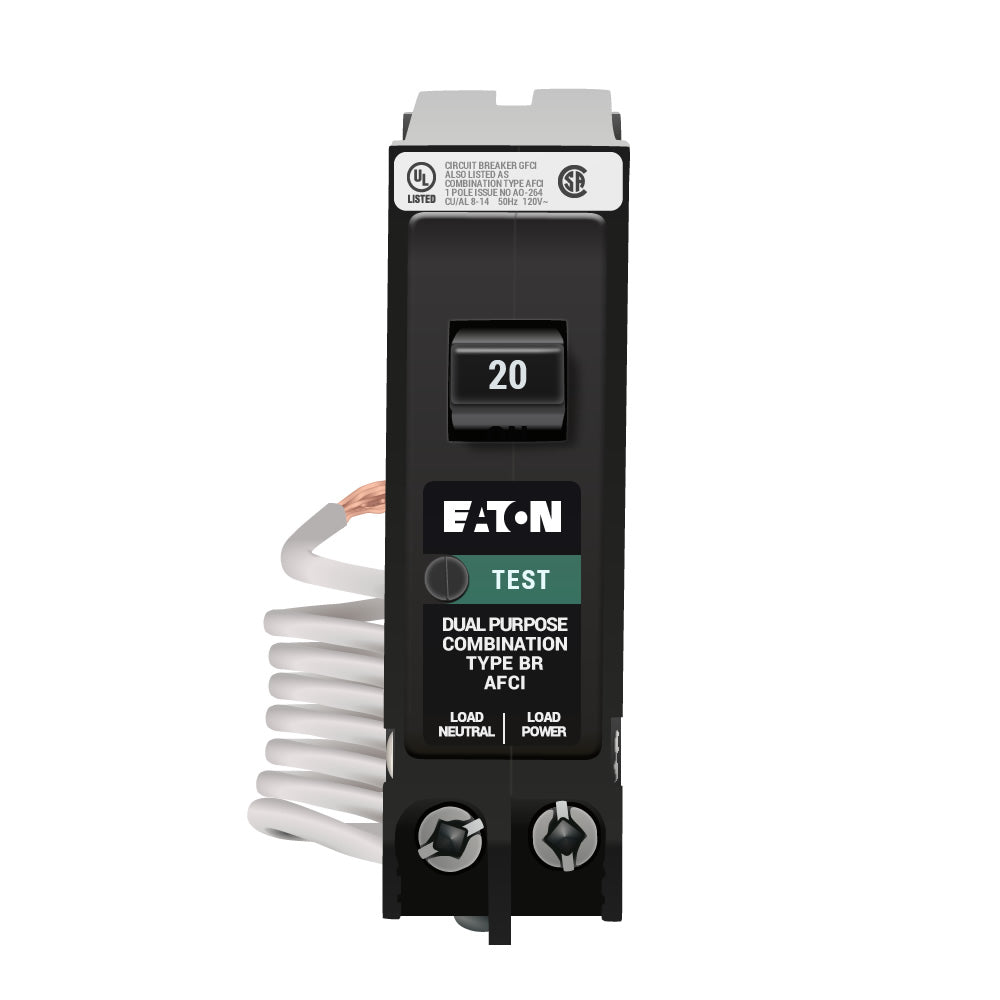

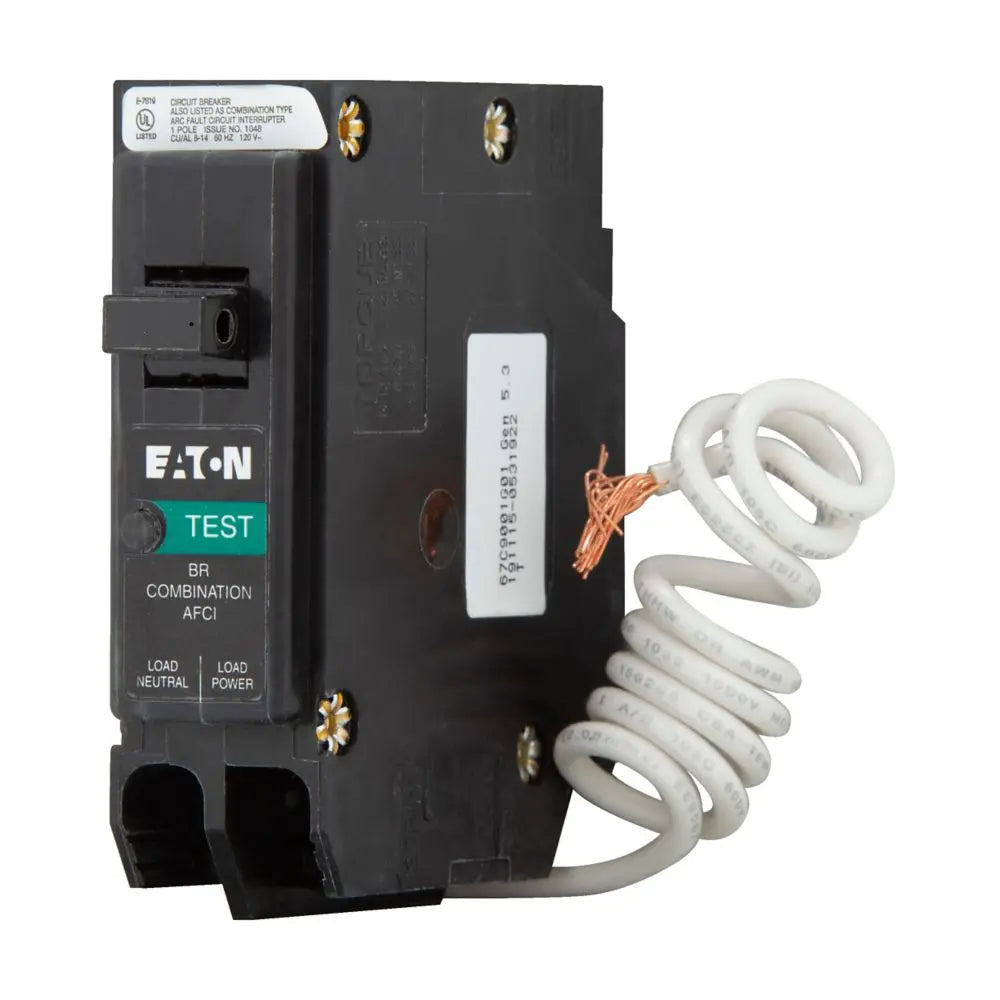

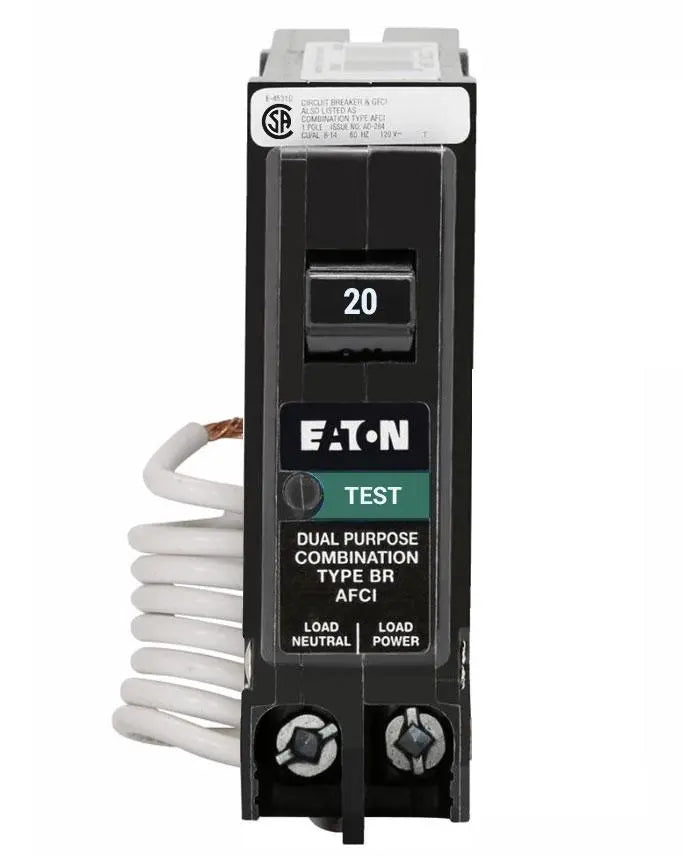

BRN120AF is a single-pole, 20 Amp, 120V combination arc fault circuit breaker from Eaton, designed for Type BR loadcenters with plug-on mounting.

This Eaton BRN120AF circuit breaker provides advanced arc fault protection, combining thermal magnetic trip technology with a 10kA interrupting rating for enhanced safety in residential and light commercial applications. It features a pigtail neutral connection, is UL listed, and is compatible with copper or aluminum wire from #14 to #8 AWG.

Key Specifications
• Amperage: 20A
• Voltage: 120V AC (Voltage Protection Rating: 240V)
• Poles: 1
• Mounting Type: Plug-On (Pigtail)
• Interrupt Rating: 10kAIC at 120V
• Series/Frame: Type BR (BRN)
• Trip Unit: Thermal Magnetic (Long-Time and Instantaneous Trip)
• Certifications: UL Listed
• Wire Size: #14–8 AWG Cu/Al
• Actuator Type: Toggle
• For Use With: Type BR Loadcenters
• Country of Origin: US

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BRN120AF
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Type BR
• Type : BRN
• Voltage : 120
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Plug-On
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 8 AWG (Cu/Al)
• Breaker Type : BR
• Protection : Thermal Magnetic

Product Data

• UPC : 78668904089
• GTIN : 00786689040895
• Country of Origin : Dominican Republic
• Dimensions : 3-1/2 in x 1-1/4 in
• Weight : 0.45
• Panel Type : Type BR Loadcenters
• Standards : UL Listed
• Certification : UL Listed
