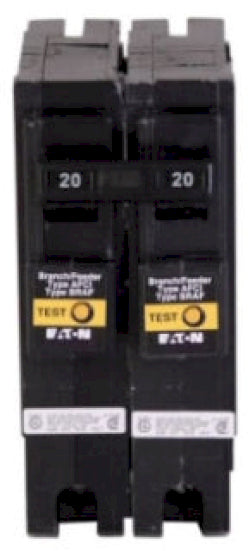

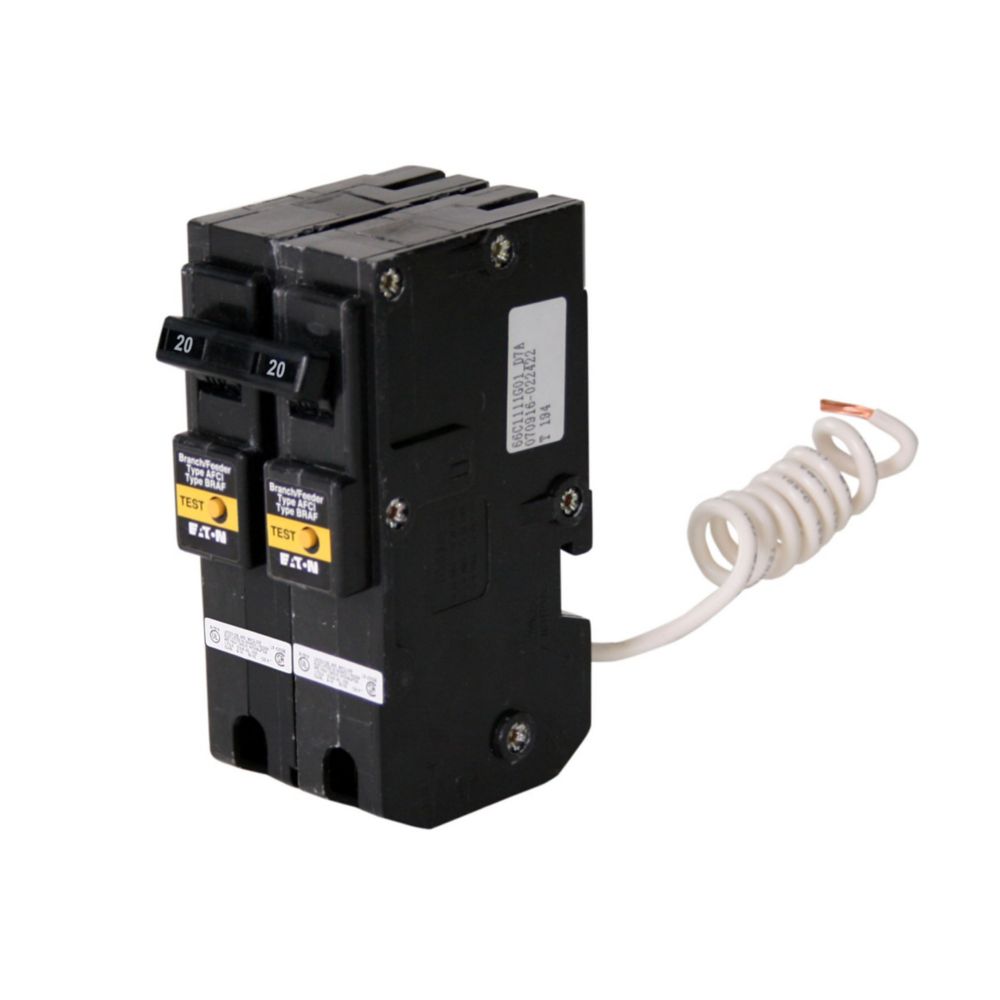

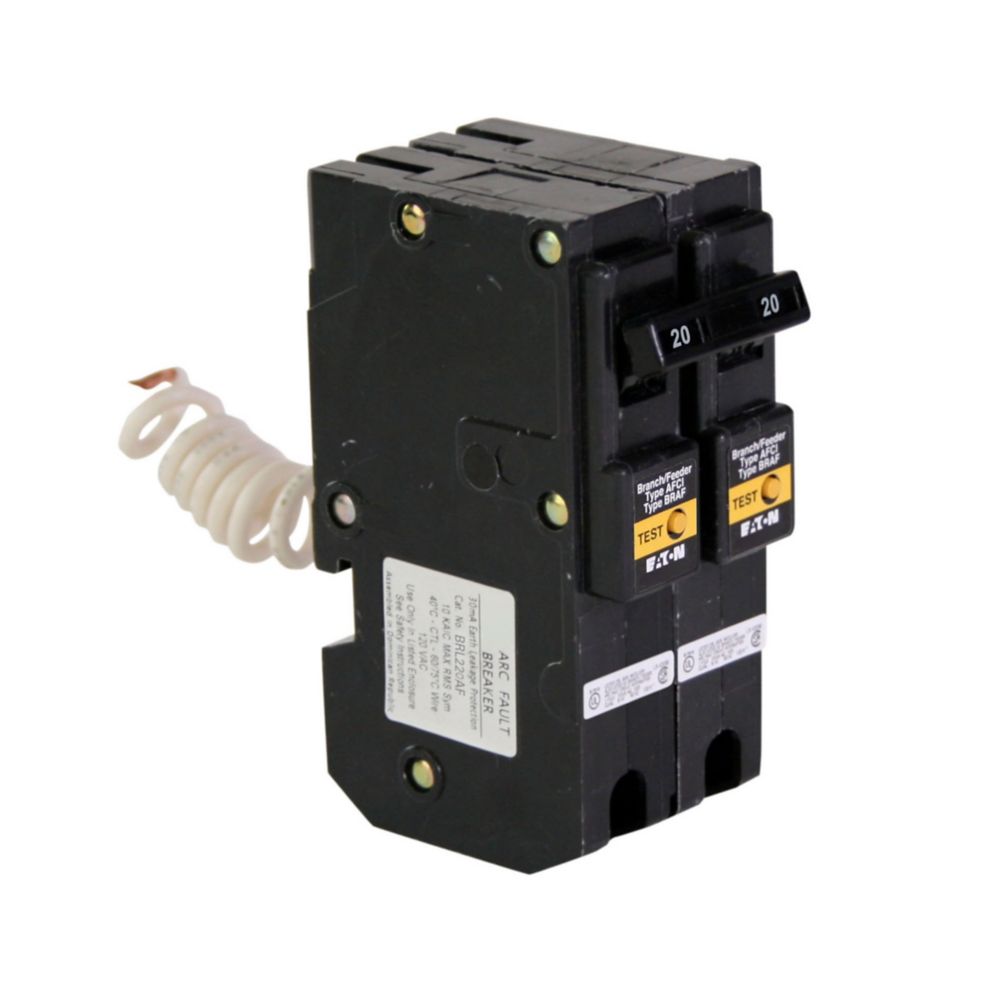

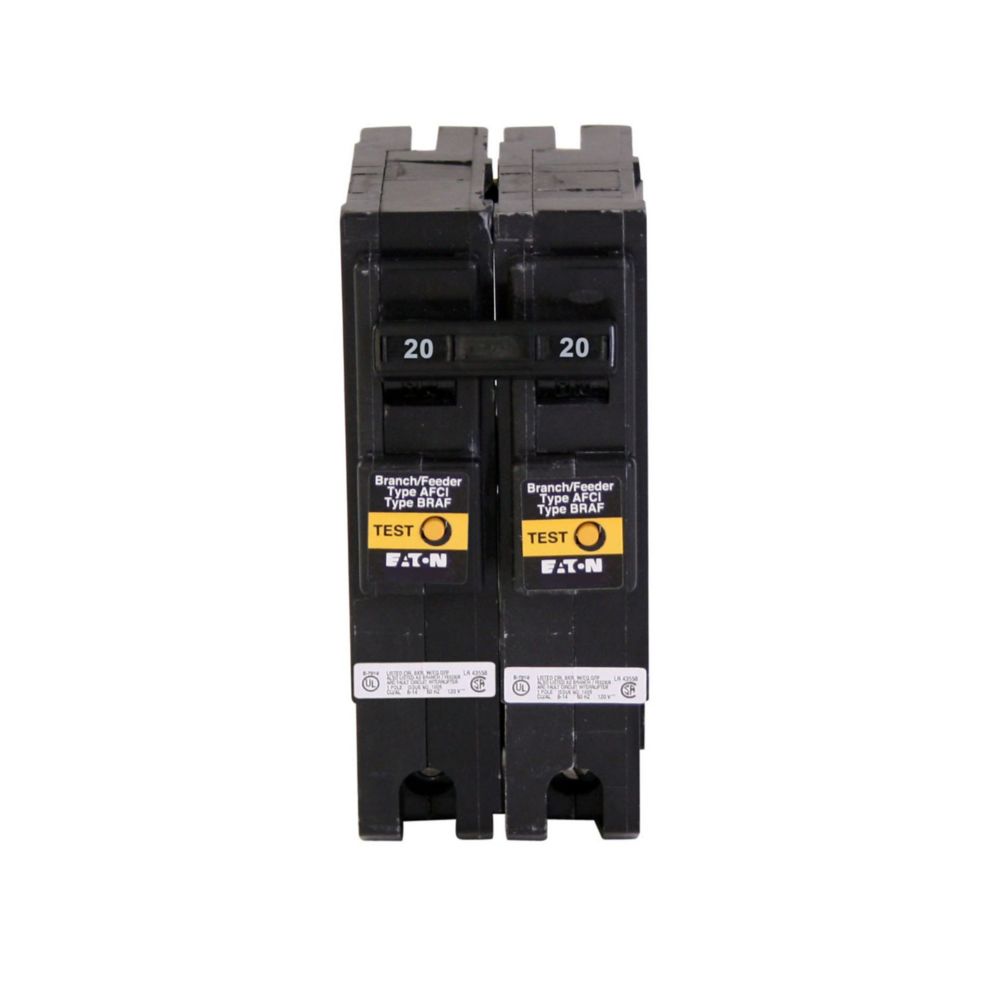

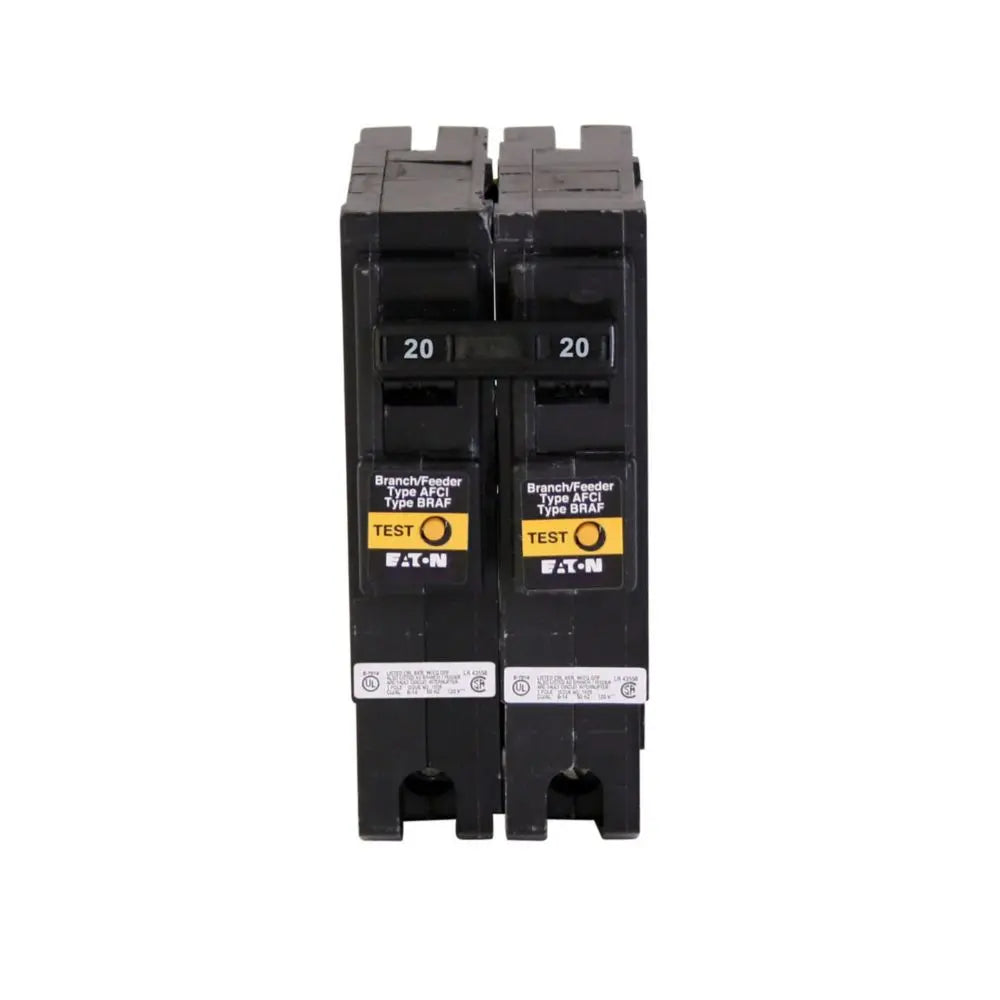

BRL220AF - Cutler Hammer 20A 120/240V 2-Pole AFCI Circuit Breaker, 10 kAIC, BR Frame

BRL220AF

BRL220AF is a 20 Amp, 120/240 Volt, 2-pole Arc Fault Circuit Interrupter (AFCI) circuit breaker from Cutler Hammer, designed for enhanced electrical fire protection.This Cutler Hammer BRL220AF breaker features a common trip mechanism, thermal magnetic trip unit, and a 10 kA interrupt rating. It is a plug-in type breaker compatible with Type BR loadcenters, supporting wire sizes from #14 to 4 AWG copper or aluminum. The breaker is UL 1699 certified and complies with Federal Specifications Classification W-C375, ensuring reliable and safe operation in residential applications.

• Amperage: 20 A
• Voltage: 120/240 V AC
• Poles: 2
• Interrupt Rating: 10 kAIC
• Trip Type: Common trip, thermal magnetic
• Mounting Type: Plug-in
• Series/Frame: BR
• Wire Size Range: #14-4 AWG Cu/Al
• Arc Fault Circuit Interrupter (AFCI) feature
• Certifications: UL 1699, Federal Specifications W-C375
• Weight: 1.45 lb
• Warranty: 10 years

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BRL220AF
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BR Series
• Type : BRL
• Voltage : 120
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786685233376
• GTIN : 00786685233376
• Dimensions : 6 in x 3 in x 4.5 in (Length/Depth x Height x Width)
• Weight : 1.45
• Certification : UL
• Wire Size : 14 to 4 AWG, Cu/Al
