Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
BRHH270

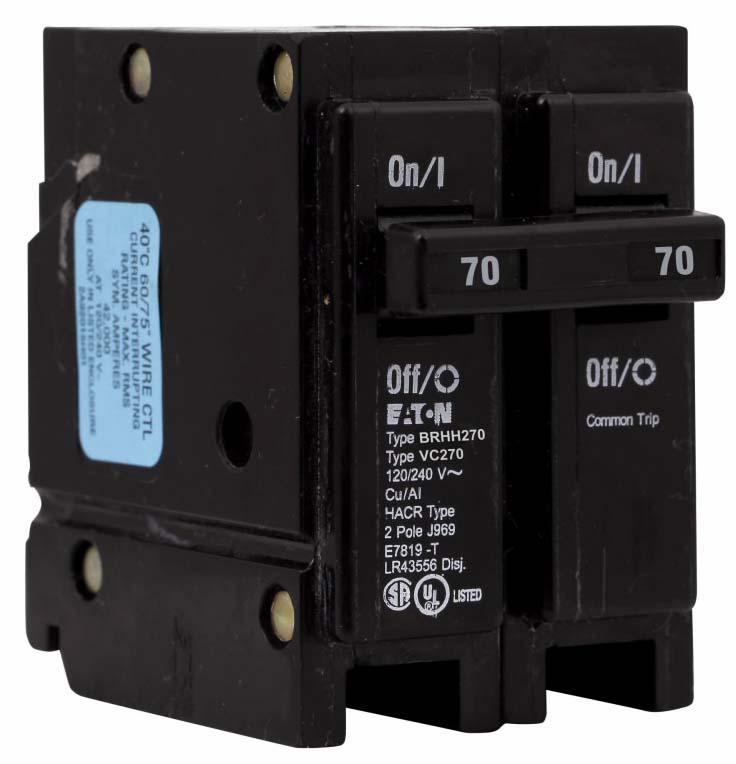

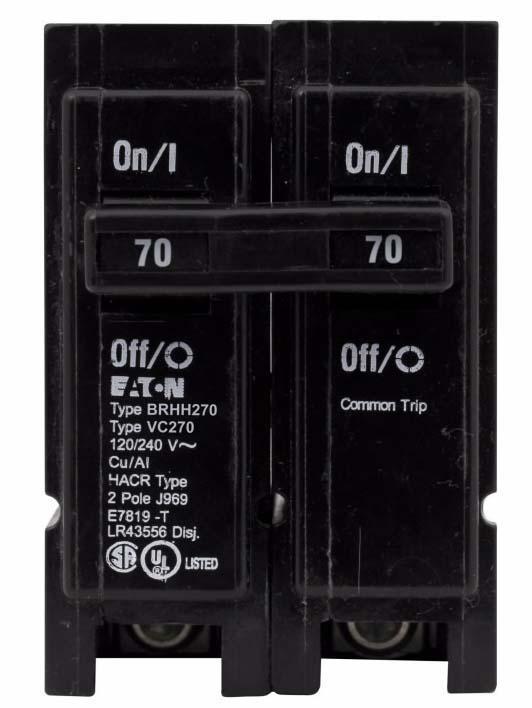

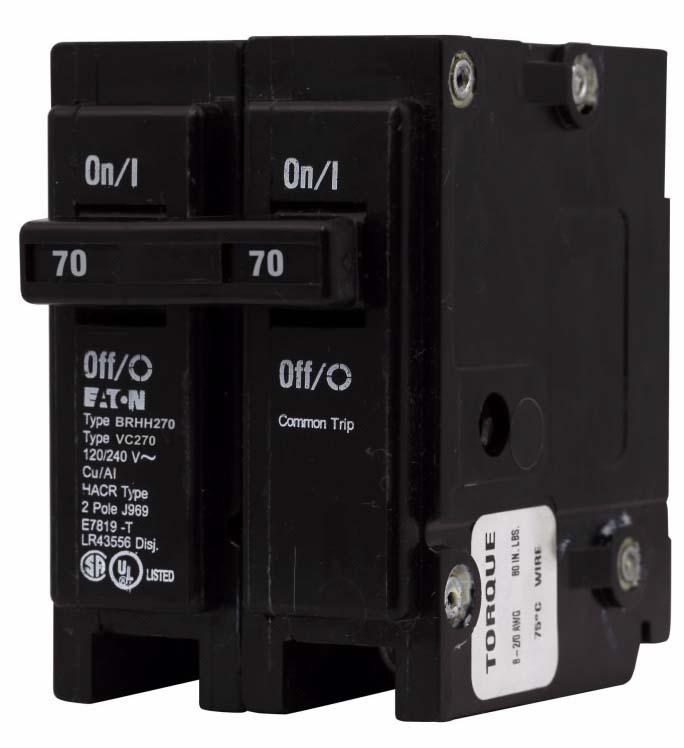

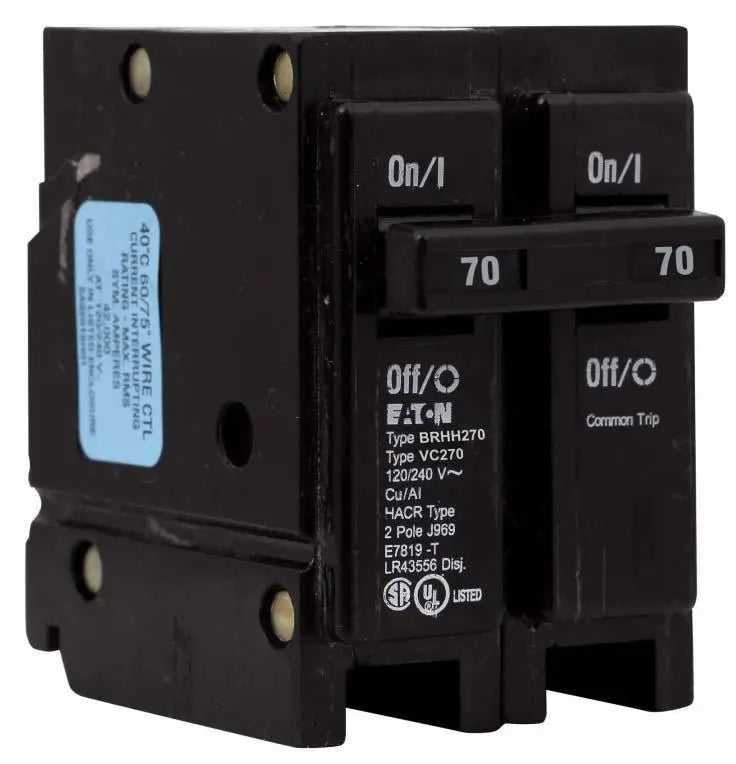

BRHH270 is a Cutler Hammer 70 Amp 2 Pole thermal magnetic circuit breaker designed for use with Type BR loadcenters.This circuit breaker features a 120/240 Volt rating, 42kA interrupting rating at 240V, and a common breaker trip unit. It is a 1-inch plug-on mounting type suitable for residential and light commercial applications within the BR series frame.
- Key Specifications
- Amperage: 70 Amp
- Voltage Rating: 120/240 Volt
- Poles: 2 Pole
- Mounting Type: Plug-On
- Interrupt Rating: 42kA @ 240V
- Trip Unit: Thermal Magnetic, Common Trip
- Series/Frame: BR Series
- UL Listed Certification
- Part Number: BRHH270
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BR Series
- Type : BRHH
- Voltage : 240
- Amperage : 70
- Phase : 1
- Poles : 2
- AIC rating : 42kA@240V
- Connection : Plug-In
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
- UPC : 786676382700
- GTIN : 00786676382700
- Country of Origin : United States
- Dimensions : 2.5 in x 3 in x 2 in (Length/Depth x Height x Width)
- Weight : 0.6
- Certification : UL 490,Federal Specifications Classification W-C376
- Wire Size : AWG 4 to AWG 1/0, Cu/Al
