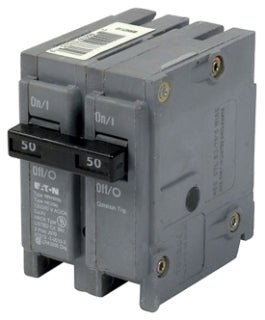

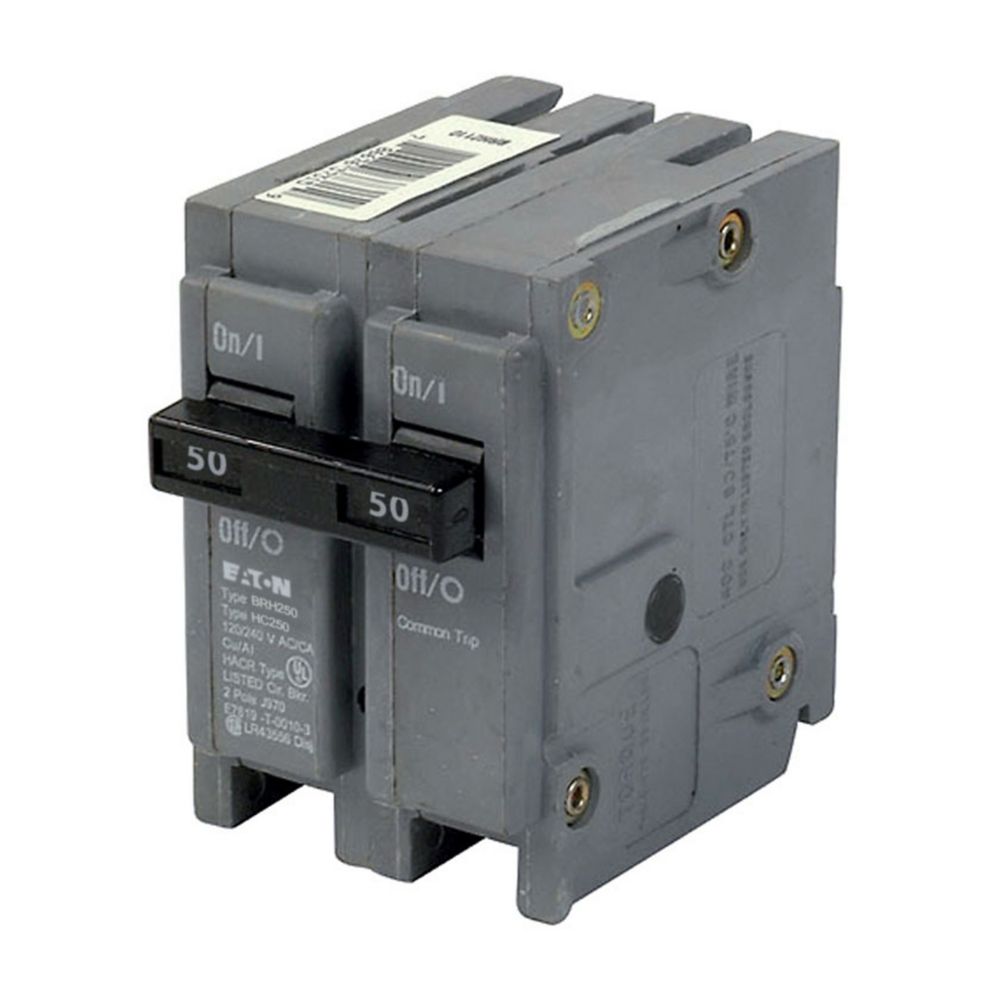

BRH250 - Cutler Hammer 50A 120/240V 2-Pole Thermal Magnetic Circuit Breaker Plug-On BRH Series

BRH250

BRH250 is a Cutler Hammer 2-pole thermal magnetic circuit breaker rated for 50 amps and 120/240 volts AC, designed for reliable protection in residential and light commercial applications.This BRH series breaker features a 22kA interrupting rating at 240V, plug-on mounting type for easy installation in Type BR load centers, and common trip functionality. It supports wire gauges from #14 to #4 AWG copper or aluminum wiring and is UL listed for safety compliance.

• Amperage: 50 Amps
• Voltage Rating: 120/240 VAC
• Poles: 2
• Interrupting Rating: 22kA at 240V
• Mounting Type: Plug-On
• Series/Frame: BRH
• Trip Unit: Thermal Magnetic with Common Trip
• Wire Gauge: #14-4 AWG Cu/Al
• Certifications: UL Listed
• Application: Type BR Load Centers

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BRH250
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BR Series
• Type : BRH
• Voltage : 240
• Amperage : 50
• Phase : 1
• Poles : 2
• AIC rating : 22kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786676373708
• GTIN : 00786676373708
• Country of Origin : Dominican Republic
• Dimensions : 3 in x 3 in x 2 in (Length/Depth x Height x Width)
• Weight : 0.6
• Certification : UL 490,Federal Specifications Classification W-C376
• Wire Size : AWG 14 to AWG 4, Cu/Al
