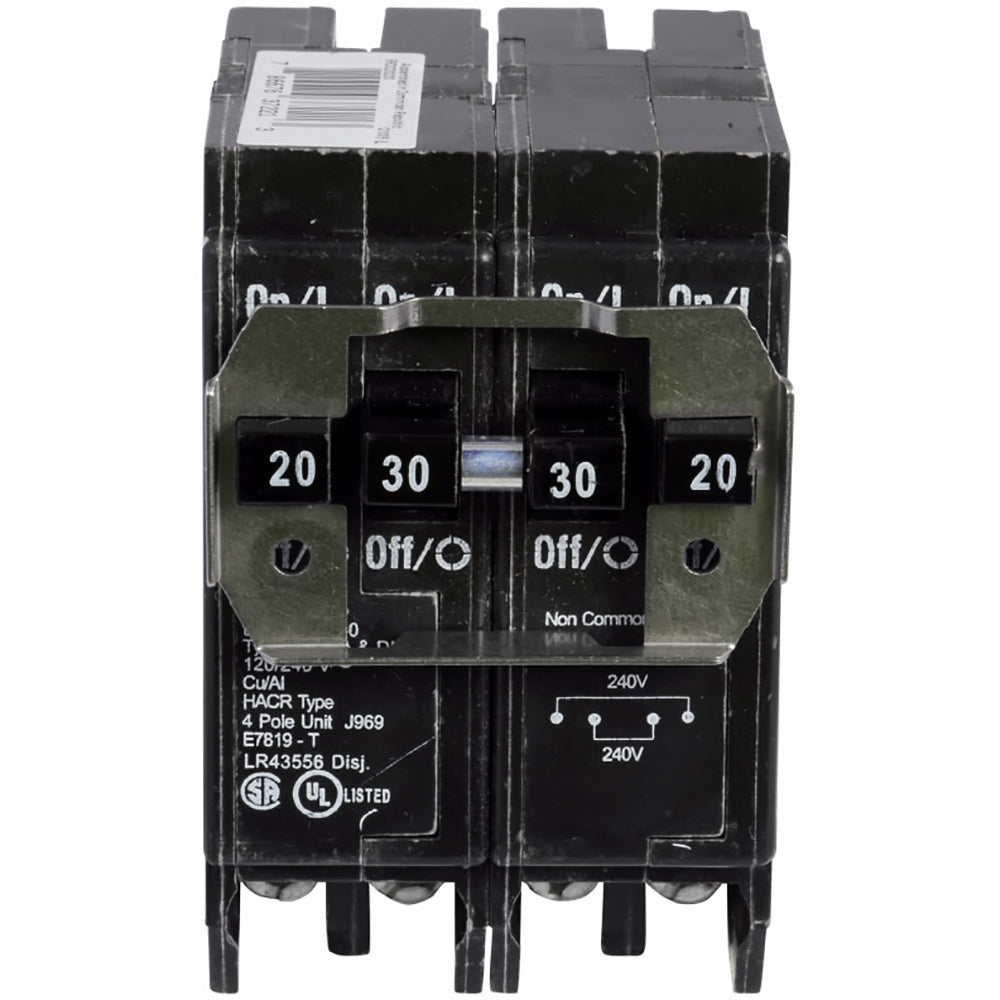

BRDC230230 - Cutler Hammer Type BR 1-Inch Quad Circuit Breaker, 30A, 120/240V, 4-Pole, Common Trip, 10 kAIC, Non-CTL, Thermal Magnetic

BRDC230230

BRDC230230 is a Cutler Hammer Type BR 1-inch quad circuit breaker designed for reliable protection in residential and light commercial applications.

This thermal magnetic, common trip breaker features a compact quadplex design, offering two independent 30A circuits in a single unit. It is rated for 120/240V AC systems, supports #14-4 AWG copper or aluminum wire, and is suitable for non-CTL (non-circuit limiting) panels. The BRDC230230 is part of the trusted BR Series, known for durability and ease of installation.

Key Specifications

• Amperage: 30A (each pole)
• Voltage: 120/240V AC
• Poles: 4 (quadplex, two independent 2-pole breakers)
• Mounting Type: Plug-in (BR Series panel)
• Interrupt Rating: 10 kAIC
• Series/Frame: BR Series, 1-inch quad
• Trip Unit: Thermal magnetic, common trip
• Certifications: UL Listed
• Wire Size: #14-4 AWG Cu/Al
• Non-CTL (non-circuit limiting)
• Common trip for enhanced safety
• Compact, space-saving design

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BRDC230230
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BRD Series
• Type : BRDC
• Voltage : 240
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786676372329
• GTIN : 00786676372329
• Country of Origin : Dominican Republic
• Dimensions : 3 in x 3 in x 2 in (Length/Depth x Height x Width)
• Weight : 0.8
• Certification : UL 489,Federal Specifications Classification W-C375
• Wire Size : AWG 14 to AWG 4, Cu/Al
