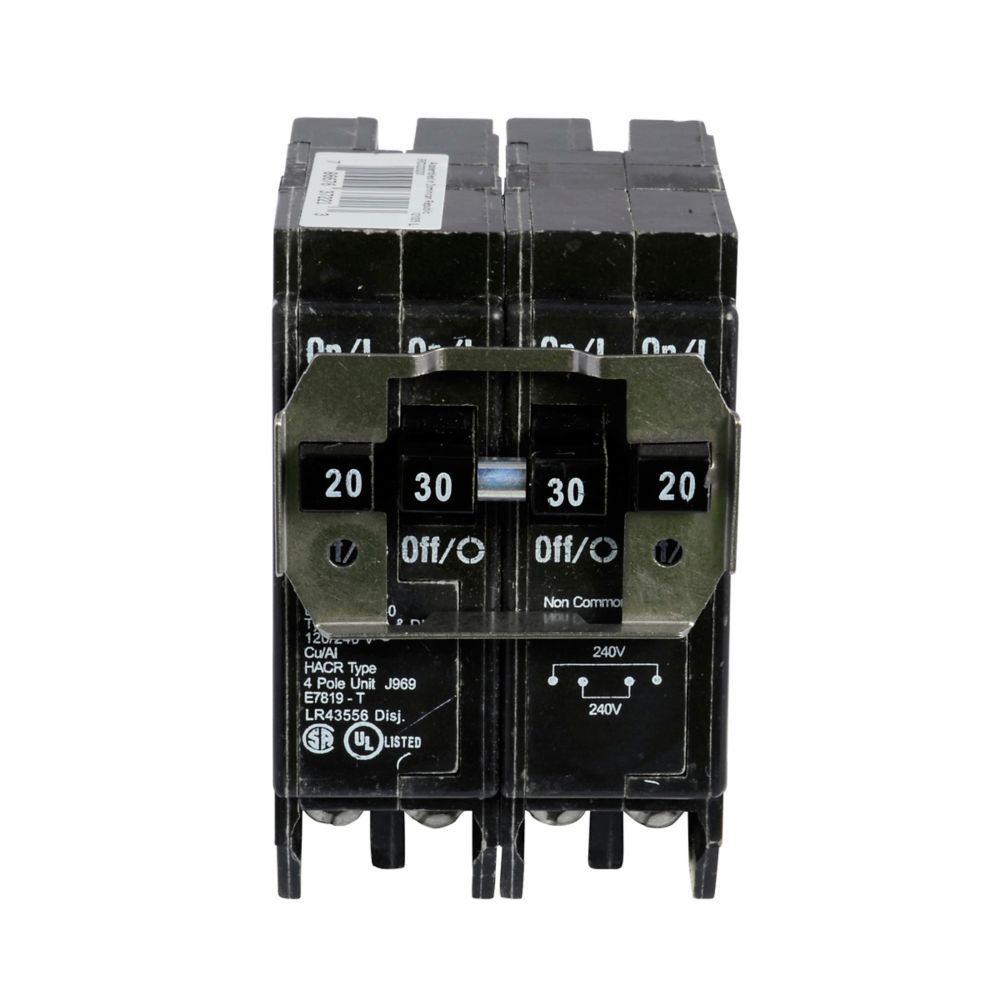

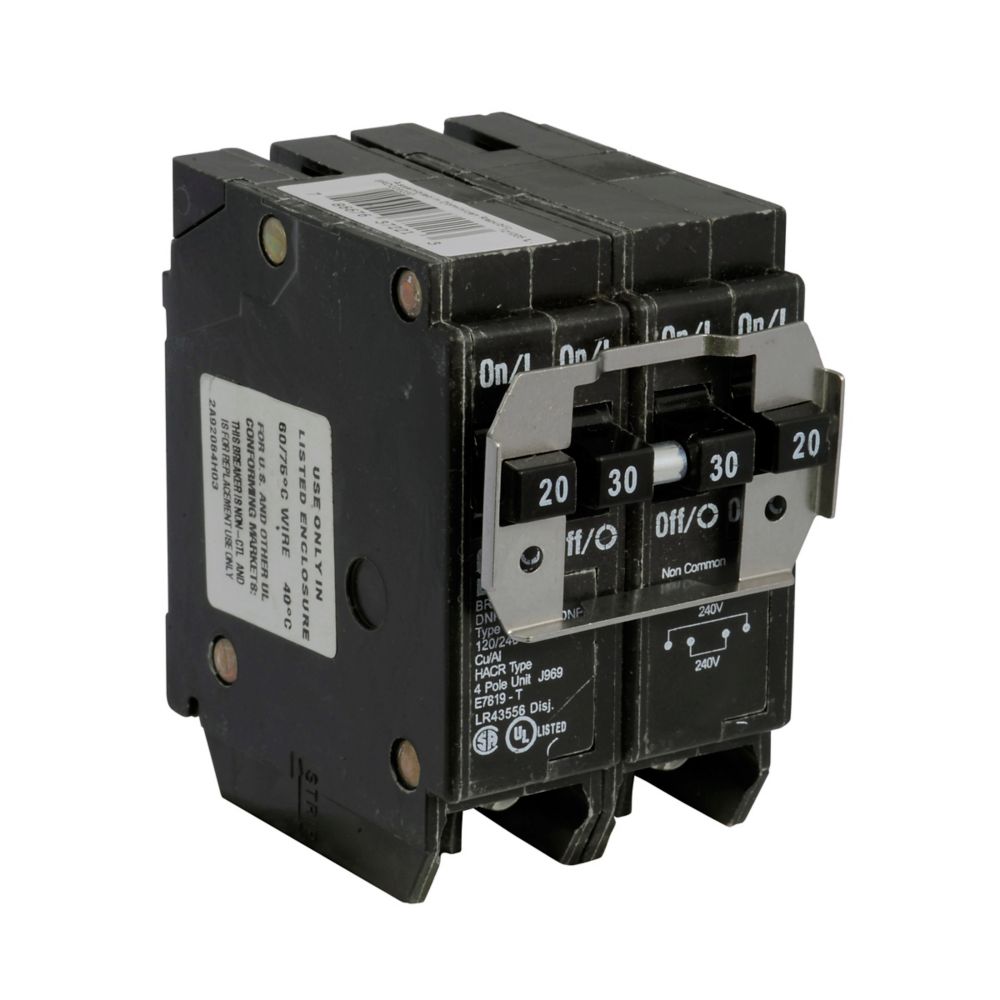

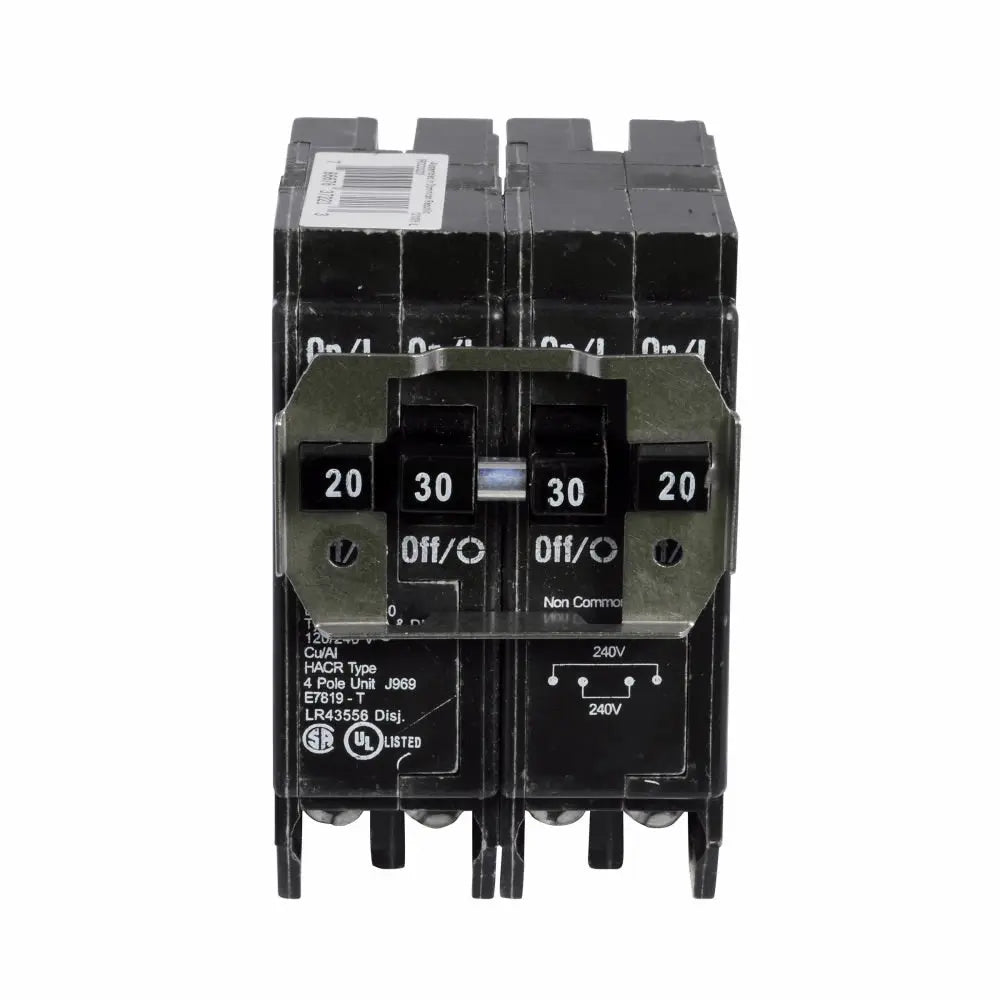

BRD220230 - Cutler Hammer Eaton 1-Inch Quad Circuit Breaker, 2x20A/2x30A, 4-Pole, 120/240V, 10kAIC, Plug-On, Type BR, Independent Trip

BRD220230

BRD220230 is a Cutler Hammer Eaton 1-inch quad circuit breaker designed for reliable circuit protection in residential and light commercial applications.

This thermal magnetic circuit breaker features four independent poles—two rated at 20A and two at 30A—in a compact, space-saving design. It is compatible with Type BR load centers, offers a 10kA interrupt rating, and supports both copper and aluminum conductors. The plug-on mounting ensures quick installation, while the independent trip function allows each pole to operate separately for enhanced safety and flexibility.

Key Specifications
• Part Number: BRD220230
• Manufacturer: Cutler Hammer Eaton
• Amperage: 2x20A, 2x30A (quad)
• Voltage: 120/240V
• Poles: 4 (quad)
• Mounting Type: Plug-On
• Interrupt Rating: 10kAIC
• Series/Frame: Type BR
• Trip Unit: Thermal Magnetic, Independent
• Certifications: Not specified
• Conductor Size: #14-4 AWG Cu/Al
• Connection: Plug-In

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BRD220230
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BRD Series
• Type : BRD
• Voltage : 240
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786676372213
• GTIN : 00786679256152
• Country of Origin : Dominican Republic
• Dimensions : 3.25 in x 2.75 in x 2 in (Length/Depth x Height x Width)
• Weight : 0.8 lb
• Certification : UL 489,Federal Specifications Classification W-C375
• Wire Size : #14 to 4 AWG CU/AL
