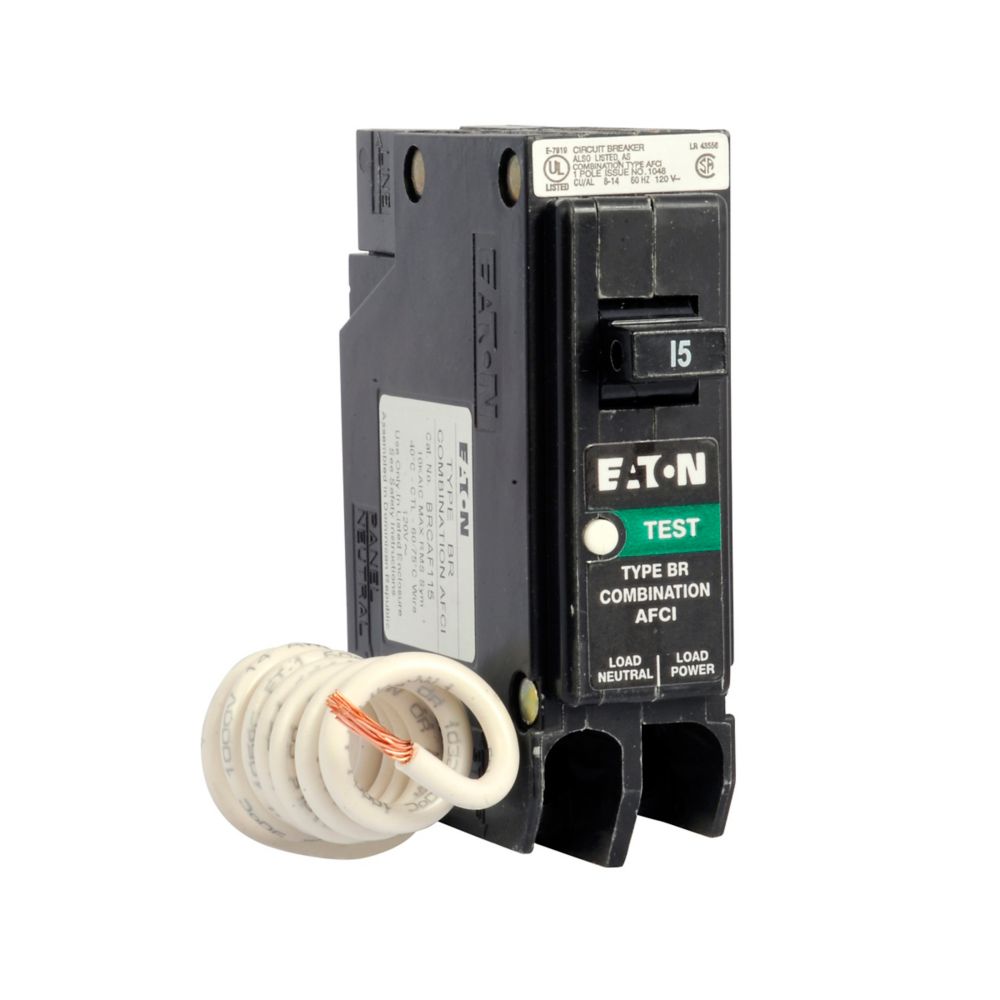

BRCAF115CS - Cutler Hammer 15 Amp 120 Volt Single-Pole Combination Arc Fault Circuit Breaker BR Series

BRCAF115CS

BRCAF115CS is a 15 Amp, 120 Volt, single-pole combination arc fault circuit breaker from Cutler Hammer's BR Series designed for enhanced electrical safety.This circuit breaker features a 10 kA interrupt rating, pigtail connection, and is suitable for Type BR load centers. It supports #14-4 AWG copper/aluminum wiring and includes continuous self-test of electronic components for reliable arc fault detection. The breaker complies with UL 1699 certification and offers lifetime trip code retention.

• Amperage: 15 A
• Voltage: 120 V
• Poles: Single-pole
• Interrupt Rating: 10 kAIC
• Series/Frame: BR
• Mounting Type: Plug-in with pigtail connection
• Wire Size: #14-4 AWG Cu/Al
• Trip Unit: Combination Arc Fault Circuit Interrupter (AFCI)
• Certifications: UL 1699
• Suitable for Type BR Load Centers
• Dimensions: 6 in length, 1.25 in height
• Warranty: Limited lifetime residential, 1 year commercial

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BRCAF115CS
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BR Series
• Type : BRCAF
• Voltage : 120
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : Long-Time and Instantaneous Trip
• Terminal Connection : Pigtail
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 4 AWG (Cu/Al)
• Breaker Type : BR
• Protection : Thermal Magnetic

Product Data

• UPC : 786685514369
• GTIN : 00786685514369
• Country of Origin : Dominican Republic
• Dimensions : 6 in x 1.25 in x 3.5 in (Length/Depth x Height x Width)
• Weight : 0.45
• Panel Type : Type BR Loadcenters
• Standards : UL 1699
• Certification : UL 1699,Federal Specifications Classification W-C375
• Wire Size : AWG 14 to AWG 4, Cu/Al
