Product Info
- Manufacturer:Westinghouse
- Sub-Category:Molded Case
Description
BR390ST

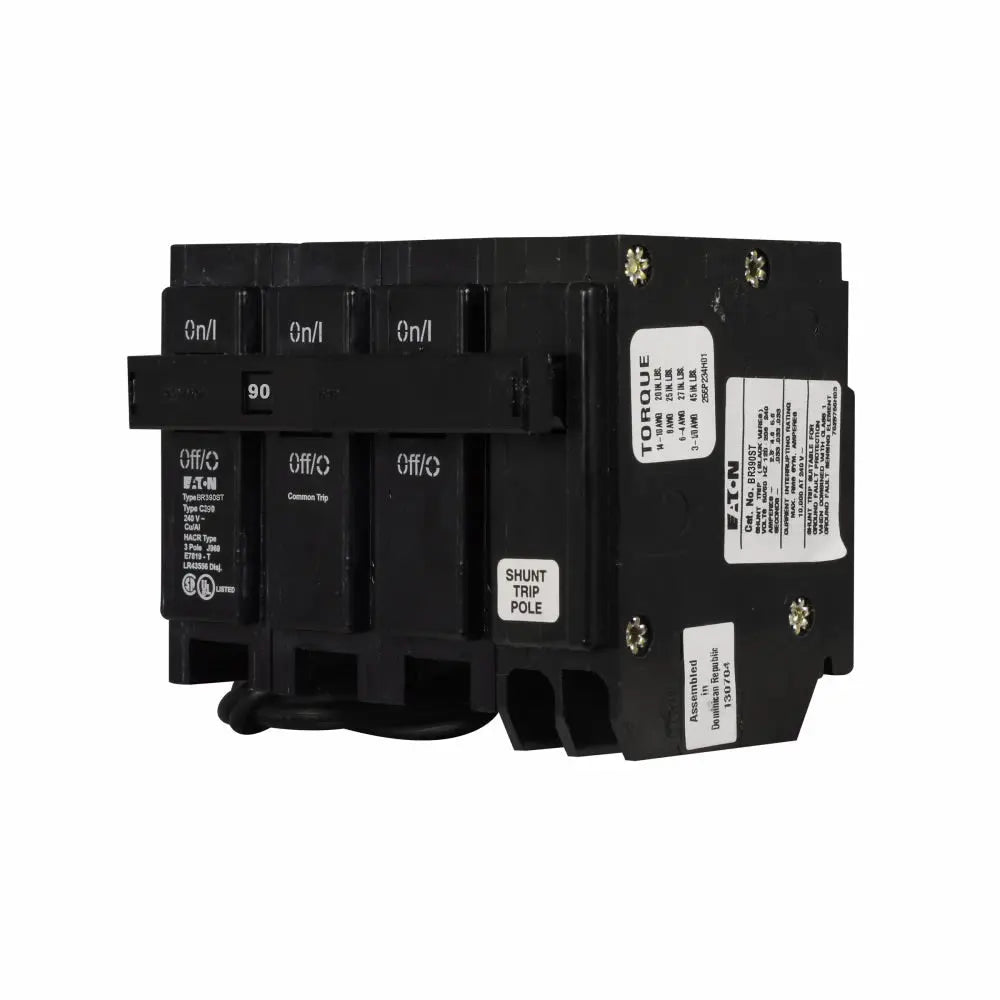

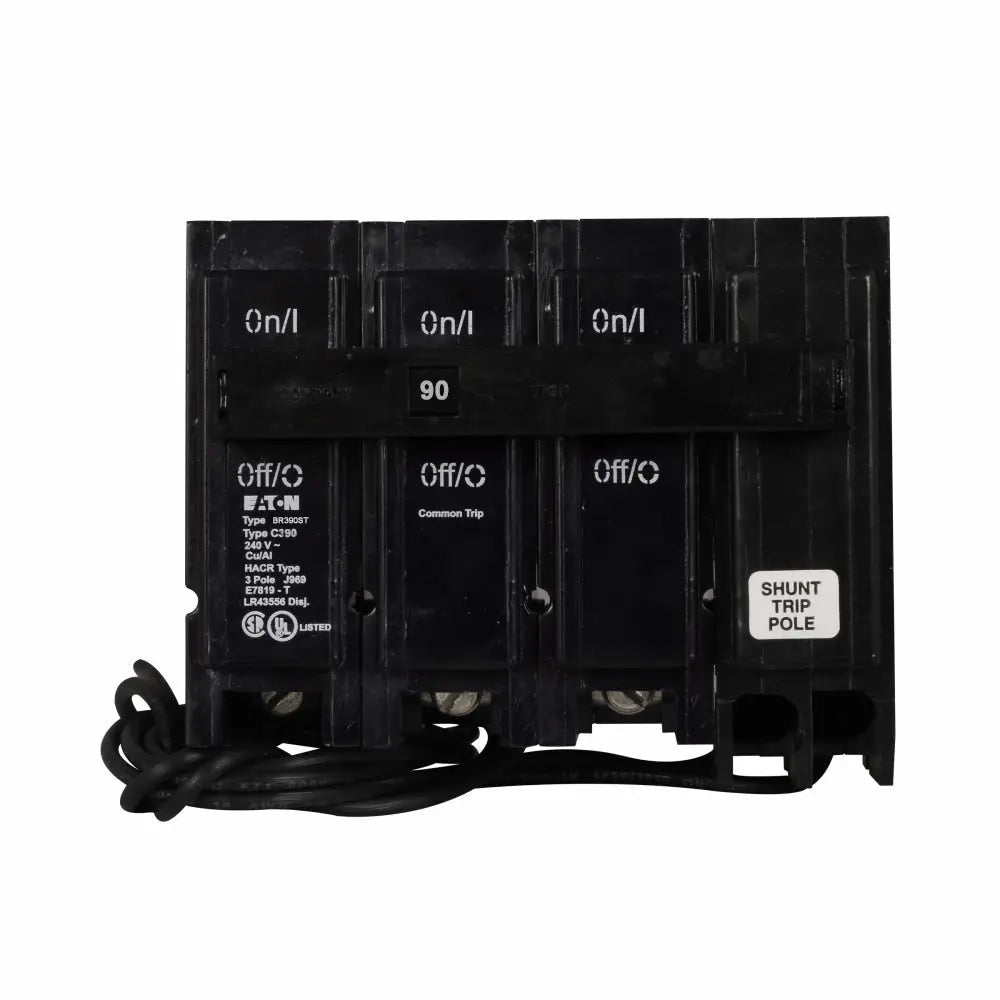

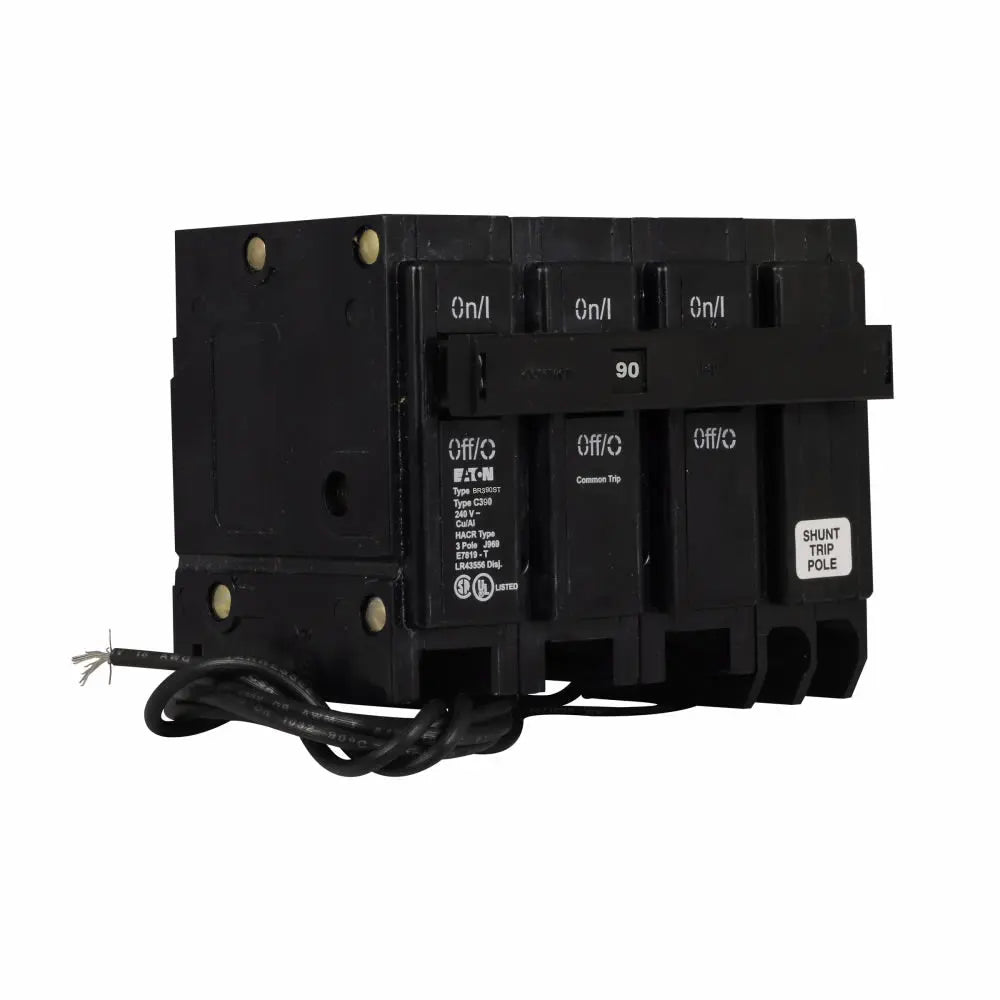

BR390ST is a Westinghouse 3-pole circuit breaker designed for 90 ampere and 240 volt applications with a BR frame and shunt trip feature.This thermal magnetic circuit breaker offers reliable protection with a common breaker trip and a 10kA interrupting rating at 240 volts. It features a 1-inch plug-on mounting type suitable for residential and commercial load centers. The breaker is UL listed and designed for use in 240V AC systems.
- Manufacturer: Westinghouse
- Part Number: BR390ST
- Amperage: 90 A
- Voltage: 240 V AC
- Poles: 3
- Frame Type: BR
- Trip Unit: Thermal Magnetic with Common Breaker Trip
- Mounting Type: 1-inch Plug-on
- Interrupt Rating: 10,000 AIC at 240 V
- Shunt Trip: Included
- Certifications: UL Listed
Additional Information
complete with 120V shunt trip
Specifications
- Part Number: BR390ST
- Manufacturer : Westinghouse
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BR Series
- Type : BR
- Voltage : 240
- Amperage : 90
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786676003476
- GTIN : 00786676003476
- Country of Origin : Dominican Republic
- Dimensions : 3 in x 3 in x 3 in (Length/Depth x Height x Width)
- Weight : 1.3
- Certification : UL 489,Federal Specifications Classification W-C375
- Wire Size : #4 to 1/0 AWG CU/AL
