BR380ST - Westinghouse 80A 3-Pole 120/240V Shunt Trip Circuit Breaker, Type BR Frame, 10 kAIC, Plug-On Mount, UL 489

BR380ST

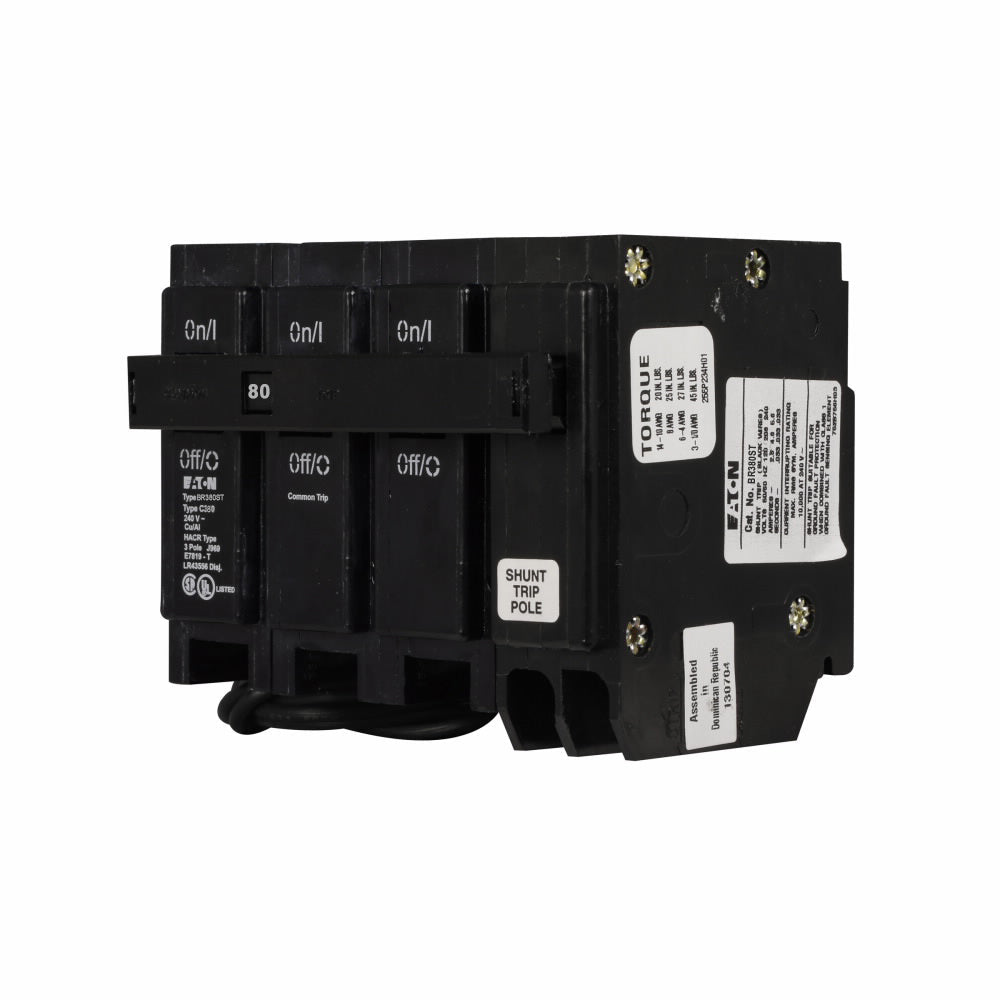

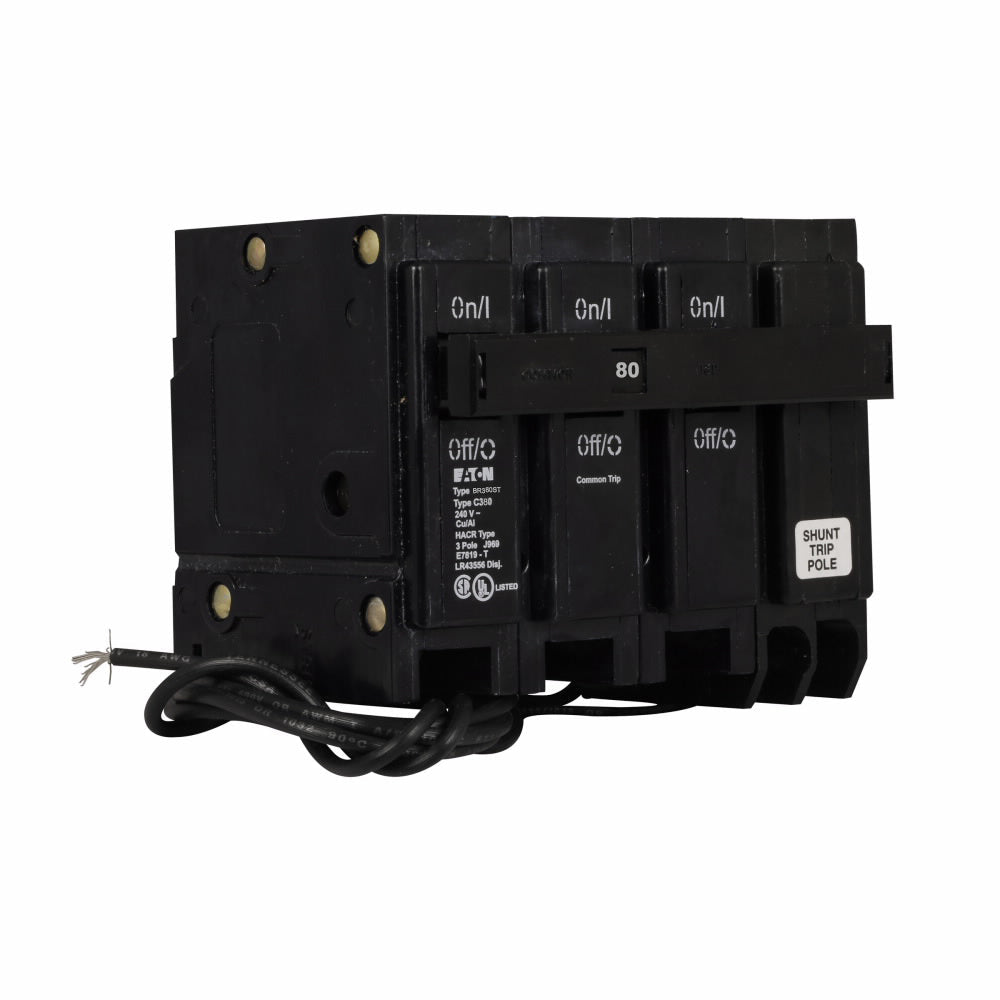

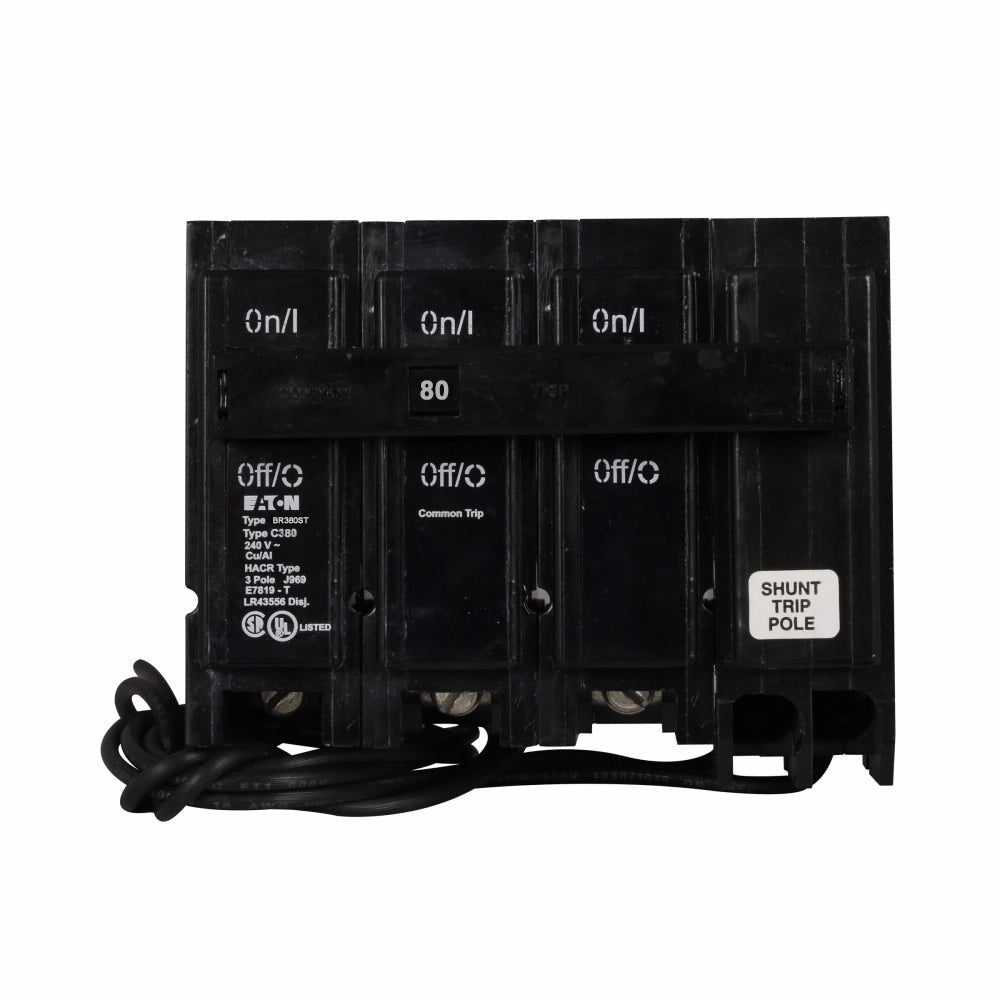

BR380ST is a Westinghouse 3-pole, 80 amp, 120/240V shunt trip circuit breaker designed for Type BR loadcenters.

This thermal magnetic molded case circuit breaker features a common trip mechanism, plug-on mounting for easy installation, and includes a shunt trip accessory for remote operation. It is certified to UL 489 standards and is suitable for residential and light commercial applications where reliable circuit protection and remote control are required.

Key Specifications
• Amperage: 80A
• Voltage: 120/240V
• Poles: 3
• Mounting Type: Plug-on
• Interrupt Rating: 10 kAIC
• Series/Frame: Type BR
• Trip Unit: Thermal magnetic, common trip
• Shunt Trip: Included
• Wire Size: #4-1/0 AWG Cu/Al
• Certifications: UL 489
• Warranty: Limited lifetime residential, 1 year commercial
• Compliance: Federal Specifications Classification W-C375

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120V shunt trip

Specifications

• Part Number: BR380ST
• Manufacturer : Westinghouse
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BR Series
• Type : BR
• Voltage : 240
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786676003469
• GTIN : 00786676003469
• Country of Origin : Dominican Republic
• Dimensions : 3 in x 3 in x 3 in (Length/Depth x Height x Width)
• Weight : 1.3
• Certification : UL 489,Federal Specifications Classification W-C375
• Wire Size : #4 to 1/0 AWG CU/AL
