Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
BR3030

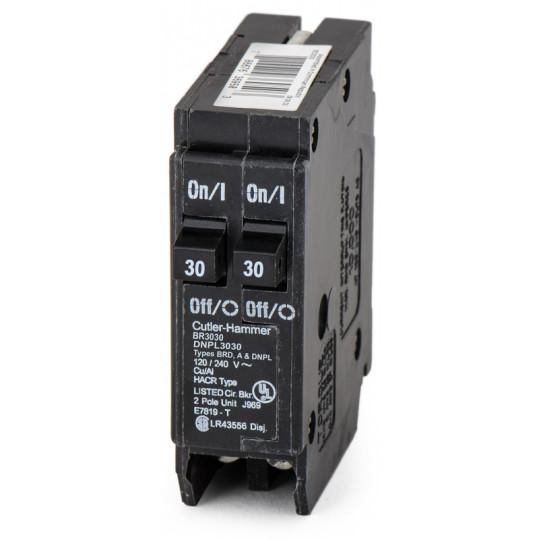

BR3030 is an Eaton duplex (tandem) circuit breaker rated 30/30 A for 120/240 V AC panels. It fits two circuits in a single 1-inch space and carries a 10 kA interrupting rating for dependable protection. Key Specifications:
- Part Number: BR3030
- Manufacturer: Eaton
- Type: Duplex/tandem breaker
- Amperage: 30/30 A
- Voltage: 120/240 V AC
- Interrupt Rating: 10 kA
- Mounting: Type BR plug-in, 1-inch wide
Specifications
- Part Number: BR3030
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BR Series
- Type : BR
- Voltage : 120
- Amperage : 30
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Plug-In
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 4 AWG (Cu/Al)
- Breaker Type : BR
- Protection : Thermal Magnetic
Product Data
- UPC : 786676370301
- GTIN : 00786676370301
- Country of Origin : Dominican Republic
- Dimensions : 1 in x 2.5 in x 2.9 in (Length/Depth x Height x Width)
- Weight : 0.35
- Panel Type : Type BR Loadcenters
- Standards : UL 489
- Certification : UL 489
- Wire Size : AWG 14 to 4 AWG, Cu/Al
