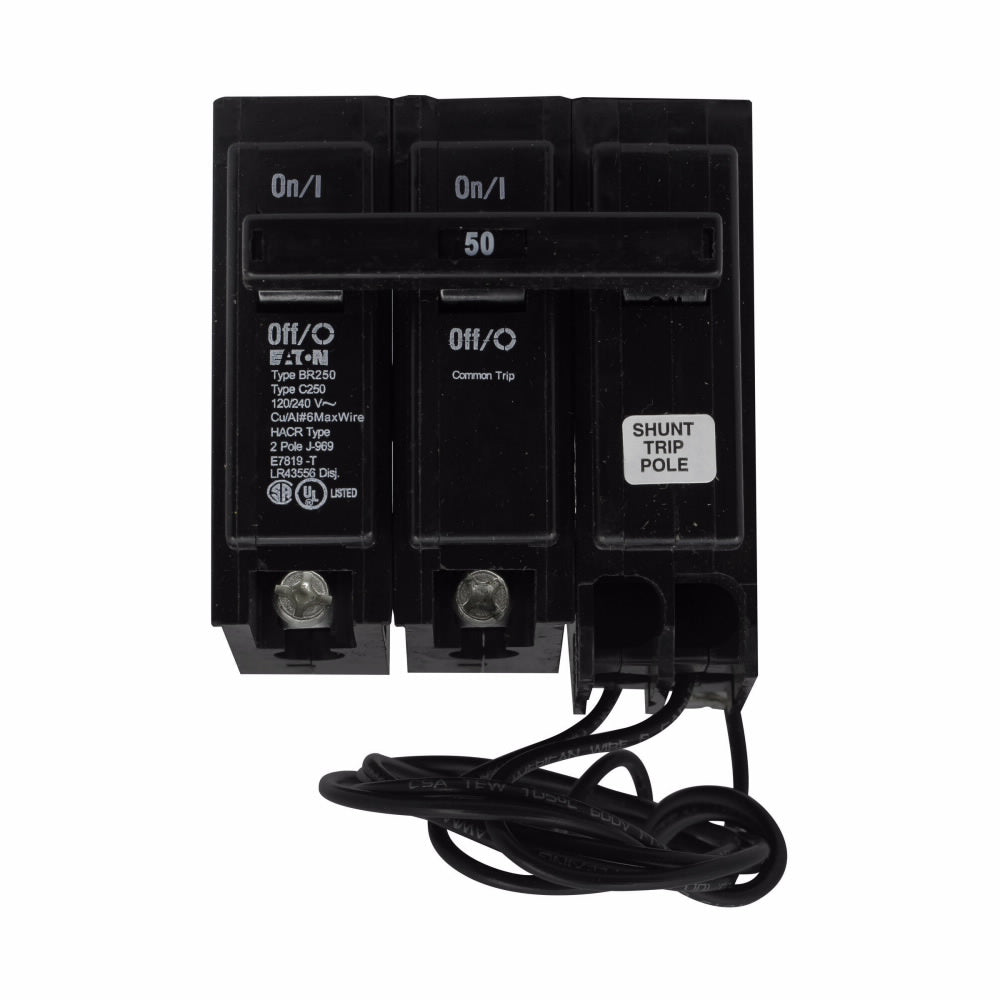

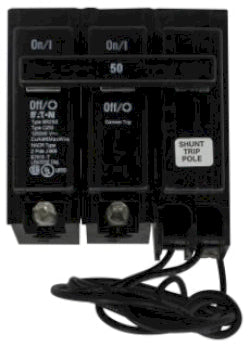

BR250ST - Cutler Hammer 50A 120/240V 2-Pole Plug-On Shunt Trip Circuit Breaker Type BR 10kAIC

BR250ST

BR250ST is a Cutler Hammer Type BR 2-pole plug-on circuit breaker with a 50 amp rating and 120/240 volt capacity featuring a shunt trip.This thermal magnetic circuit breaker provides reliable protection with a 10 kA interrupting rating, common breaker trip, and is designed for use in Type BR loadcenters. It supports #14-4 AWG copper/aluminum wiring and includes a shunt trip for remote tripping capability. The breaker mounts via a plug-on method and is UL 489 certified.

Key Specifications
• Amperage: 50 A
• Voltage: 120/240 V
• Poles: 2
• Mounting Type: Plug-on
• Interrupt Rating: 10 kAIC
• Series/Frame: Type BR
• Trip Unit: Thermal Magnetic with Common Breaker Trip
• Shunt Trip: Included
• Wire Size: #14-4 AWG Cu/Al
• Certifications: UL 489

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120V shunt trip

Specifications

• Part Number: BR250ST
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BR Series
• Type : BR
• Voltage : 240
• Amperage : 50
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786676000345
• GTIN : 00786676000345
• Country of Origin : Dominican Republic
• Dimensions : 4.25 in x 3.5 in x 4 in (Length/Depth x Height x Width)
• Weight : 0.94
• Certification : UL 489,Federal Specifications Classification W-C375
• Wire Size : AWG 14 to AWG 4, Cu/Al
