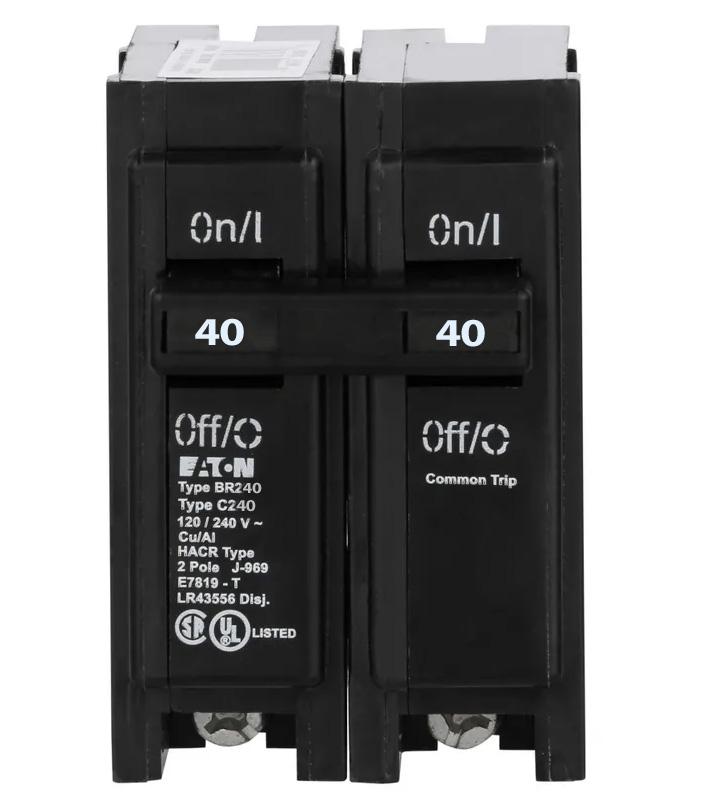

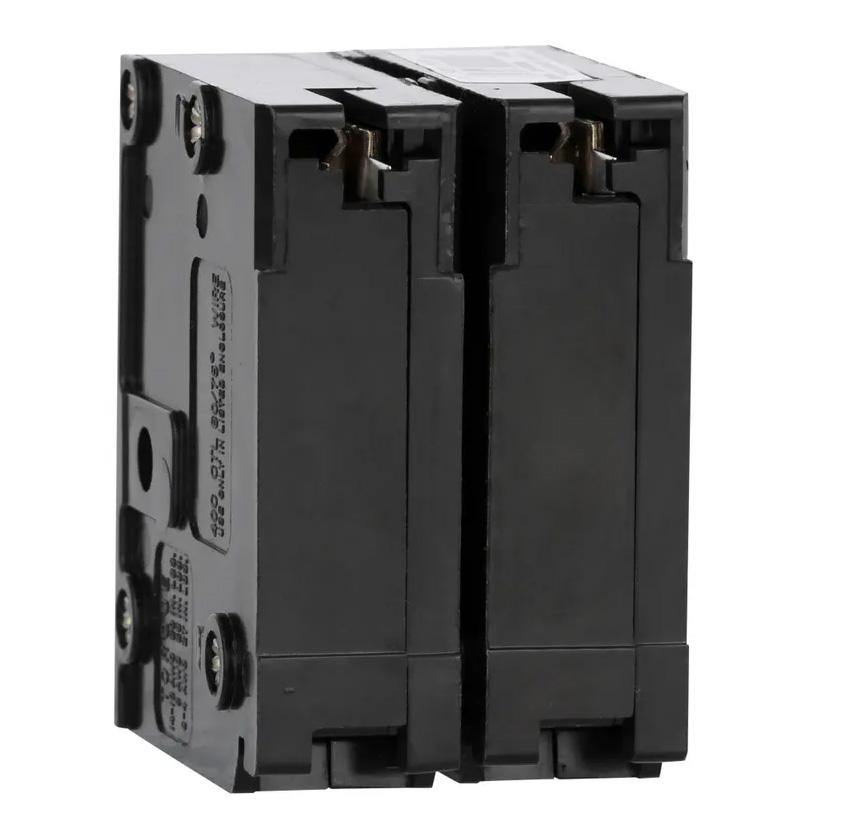

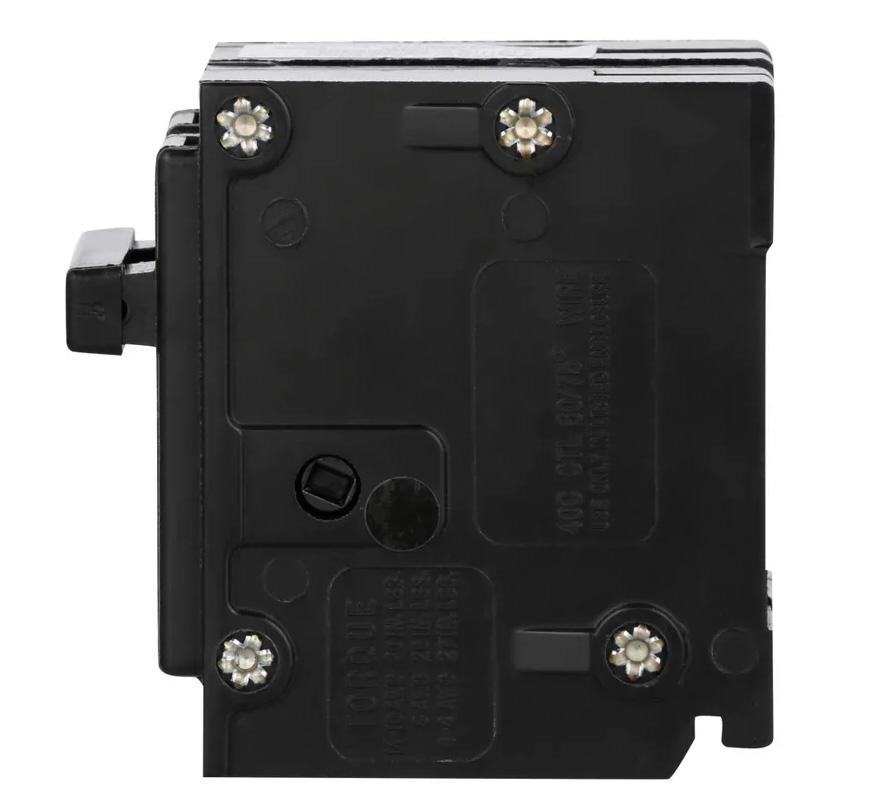

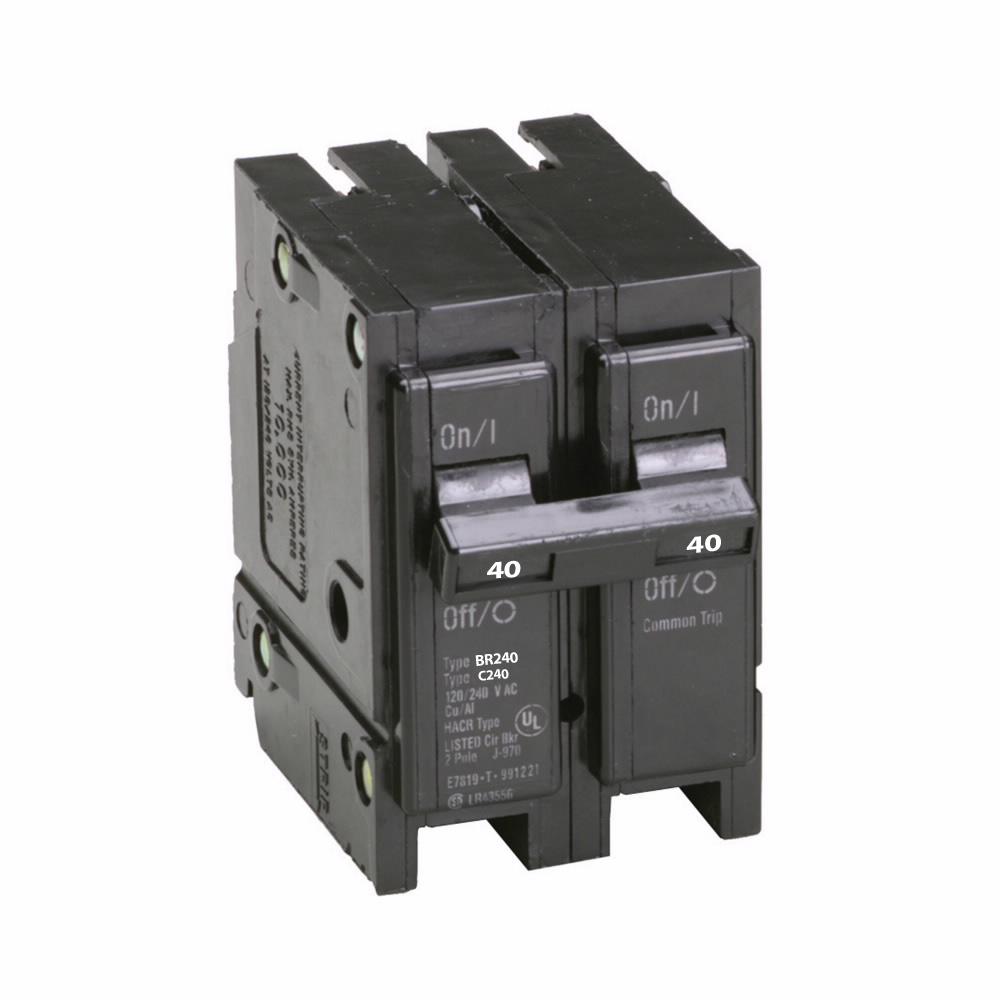

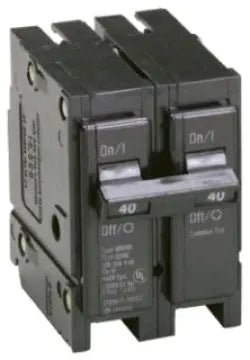

BR240 - Cutler Hammer 40 Amp 120/240V 2 Pole Thermal Magnetic Circuit Breaker Plug-On BR Frame

BR240

BR240 is a Cutler Hammer 40 Amp, 2 Pole thermal magnetic circuit breaker designed for 120/240 Volt applications with a plug-on mounting type.

This circuit breaker features a 10 kA interrupt rating at 240V, common breaker trip, and is compatible with Type BR load centers. It supports wire sizes from 14 to 4 AWG copper or aluminum and meets UL 489 and Federal Specification W-C375 certifications. The breaker has a compact 1.9 in depth, 2.9 in width, and 2.5 in height, making it suitable for residential and light commercial use.

Key Specifications
• Amperage: 40 A
• Voltage Rating: 120/240 VAC
• Number of Poles: 2
• Mounting Type: Plug-On
• Interrupt Rating: 10 kAIC at 240V
• Trip Unit: Thermal Magnetic, Common Breaker Trip
• Series/Frame: BR
• Wire Size: 14 - 4 AWG Cu/Al
• Certifications: UL 489, Federal Specification W-C375
• Compatible with Type BR Load Centers
• Dimensions: 1.9" D x 2.9" W x 2.5" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BR240
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BR Series
• Type : BR
• Voltage : 240
• Amperage : 40
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 4 AWG (Cu/Al)
• Breaker Type : BR
• Protection : Thermal Magnetic

Product Data

• UPC : 786676363006
• GTIN : 00786676363006
• Country of Origin : United States
• Dimensions : 1.9 in x 2.5 in x 2.9 in (Length/Depth x Height x Width)
• Weight : 0.55
• Panel Type : Type BR Loadcenters
• Standards : UL 489
• Certification : UL 489
• Wire Size : AWG 14 to AWG 4, Cu/Al
