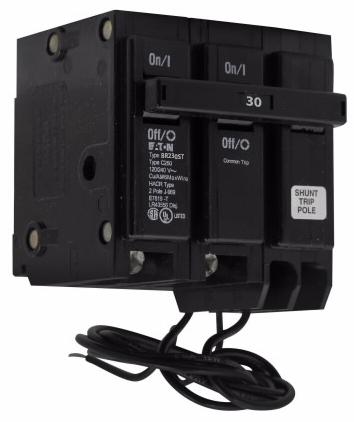

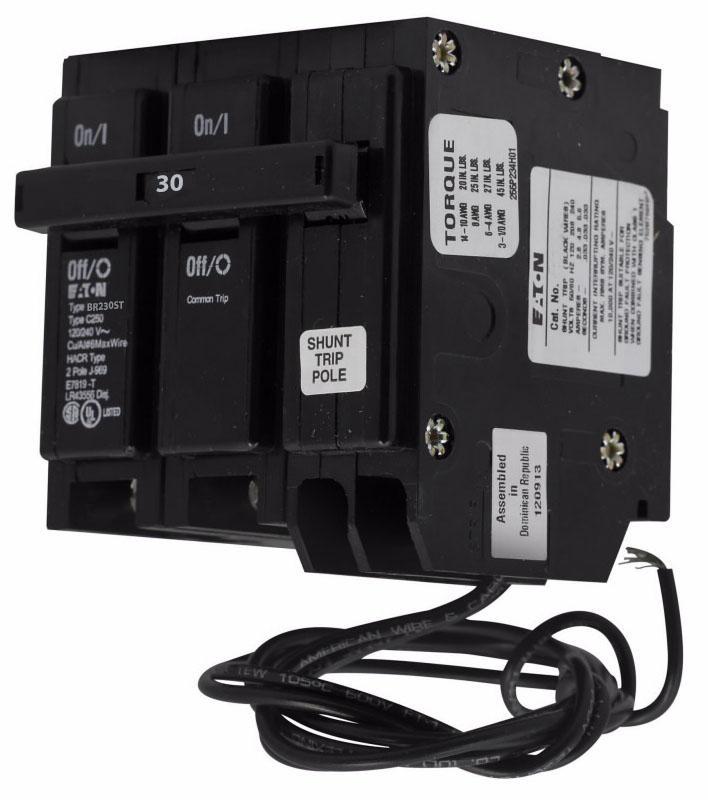

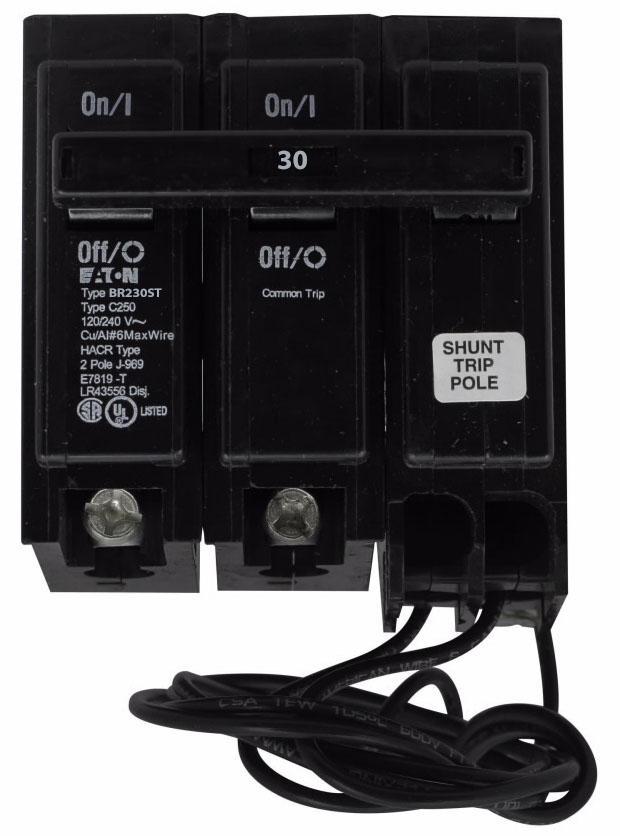

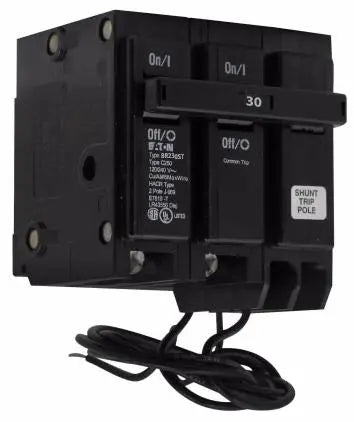

BR230ST - Cutler Hammer 30 Amp 2 Pole 120/240V Type BR Circuit Breaker with Shunt Trip 10kAIC

BR230ST

BR230ST is a Cutler Hammer Type BR circuit breaker designed for residential and commercial electrical protection.This 30 Amp, 2 Pole circuit breaker operates at 120/240 Volts with a 10,000 AIC interrupt rating. It features a thermal magnetic trip unit with common breaker trip and includes a 120VAC shunt trip for remote tripping capability. The breaker is plug-on mounted and HACR rated, suitable for use in Type BR load centers. It supports #14-4 AWG copper or aluminum wiring.

Key Specifications
• Amperage: 30 Amp
• Voltage: 120/240 VAC
• Poles: 2
• Interrupt Rating: 10,000 AIC
• Type: BR
• Trip Unit: Thermal Magnetic, Common Trip
• Mounting: Plug-On
• Shunt Trip: 120VAC Included
• Wire Size: #14-4 AWG Cu/Al
• HACR Rated
• Dimensions: Approx. 3.0"W x 2.88"H x 2.56"D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120V shunt trip

Specifications

• Part Number: BR230ST
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BR Series
• Type : BR
• Voltage : 240
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 78667600023
• GTIN : 00786676000239
• Country of Origin : Dominican Republic
• Dimensions : 4.5 in x 4 in x 4.25 in (Length/Depth x Height x Width)
• Weight : 1
• Certification : UL 489,Federal Specifications Classification W-C375
• Wire Size : AWG 14 to AWG 4, Cu/Al
