Product Info
- Manufacturer:Westinghouse
- Sub-Category:Molded Case
Description
BR130ST

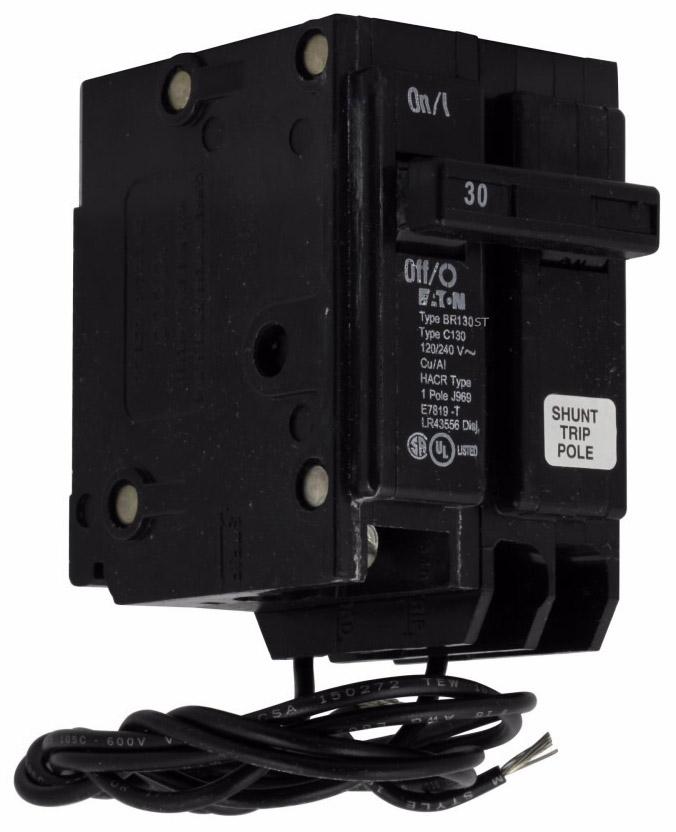

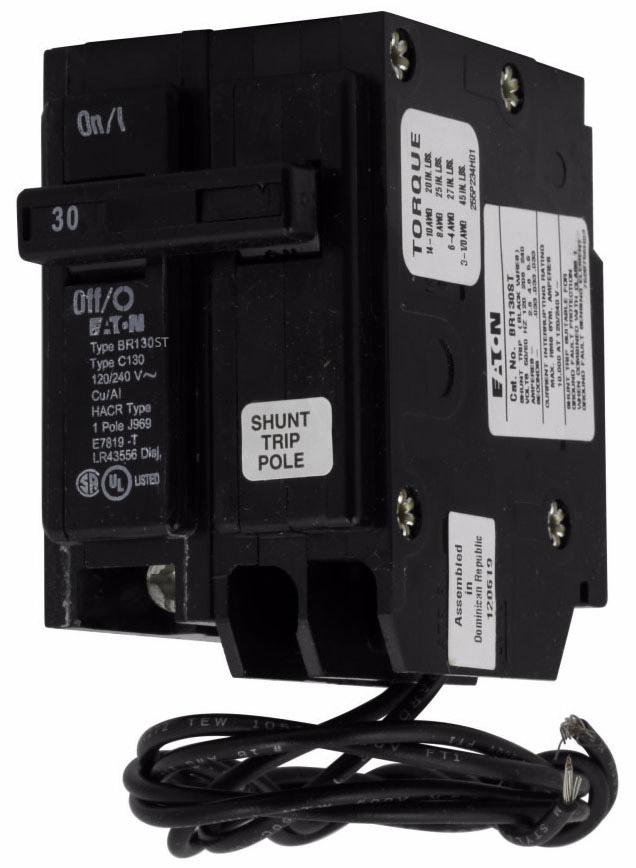

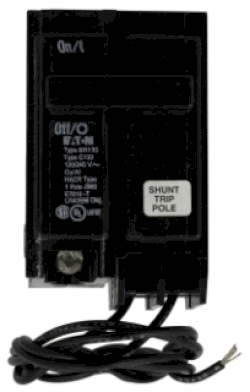

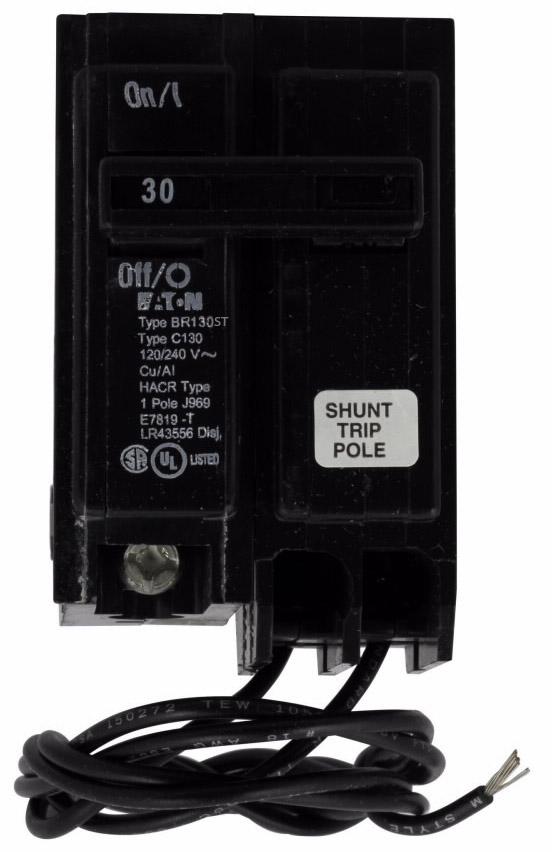

BR130ST is a Westinghouse 1-pole, 30 amp, 120/240V plug-on circuit breaker with shunt trip, designed for Type BR loadcenters.This thermal magnetic circuit breaker features a 10 kA interrupting rating, supports #14-4 AWG copper/aluminum wiring, and complies with UL 489 standards. It is part of the BR Series, providing reliable protection with a compact 1-inch plug-on mounting style.
- Amperage: 30A
- Voltage: 120/240V AC
- Number of Poles: 1
- Interrupt Rating: 10 kAIC
- Mounting Type: 1-Inch Plug-On
- Series/Frame: BR Series
- Trip Unit: Thermal Magnetic with Shunt Trip
- Wire Size: #14-4 AWG Cu/Al
- Certifications: UL 489
- Compatible with Type BR Loadcenters
Additional Information
complete with 120V shunt trip
Specifications
- Part Number: BR130ST
- Manufacturer : Westinghouse
- Brand : Westinghouse
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BR Series
- Type : BR
- Voltage : 240
- Amperage : 30
- Phase : 1
- Poles : 1
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786676000185
- GTIN : 00786676000185
- Country of Origin : Dominican Republic
- Dimensions : 3.25 in x 3 in x 2 in (Length/Depth x Height x Width)
- Weight : 0.6
- Certification : UL
- Wire Size : AWG 14 to AWG 4, Cu/Al
