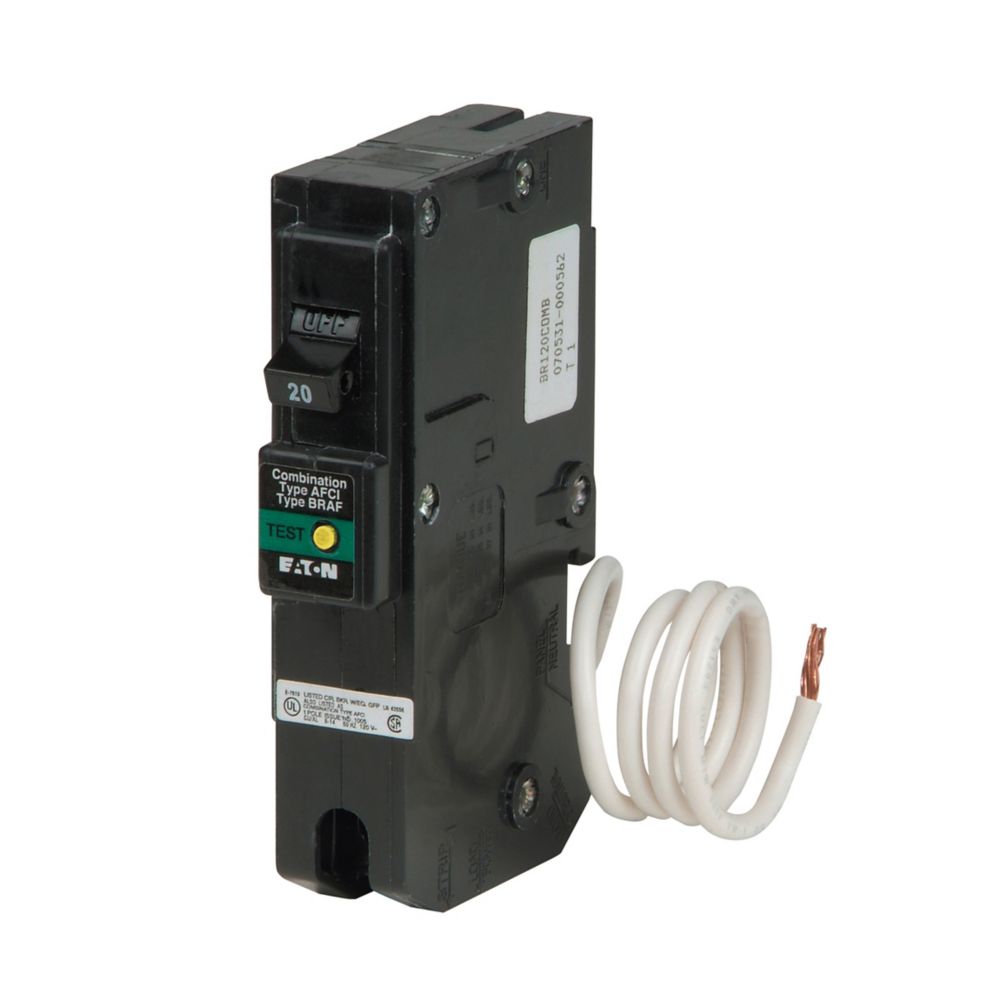

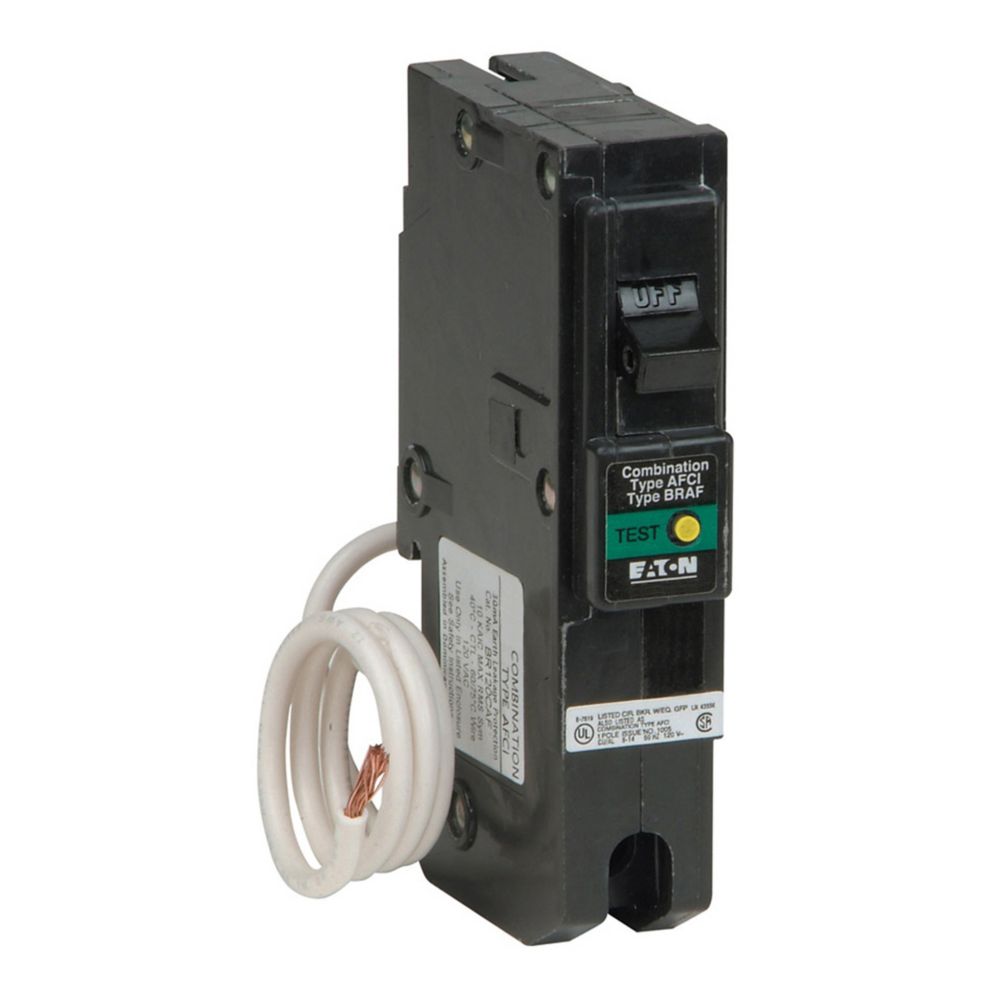

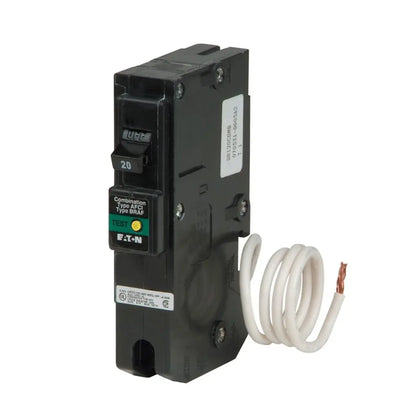

BR120CAF - Westinghouse 20A 120V 1 Pole Plug-In Combination Arc Fault Circuit Breaker 10kA Interrupt Rating

BR120CAF

BR120CAF is a 20 amp, 120 volt, 1 pole plug-in circuit breaker with a 10kA interrupt rating, manufactured by Westinghouse.This molded case circuit breaker from the BR series features combination type arc fault circuit interruption (AFCI) for enhanced fire safety. It is designed for plug-in mounting in load centers and provides reliable protection against persistent low current arcing faults and high current arcing faults. The breaker is HACR rated and suitable for residential and commercial applications requiring AFCI protection.

Key Specifications
• Amperage: 20A
• Voltage: 120V
• Poles: 1
• Mounting Type: Plug-In
• Interrupt Rating: 10kA @ 120V
• Series/Frame: BR Series
• Trip Unit: Combination Type Arc Fault Circuit Interrupter (AFCI)
• Certifications: HACR Rated
• Dimensions: Approx. 1.00" W x 4.56" L x 2.56" D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BR120CAF
• Manufacturer : Westinghouse
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BR Series
• Type : BR
• Voltage : 120
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786685160276
• GTIN : 00786685160276
• Dimensions : 6 in x 1.25 in x 3.5
• Weight : 0.57 lb
• Certification : UL Federal Specifications Classification W-C375
• Wire Size : #14-4 AWG Cu/Al
