Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
BQLT-20

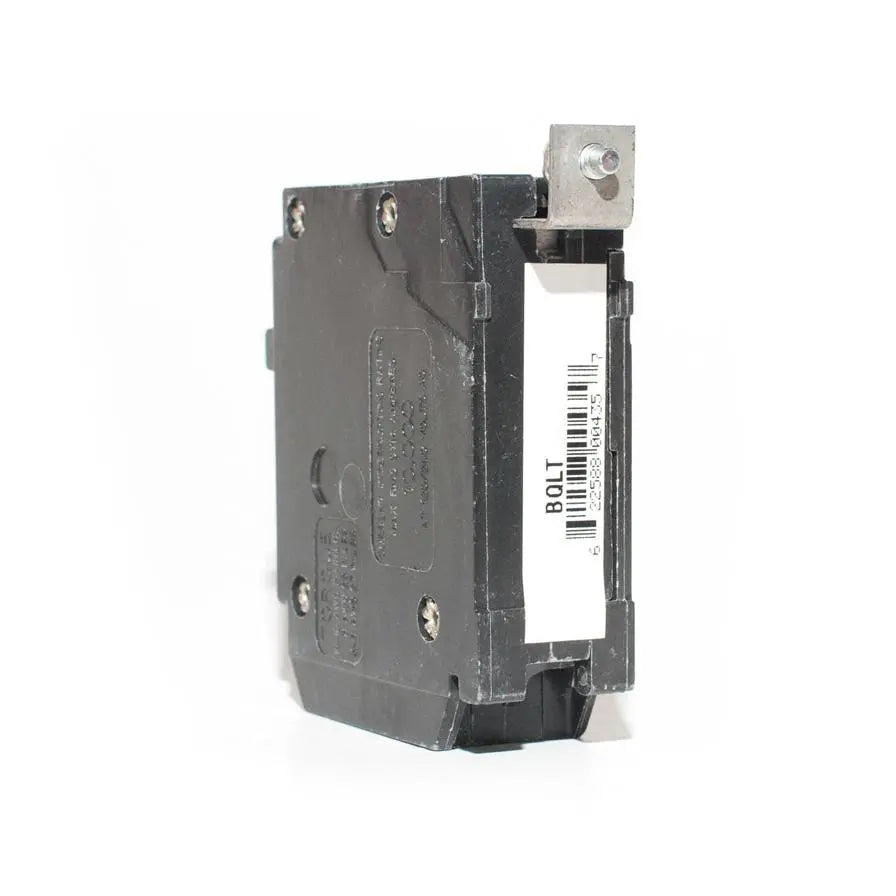

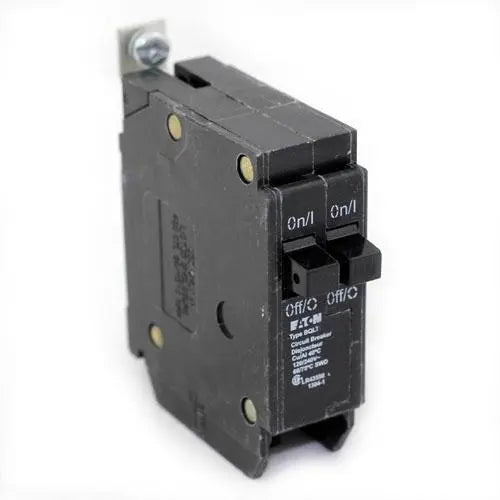

BQLT-20 is a 20 amp, 120 volt, 1 pole tandem bolt-on circuit breaker by Eaton designed for residential and light commercial applications.BQLT-20 provides two poles in the space of one, ideal for adding circuits in fully occupied main panels. It is a bolt-on replacement for Commander and Cutler-Hammer QL/QM panels, with a 10,000 AIC interrupt rating at 120/240 volts AC and supports #14-8 AWG copper or aluminum wiring.
- Key Specifications
- Amperage: 20 Amps
- Voltage: 120 Volts AC
- Poles: 1 Pole Tandem (two poles in one breaker)
- Mounting Type: Bolt-On
- Interrupt Rating: 10 kAIC at 120/240 Vac
- Series/Frame: BQLT Tandem
- Wire Size: #14-8 AWG Cu/Al
- Dimensions: 3.5" H x 1" W x 3.5" L
- Certifications: CSA Approved, UL Listed
- Compatible Panels: Commander and Cutler-Hammer QL/QM
Specifications
- Part Number: BQLT-20
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BQL Series
- Type : BQLT
- Voltage : 120
- Amperage : 20
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- Weight : 1
